SPECIALTY EXCAVATORS SK210D

'Proudly representing Kobelco in North East Victoria and Southern NSW'

Specialised nibblers are designed for more detailed seperating processes.
Includes Kobelco's GEOSCAN remove monitoring system.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

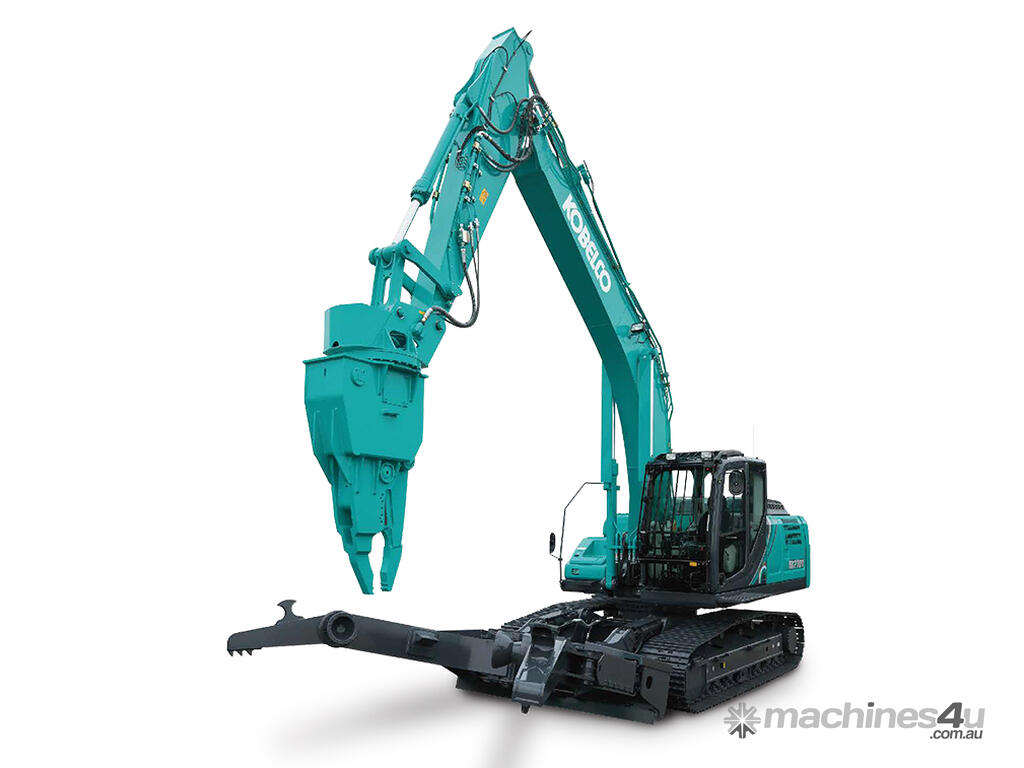

Machine designed and built specifically for car dismantling with piping for the rotating nibbler, front attachments, clamp arm, reinforced boom and arm, heavy duty cylinders and special heavy counterweight for increased stability.

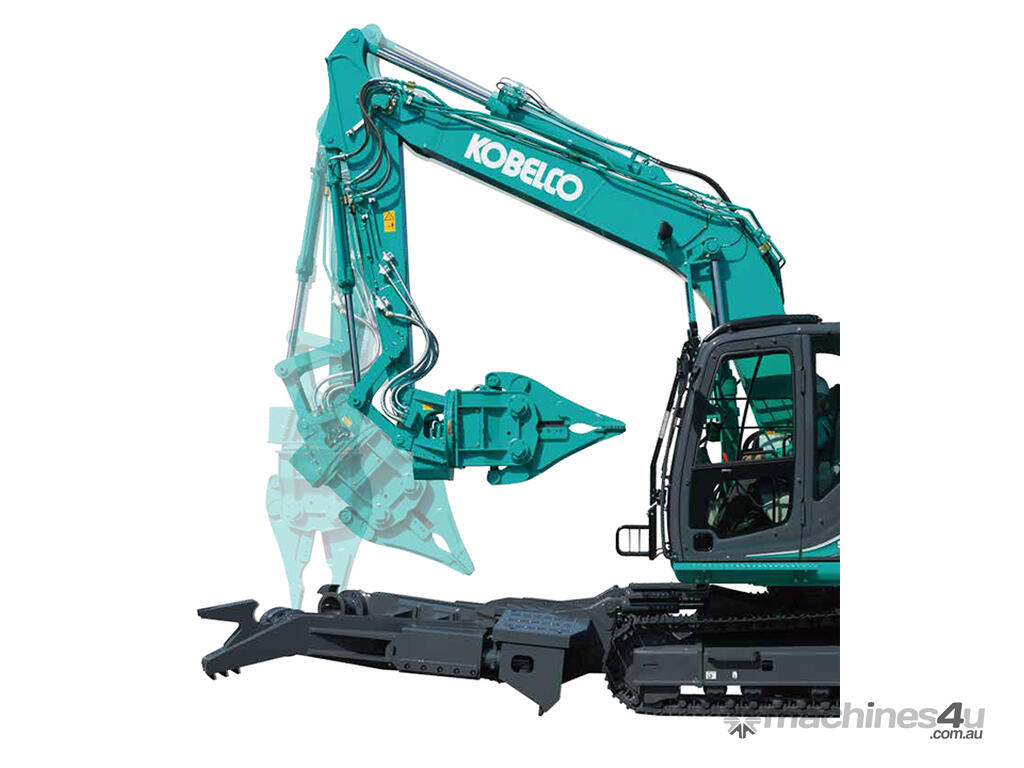

Kobelco designed clamp arms are made to hold a vehicle in multiple positions for quicker and efficient dismantling.

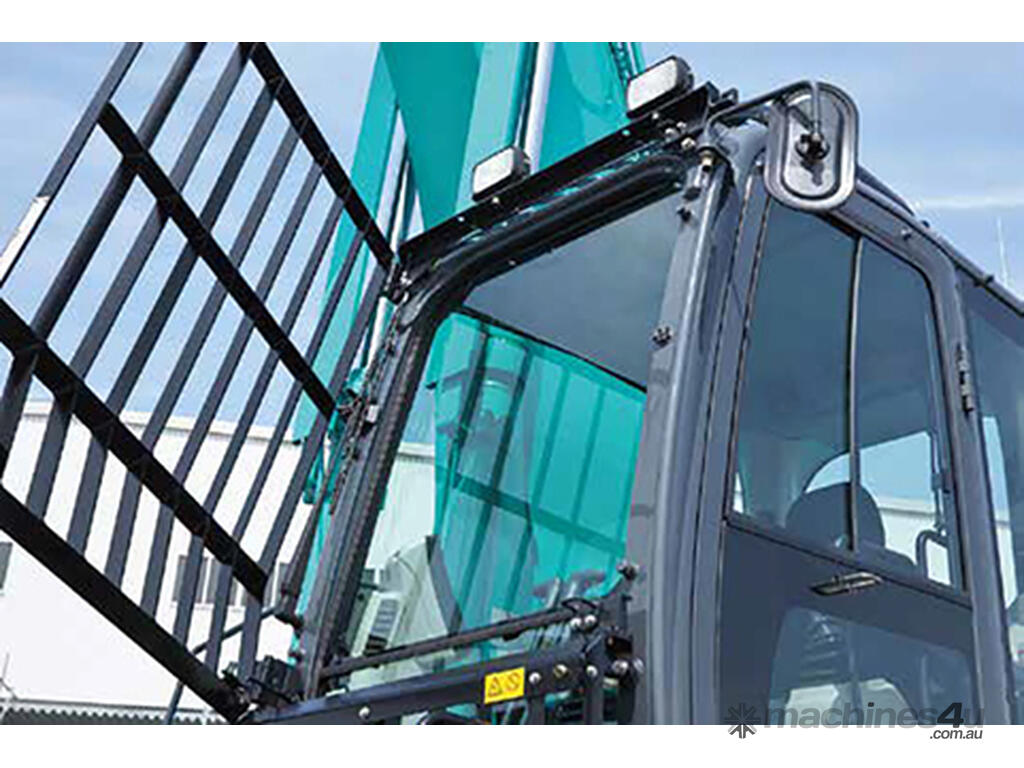

Cab interference prevention system provided as standard equipment. Comfortable operating environment for operators with Kobelco’s iNDr for low noise and dust reduction.

KOBELCO’s multi-dismantling machines will drastically change the quantity and quality of end-of-life vehicle (ELV) recycling in Australia.

Environmentally friendly engine with Tier 4 Final compliance engine.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

2.80 x 3.72 x 12.94 m

Operating Weight

30,000 kg

Refilling Capacities
Fuel Tank

320 L

Hydraulic Oil Tank

244 (140) L

Working Range
Max. Digging Depth

-

Max. Digging Reach

9.96 m

Engine
Rated Power Output

124 kW

Rated Torque

660 Nm

Breakout Force
Bucket Digging Force

-

Arm Crowding Force

-

Hydraulic System
Max. Pump Flow

2 x 220 + 20 L/min

Standard Auxiliary

N&B + Tilt Piping
