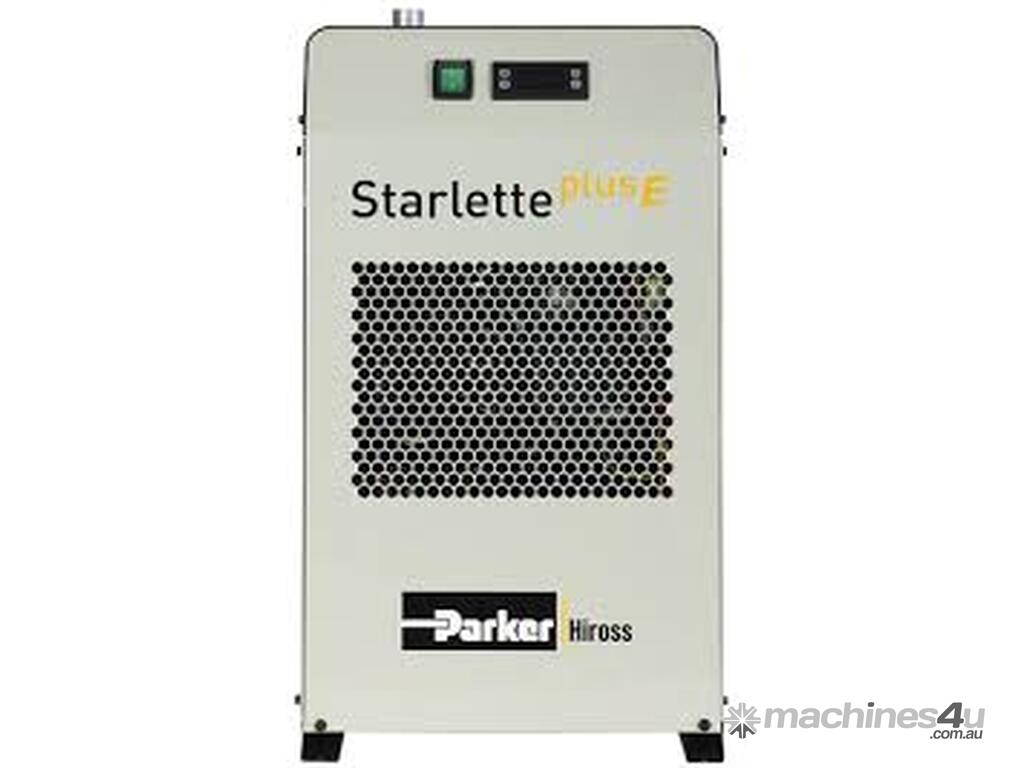

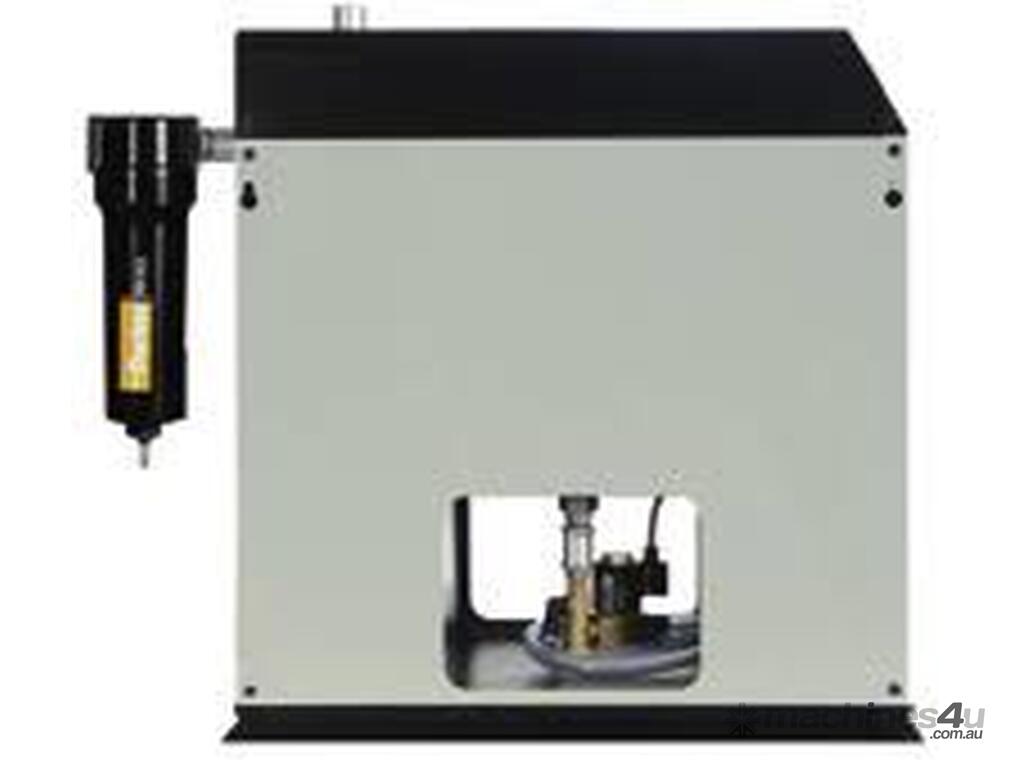

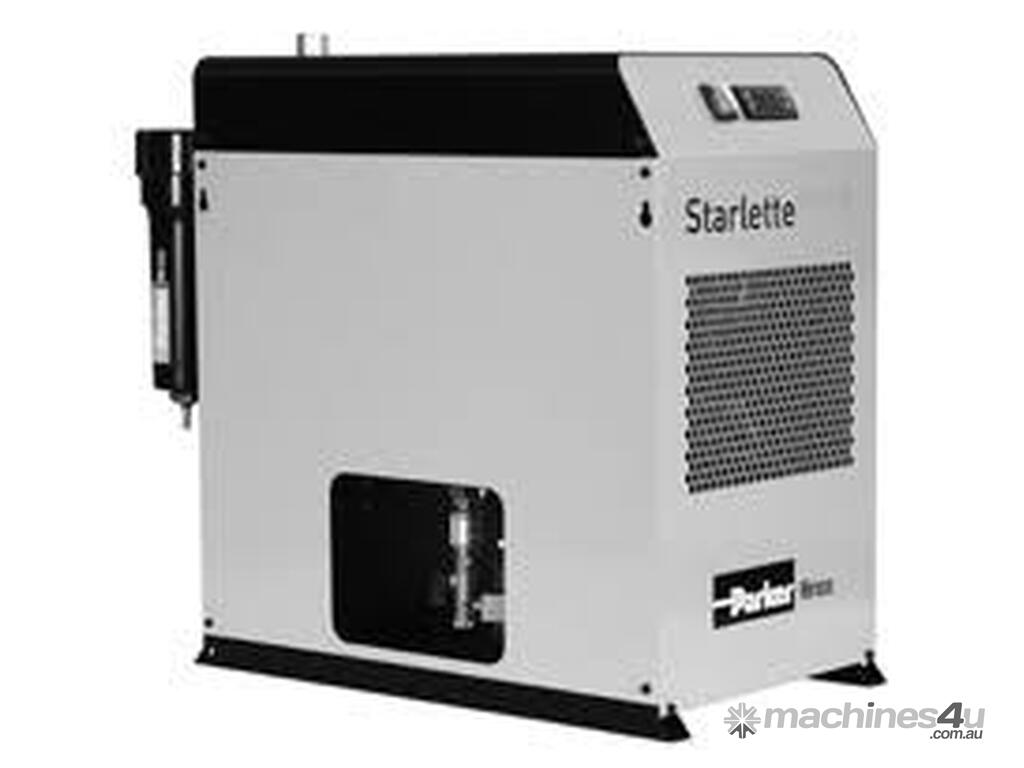

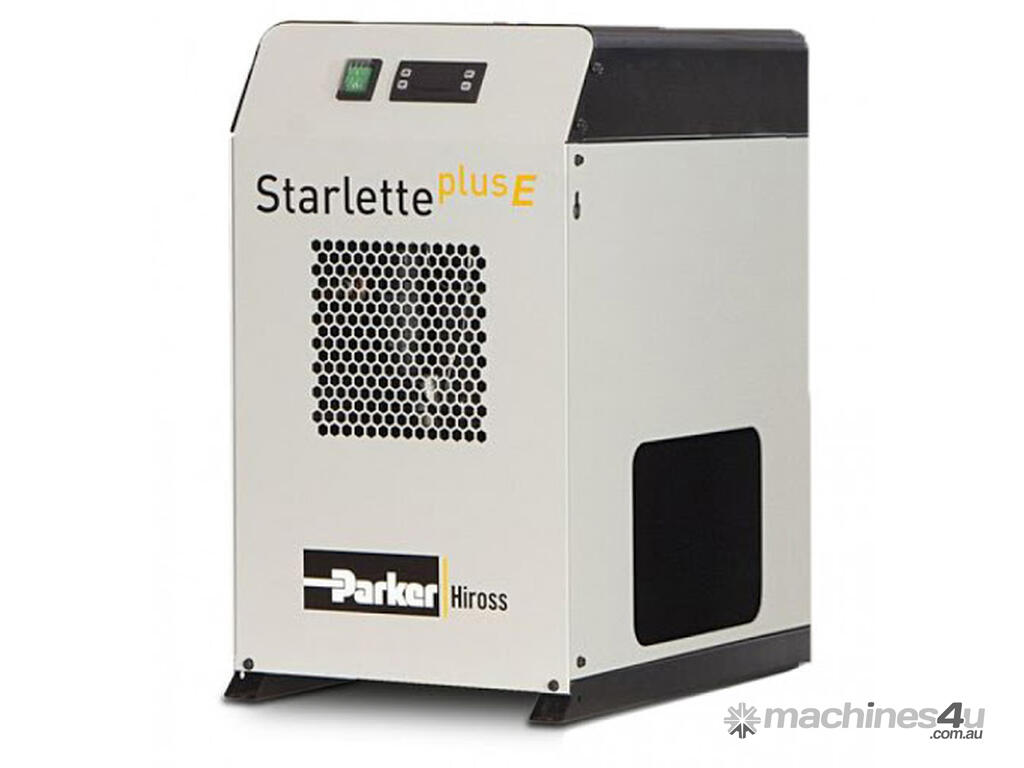

SPL012 Refrigerated Air Dryer - 42 cfm

The SPL012 Refrigerated Air Dryer delivers 42 cfm (1.2 m³/min) of efficient, reliable performance. Designed for up to 16 barg, it ensures dry, clean air in harsh conditions, with operating temperatures up to 50°C.

Dryer Model: SPL012
Air Flow: 42 cfm (1.2 m³/min)
Power: 0.25 kW
Air Connection: 1/2" BSP
Dimensions: 500 x 505 x 210 mm (W x D x H)
Weight: 23.5 kg

Performance Specifications:
FAD Conditions: 20°C / 1 bar A
Working Conditions:
Air suction: 25°C / 60% RH
Working pressure: 7 barg
Pressure dew point: According to ISO 8573-1
Cooling air temperature: 25°C
Compressed air inlet temperature: 35°C
Refrigerant: R134a
Maximum Operating Pressure: 16 barg

Operating Conditions:
Ambient temperatures up to 50°C
Inlet temperatures up to 65°C
Standards Compliance: All indicated data is in accordance with DIN ISO 7183.
