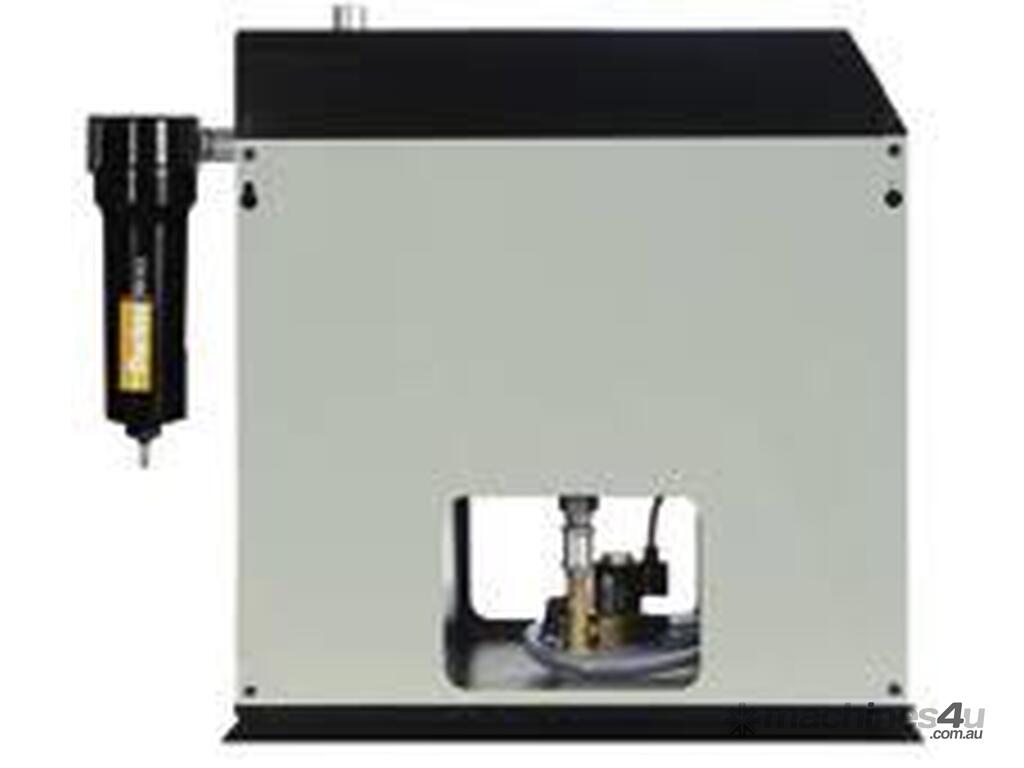

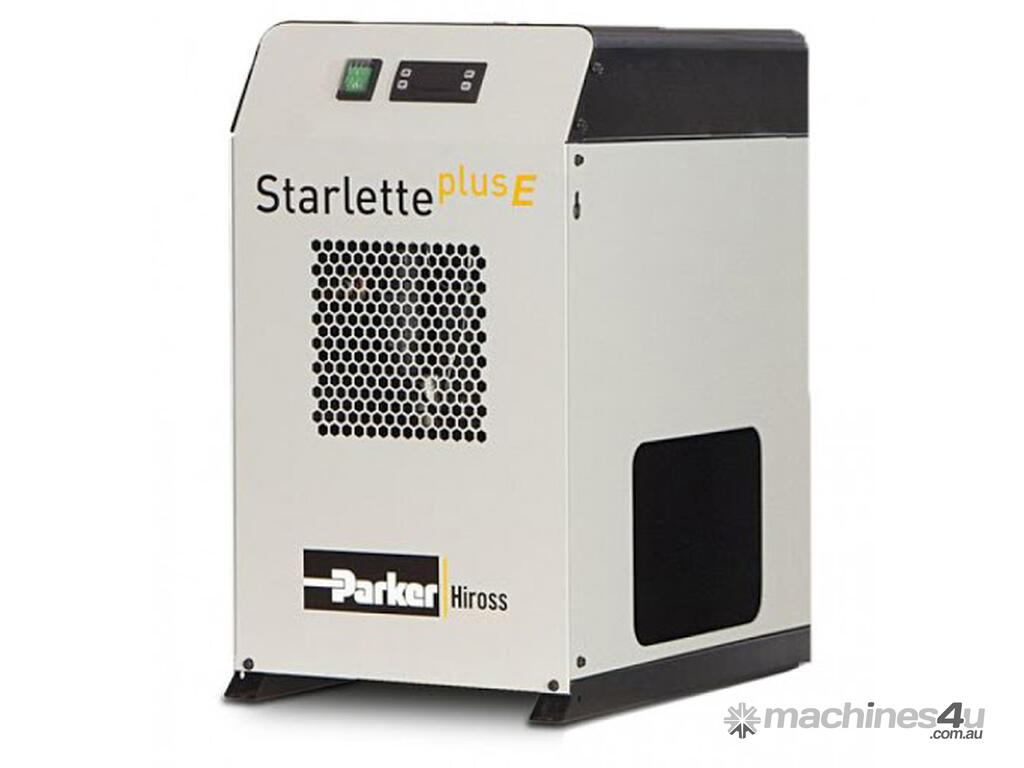

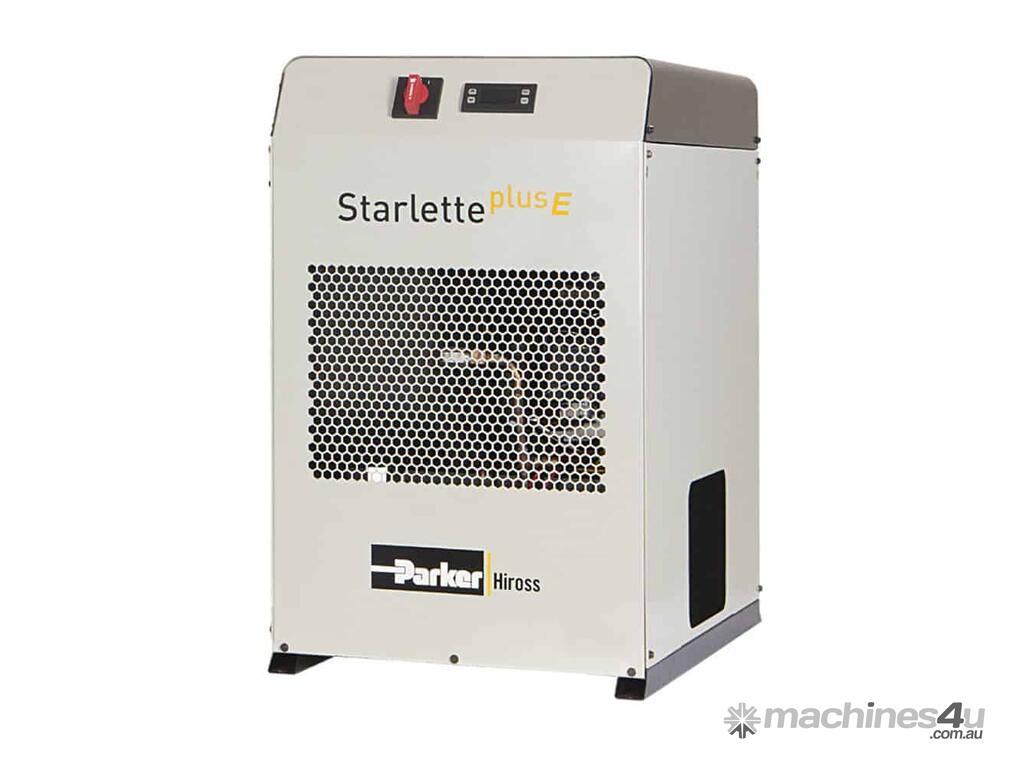

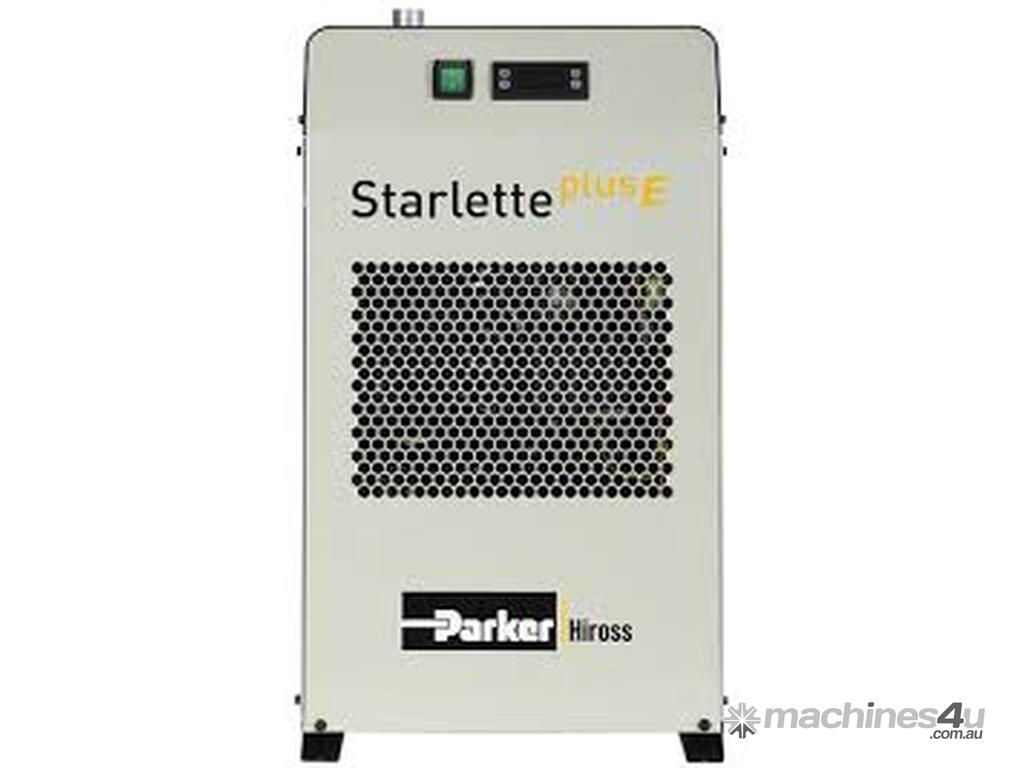

SPL052 Refrigerant Dryer - 184 cfm

The SPL052 Refrigerant Dryer delivers 184 cfm (5.2 m³/min) of efficient air drying, designed for up to 16 barg. With R134a refrigerant and reliable performance in extreme conditions, it ensures clean, dry air.

Dryer Model: SPL052
Air Flow: 184 cfm (5.2 m³/min)
Power: 0.46 kW
Air Connection: 1 1/2" BSP
Dimensions: 400 x 650 x 630 mm (W x D x H)
Weight: 53 kg

Performance Specifications:
FAD Conditions: 20°C / 1 bar A
Working Conditions:
Air suction: 25°C / 60% RH
Working pressure: 7 barg
Pressure dew point: According to ISO 8573-1
Cooling air temperature: 25°C
Compressed air inlet temperature: 35°C
Refrigerant: R134a
Maximum Operating Pressure: 16 barg

Operating Conditions:
Ambient temperatures up to 50°C
Inlet temperatures up to 65°C
Standards Compliance: All indicated data is in accordance with DIN ISO 7183.

At Cleveland Compressor, it doesn’t matter how big or small your business or project – we’ll listen to you. And we’ll find you the best solution too. Contact us today.
