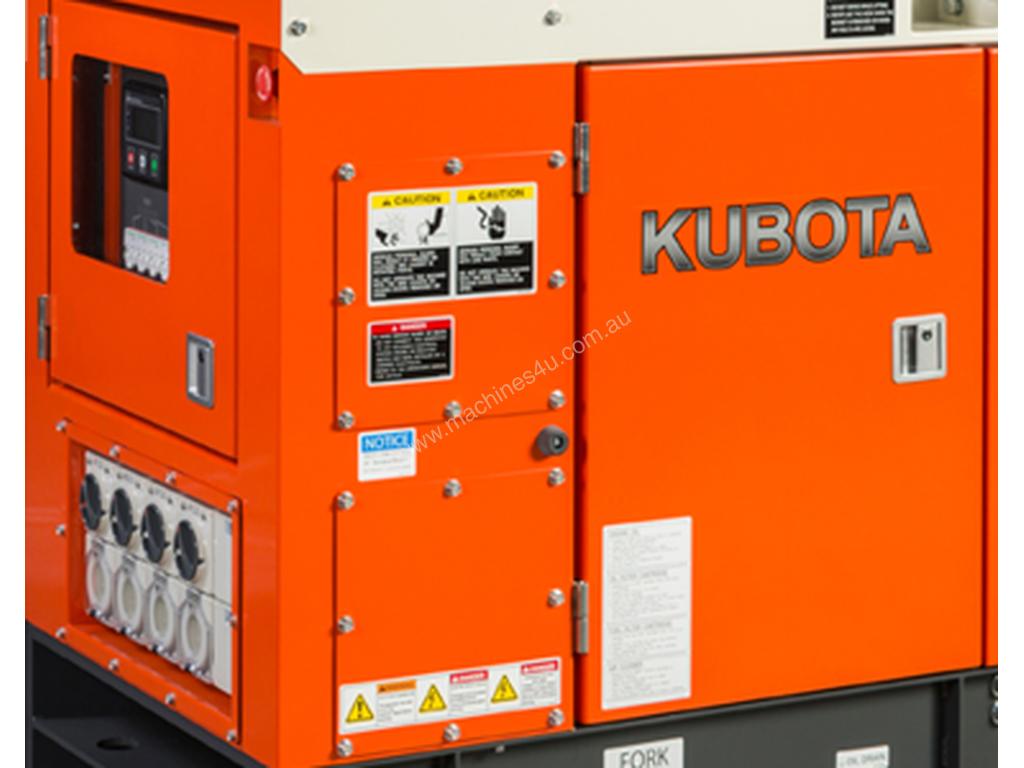

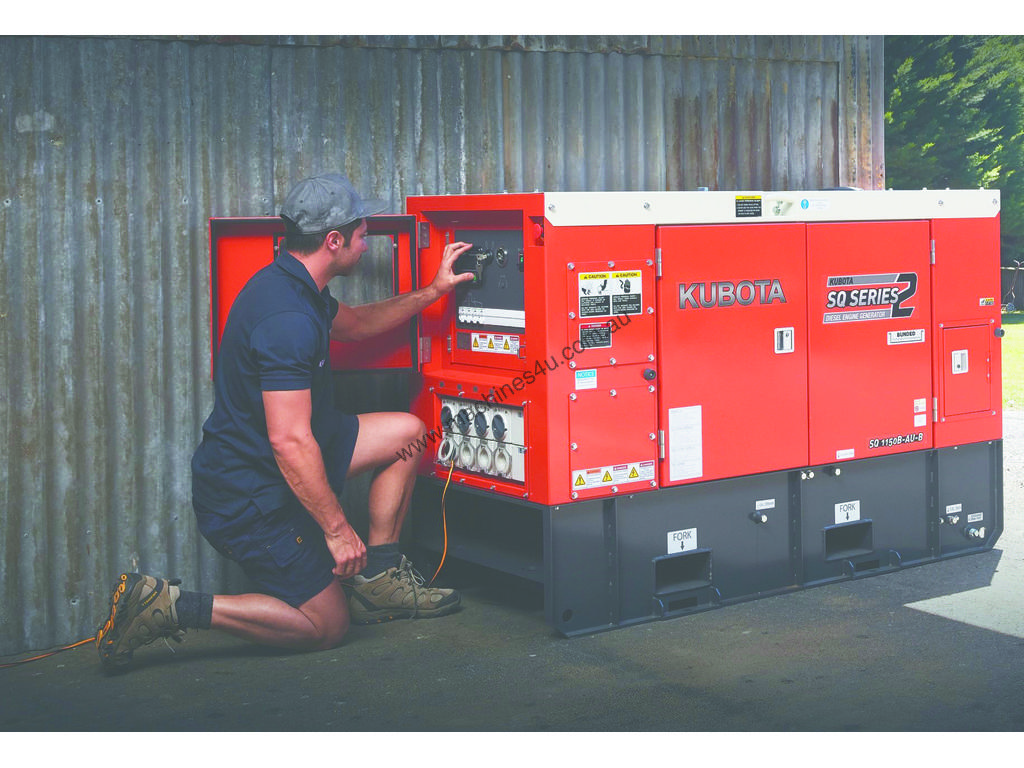

SQ1120B-AU-B KUBOTA 11.2kVA GENERATOR

Set Fuel Diesel
Fuel Tank Capacity (L) 72
Operating Hours 24 at 75% Load
Starting System Electric
Weight (kgs) 640
Sound Levels 61dBA 7m
Dimensions (mm) 1675 x 780 x 970

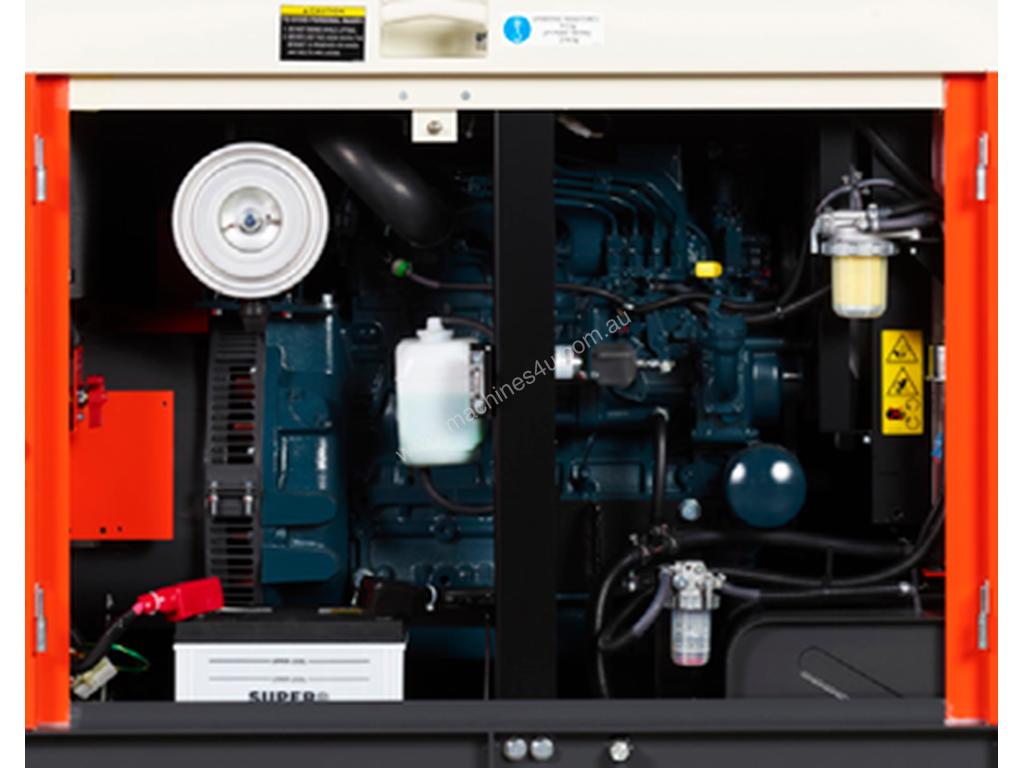

Engine Model D1703-EBG
Type Vertical Water Cooled
Displacement (cc) 1647
No of Cylinders 3
Bore & Stroke (mm) 87 x 92.4
Rated Output 13.6kW 1500rpm
Alternator Type Revolving Field
Max Output 11.8kVA (11.8kW)
Rated Output 11.2kVA (11.2kW)
Voltage 240
Frequency 50Hz
Current 46.7Amps
Poles 4
Voltage Regulation AVR
