Set Fuel Diesel
Fuel Tank Capacity (L) 100
Operating Hours 24.4 at 75% Load
Starting System Electric
Weight (kgs) 730
Sound Levels 63dBA 7m
Dimensions (mm) 1675 x 780 x 970

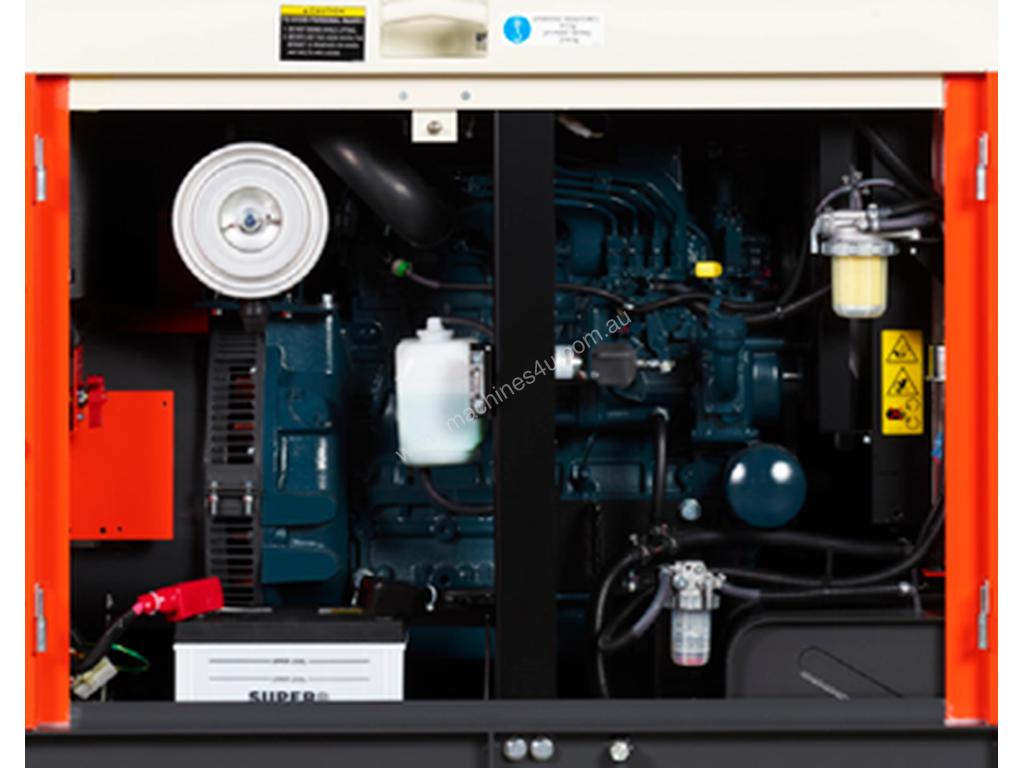

Engine Model V2203-EBG
Type Vertical Water Cooled
Displacement (cc) 2197
No of Cylinders 4
Bore & Stroke (mm) 87 x 92.4
Rated Output 18.4kW 1500rpm
Alternator Type Revolving Field
Max Output 16.0kVA (16.0kW)
Rated Output 15.0kVA (15.0kW)
Voltage 240
Frequency 50Hz
Current 62.5Amps
Poles 4
Voltage Regulation AVR
