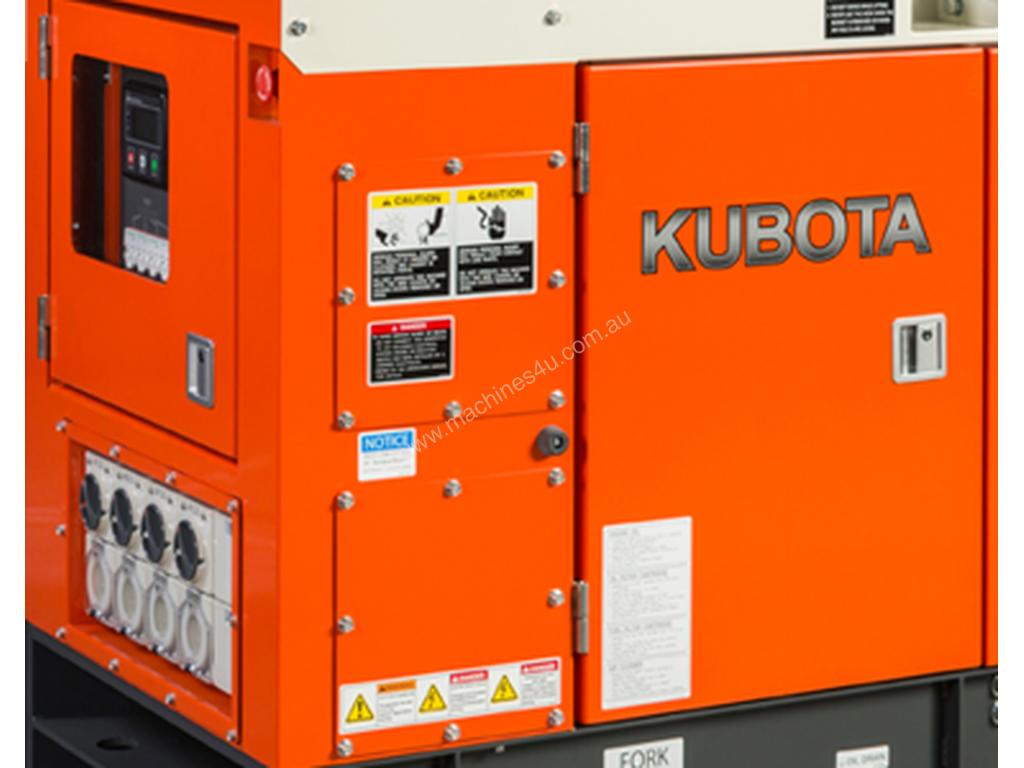

SQ3140B-AU-B KUBOTA 14.0kVA GENERATOR

Set Fuel Diesel
Fuel Tank Capacity (L) 100
Operating Hours 25 at 75% Load
Starting System Electric
Weight (kgs) 640
Sound Levels 61dBA 7m
Dimensions (mm) 1675 x 780 x 970

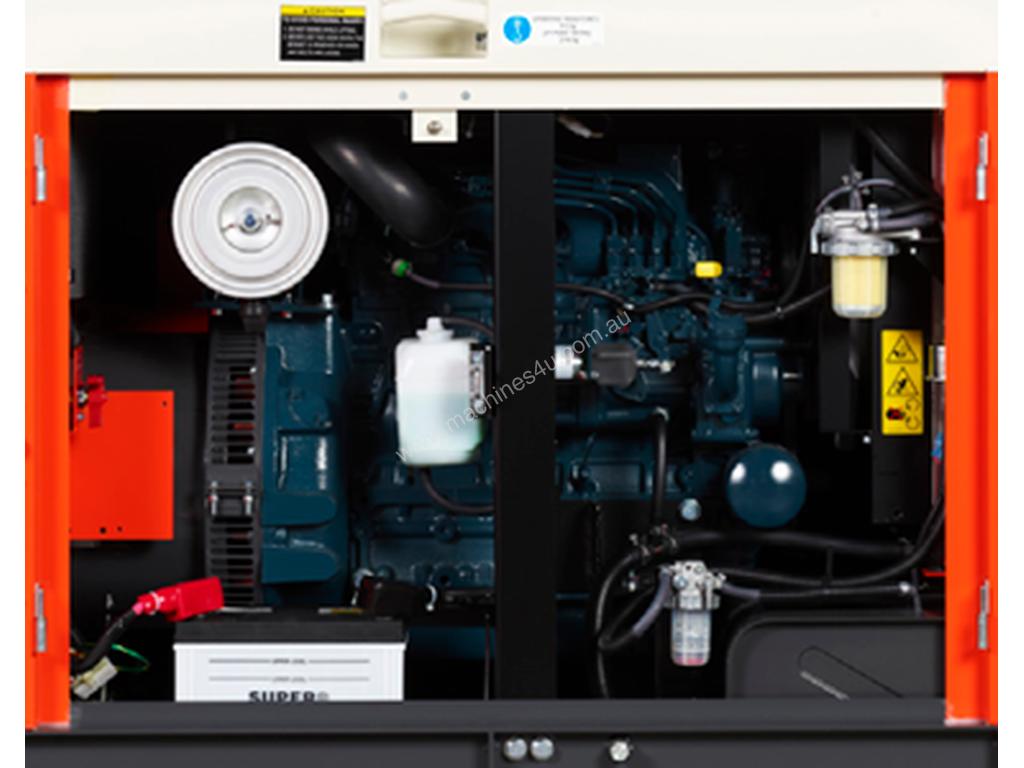

Engine Model D1703-EBG
Type Vertical Water Cooled
Displacement (cc) 1647
No of Cylinders 3
Bore & Stroke (mm) 87 x 92.4
Rated Output 13.6kW 1500rpm
Alternator Type Revolving Field
Max Output 15.4kVA (12.3kW)
Rated Output 14.0kVA (11.2kW)
Voltage 240/415
Frequency 50Hz
Current 19.5Amps per phase
Poles 4
Voltage Regulation AVR
