SQ3200B-AU-B KUBOTA 20.0kVA GENERATOR

The super quiet SQ Series is Kubota’s largest and diesel generator range, giving you incredible power you can rely on, day in, day out. When you need exceptional performance, excellent fuel efficiency and reduced emissions that won’t blink twice at Australia’s harshest conditions, the SQ Series is the premium choice.

The perfect partner for off-grid solar systems with lean battery storage, these heavy-duty, four-pole generators will help you weather any storm. The unique enclosure with noise absorbing duct, oversized muffler, extra-long air cleaner hose and low-noise cooling fan also makes the Kubota Diesel Generators’ SQ Series remarkably super quiet. Plus, it’s durable high performance really packs a punch – whatever you throw at it.

Set Fuel Diesel
Fuel Tank Capacity (L) 100
Operating Hours 25 at 75% Load
Starting System Electric
Weight (kgs) 730
Sound Levels 63dBA 7m
Dimensions (mm) 1675 x 780 x 970

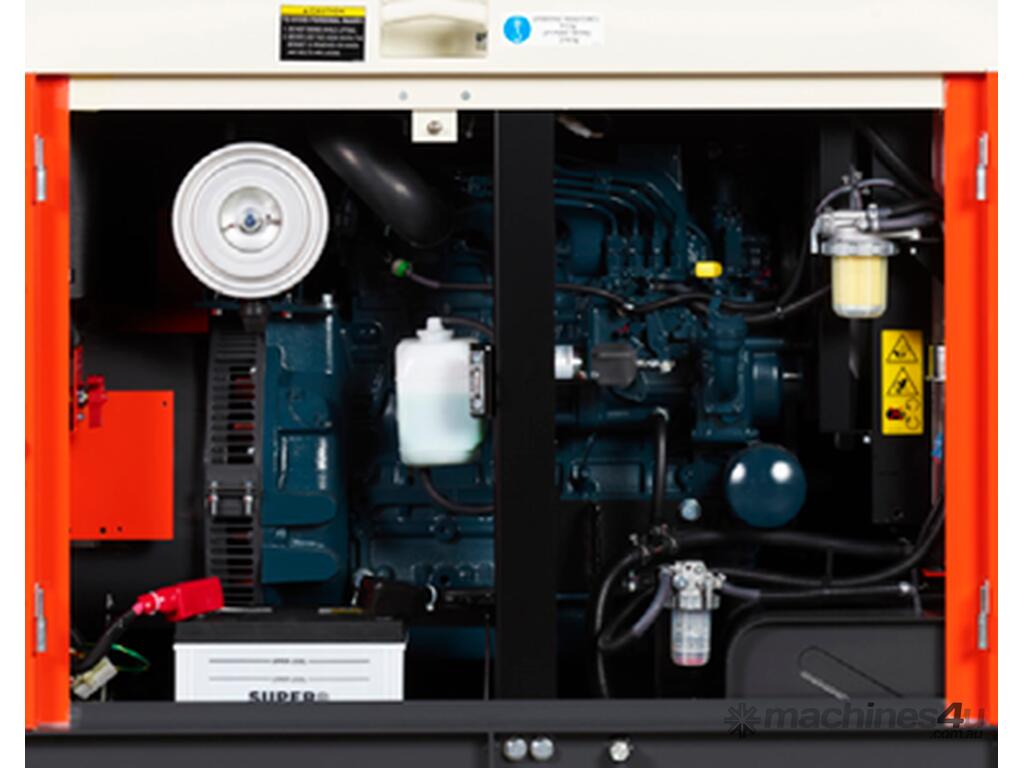

Engine Model V2203-EBG
Type Vertical Water Cooled
Displacement (cc) 1647
No of Cylinders 4
Bore & Stroke (mm) 87 x 92.4
Rated Output 18.4kW 1500rpm
Alternator Type Revolving Field
Max Output 22.0kVA (17.6kW)
Rated Output 20.0kVA (16.0kW)
Voltage 240/415
Frequency 50Hz
Current 27.8Amps per phase
Poles 4
Voltage Regulation AVR
