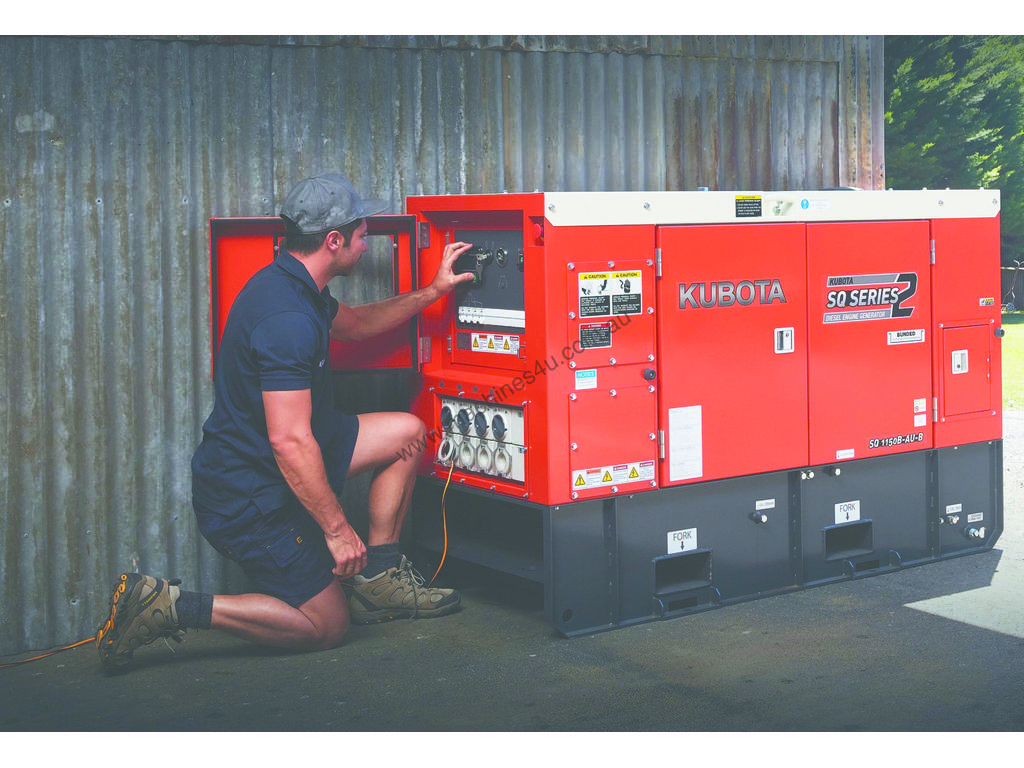

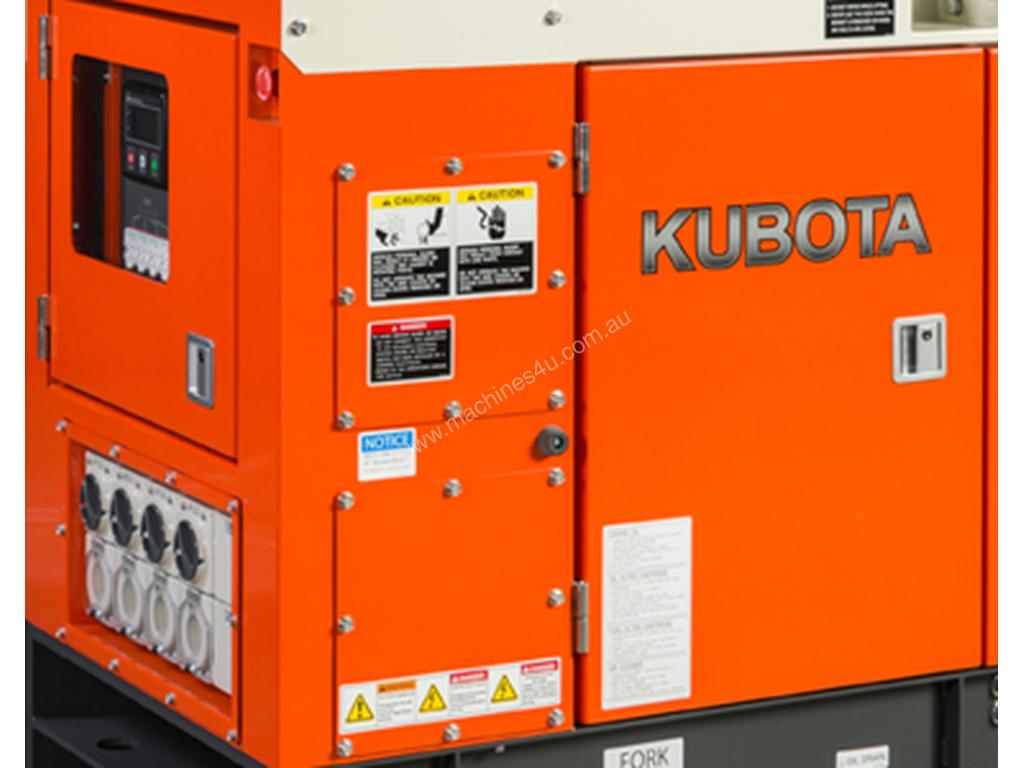

SQ3300B-AU-B KUBOTA 30.0kVA GENERATOR

Set Fuel Diesel
Fuel Tank Capacity (L) 142
Operating Hours 24 at 75% Load
Starting System Electric
Weight (kgs) 880
Sound Levels 64dBA 7m
Dimensions (mm) 1935 x 860 x 995
Engine Model V3300-EBG
Type Vertical Water Cooled
Displacement (cc) 3318
No of Cylinders 4
Bore & Stroke (mm) 98 x 110
Rated Output 26.8kW 1500rpm
Alternator Type Revolving Field
Max Output 33.0kVA (26.4kW)
Rated Output 30.0kVA (24.0kW)
Voltage 240/415
Frequency 50Hz
Current 41.7Amps per phase
Poles 4
Voltage Regulation AVR
