SR-483 Select-A-Rad Pedestal Belt Grinder / Notcher - Series 2 75 x 1220mm Belt Size 4 Work Stations

RADIUS MASTER SR-483 Select-A-Rad Pedestal Belt Grinder / Notcher - Series 2 75 x 1220mm Belt Size 4 Work Stations
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L099

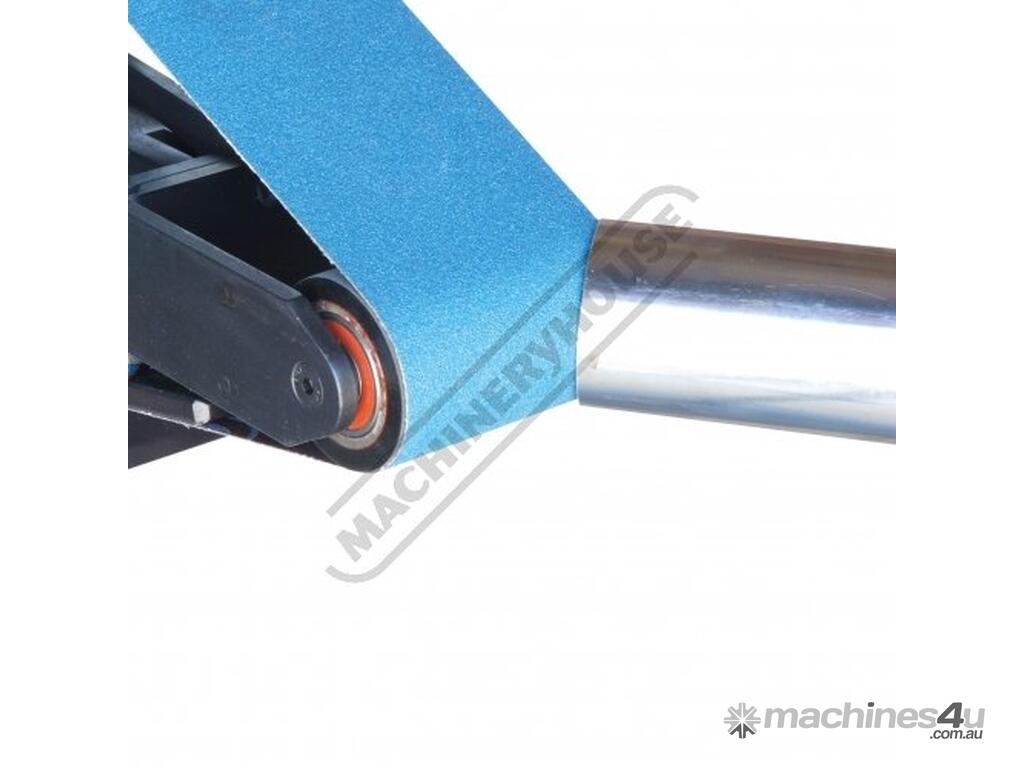

The Select-A-Rad 483 Tube Notcher / Belt Grinder uses a 75mm wide belt to notch 50 DIA. handrails and smaller. Cartridges from 20 to 75 DIA. can be changed in 8 seconds. Functions are similar to Radius Master. A great all-round workshop machine, however not suitable for knife-making.

Designed for balistrade and stainless specialists, engineers, fabricators, welders, fitters, foundries, toolmakers, rural manufacturers, mechanics, restorers, aircraft engineers, medical equipment manufacturers, sculptors, model makers and manufacturers of many wood and plastic products.

While not suitable for knife-making, the Select-A-Rad Tube Notcher / Belt Grinder is a fantastic all round workshop machine!


Optional Accessories:
Contact Wheels Ø19 - Ø75mm

Features:
4 work stations 2 contact wheels (1 x Ø50mm & 1 x Ø75mm) (9 sizes available)
Produces quality chatter free finishes on stainless steel
Uses include contouring squaring facing de-burring (inside tube included) sharpening all stainless finishes texturing micro finishing and polishing
Outstanding tracking allows notching sharp corners at the very edge of the belt. 3 Plus better belt life
All wheels are precision ground for smooth chatter free finishing especially of flat surfaces

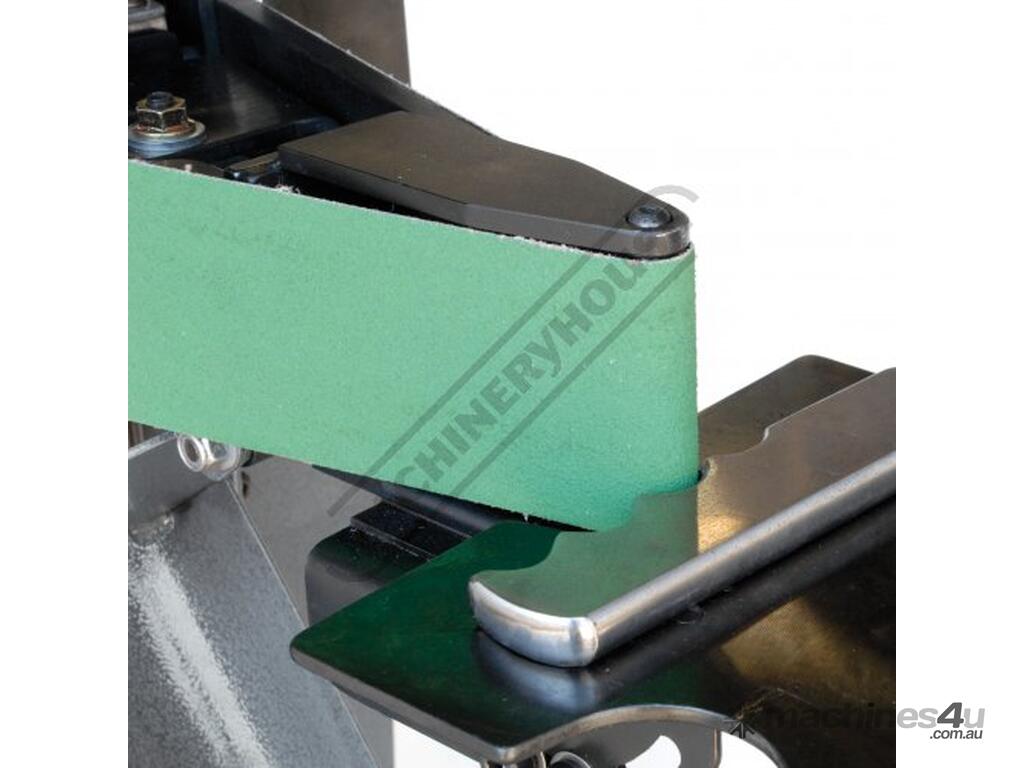

Accurate tracking provides sharp corner notching at the edge of the belt on tool rest
Tracking mechanism allows narrow belts to be used down to 12 mm to follow contours in free strapping (unsupported ) section of belt

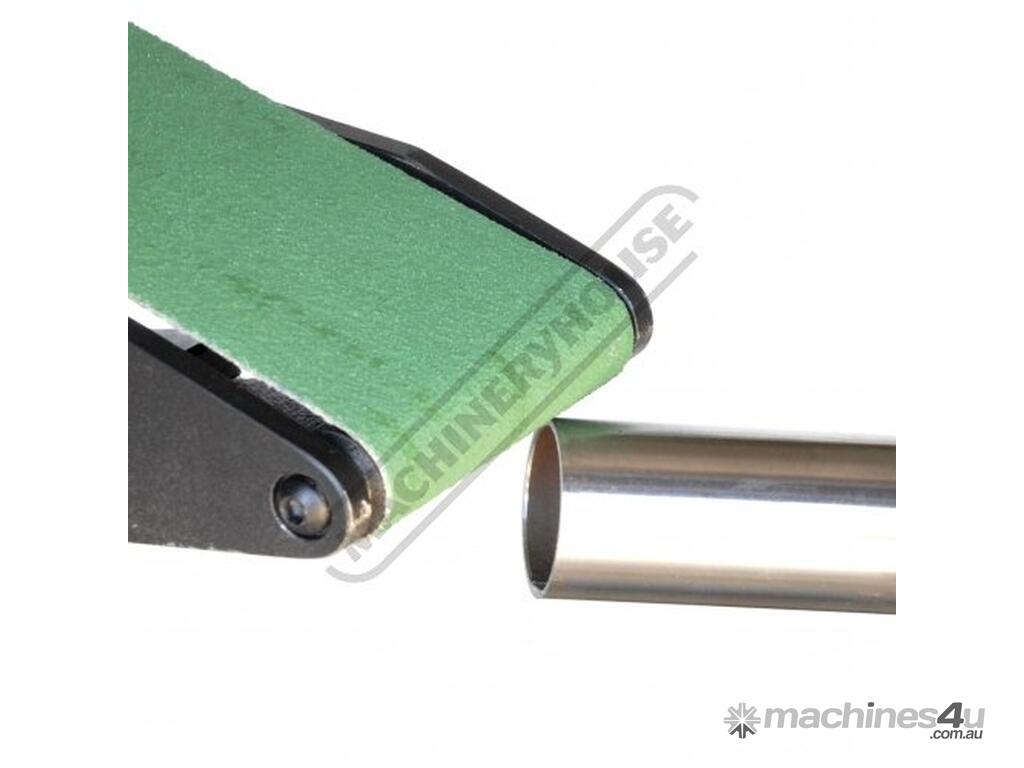

Internal deburring of tube is possible at the same time as external chamfering

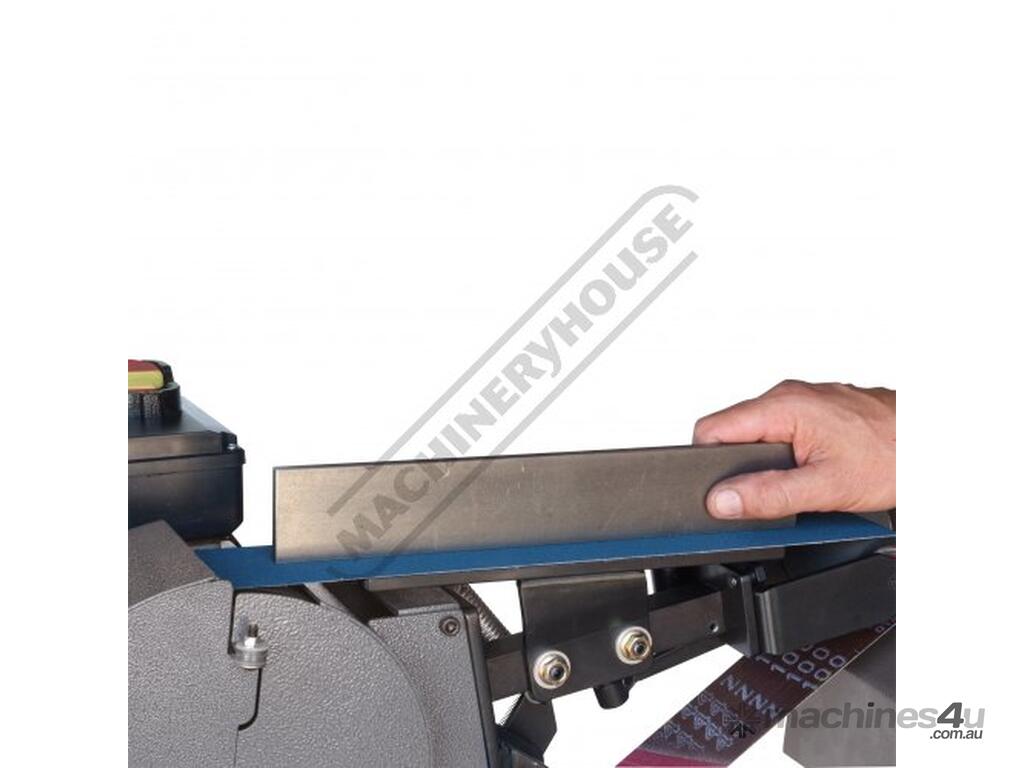

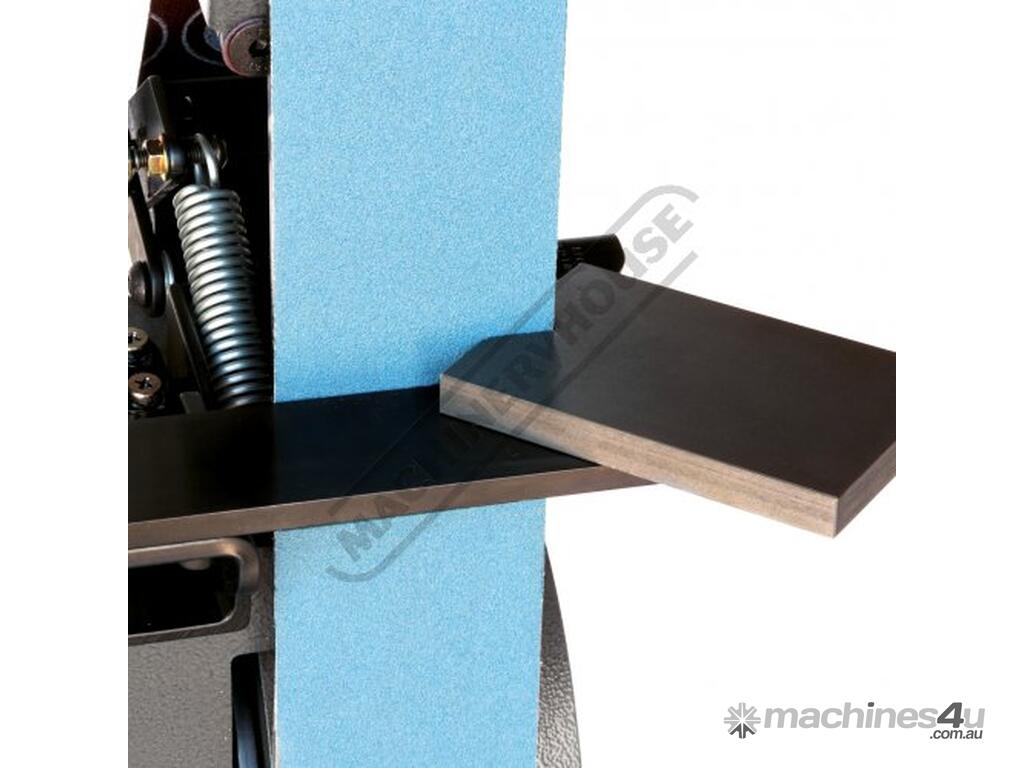

Easily converts to flat bed linisher for grinding of faces and edges

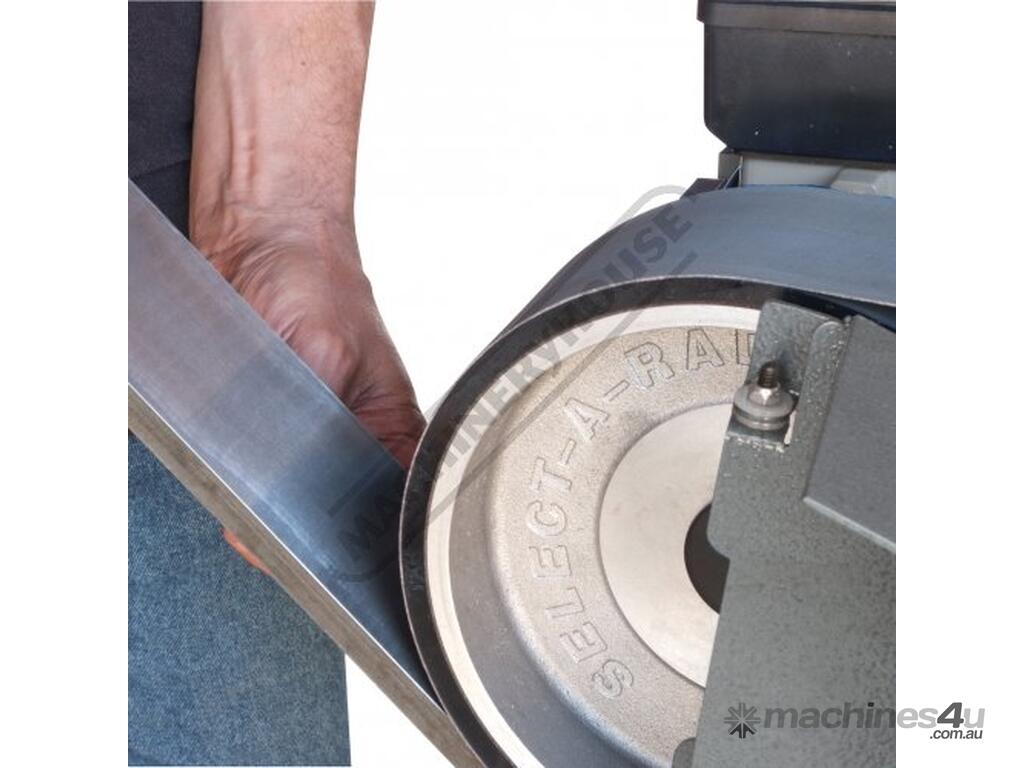

203mm (8") drive pulley is precision ground with hardness designed to produce chatter free finishes both ground and brushed to match all stainless grades

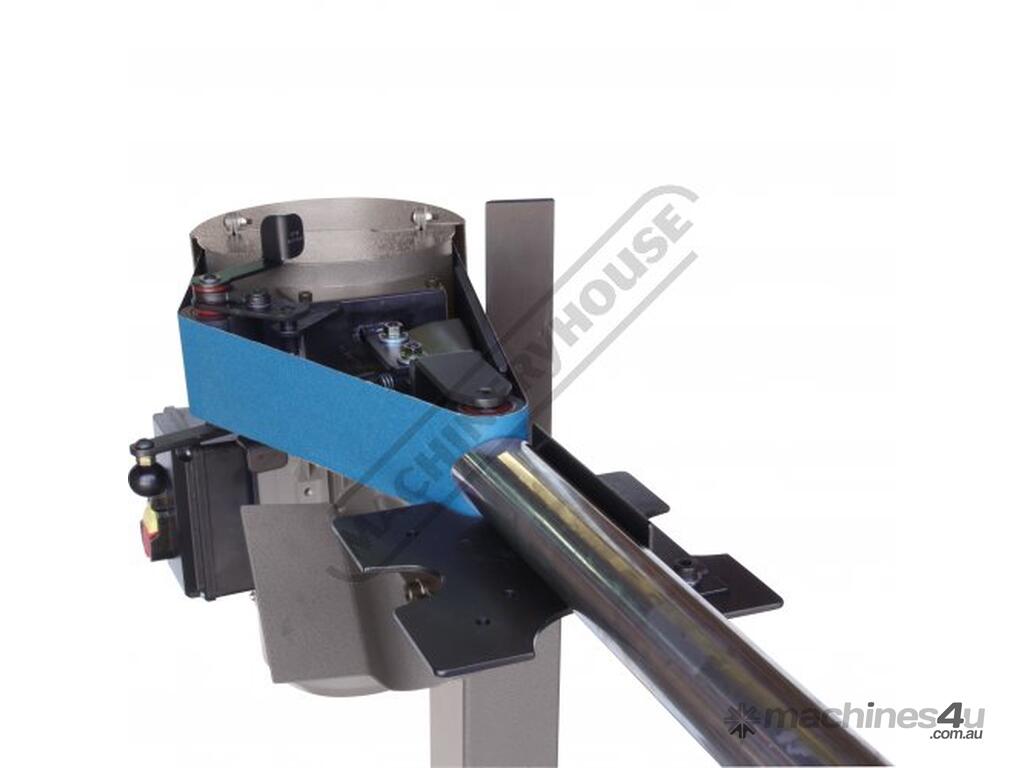

Convenience is expanded when machine is laid on its side for edge grinding or tube notching on the tilting table (included)

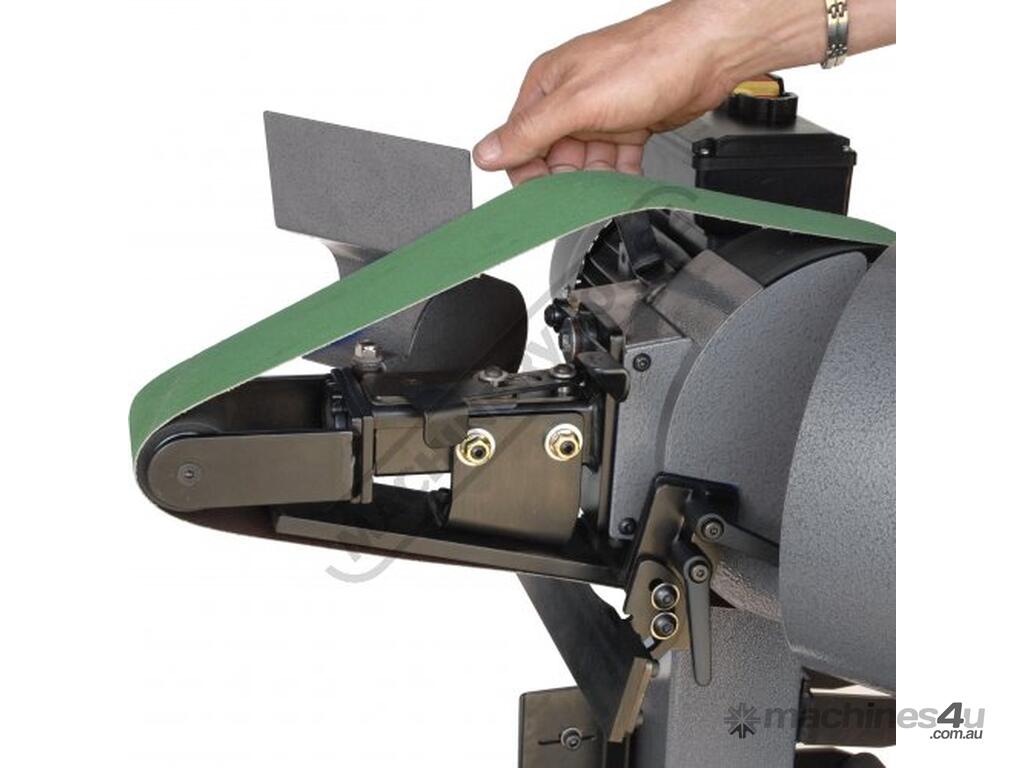

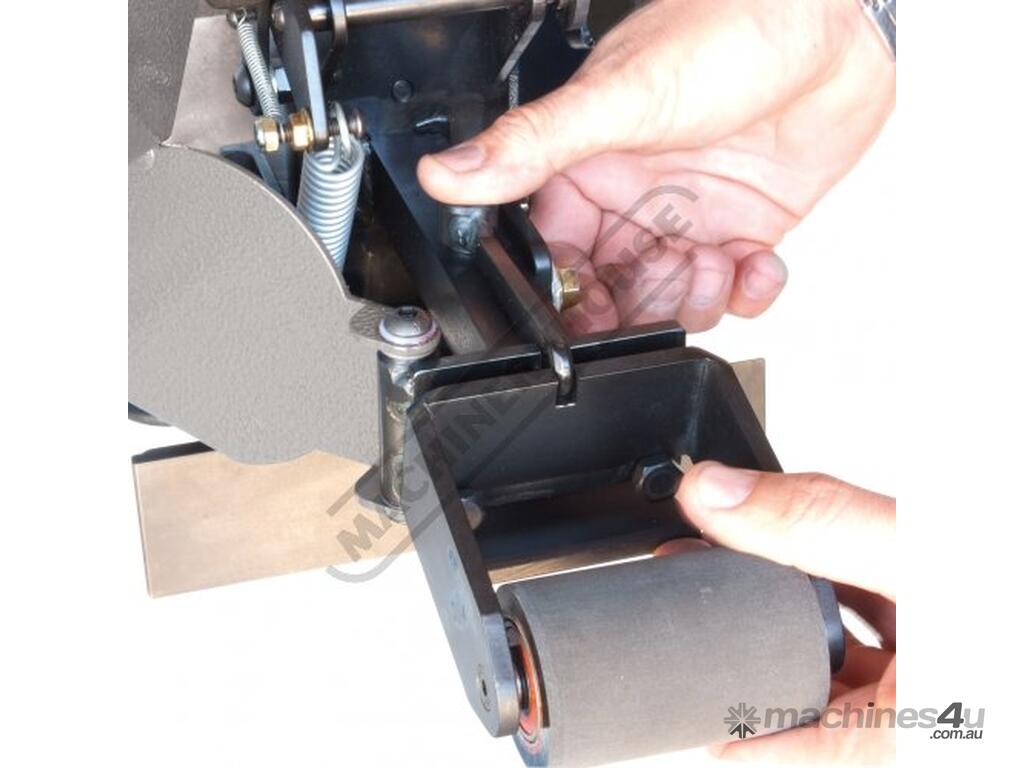

Belt changing is made easy by simply swinging away the guards and pushing down on the belt at the tracking wheel
Dust proof switch and 10ft (3m) lead and plug provided

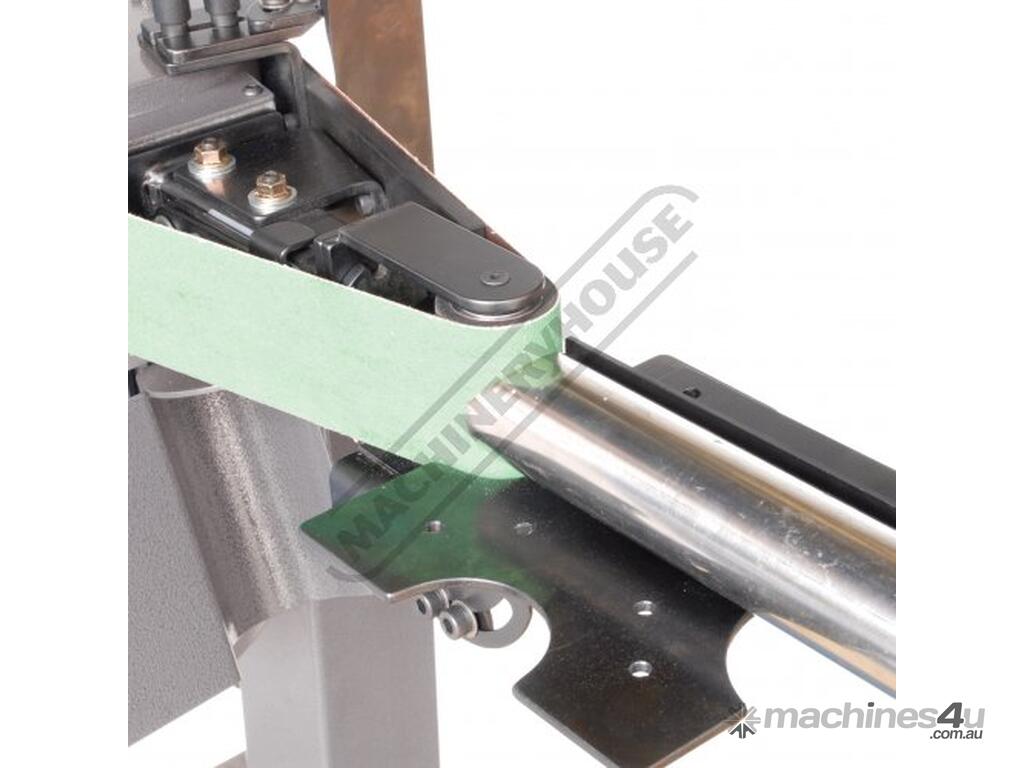

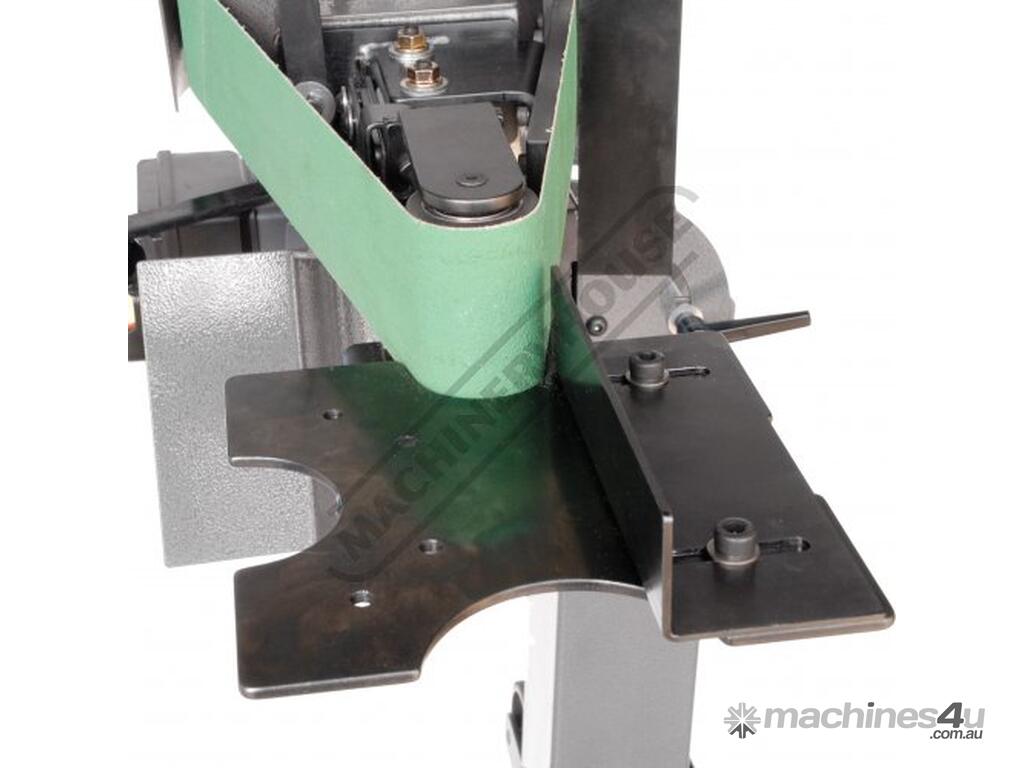

Tilting table for contouring and pipe notching
The only belt grinder that accurately and rigidly tracks the heaviest backed belts (essential in drill & cutter sharpening)
Sealed bearings teflon gaskets - adjustable pivots give many years life expectancy - Designed from 35 years experience in belt grinding

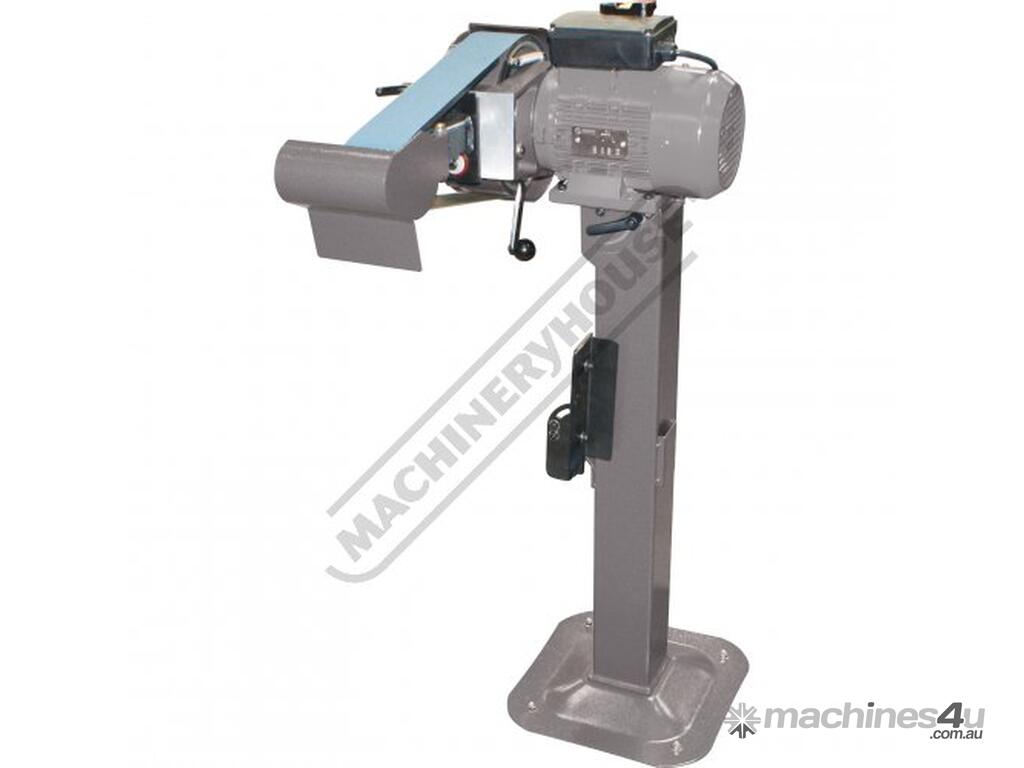

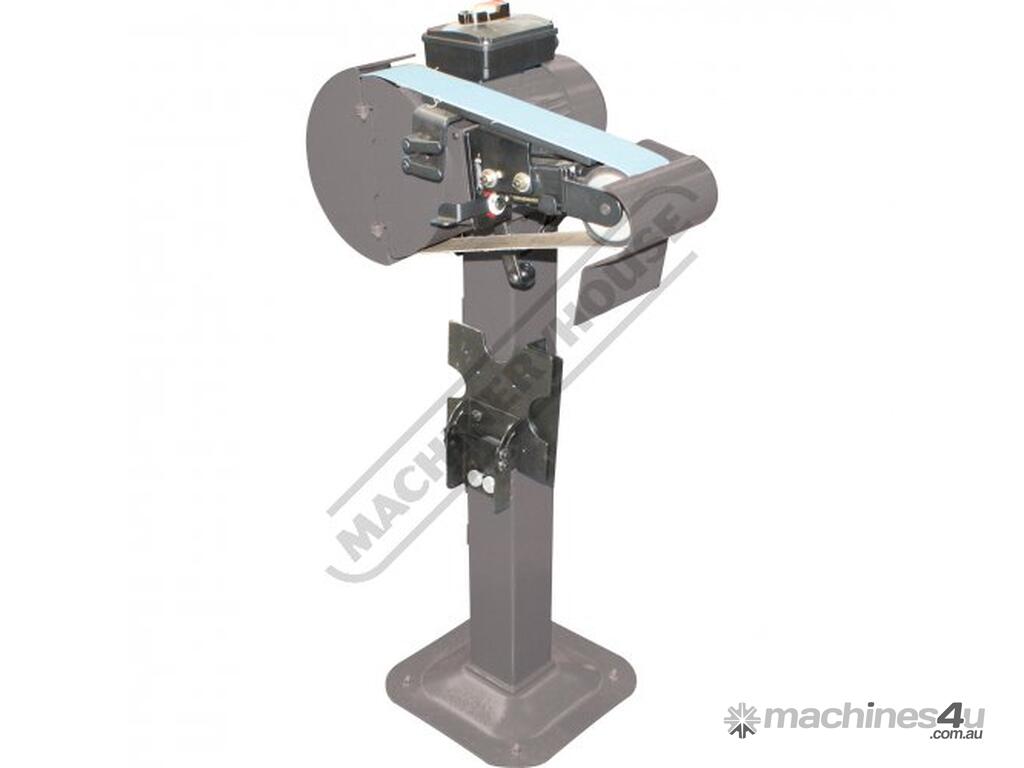

Includes pedestal stand
75 x 1220mm belt
1.5kW / 2hp 240V Motor totally enclosed with overload protection
Performance and durability backed by a 2 year commercial warranty
Made in Australia

Includes:
- Tilting top stand & base plate

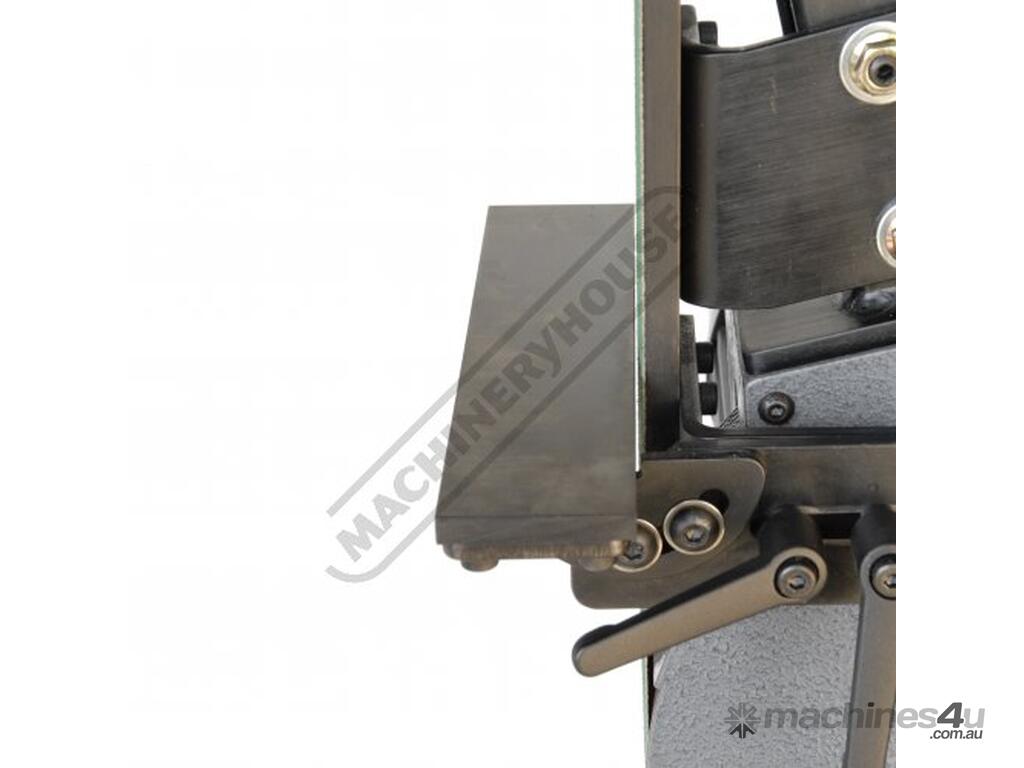

- Tool rest Notching tilt table & fence
- 1 x Zirconia belt
- 2 contact wheels Ø50mm & Ø75mm



Specifications:
ORDER CODE: L099
MODEL: SR-483
Type: Belt Grinder / Notcher
Mounting Type - Bench / Pedestal: Pedestal
Includes Stand: Yes
Belt Size (mm): 75 x 1220
Belt Speed (fpm / mpm): 3375 / 1028
Motor Speed (rpm): 2800
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 50
