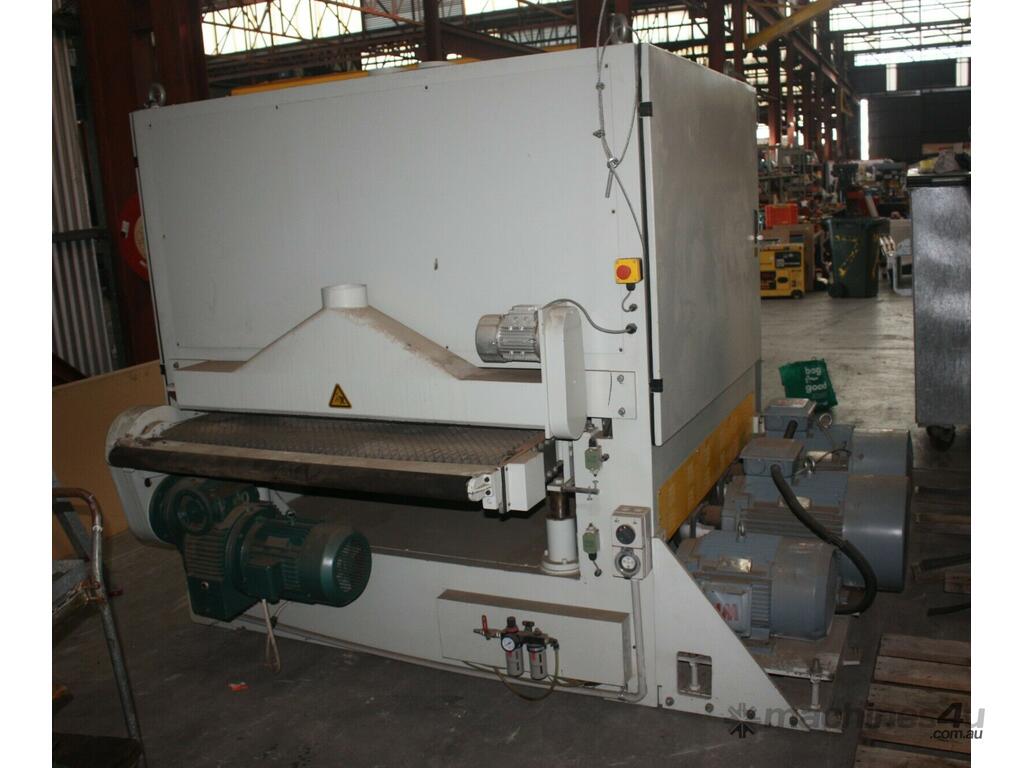

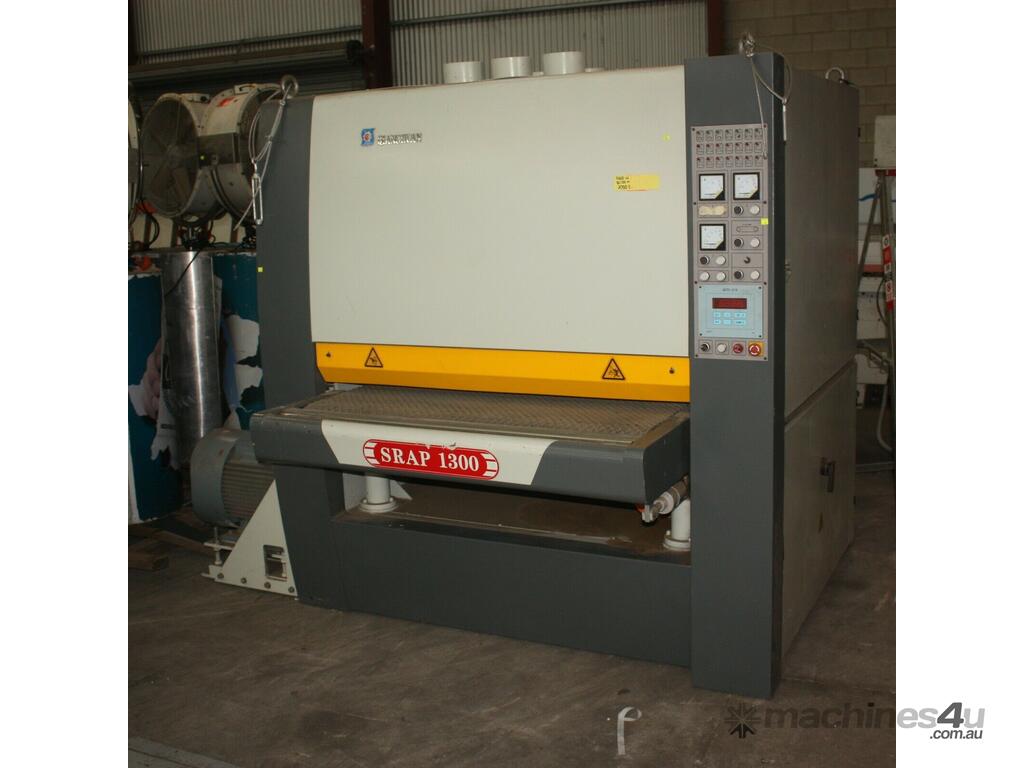

SRAP1300 Wide Belt 3-Head Triple Drum Conveyor Feeding Sander 37kw,30kw,15kw

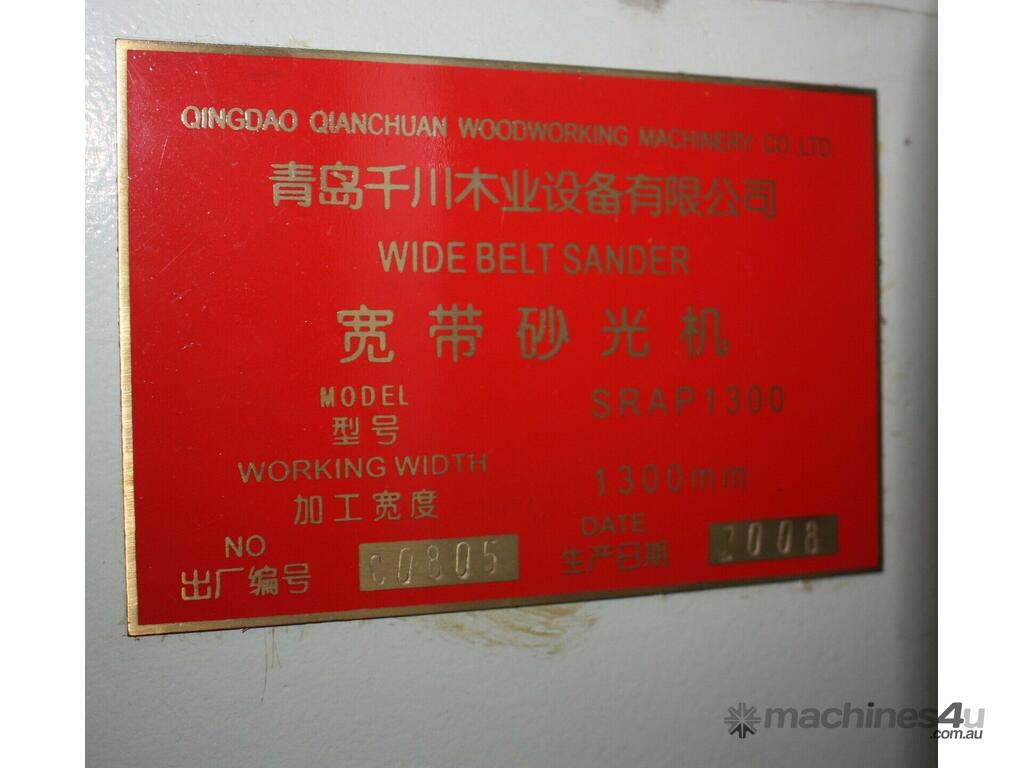

Qianchuan SRAP1300 Wide Belt 3-Head Triple Drum Conveyor Feeding Sander 37kw,30kw,15kw

1300mm working width

2008 build.

In great condition.



INFORMATION BELOW HAS BEEN TAKEN FROM THE MANUFACTURERS , NOT SURE WHICH TYPE THIS SANDER IS.

Performance characteristics

SRAPl300-1 type is mainly used for plywood, particleboard, MDF and other parts of the constant sanding and fine sanding.
SRAPl300-2 type is mainly used for finished wood, solid wood board, blockboard and other parts of the fixed sand and fine sanding
SRAPl300-3 type is mainly used for medium density, plywood, particleboard and other parts of the constant sanding and fine sanding.
Sand frame with casting structure, deformation is small, good vibration effect.
With fault display function easy maintenance. In the event of a fault, the device is powered off, and the brake and the conveyor bed are protected from falling to protect the workpiece from damage.

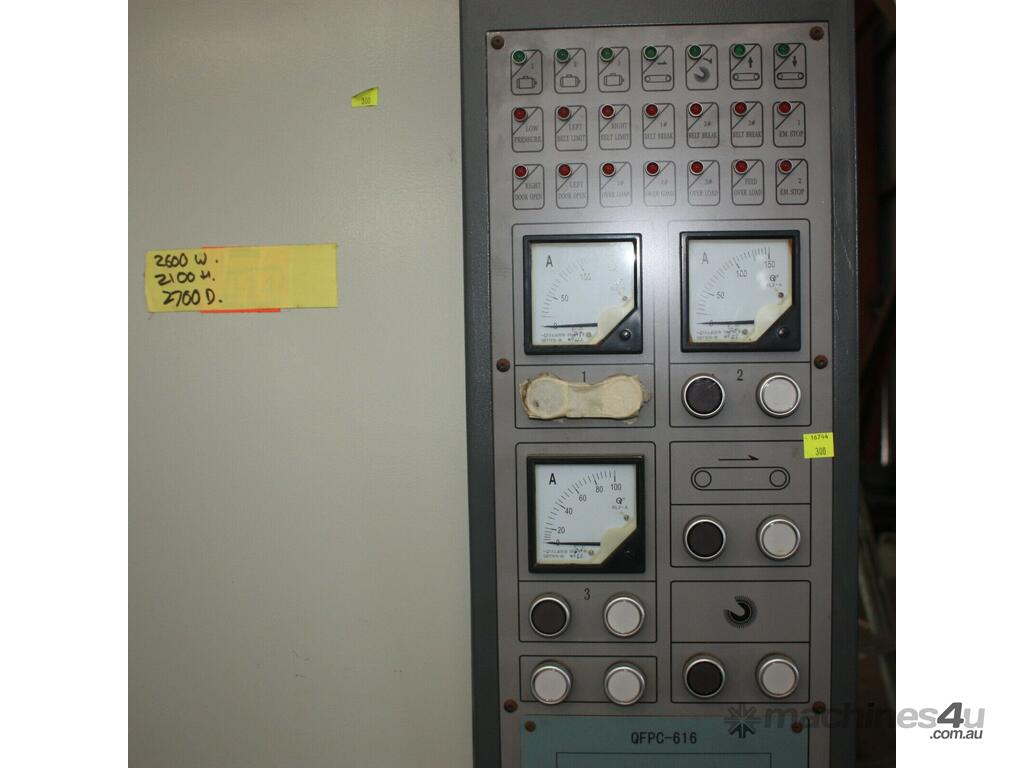

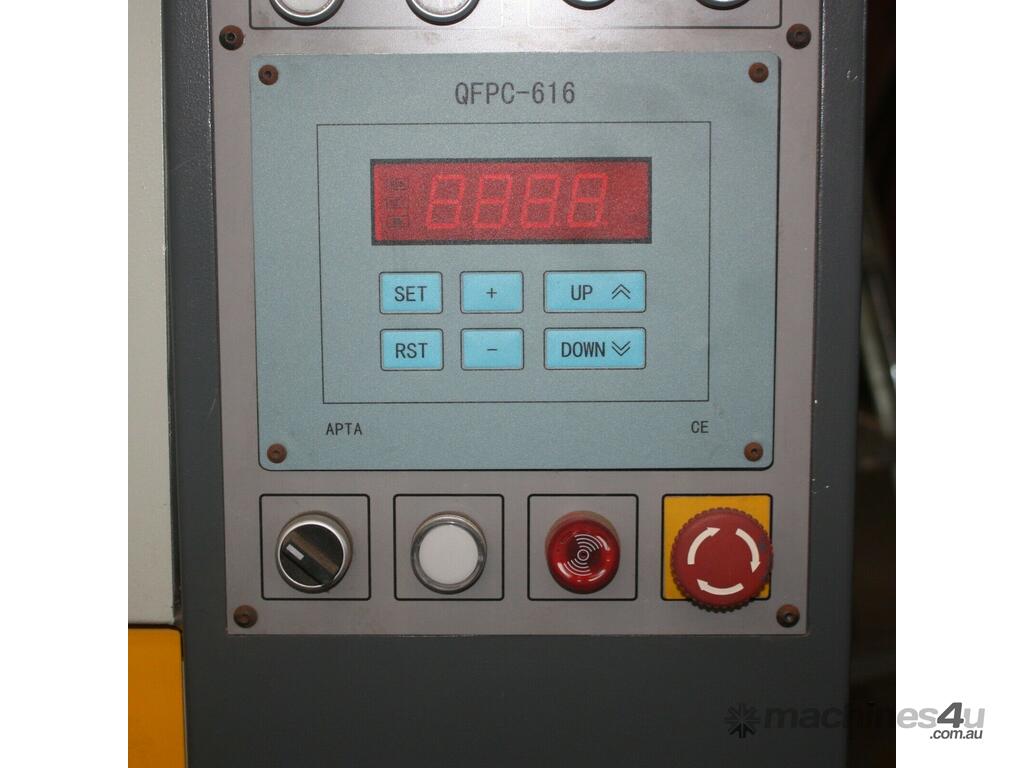

Imported PLC control unit to control the motor running, belt swing and thickness display, the effective guarantee of the machine's anti-jamming capability.

Technical Parameters


SRAP1300-1
SRAP1300-2
SRAP1300-3
Processing width
40-1300mm
40-1300mm
40-1300mm
Processing thickness
2.5-100mm
2.5-100mm
2.5-100mm
Processing length
?630mm
?500mm
?630mm
1 # sand frame belt speed
21m/s
21m/s
21m/s
2 # sand frame belt speed
18m/s
21m/s
21m/s
3 # sand frame belt speed
12m/s
12m/s
18m/s

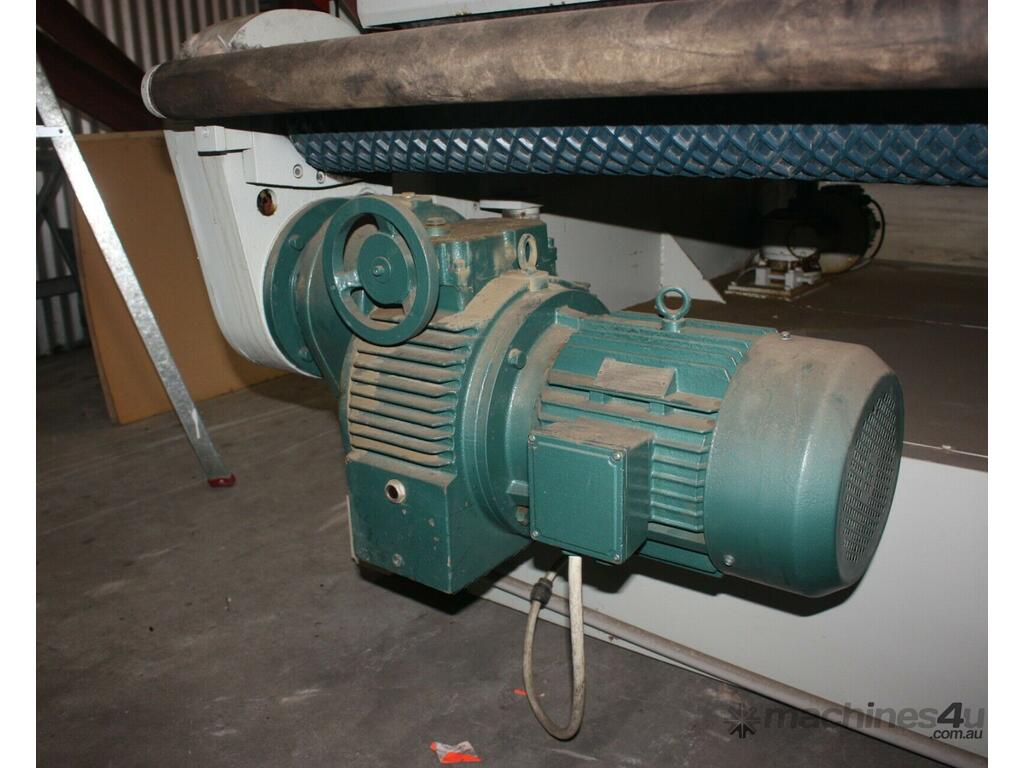

Feeding speed
6-30m/min
6-30m/min
6-30m/min
Belt size (WxP)
1330x2200mm
1330x2200mm
1330x2200mm
Total motor power
88.62kw
88.62kw
95.62kw

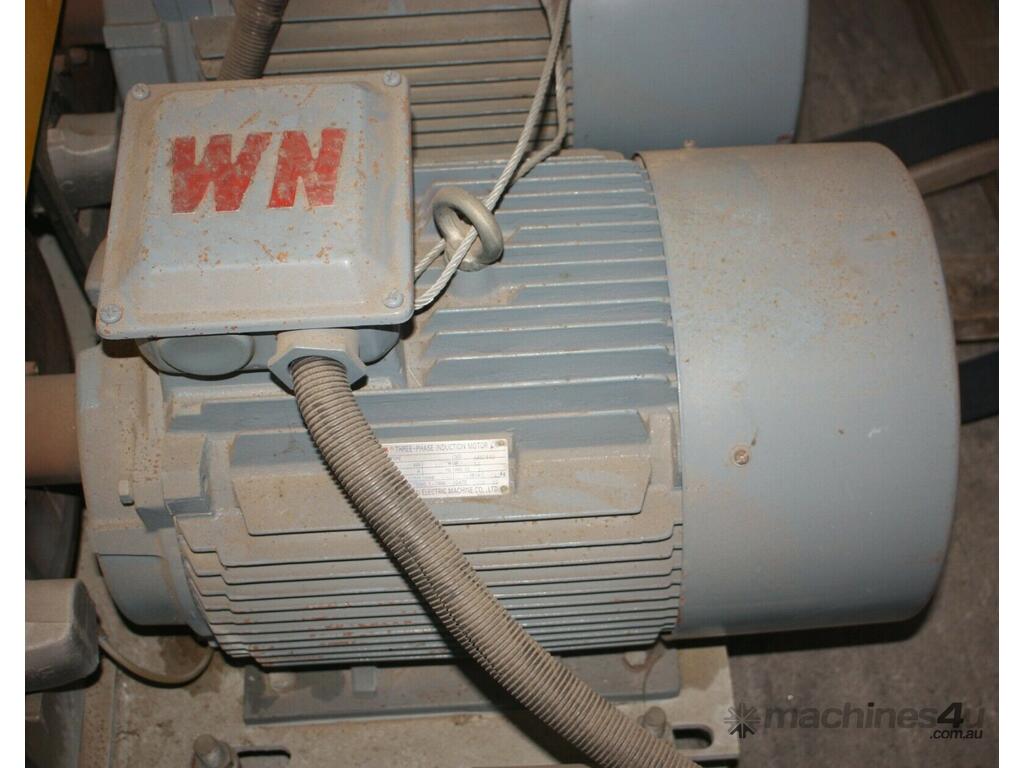

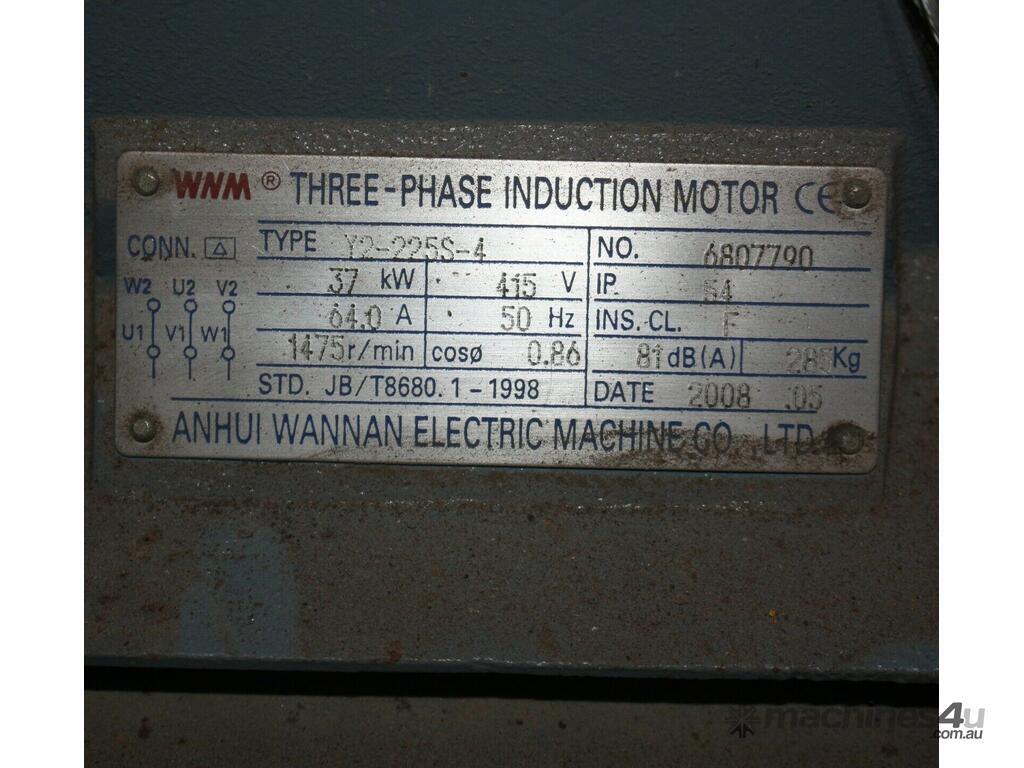

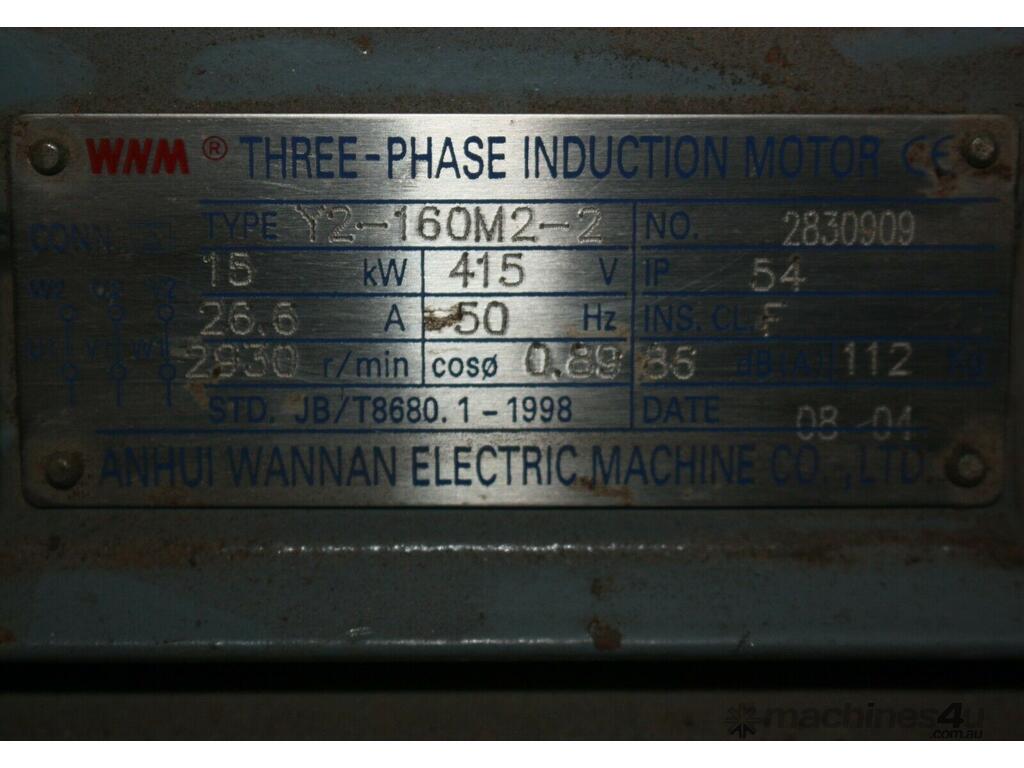

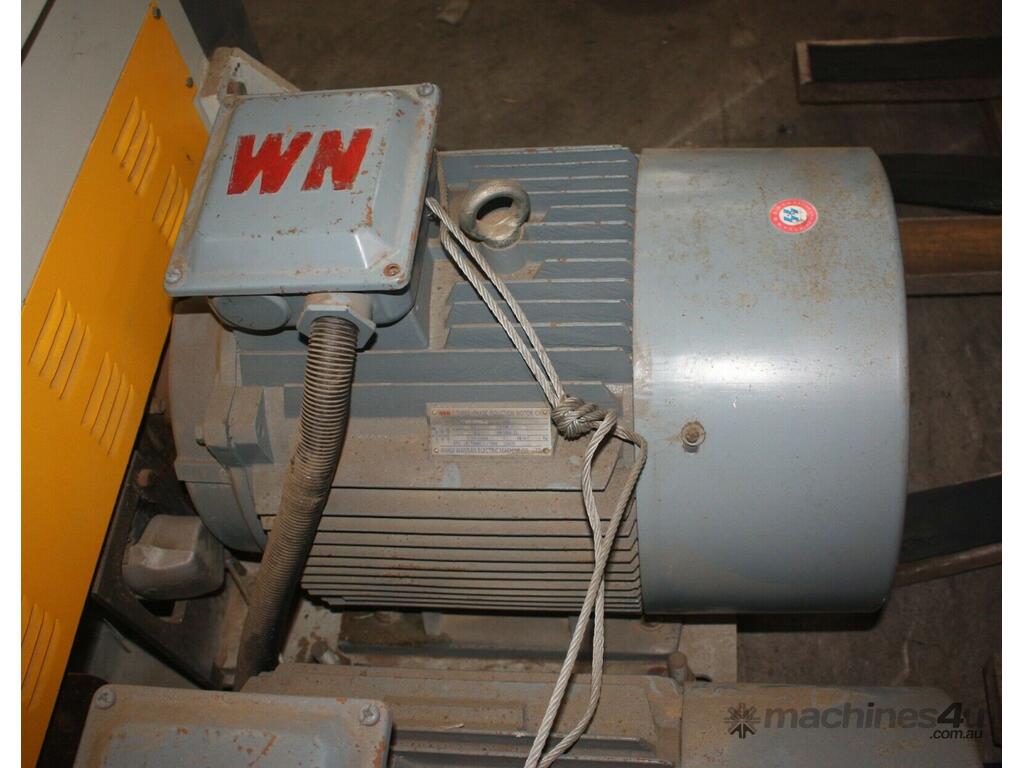

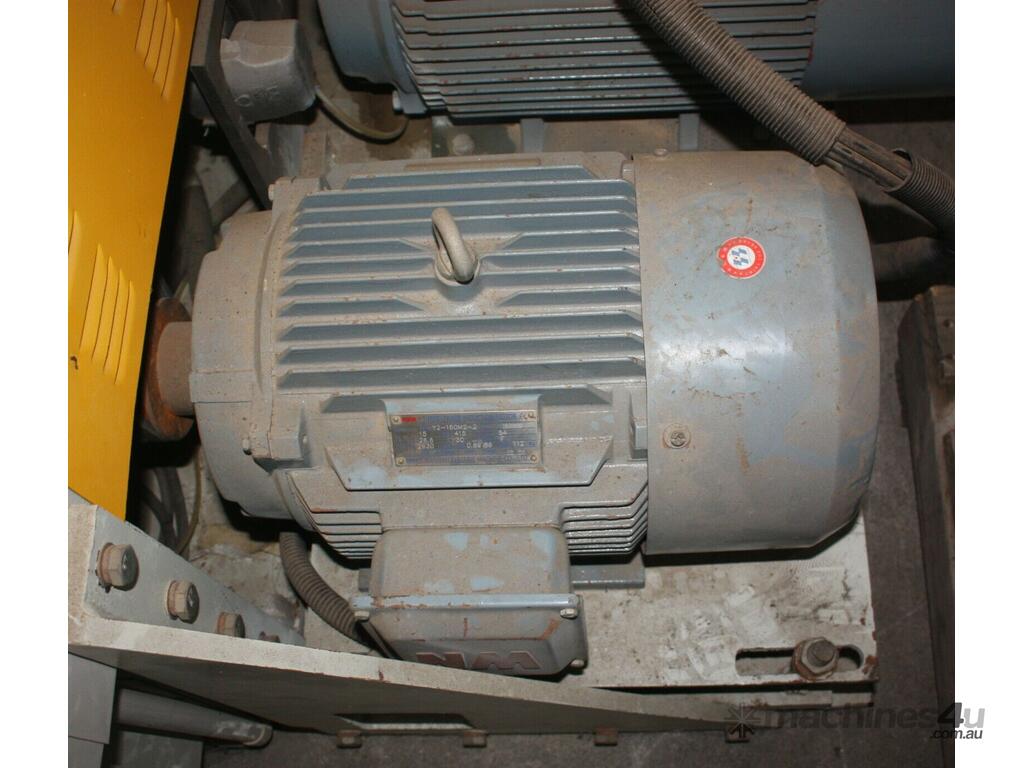

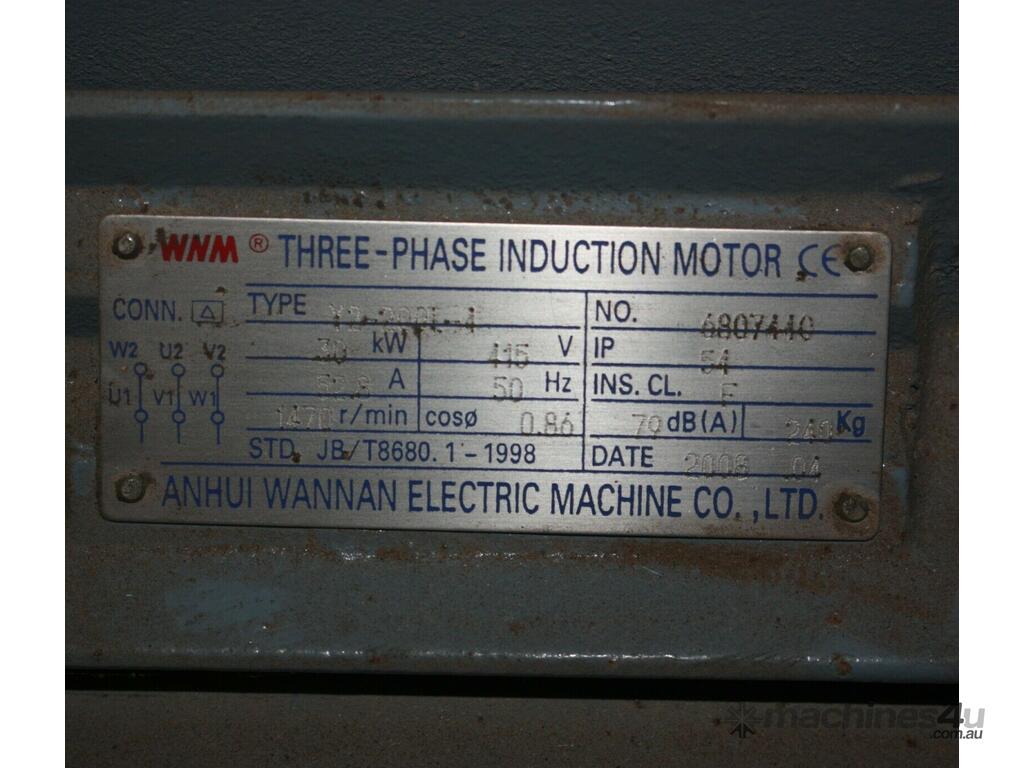

Main motor power
37kw,30kw,15kw
37kw,30kw,15kw
37kw,30kw,22kw
Working pressure
0.55Mpa
0.55Mpa
0.55Mpa
Compressed air consumption
0.2m3/min
0.2m3/min
0.2m3/min
Air intake
12000m3/h
12000m3/h
12000m3/h
Suction wind speed

25-30m/s
25-30m/s
25-30m/s
Dimensions (L x W x H)
2625x2680x2130mm
2280x2680x2130mm
2280x2680x2130mm
Net weight
4700kg
4700kg
4800kg
