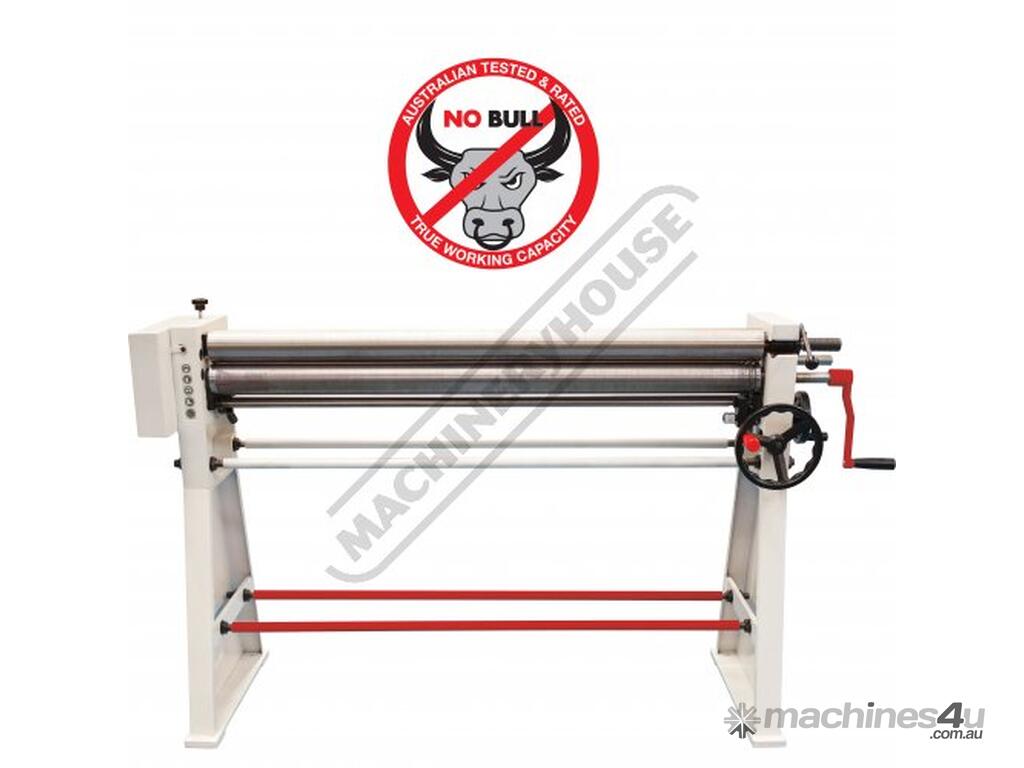

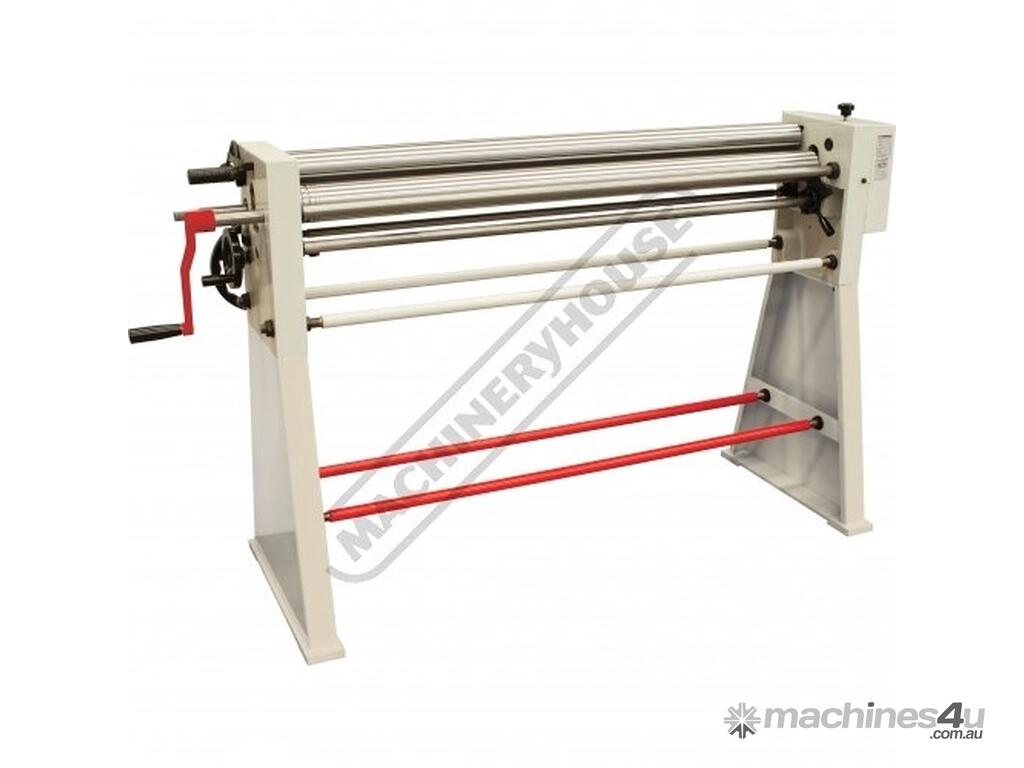

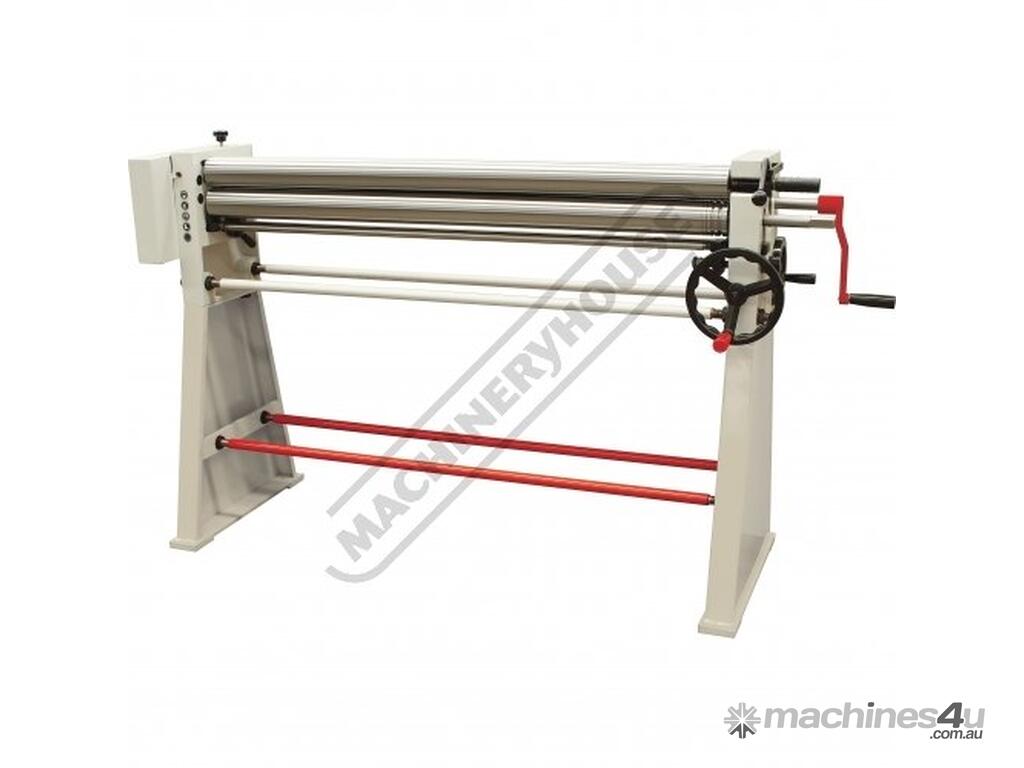

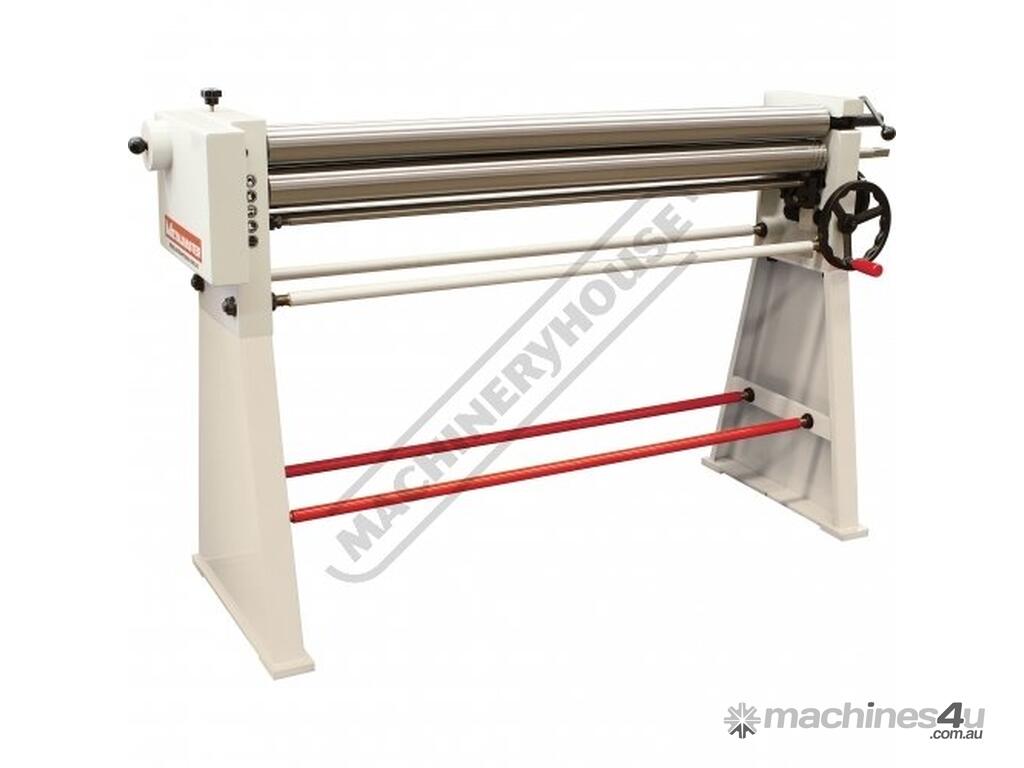

METALMASTER SRG-50E Manual Sheet Metal Curving Rolls 1250 x 1.6mm Mild Steel Capacity 2 Speed Roller Drive System, 3.5:1 & 1:1, Includes Wiring Grooves & Quick Action Swivel Out Top Roller
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S276

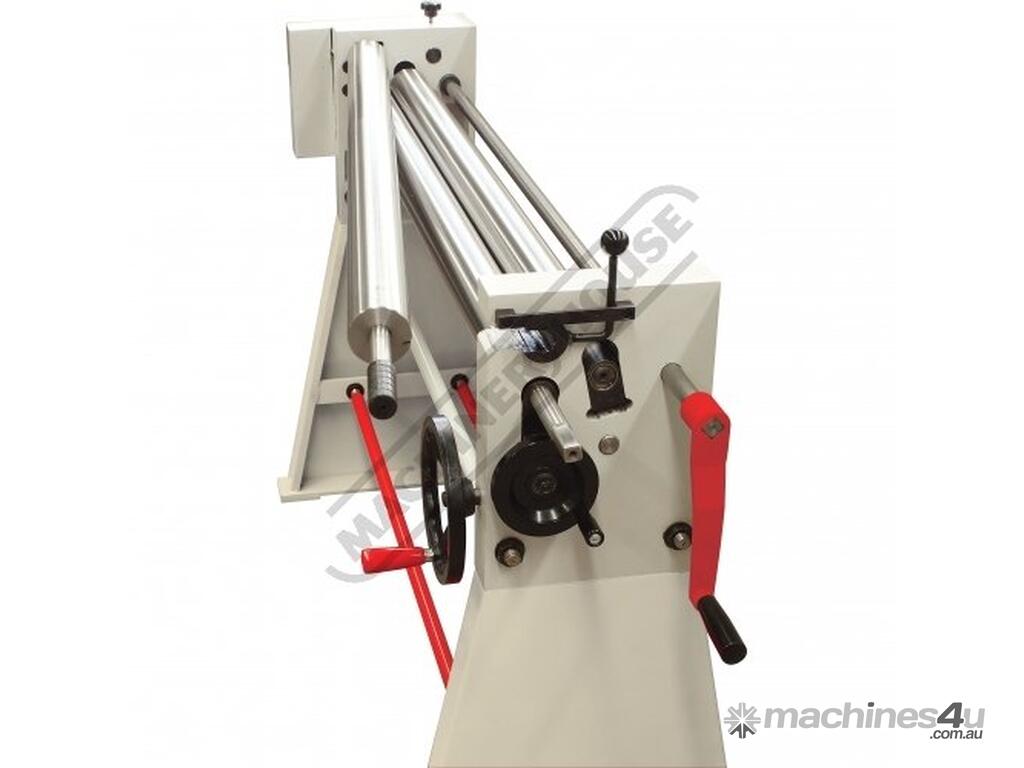

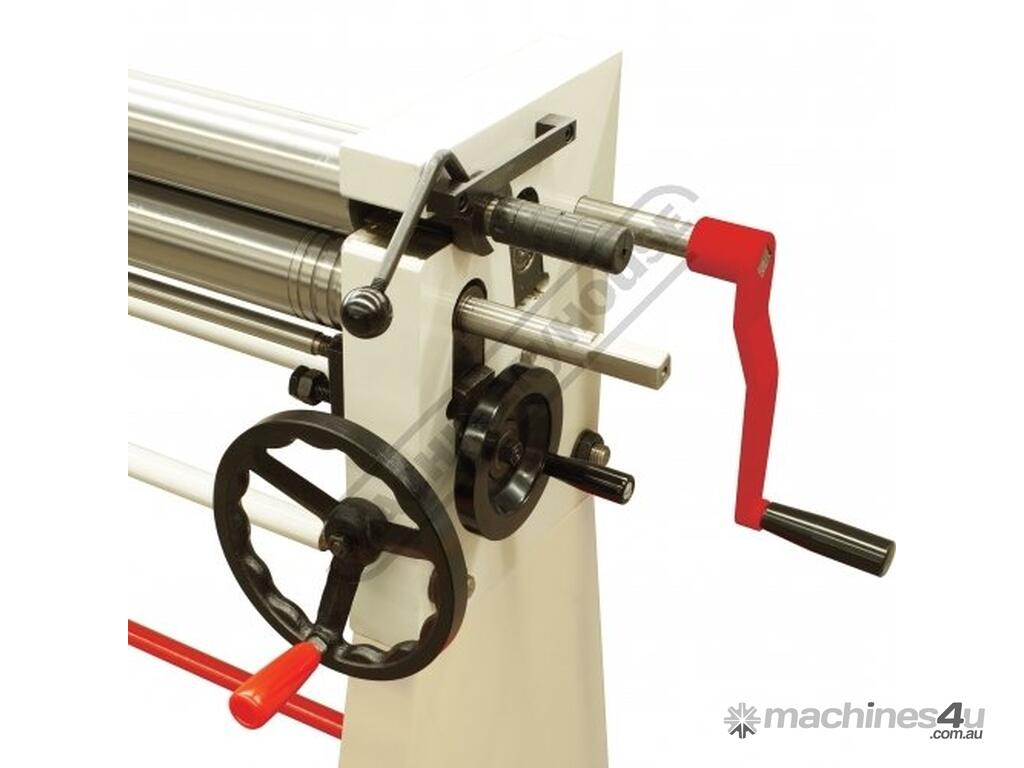

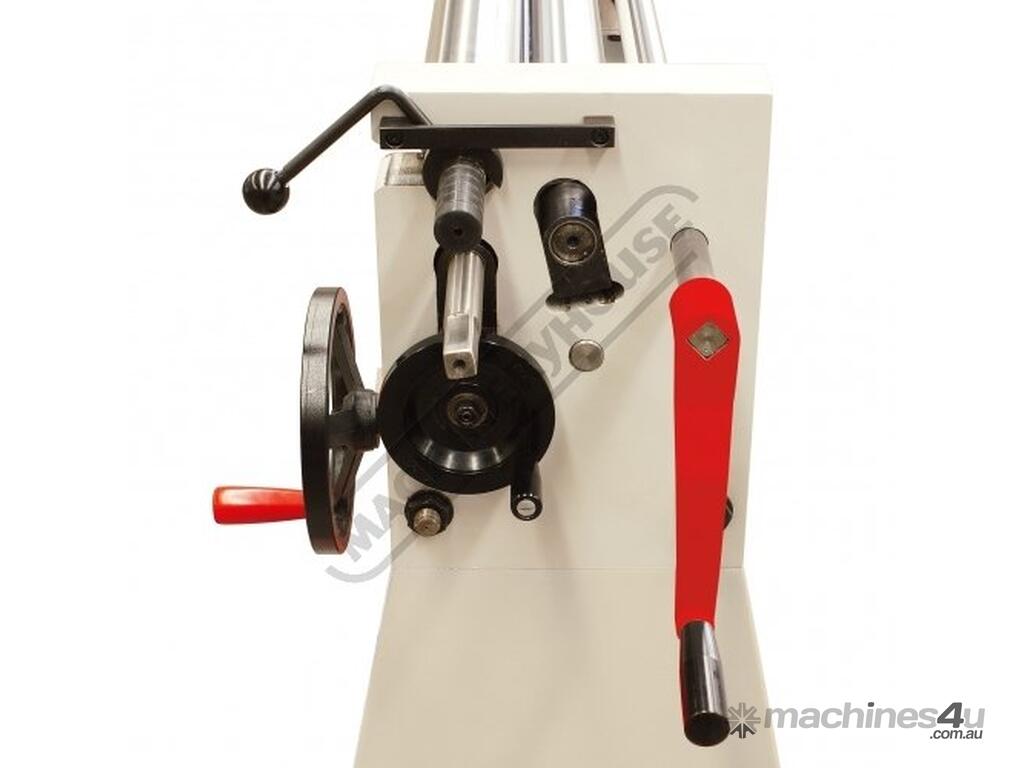

The SRG-50E sheet metal curving rolls are engineered for precision and ease of use. A single handwheel adjusts both sides of the rollers simultaneously through a wedge-type system, enabling effortless clamping for varying material thicknesses. Additionally, another handwheel controls the rear curving roll using a worm gear and lever cam mechanism, simplifying the process of curving sheet metal.
This machine features a dual-speed roller drive system. The 3.5:1 ratio is ideal for full-length materials up to 1250 x 1.6mm, minimizing physical effort during forming, while the 1:1 ratio is suited for thinner materials to enhance production speed.
Features:

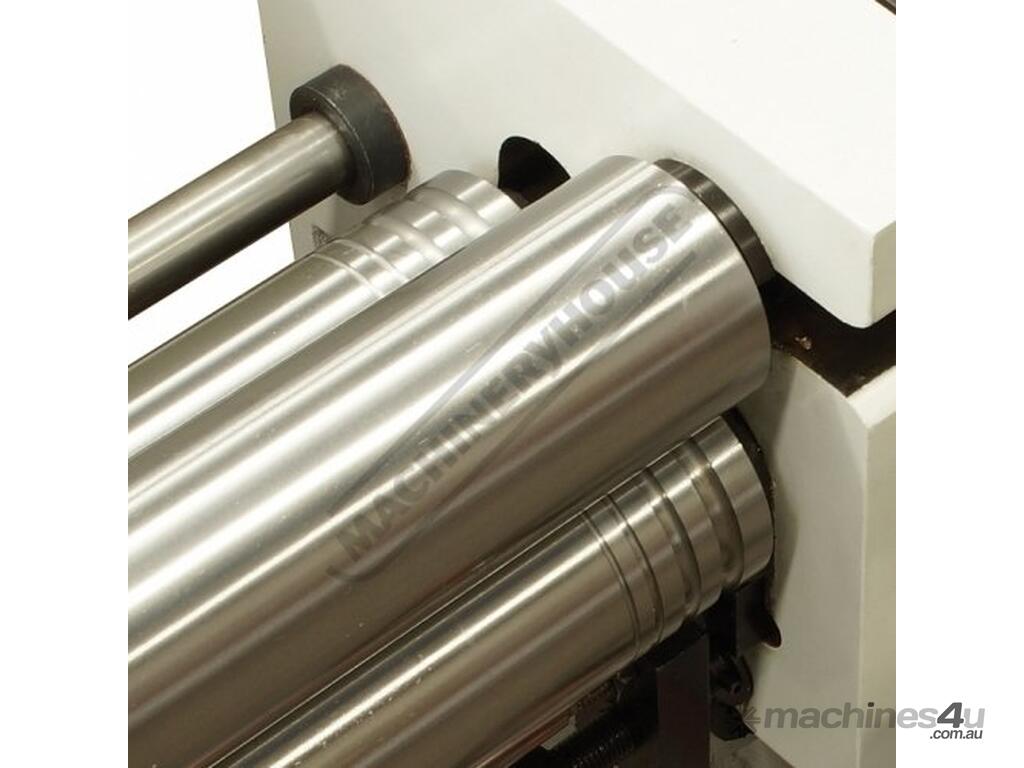

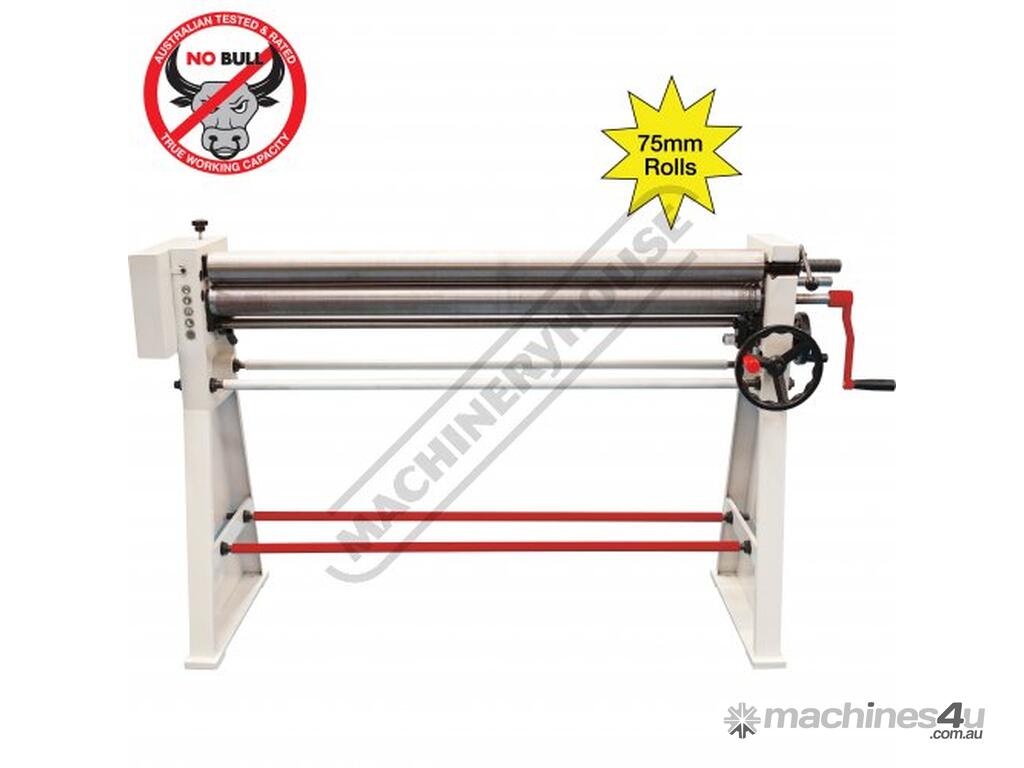

75mm Ground rolls with wiring grooves

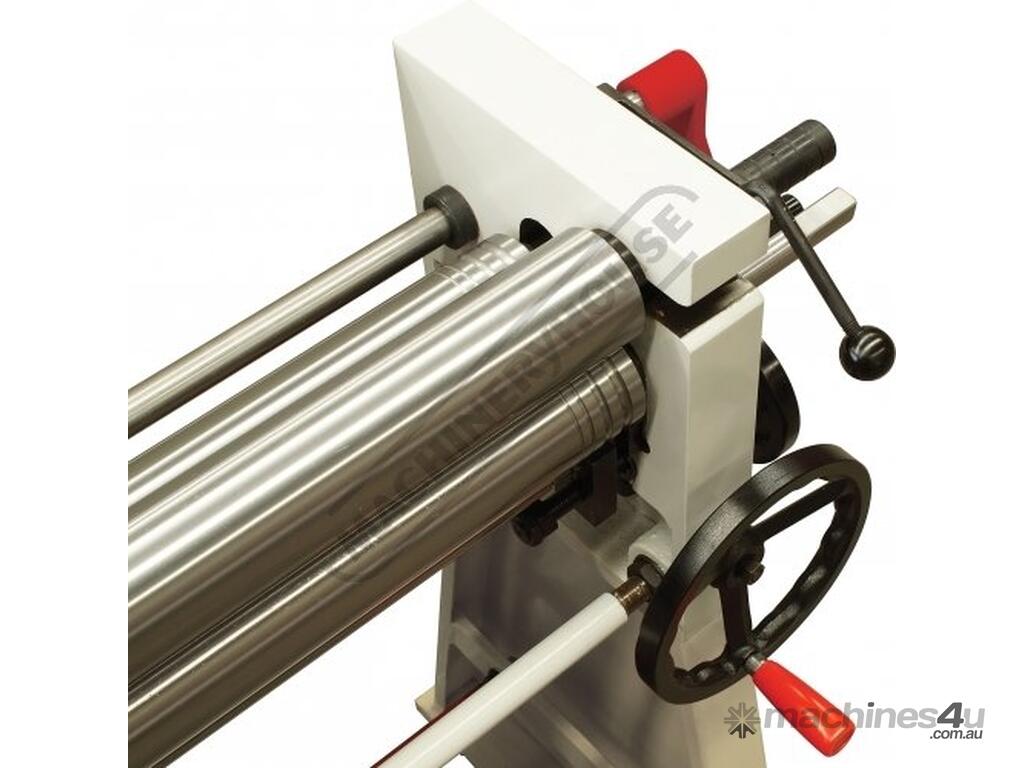

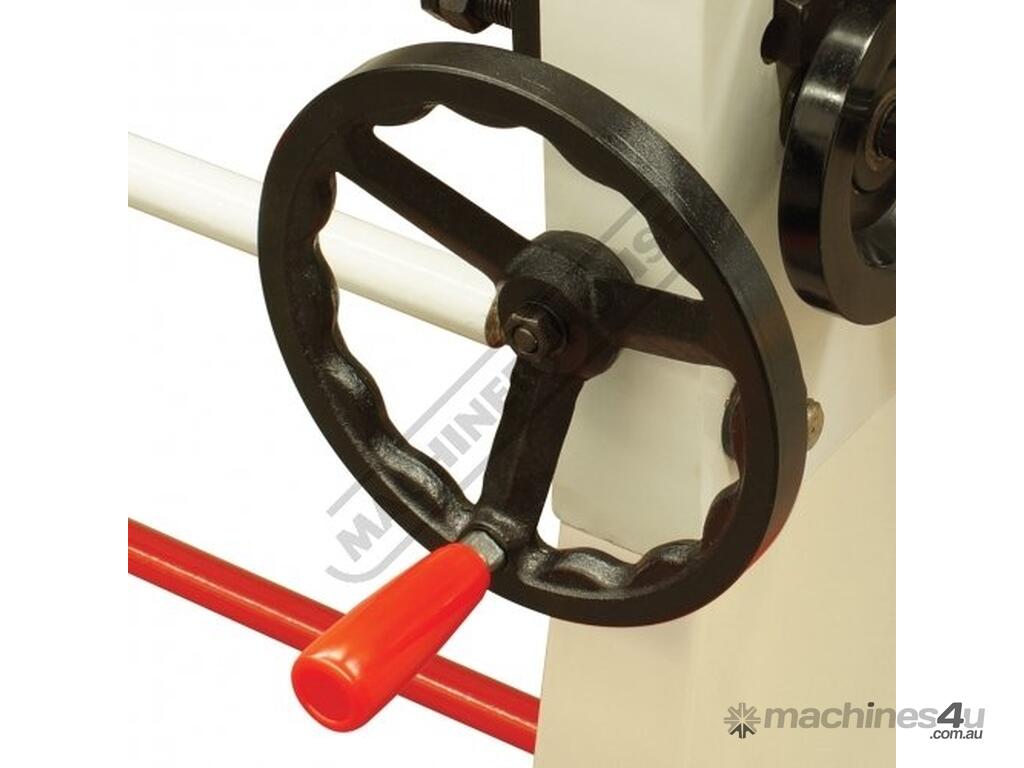

Single hand wheel adjustment via European design wedge system for material thickness

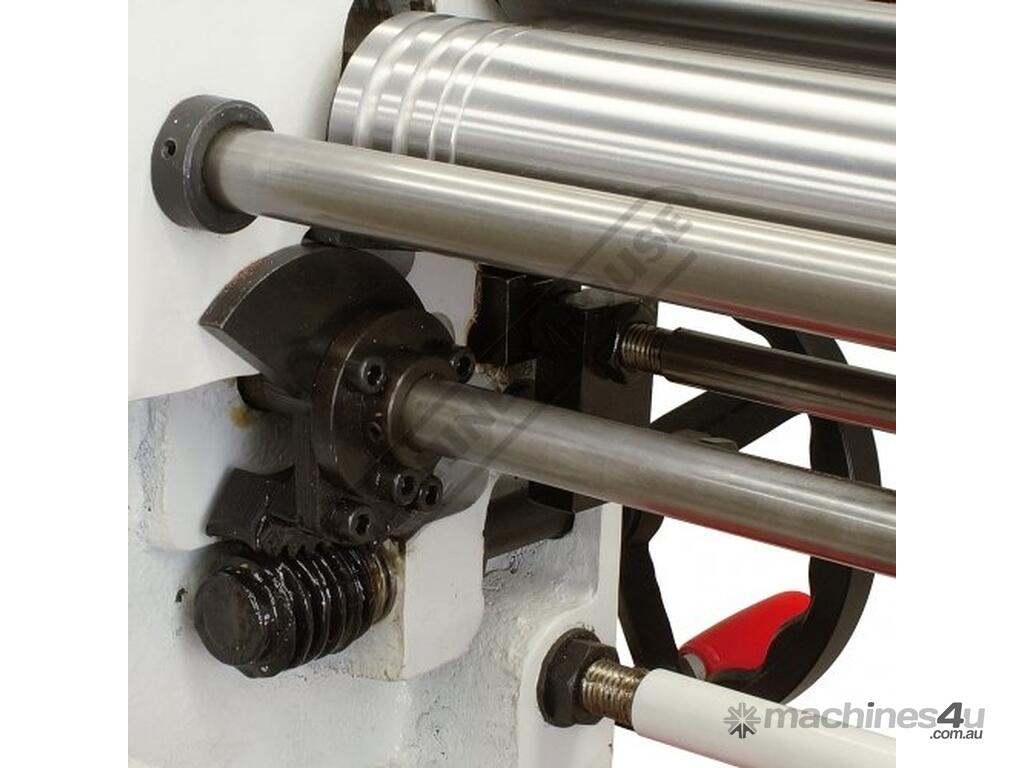

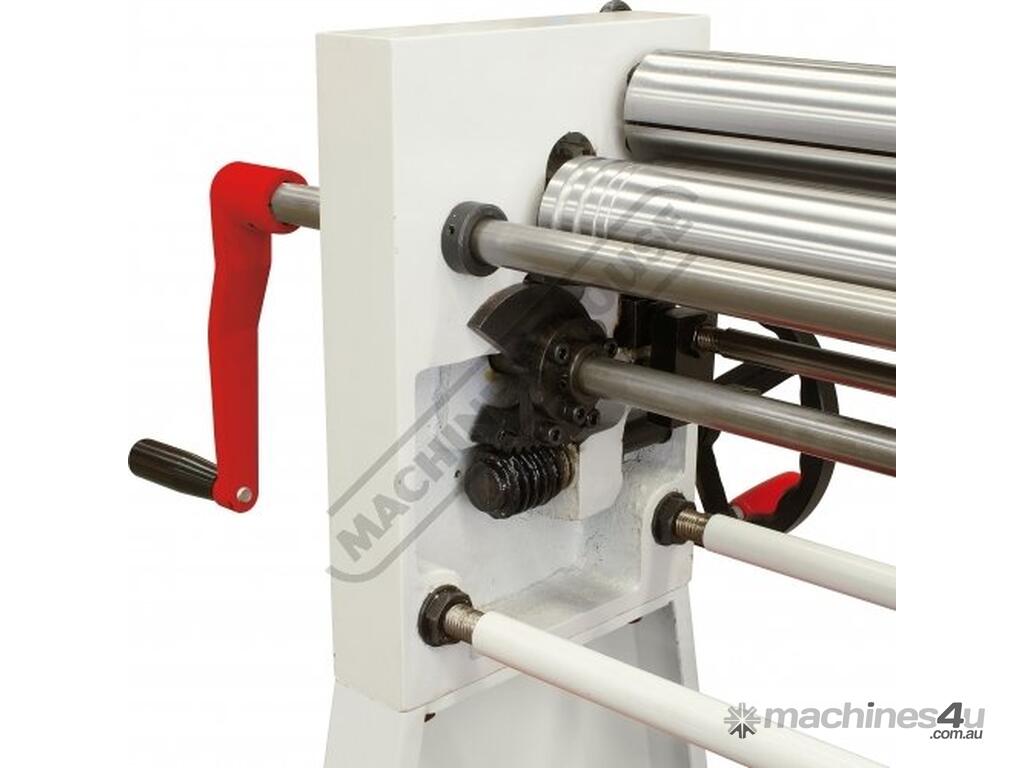

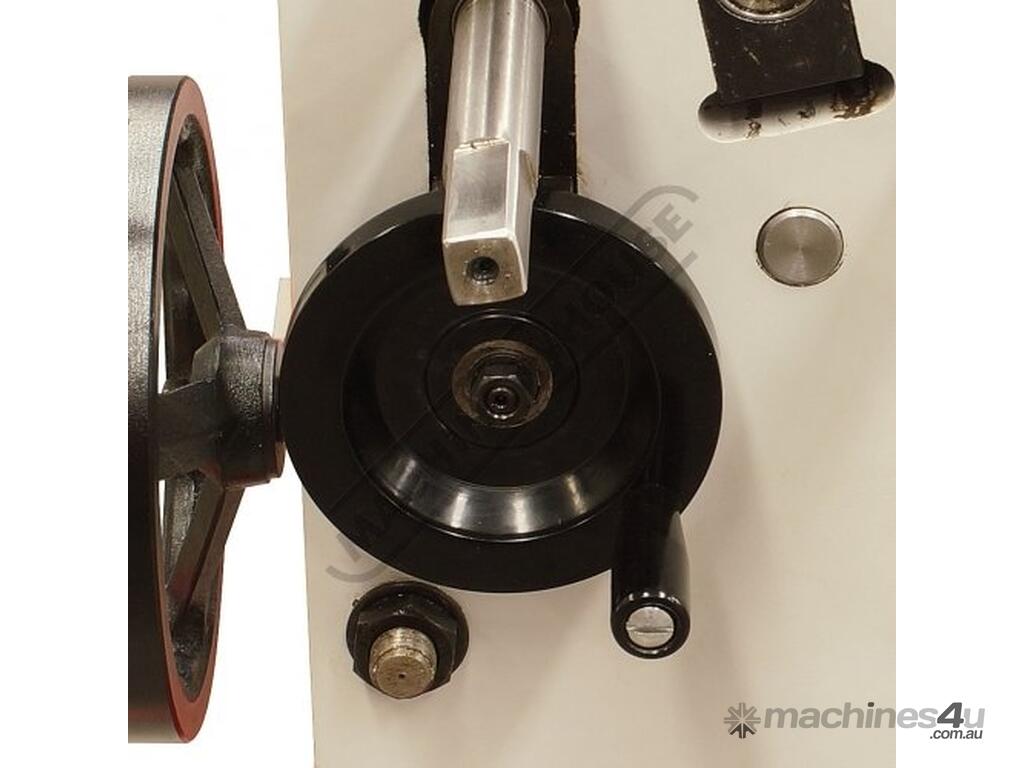

Single hand wheel adjustment for rear curving roller with cam action worm gear

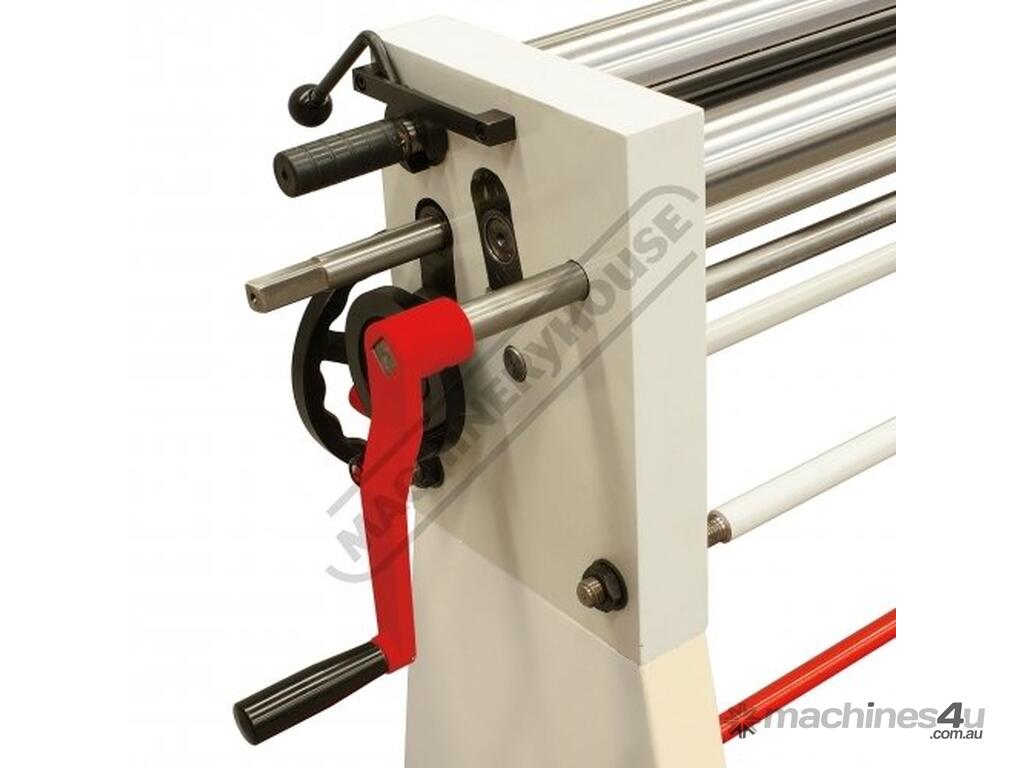

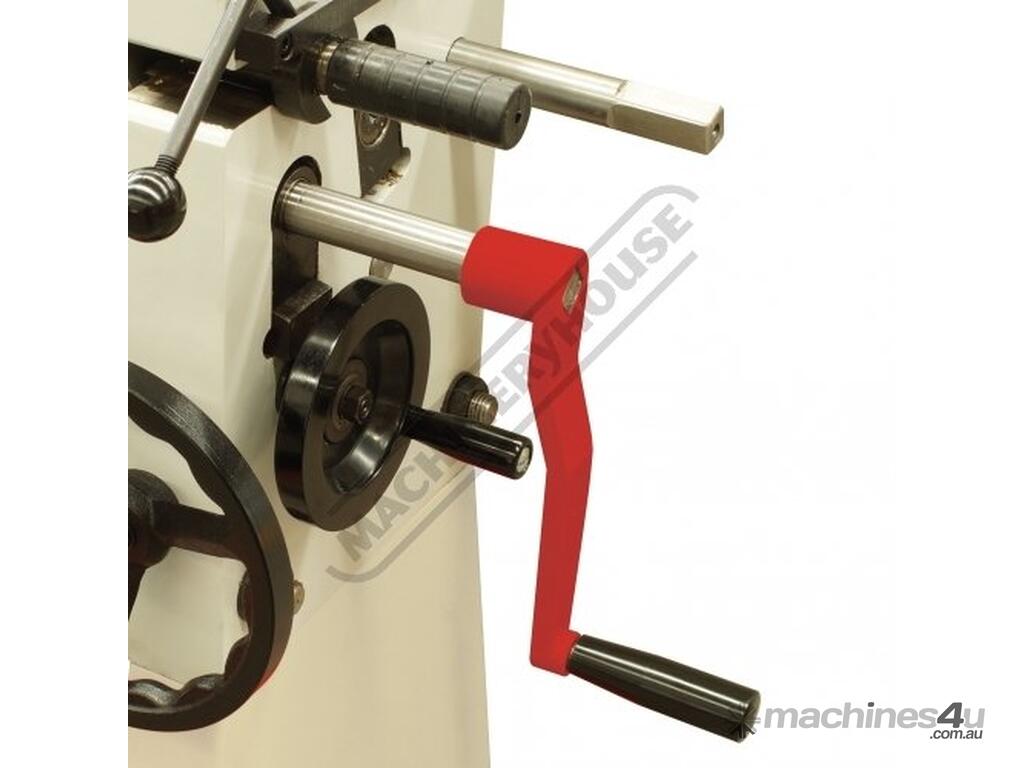

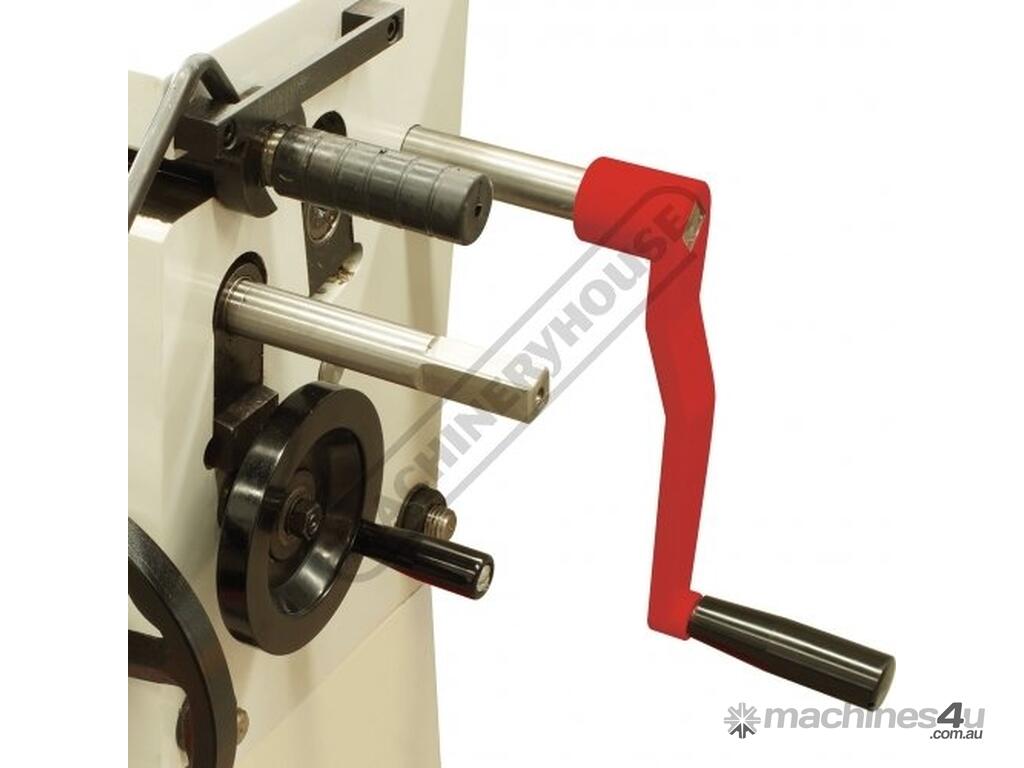

2 speed roller drive system 3.5:1 & 1:1 ratio

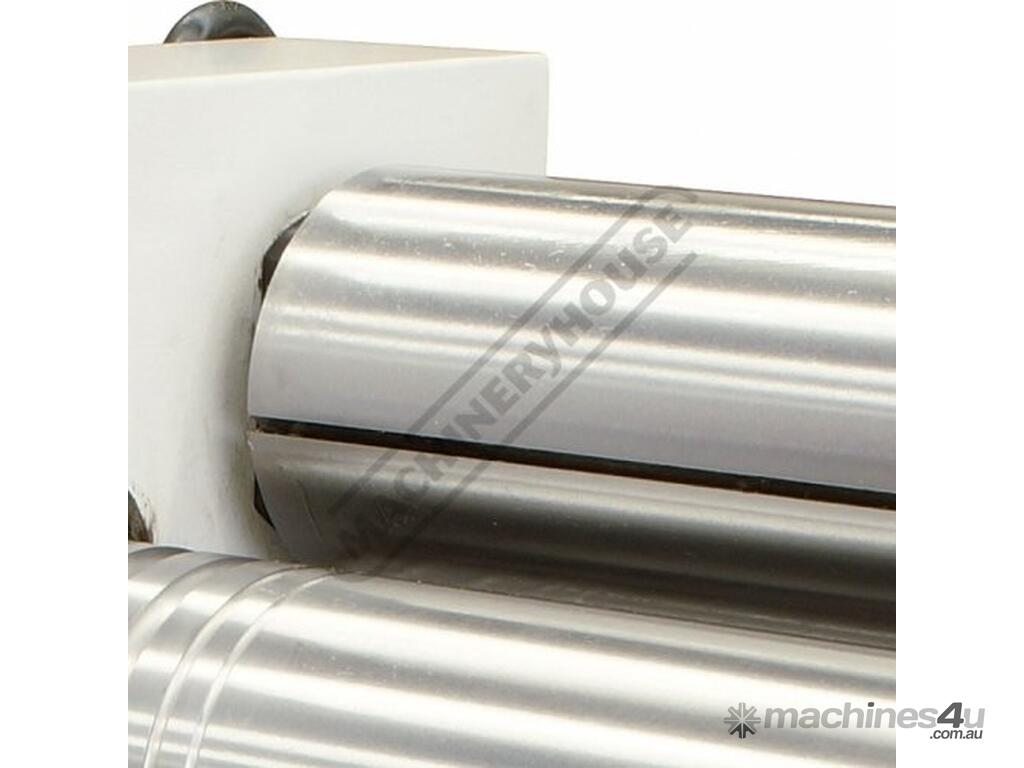

Machined slit 10mm deep in top roller
Cast-iron construction

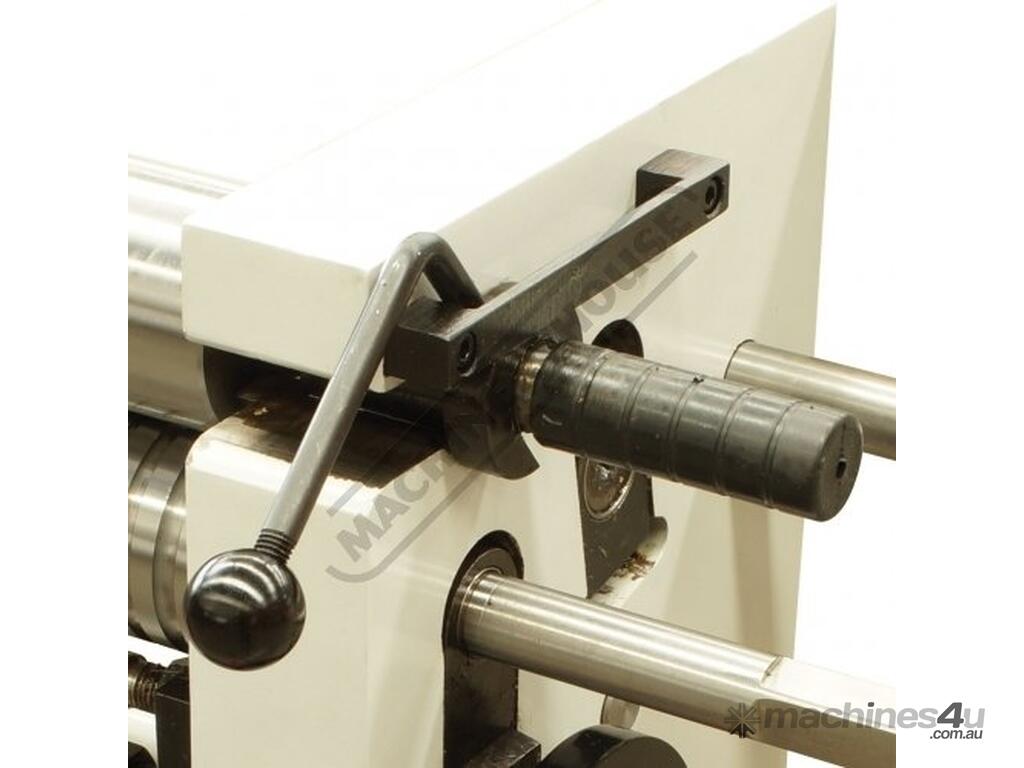

Quick action swivel top roller

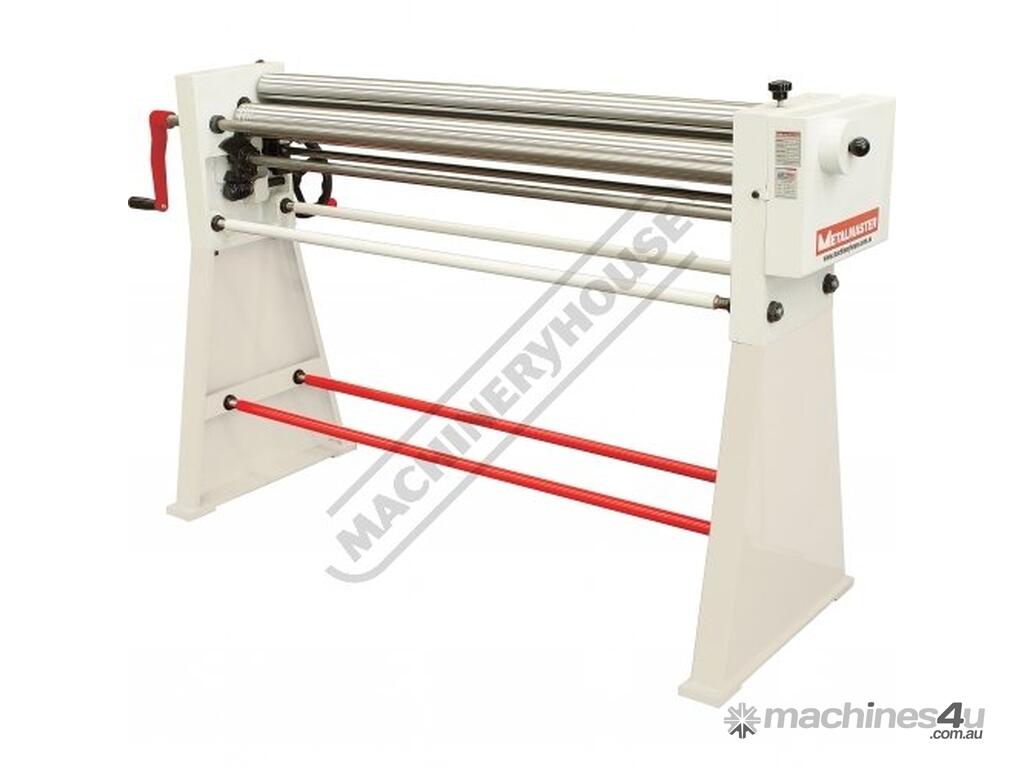

Includes heavy duty stand
Mild steel capacity is rated on hot rolled material with 250MPA
Specifications:
ORDER CODE: S276
MODEL: SRG-50E
Useful Length (mm): 1250
Capacity - Mild Steel (mm): 1.6
Minimum Rolling Diameter (mm): 130
Roll Diameter (mm): 75
Includes Stand (No / Yes): Yes
Nett Weight (kg): 260
