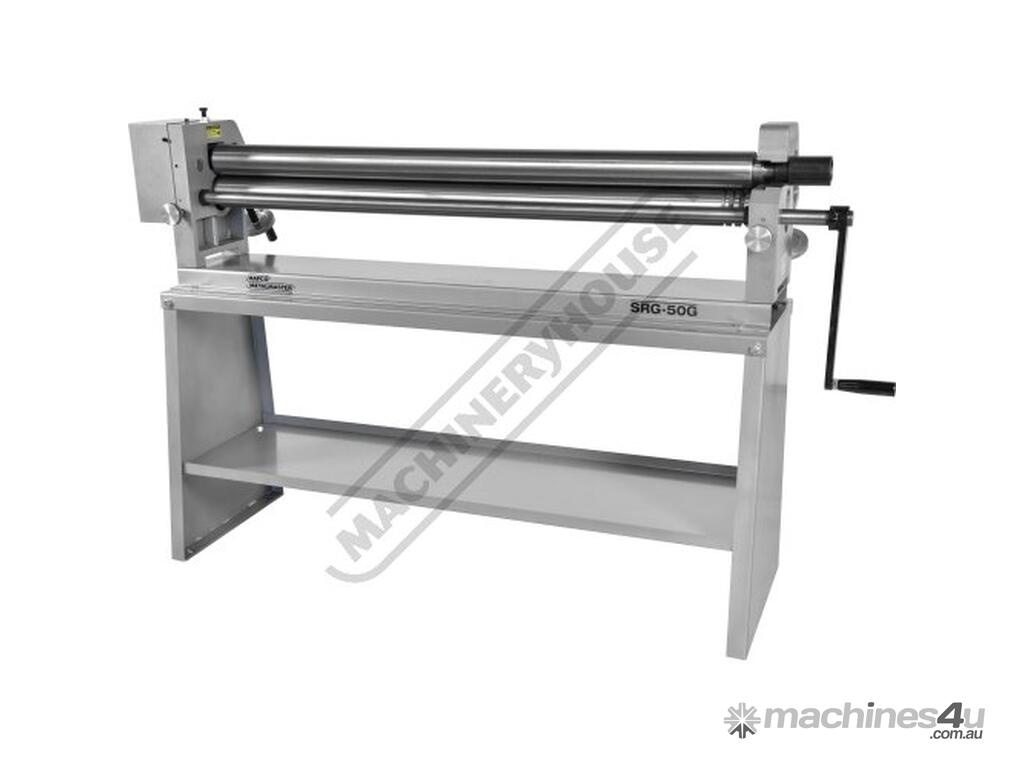

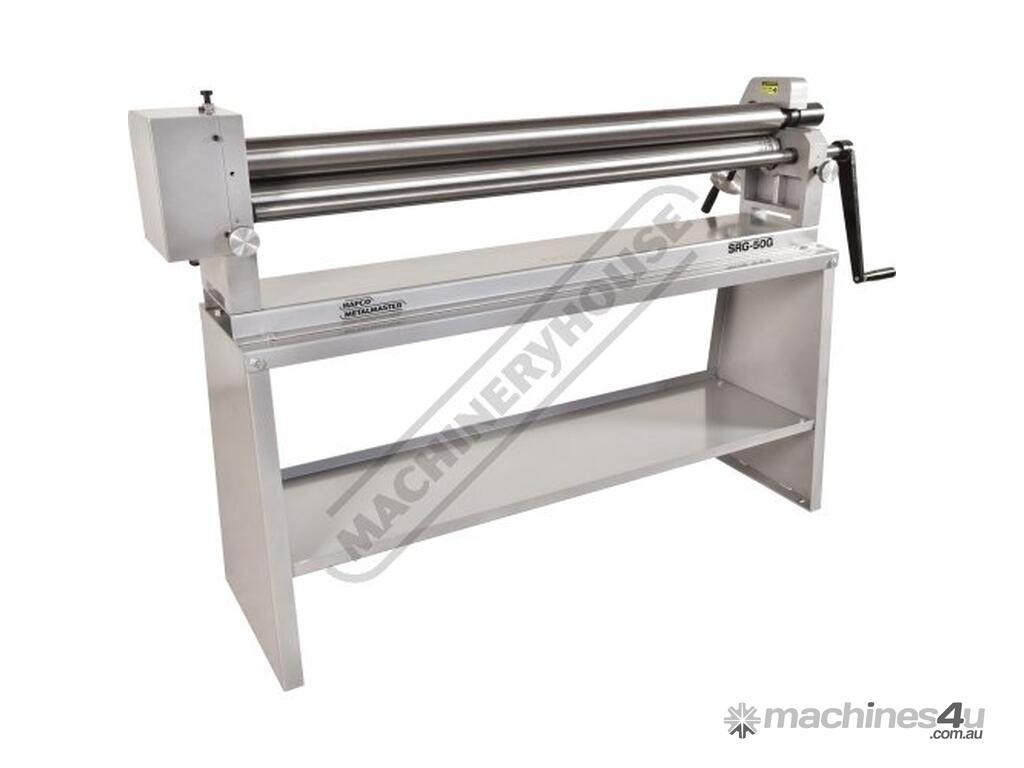

SRG-50G Manual Sheet Metal Curving Rolls 1270 x 1.5mm Mild Steel Capacity 3:1 Gear Drive Reduction R

HAFCO-METALMASTER SRG-50G Manual Sheet Metal Curving Rolls 1270 x 1.5mm Mild Steel Capacity 3:1 Gear Drive Reduction Ratio, Includes Wiring Grooves & Quick Action Swivel Out Top Roller
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S272

This New SRG-50G now features a "Gearbox Reduction Drive System" that requires much less manual effort when rolling 1.5mm sheet metal than other rolls in the market place.

Another great feature is includes large aluminium hand dials for material thickness adjustment & curving roller adjustment for really easy & user friendly operation.

Features:
"NO BULL CAPACITY" - Australian Tested & Rated To True Working Capacity

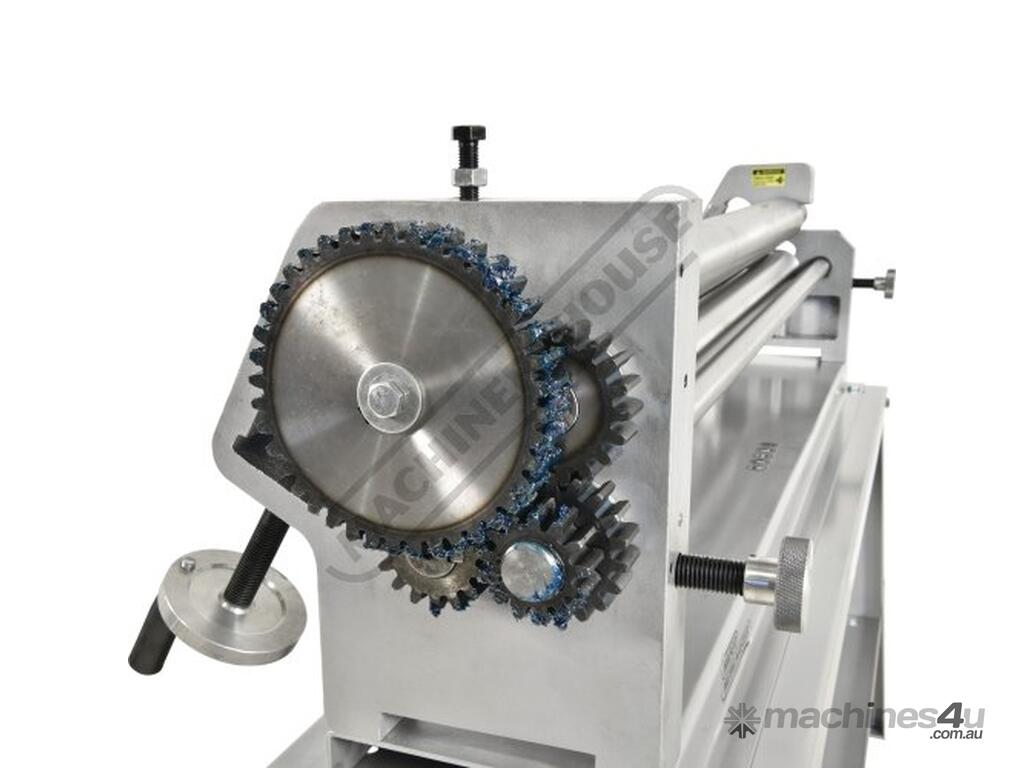

3:1 gear drive reduction ratio curving rolls

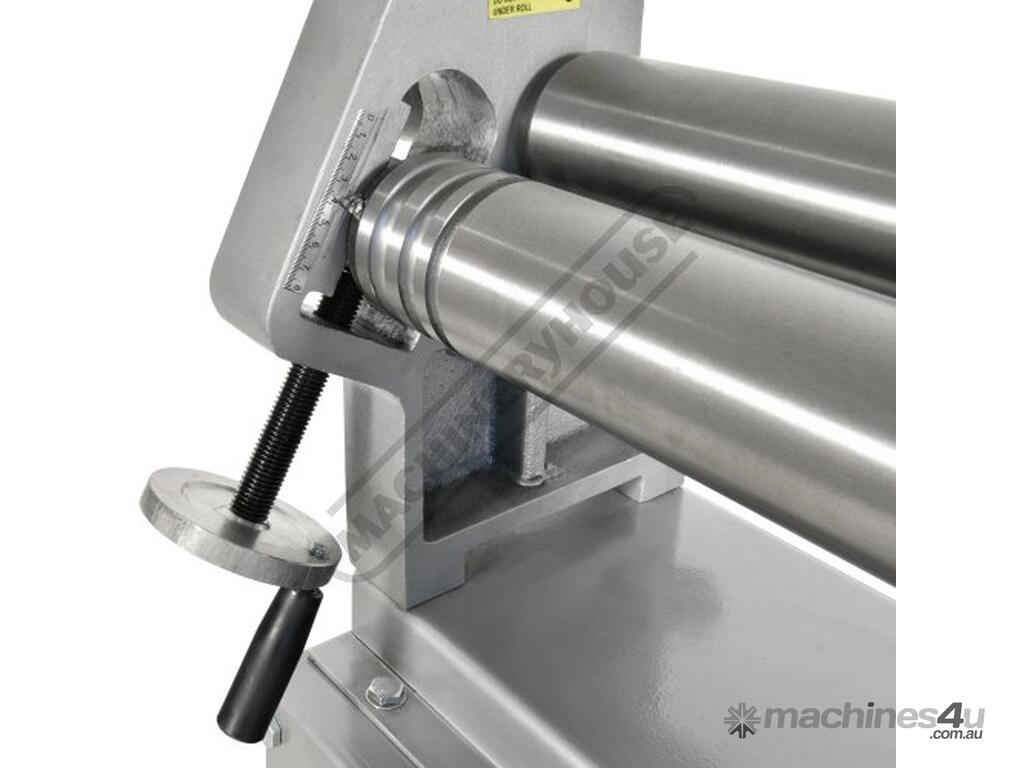

Knurled aluminium hand dials for easy material thickness adjustment
Large aluminium hand dials for easy curving adjustment
Cast-iron roller support ends
75mm Ground rolls with wiring grooves

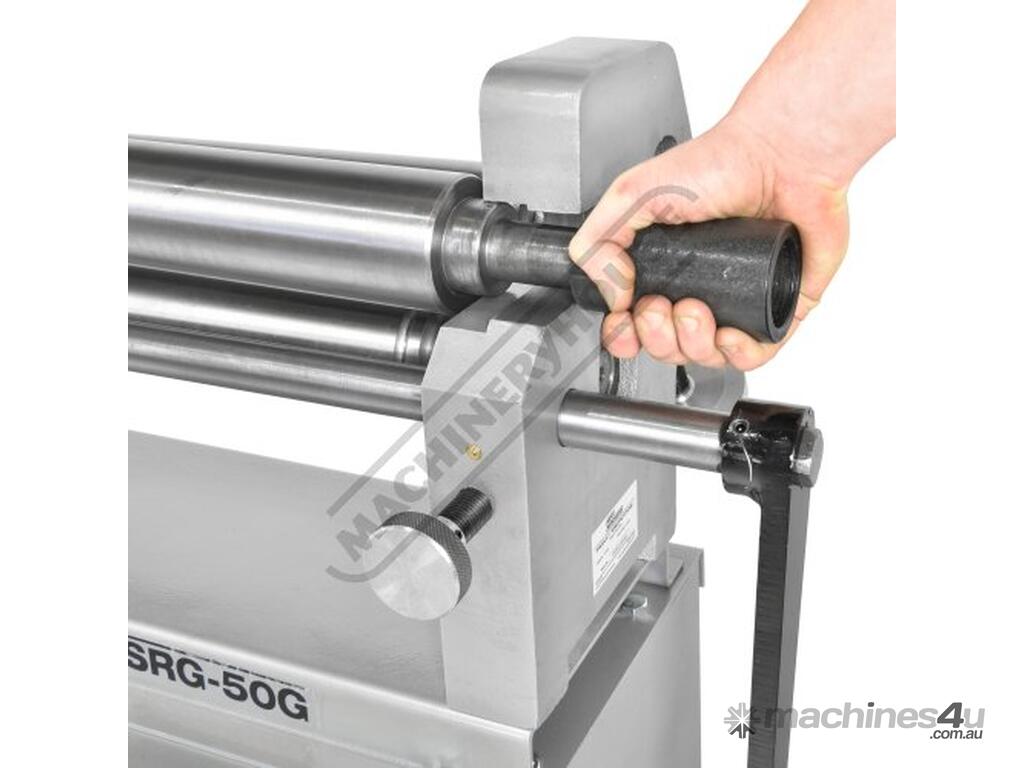

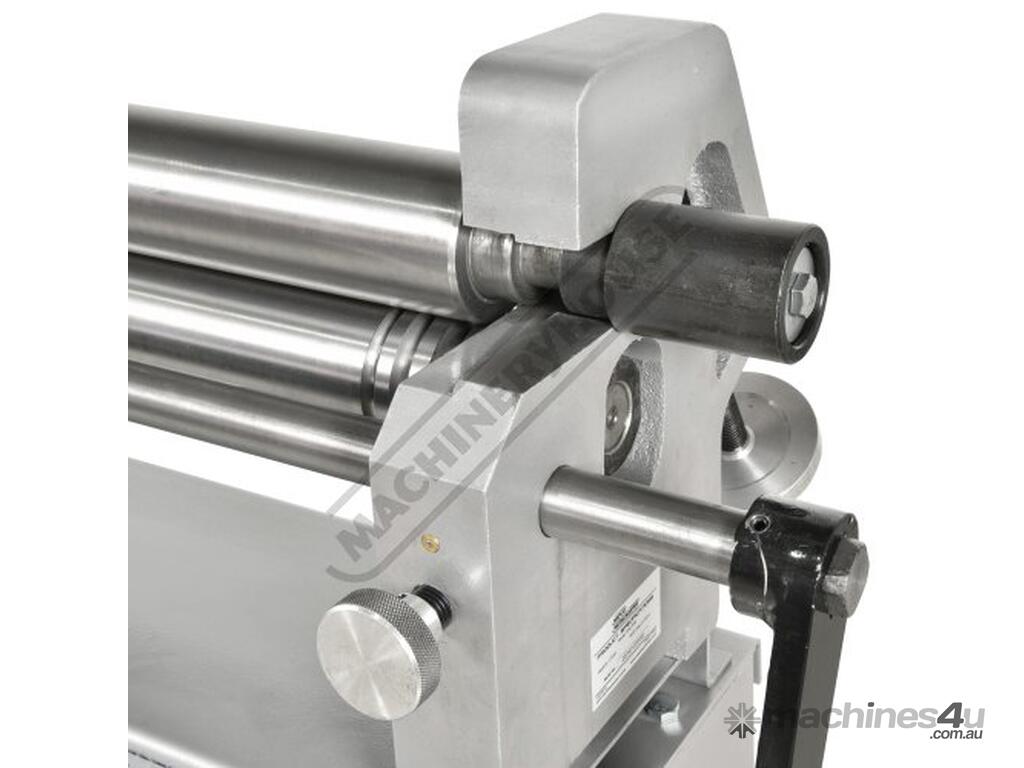

Quick action swivel top roller
Includes stand
Mild steel capacity is rated on hot rolled material with 250MPA


Specifications:
ORDER CODE: S272
MODEL: SRG-50G
Useful Length (mm): 1270
Capacity - Mild Steel (mm): 1.5
Minimum Rolling Diameter (mm): 110
Roll Diameter (mm): 75
Includes Stand (No / Yes): Yes
Nett Weight (kg): 298


To Purchase Online Please Visit The Machineryhouse & Search For 'S272'
