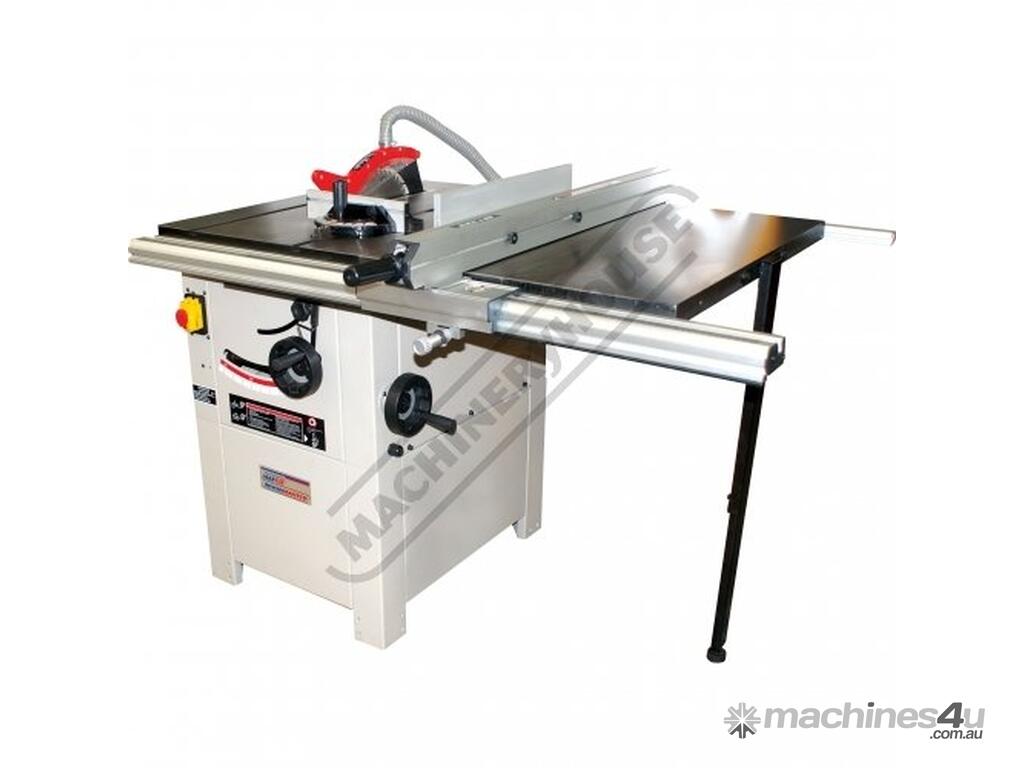

HAFCO-WOODMASTER ST-254PT Table Saw Package Deal 560 x 800mm Cast Iron Table Ø254mm Saw Blade & Includes 1500mm Sliding Table
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K053

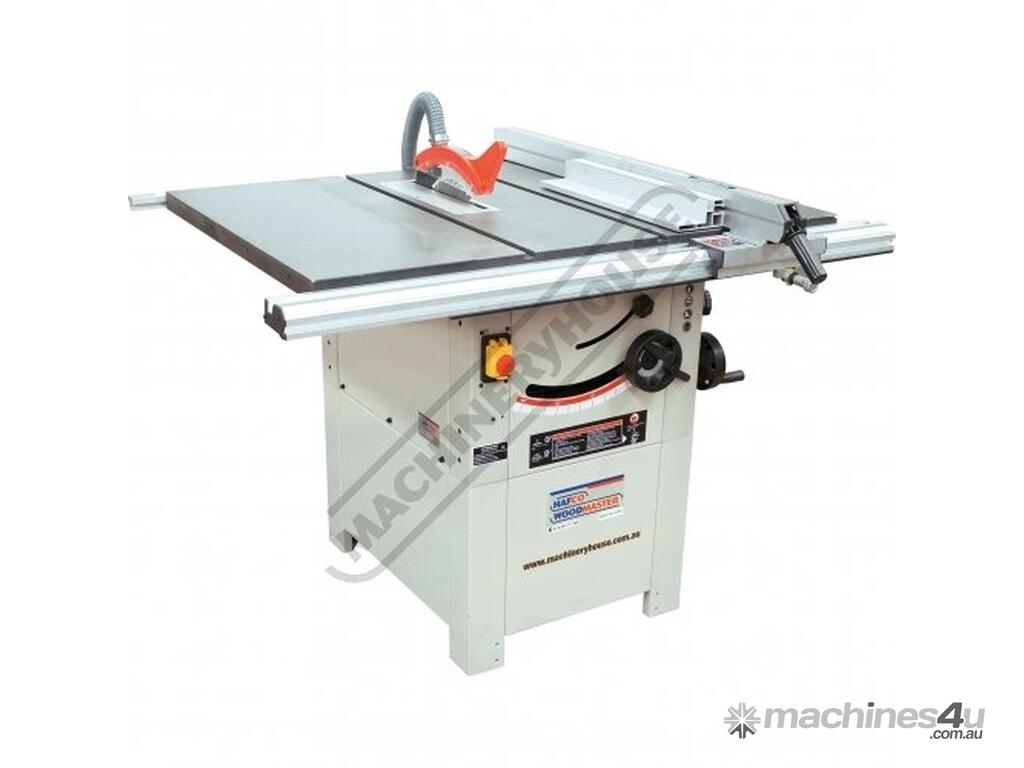

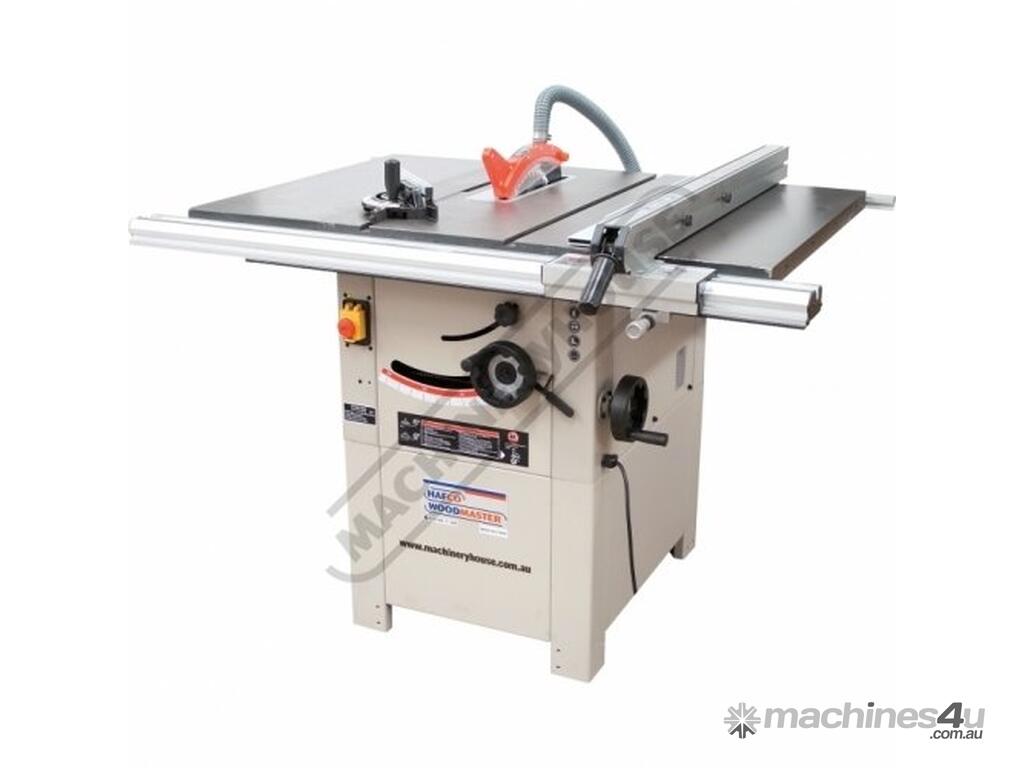

The ST-254 Table Saw is an established, robust, and smooth operating machine that is constructed largely from cast iron and the box section stand is made up of heavy gauge steel. The 254mm blade gives a cutting depth of up to 75mm at 90?& 60mm at 45? and adequately powered by a 2.2kW / 3hp - 240V 10-amp induction motor.

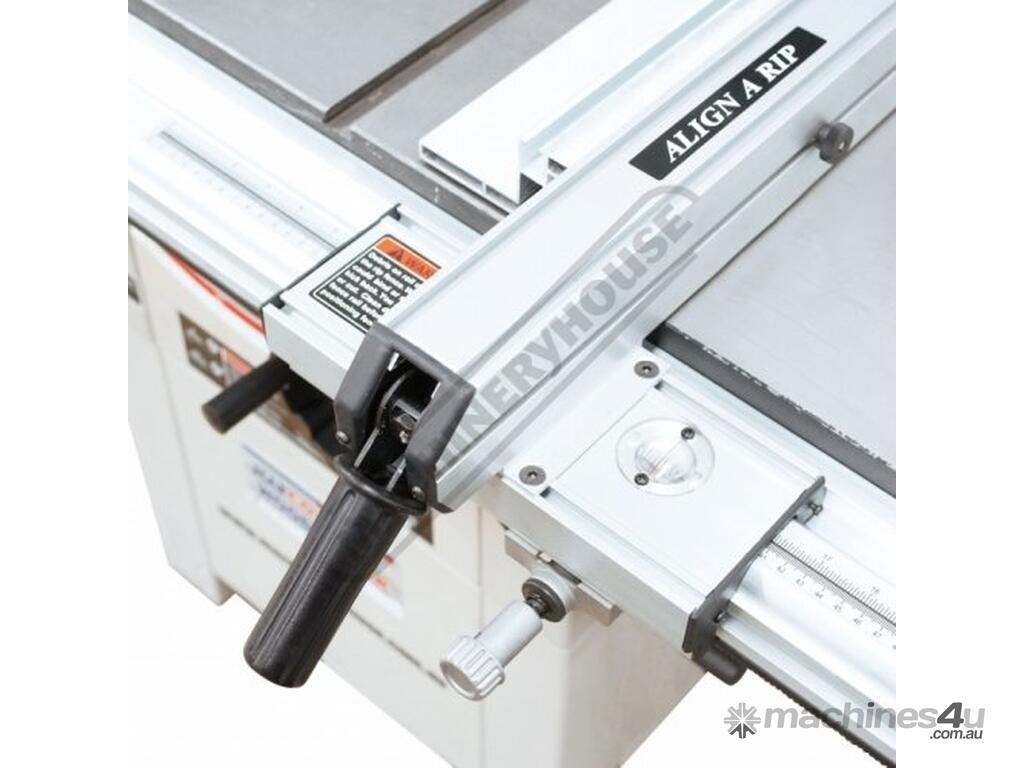

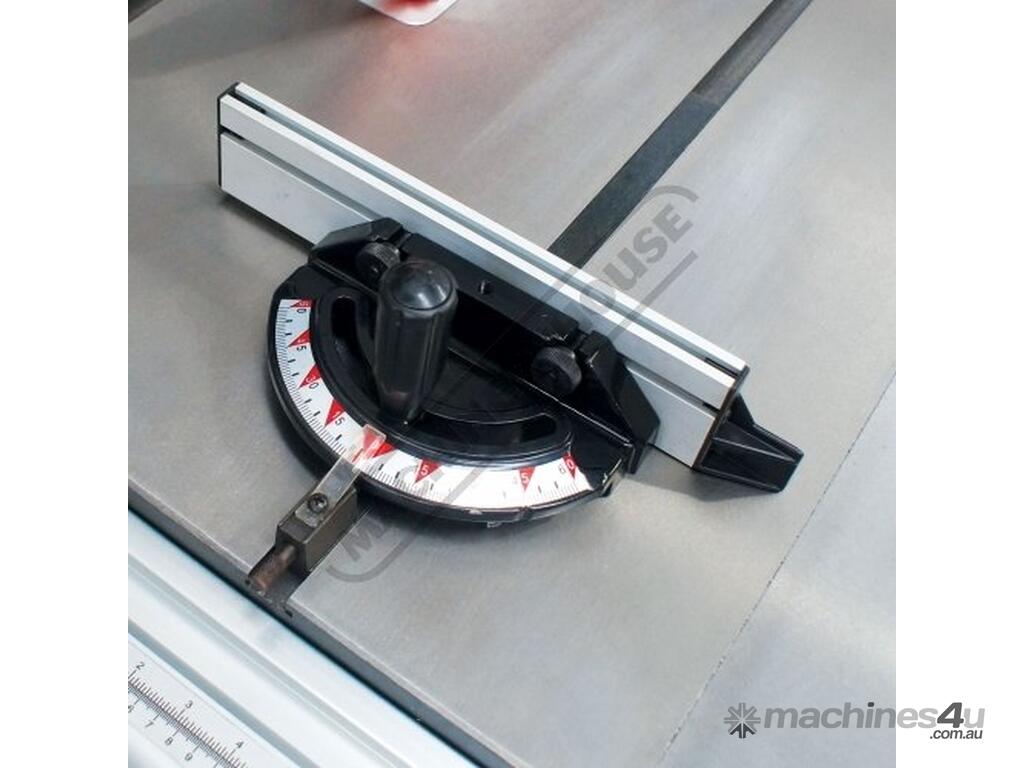

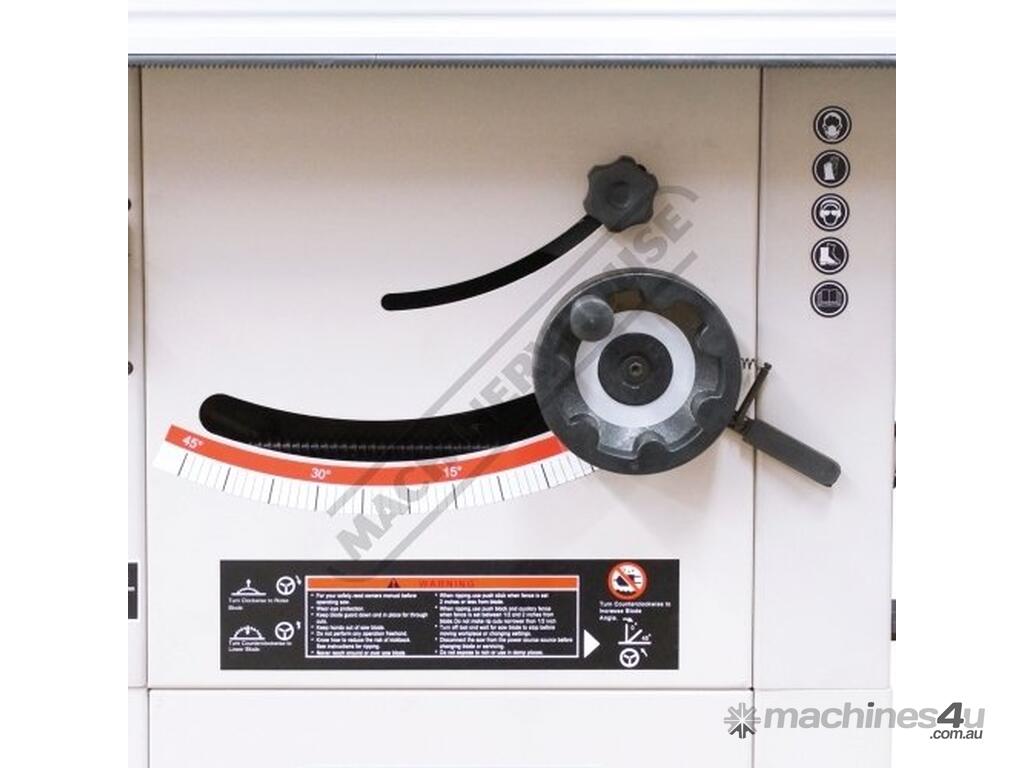

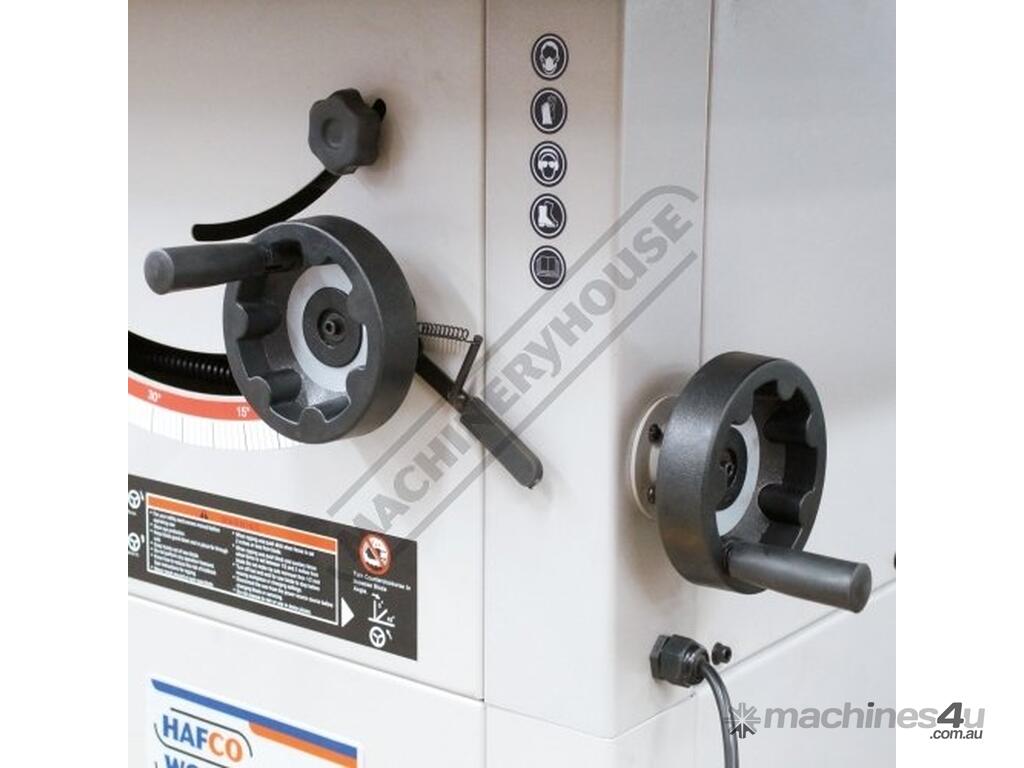

The cast iron table provides great strength and rigidity as well as a smooth user-friendly working surface. The micro adjustable rip fence is full length and cam locked solidly onto rails at the front and back of the table and can be used both sides of the blade. A mitre guide included slides in a T-slot grooves in the table on either side of the blade. Both the blade height and tilt controls have large handles that are conveniently located on front & side of the table saw.

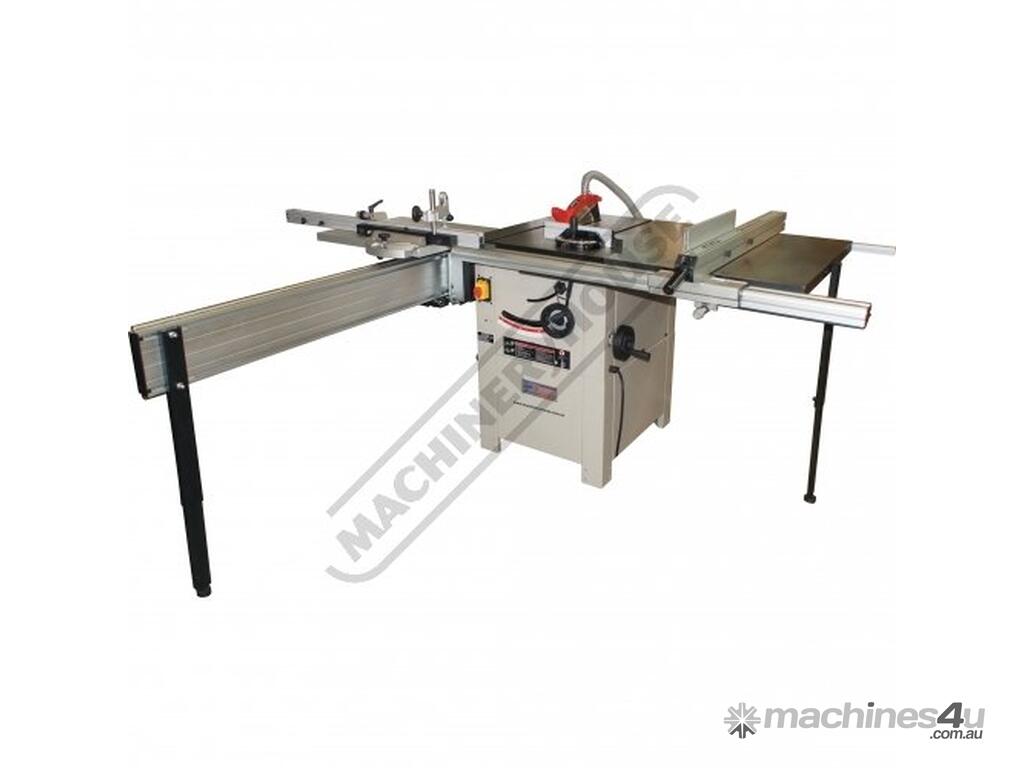

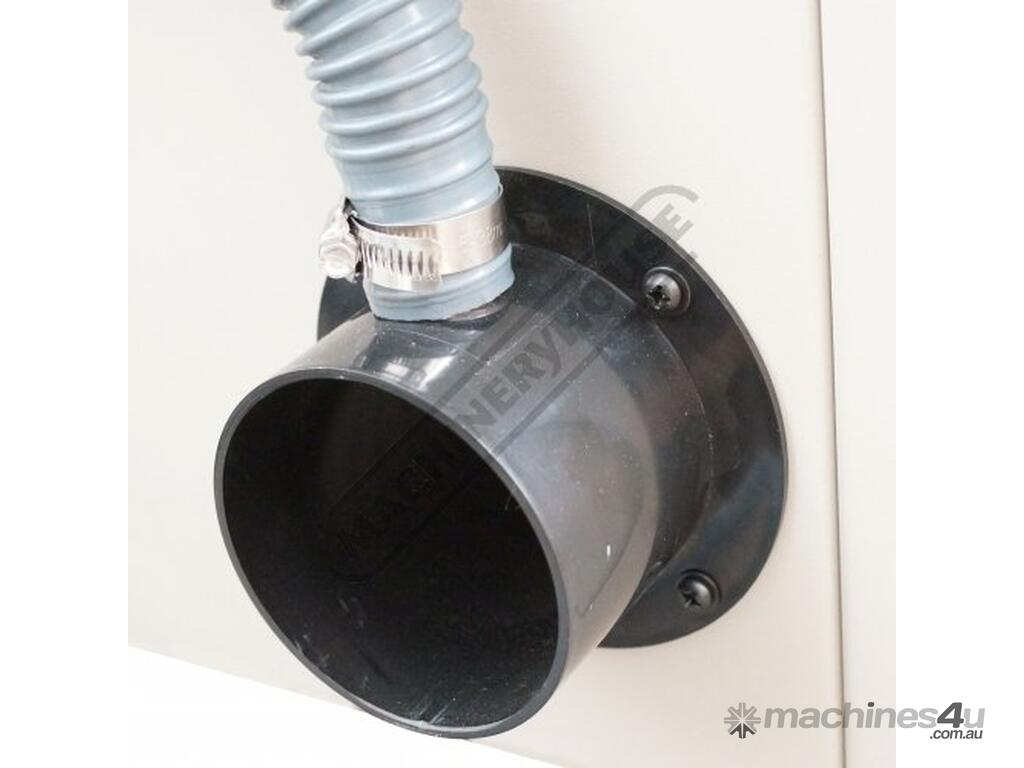

The ST-254T 1500mm sliding table thats included in this package deal makes this machine even more versatile with its capabilities. The cast iron saw table also has solid cast iron table extension supports that are both mounted on the right side of the table and measures an attractive 1170 x 800mm in total. Dust can be removed via a 100mm dust port outlet at rear of machine and the saw guard when connected to a suitable high-volume extraction system.

Features:
ST-254 - Table Saw - (W486)
Large 560 x 800mm cast iron table
1170 x 800mm with side extensions
254mm TCT saw blade
100mm dust collector port
75mm depth of cut at 90º
60mm depth of cut at 45º

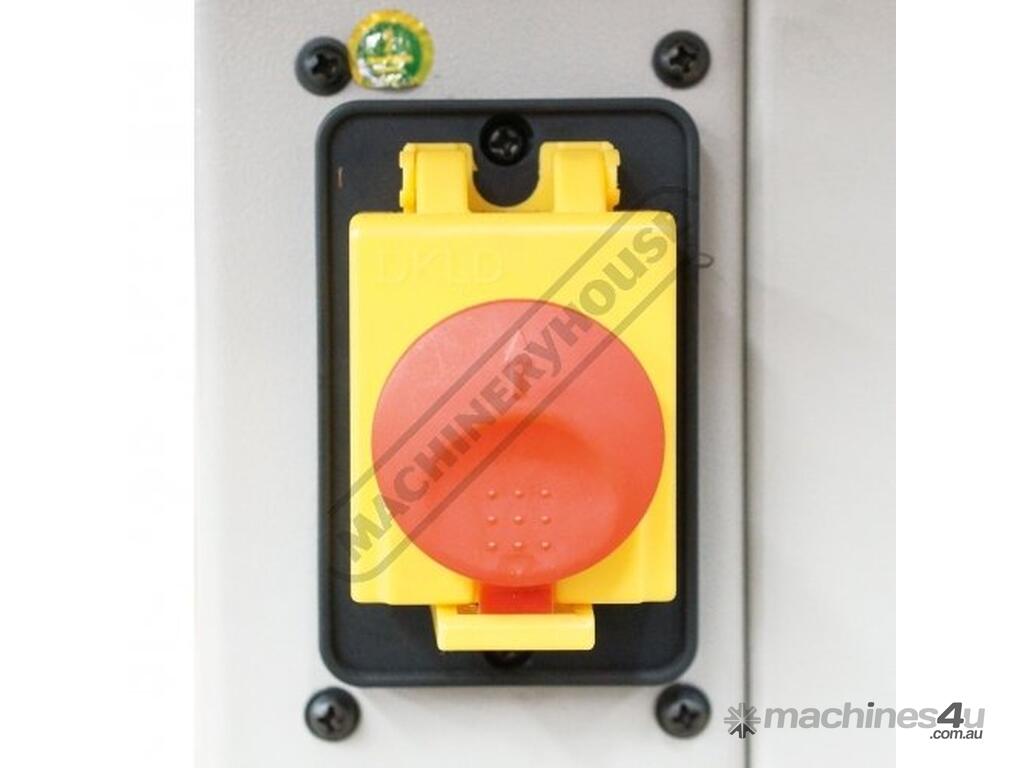

Dust proof magnetic switch
Tilt arbor to 45º
Powerful 2.2kW / 3hp 240V induction motor

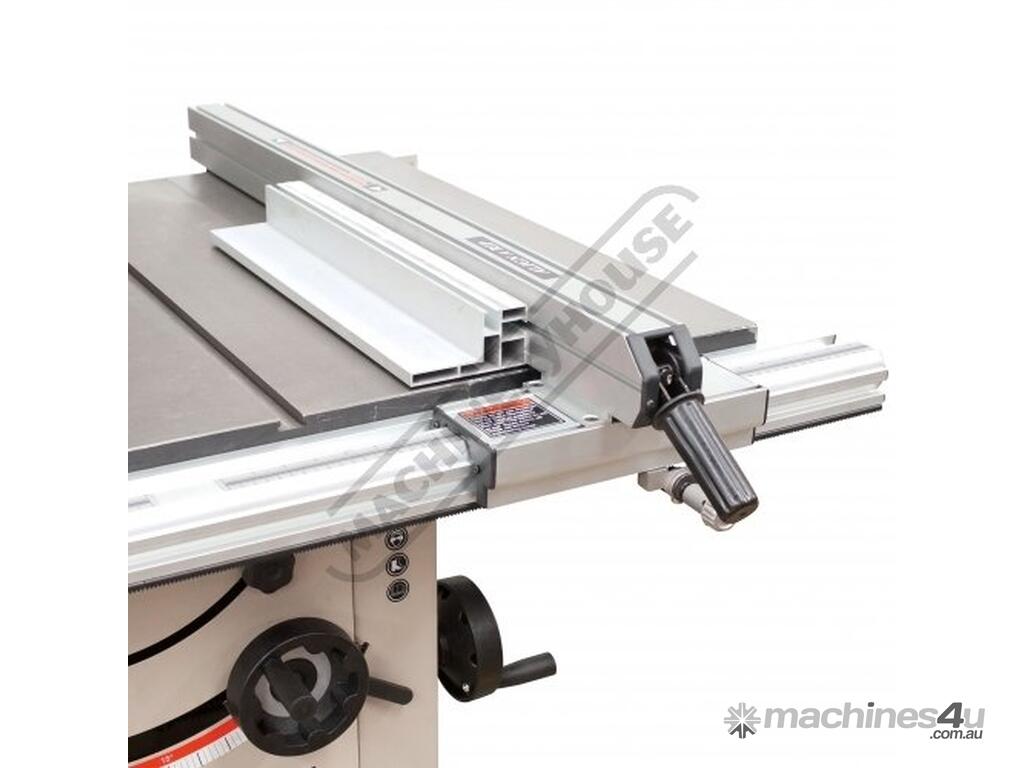

Includes heavy duty rip fence with micro-adjustment operated left or right of blade

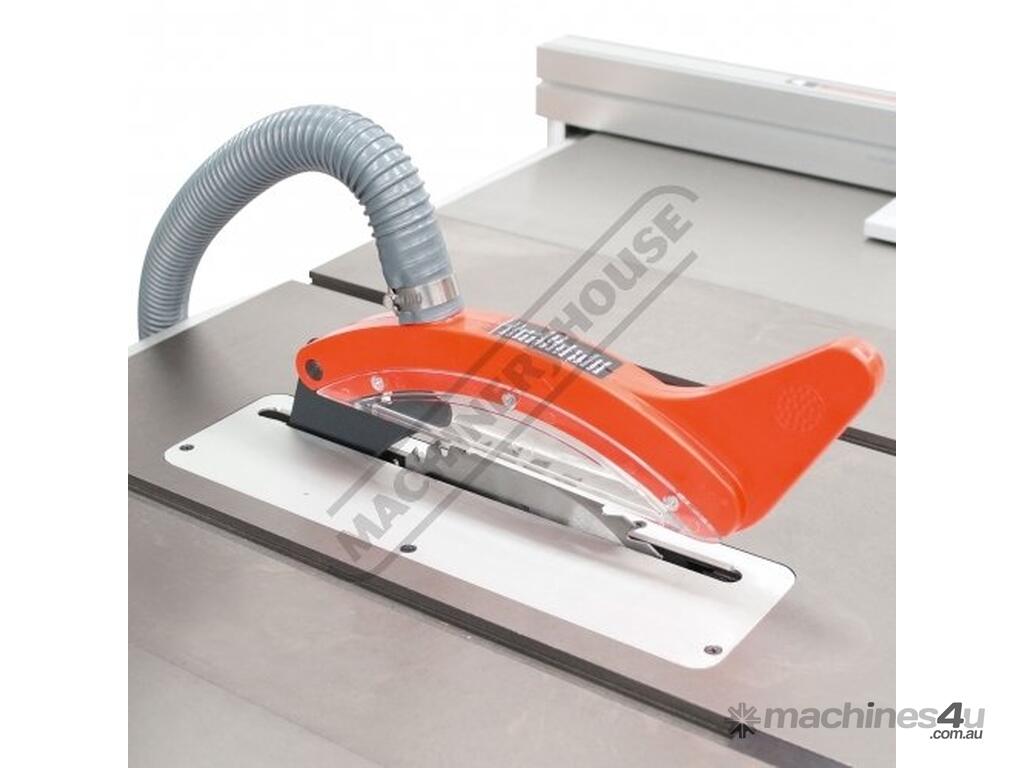

Dust extraction at the top of the blade as well as 100mm chute from the enclosed stand

ST-254T - Sliding Table - (W487)
1500mm sliding travel
500 x 400mm aluminium table
Aluminium rail with steel guides & roller bearings

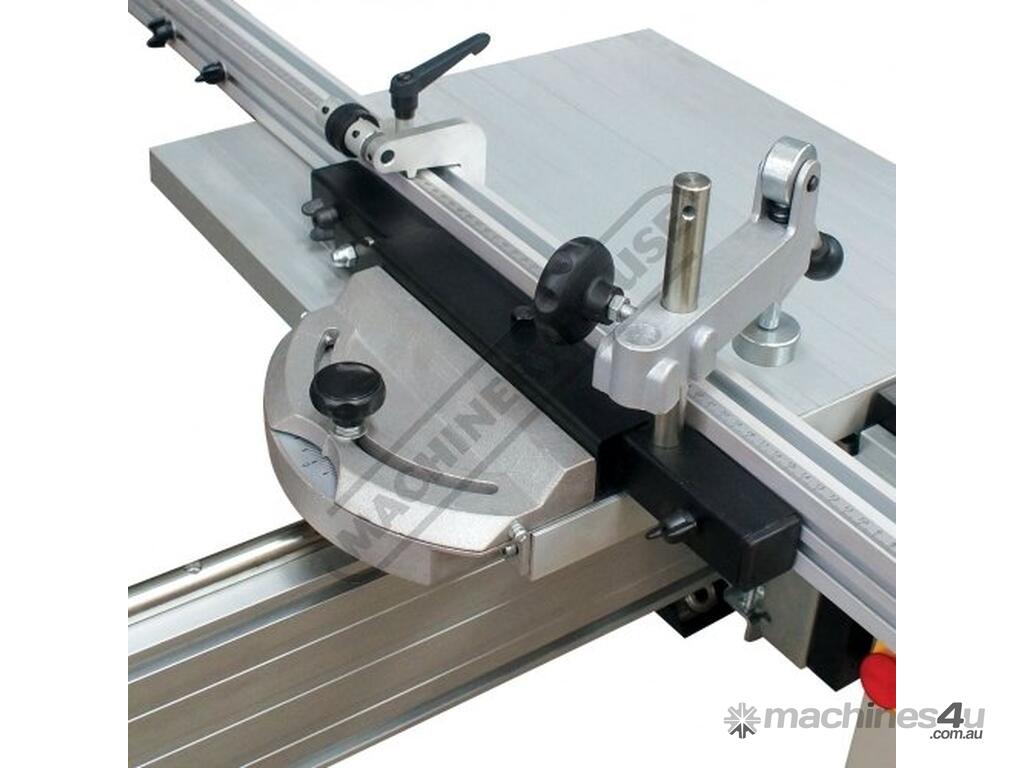

Includes mitre guide work clamp & flip over stop.

Includes:
- 1500mm sliding table (W487)
- Heavy duty rip fence
- Mitre guide
- Material push stick



Specifications:
ORDER CODE: K053
MODEL: ST-254PT
Blade Diameter (mm): Ø254
Table Size (W x H) (mm): 560 x 800
Table Size With Extensions (mm): 1170 x 800
Max. Depth Of Cut 90º & 45º (mm): 75 / 60
Scribe Blade Diameter (mm): ~
Tilt Arbor To 45º: Yes
Sliding Table Stroke (mm): 1500
Cross Cut with Flip Over Stop (mm): ~
Cross Cut with Extension Stop (mm): ~
Rip Capacity (mm): 950
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 10
Floor Space Required (W x D x H) (mm): 2750 x 2280 x 1100
Weight (nett) (kg): 233.5
