General Specifications
Vibratory Force: 30 KN
Engine Power: 7.5 KW
Operating Weight: 1500 KG
Overall Dimensions: 1980 mm x 900 mm x 2130 mm
Weight: 1000KG
Engine and System
Engine: Changfa 188 air-cooled engine
Drive System: Hydraulic dual drive
Clutch: Electric battery clutch for vibration
Hydraulic Pump: Variable pump from Italy
Hydraulic Distribution: Renowned brand disc distribution
Hydraulic Motor: High temperature resistant walking hydraulic motor

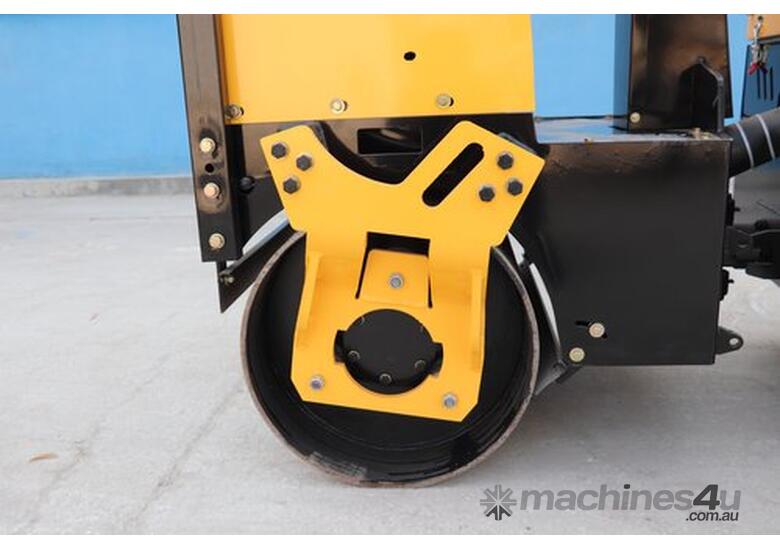

Wheel Width: 800 mm (front and rear)
Wheel Diameter: 508 mm
