STEELMASTER 2500mm X 70Ton CNC With iBEND

WORK SMARTER - NOT HARDER WITH OUR CNC2 FULLY OPTIONED PRESSBRAKE
Our new iBEND CNC2 Series offers you everything you want at the right price.
Feature packed and driven by the powerful iBEND CNC controller, we have also included full front and rear safety light guards.
No more plus, plus or hidden costs, this is it! Deep side throats, ball screw back gauges, quick release tool clamping (Up To 170Ton), sliding front supports – this list goes on and on!
Operators absolutely love this!

FEATURES:
Powerful iBEND CNC Controller with Graphical Controller
Key Features:
• 2500mm 70Ton Capacity.

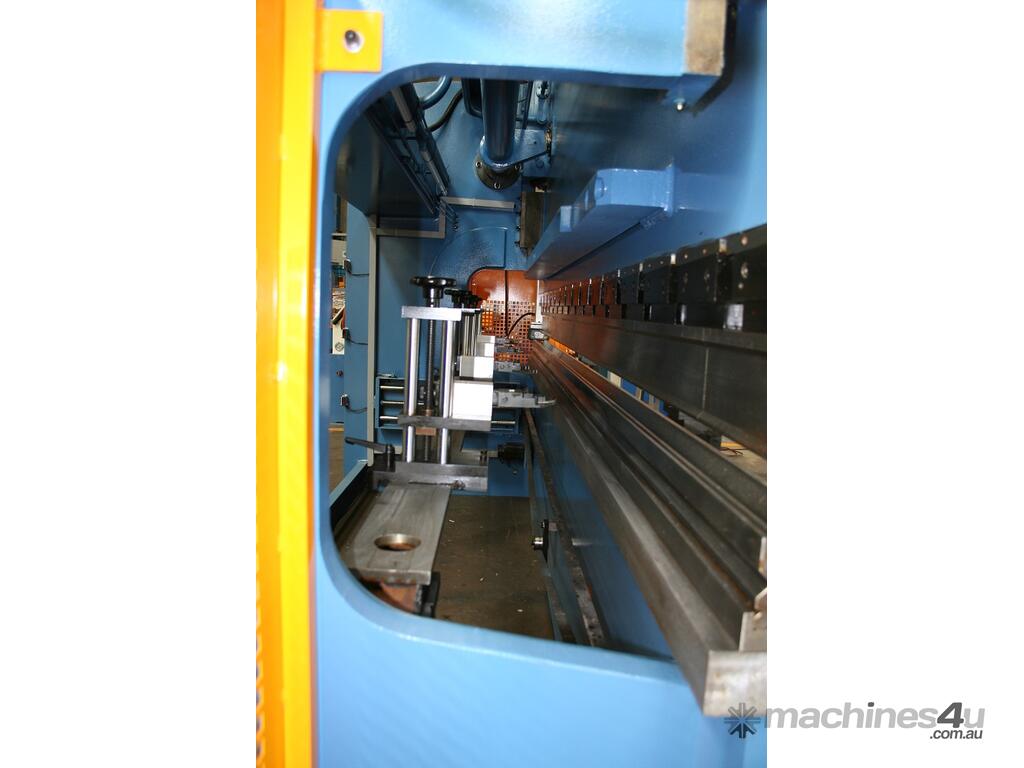

• Heavy Duty Frame with 2100mm Frame Gap & 250mm Side Throat.
• 2 Axis iBEND CNC Programmable Controller.
• Full Top & Bottom Multi Vee Block Tooling.
• Quality Hydraulics & Siemens Electrics.
• Precision Ballscrew Servo Drive System.

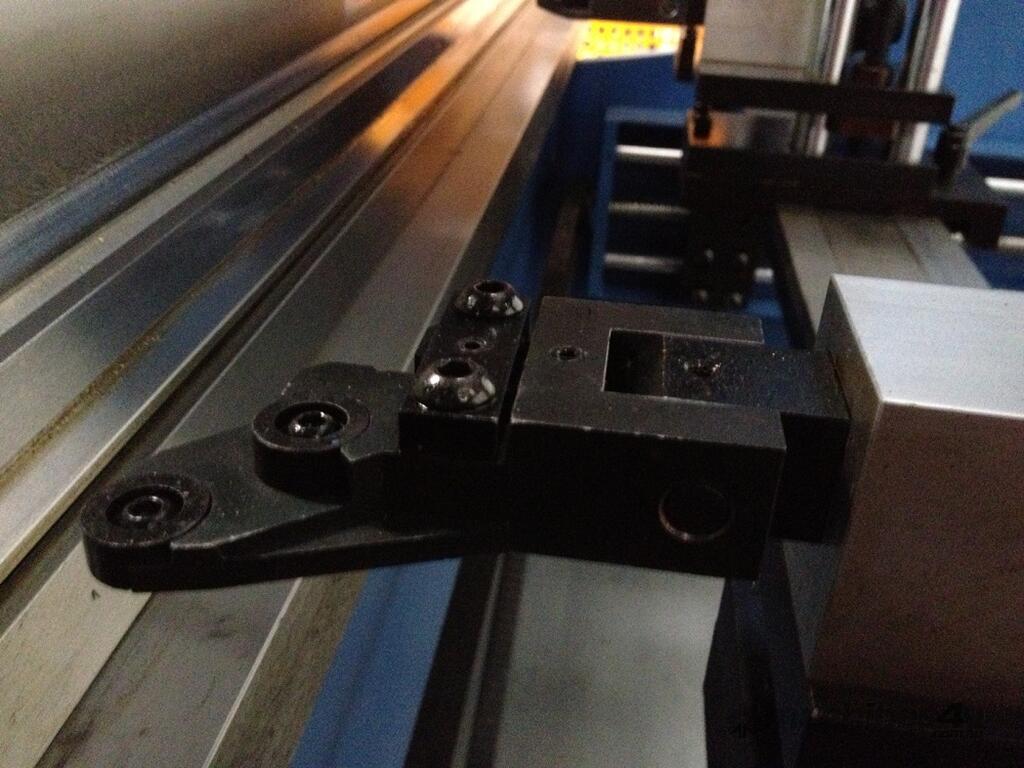

• Quality Imported USA Precision Backgauge Fingers.

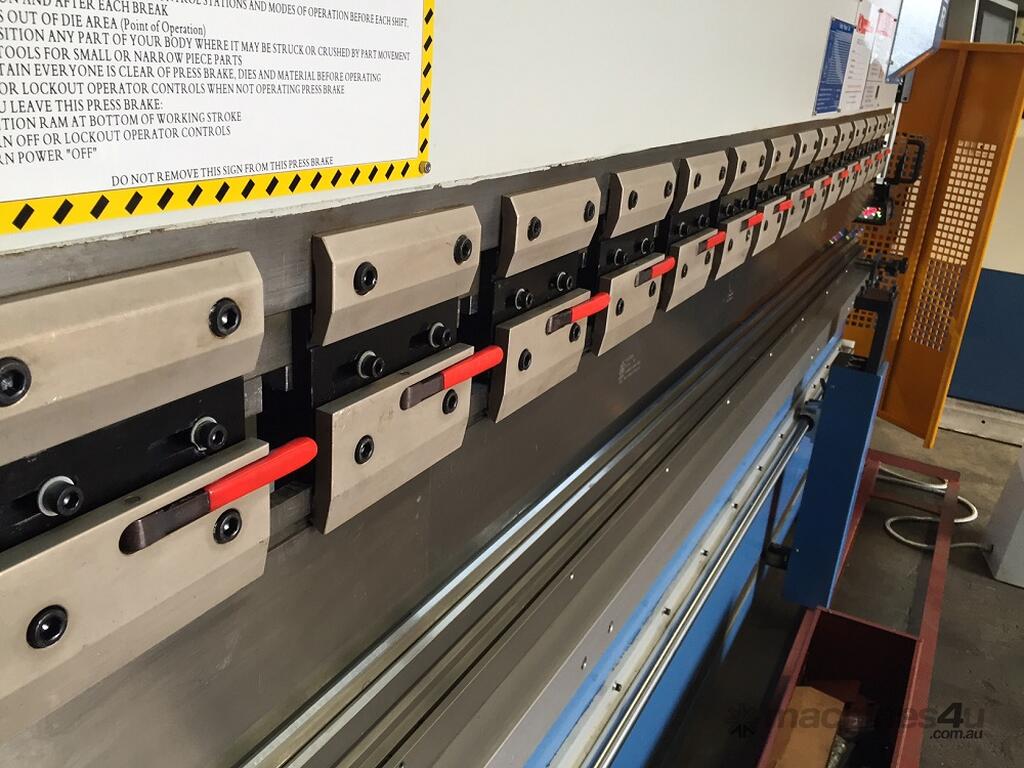

• Quick Change Tooling Clamp System
• Sliding Front Sheet Support System with Adjustable Height.

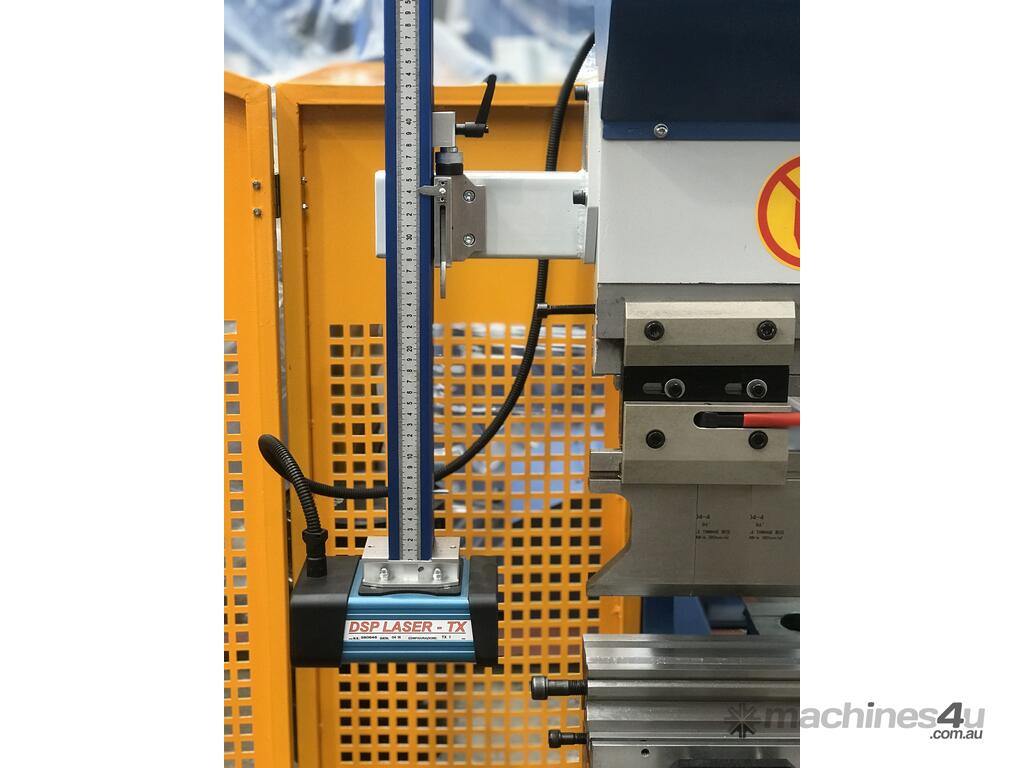

• Front Laser Guards – Rear Laser Light Guards Included in Package Price
• SKU Stock Code: 19-0203
• Comprehensive Onsite Training Available Through Our Support Team.
• Optional Table Crowning Available.

Introducing our New Steelmaster CNC iBEND Controller.

Features
• iBEND CNC Pressbrake Controller – Powerful, However Simple & easy to Use.
• Maximise Performance
• Increased Production
• Increased Profits
• Low Cost
• Can be fitted to most Pressbrakes
• Synchro with proportional valves
• Torsion bars and nuts

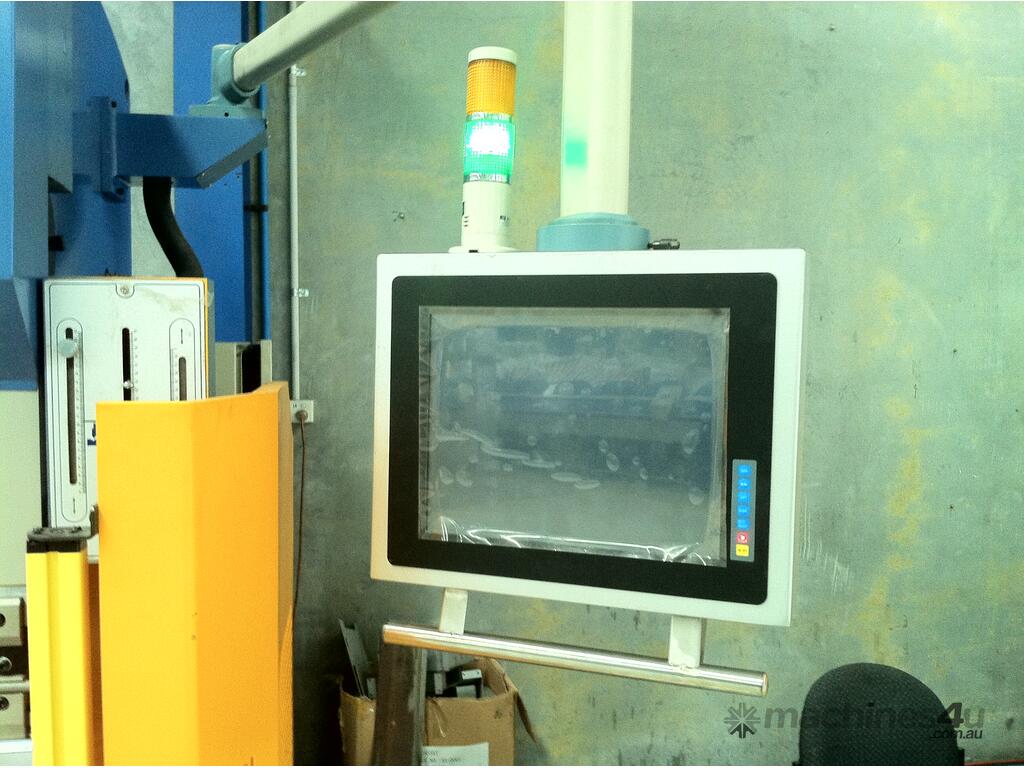

• Large Touch screen
• EASY JOB SELECTION
• Select existing jobs from the library
• Jobs can be named and saved for future use. A virtually unlimited number of jobs can be saved
• Jobs open with all relevant data like bend sequence, material thickness, right Tool, Die & V,
angle corrections, which bends were done from front or rear etc. This saves lots of set-up time.
• Jobs can be downloaded from the office.
• Jobs can be linked to fold boxes easily
• Each operator can have his own password with his own job library.
• 5 Easy steps to put you in production in no time!,
• Step 1: How easy is this!.....
• Simply touch the 10 corners on the grid to draw the box to the left
• Press OK to return to the main screen
• Step 2. Simply touch on the dimension or angle of the profile on the right to edit the value on the
popup keypad

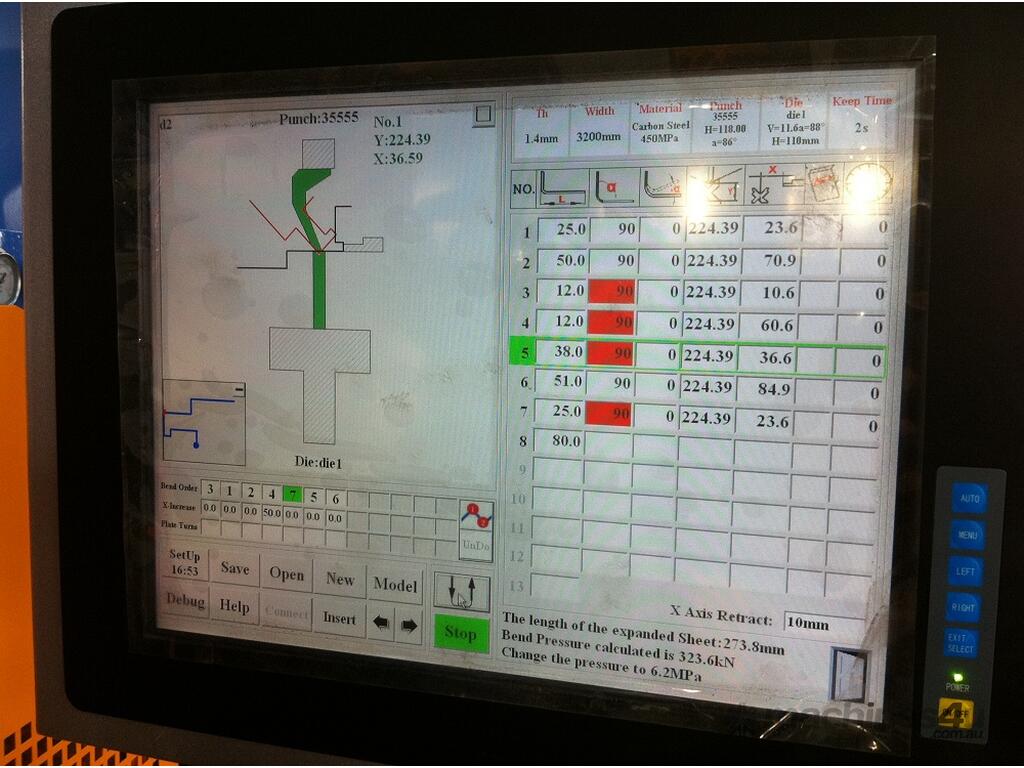

• Step 3. How good is this!........ See the profile on the left for easy editing….. and the folding
simulation on the right!- View the actual folding sequence simulation on the graphic as you fold
in real time or animation mode.
• Change folds from front to rear to optimise production.
• Step through the whole sequence without wasting time or material.
• This can be done on the Press or offline in the office (For quotes on new jobs: This process can
be used in minutes to assist in doing new quotes accurately).
• Touch the “Automatic fold sequence” button or set the fold sequence manually simply by
entering the sequence ( 3 4 for the example on the left).
• Step 4. Enter material thickness and width.
• Step 5. Select the right tool and Die from the library and start production
• Online help - simply touch the HELP button, then any topic for an explanation
• Box Mode - Hand draws a box quick and easily folds in one continuous process.
• Powerful diagnostics which can be done very easily. Any device on the Press whether it is a
switch, solenoid valve, motor or encoder is represented on this screen either as green or red. If

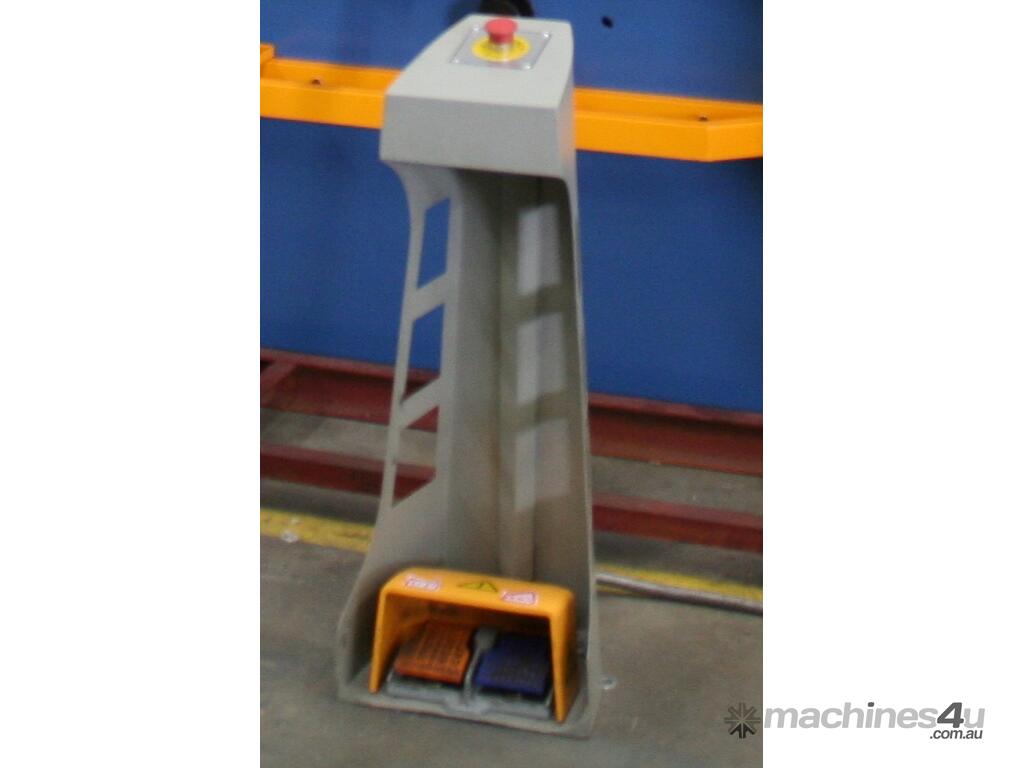

you step on the foot switch for example, it changes colour. Within minutes all devices can be
tested
and any faults found
• Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by
precision mechanical nut depth stops built into each cylinder. Electronically controlled by CNC
iBEND Programmable controller assuring accurate repeatability.
• Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.

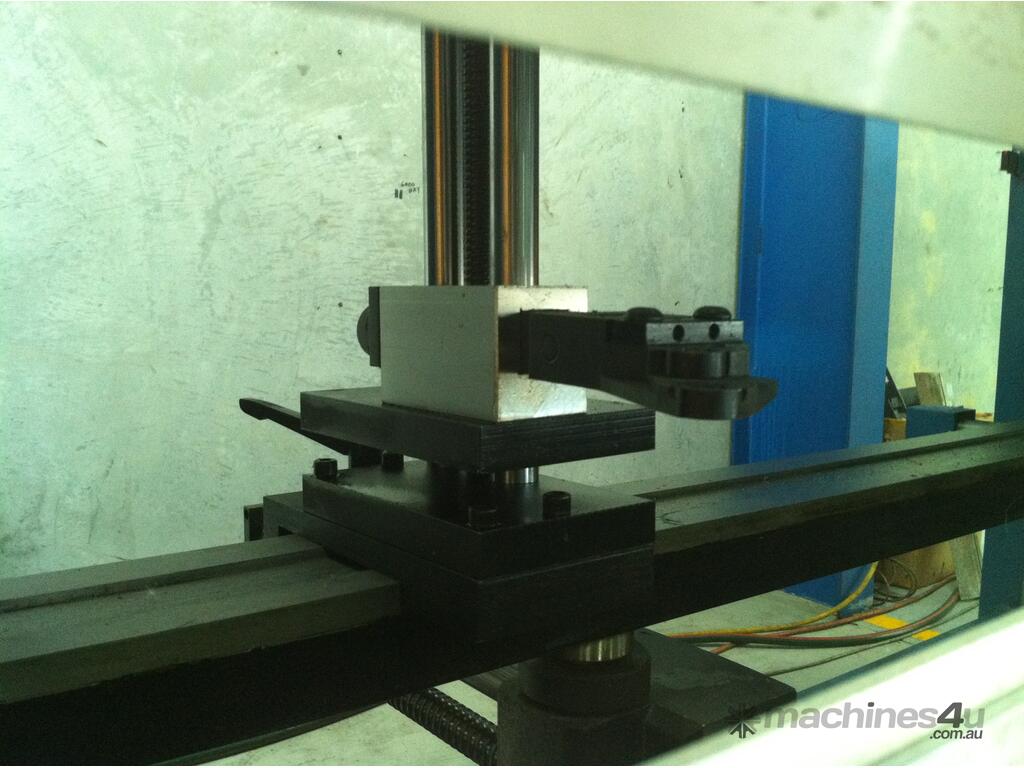

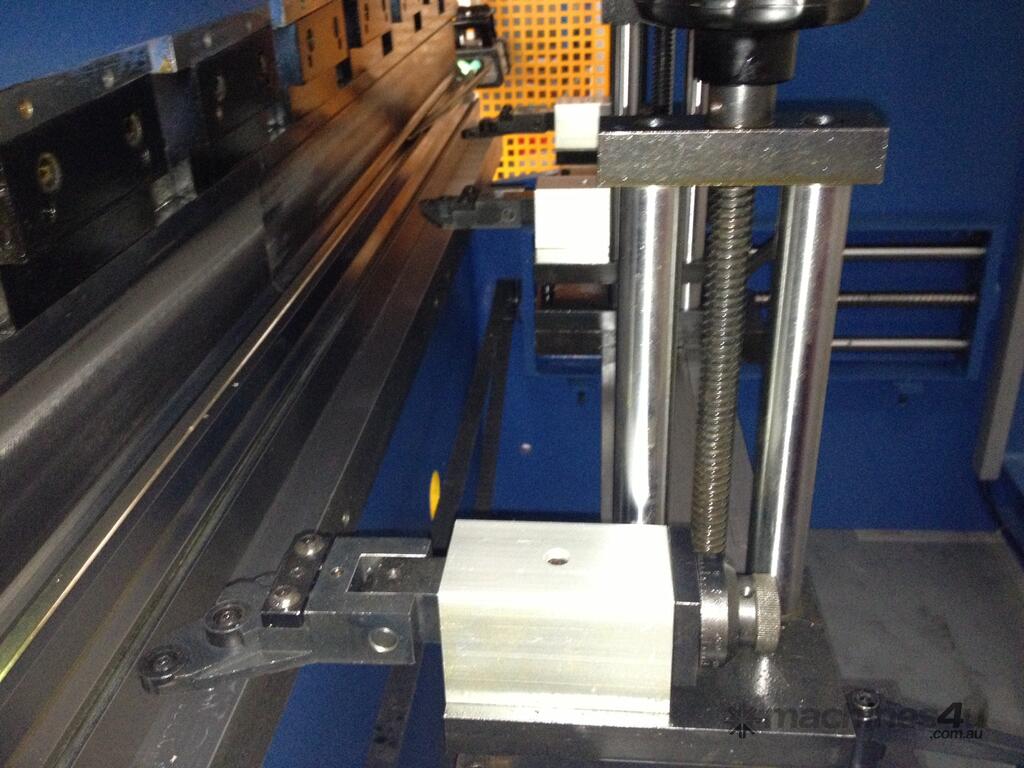

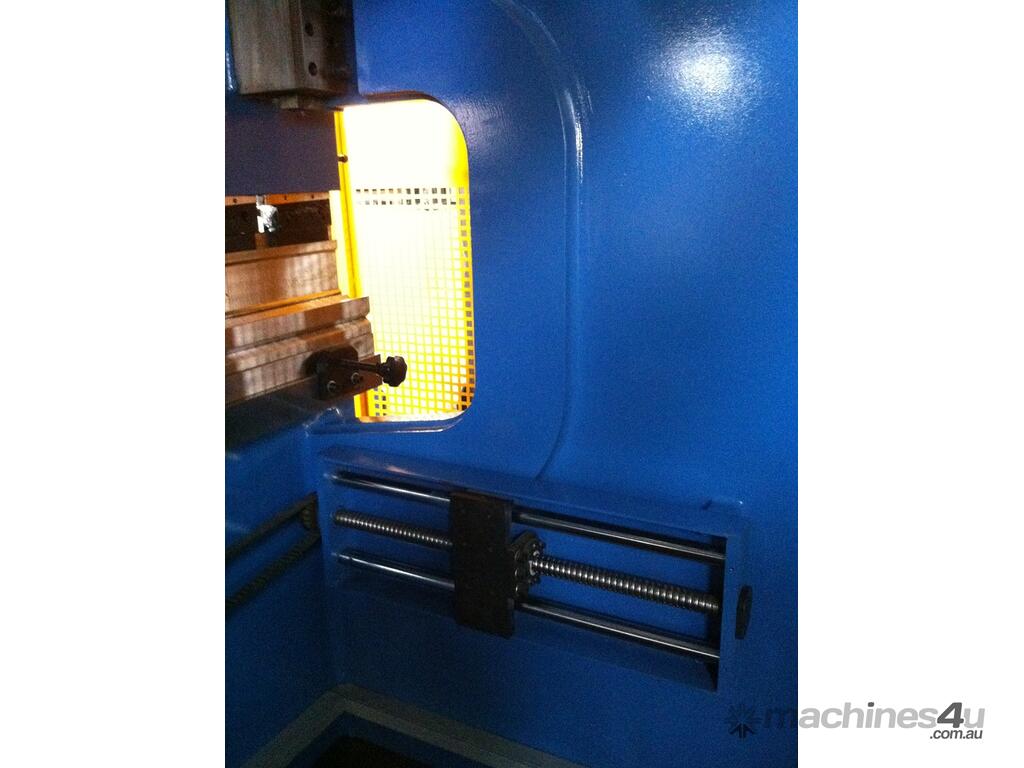

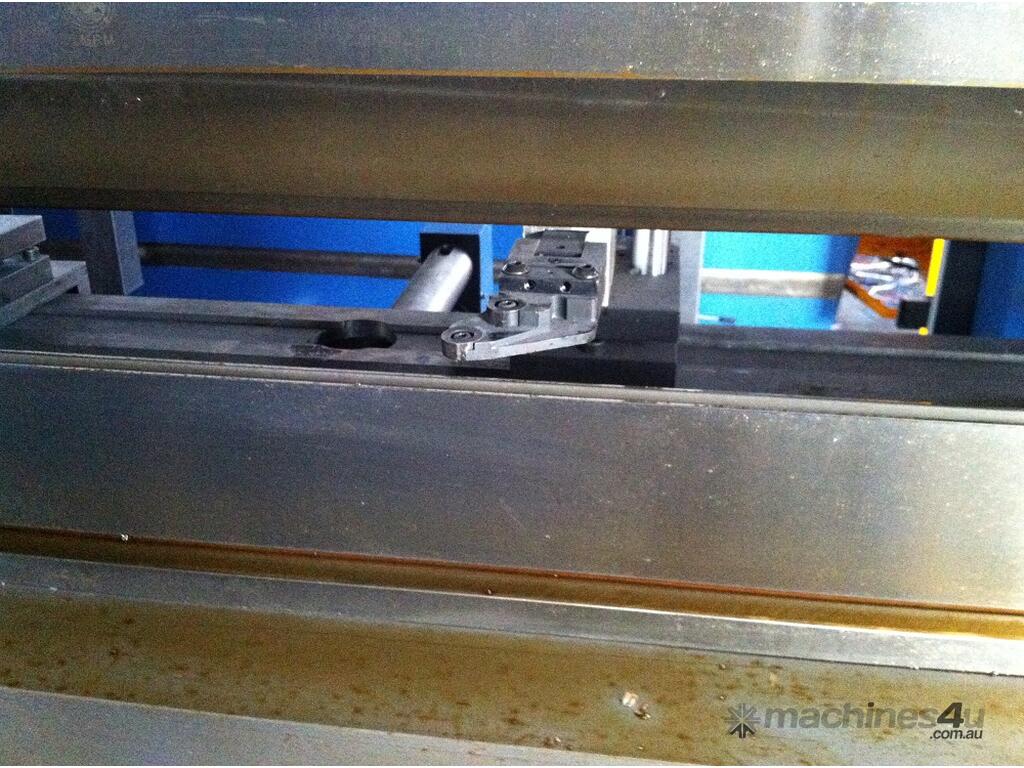

• CNC iBEND programmable ballscrew back gauge with adjustable height finger stops.

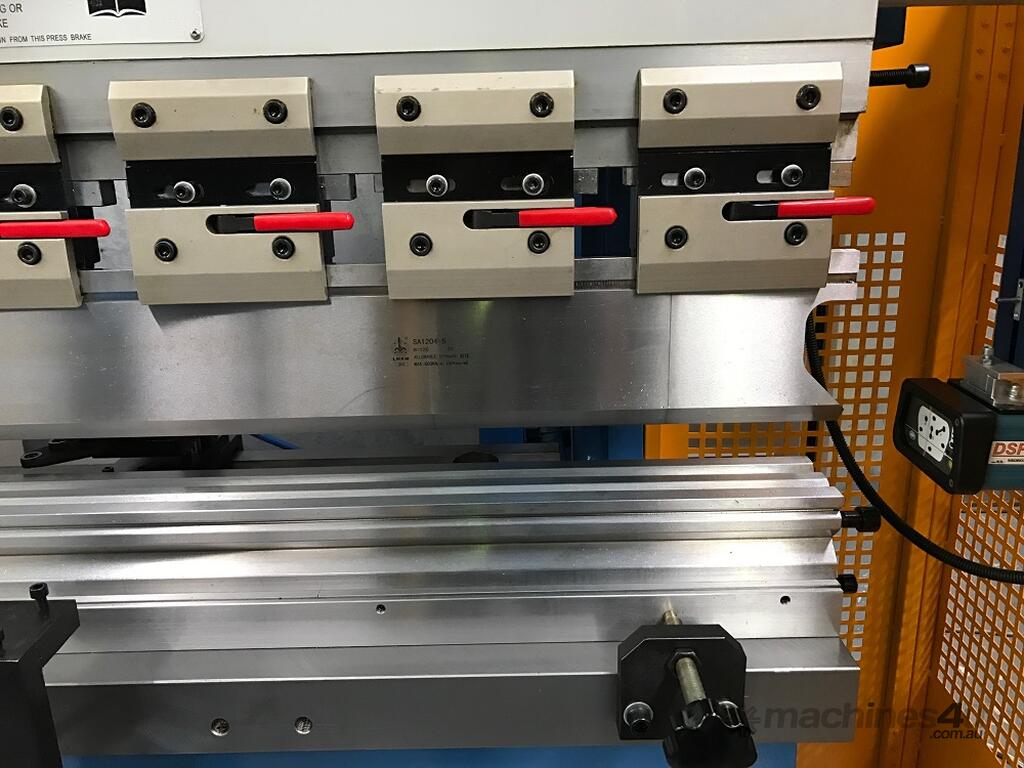

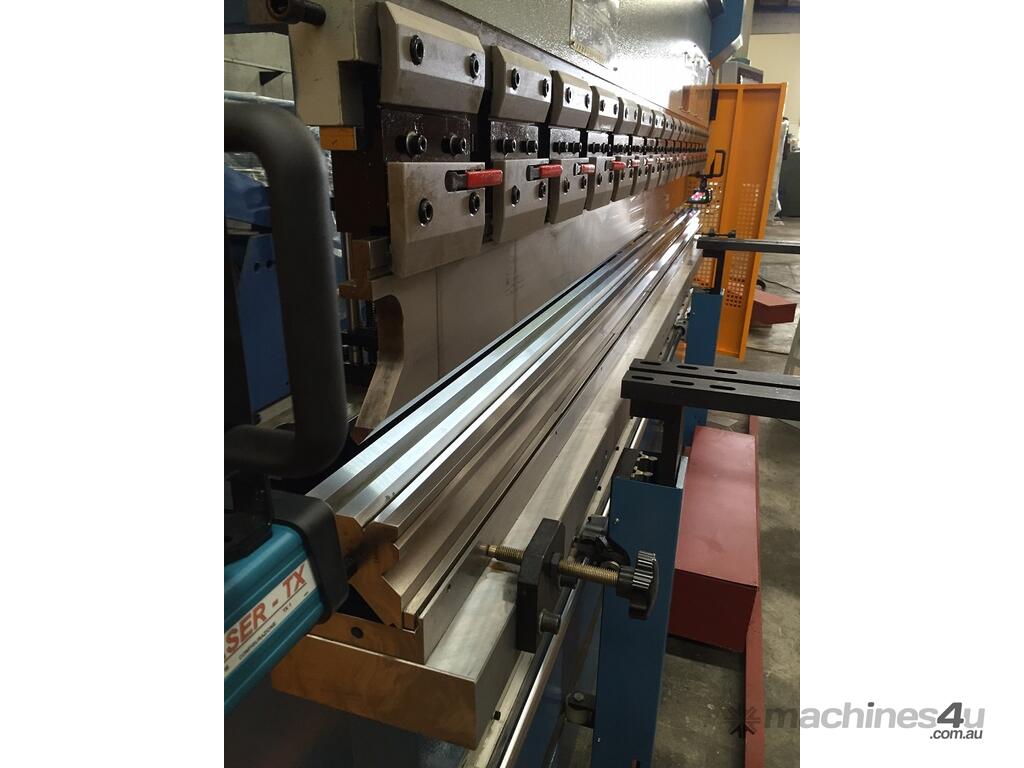

• Segmented heavy duty 86° offset top punch is segmented for return bend clearance, complete
with European style quick release punch holder with an adjustable wedge clamping system for
crowning. Intermediate clamp has safety key to stop punch dropping.
• Multi vee ('V') bottom die is made from one solid die block design to handle heavy plate, safety
edge vee ('V') is incorporated in bottom die block.
• Conveniently mounted control box on pendant for quick swivel and adjustments.
• Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.

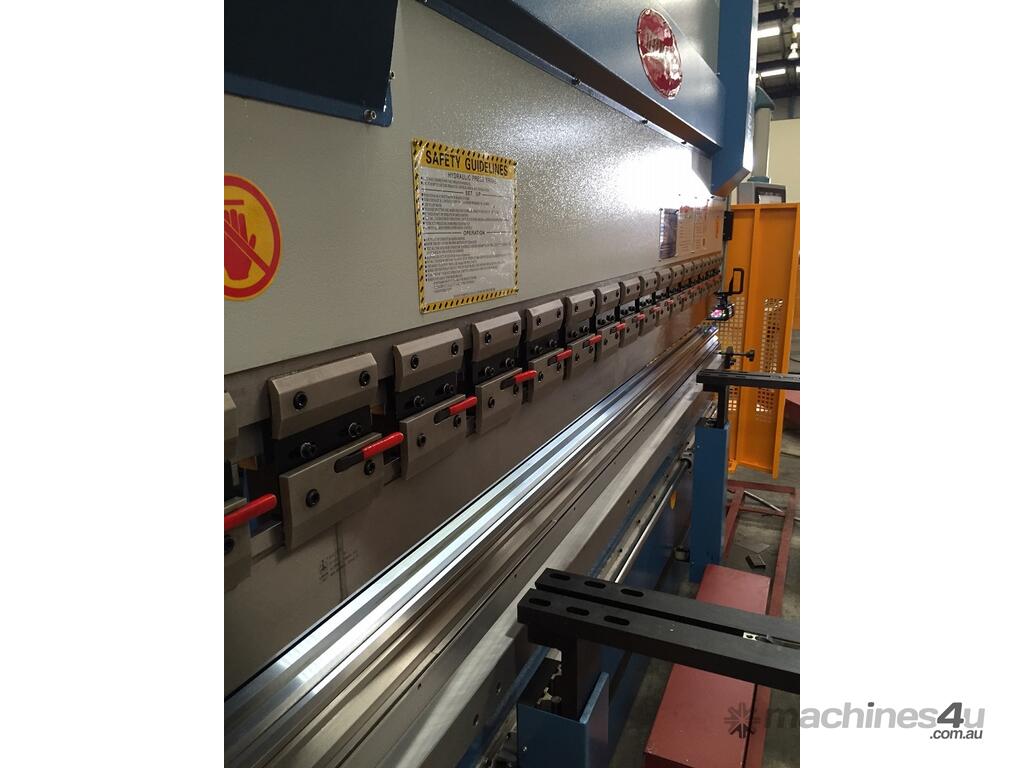

• European quick release style top punch and clamping system, allowing operator to change position of tooling to suit multiple requirements on complex applications. This feature ensures minimum down time, more productivity and results in reduced cost per finished product.

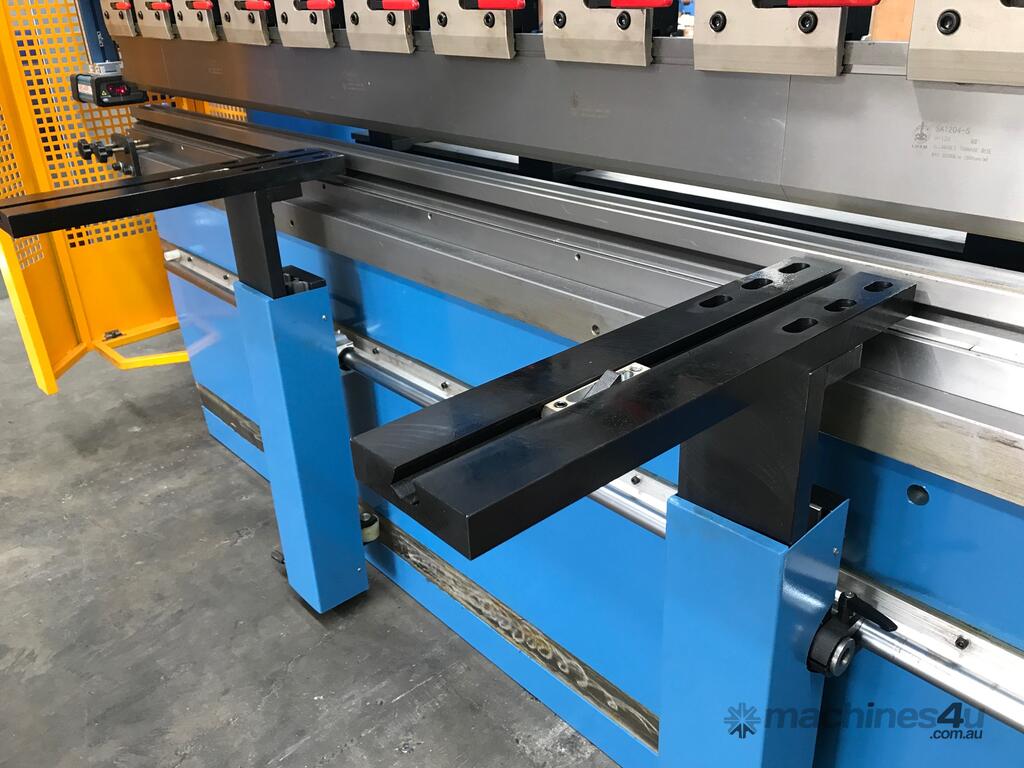

• Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a ‘T’ slot machined down the total length of the die bed; sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
• Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point. Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.
• Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety. Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation. Steelmaster specially design gates to suit Australian safety requirements.
• Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
• Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
• The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.
Need more details? Can't find what you are looking for?

When selecting an Ultimo Pressbrake v other so called CNC brands pay close attention to these key features included on ours Valued at over $20000

? Frame Width – Wider the Better
? Operating System Support – Ensure after sales support is through the supplier not 3rd party
? Our CNC is Factory Fitted Not Retro Fitted Like Others
? Servo Driven – If It’s Not – wont operate efficiently
? Quick Change Tool Holders – Must Have!
? Sliding Front Supports

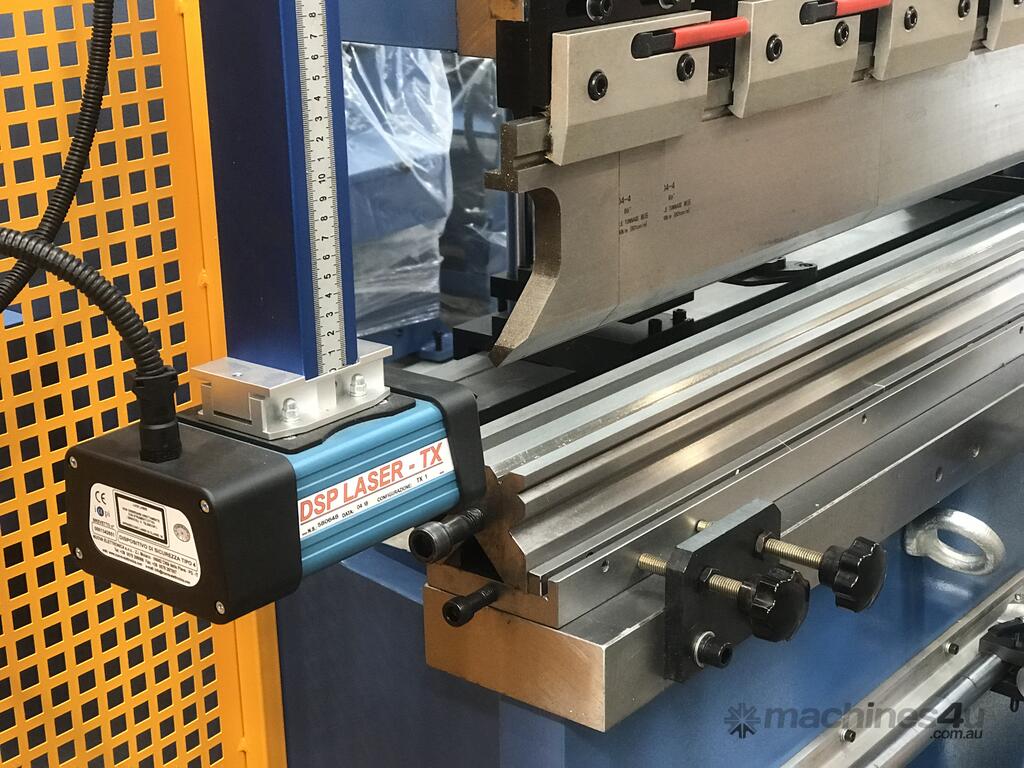

? Beam Mounted Laser Guards – If not, will push the operator 400mm away from tooling restricting them from bending small pieces
? Bottom Tooling Mounted In Cradle
? Ends Top Tooling Scalloped Allowing Operator To Work The End Of The Tooling
? Wall Mounted Ballscrew Back gauge allowing Flexible Material Bending
? Open Rear Of Pressbrake With Laser Safety Guards
? LED Illuminated Rear of Pressbrake Ensuring Better Operating Environment
? Quality Back gauge Finger with Adjustable R Axis (Up & Down) Adjustment
? The Above Quality Features add $20000+ In Valued Inclusions to Your Machine Not To Mention Make the Operator Experience Better!


All Good Reasons To Make The Ultimo Pressbrake The Machine Of Choice For your Business!
