STEWART TRAILERS EDGE 4 TIPPER DROP SIDE TIPPING TRAILER

The EDGE4 Trailer, suited to general farming applications has many uses; whether it’s carting soil or gravel around the farm, moving hay and feed supplements to livestock, or even moving mulch around the garden.

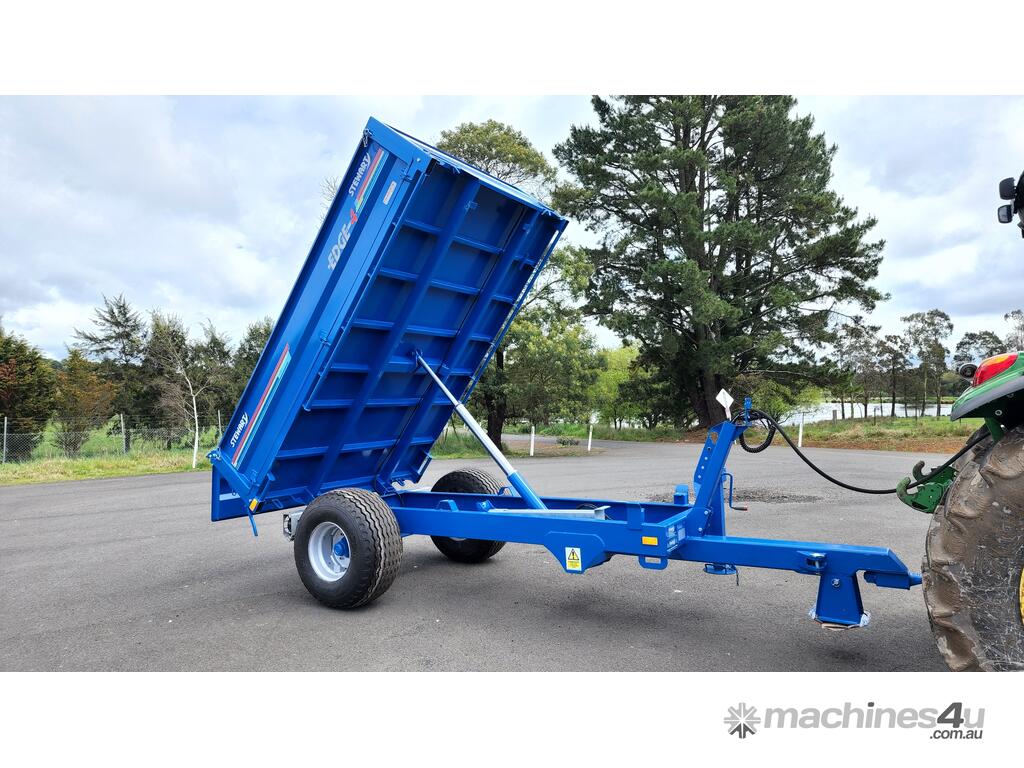

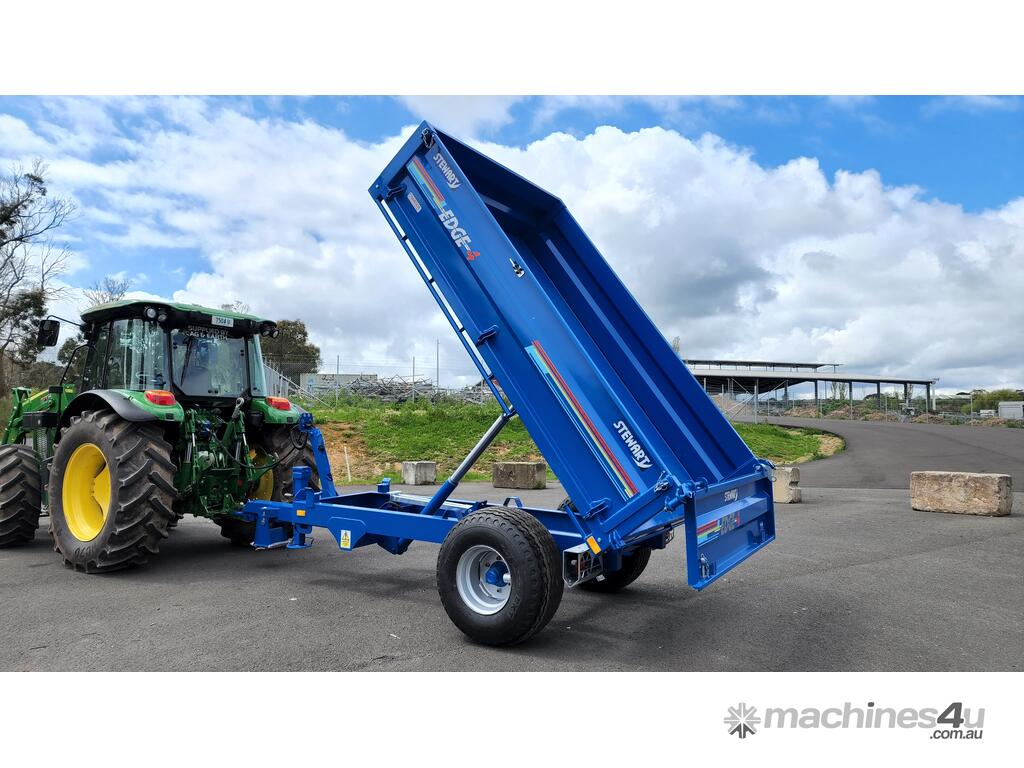

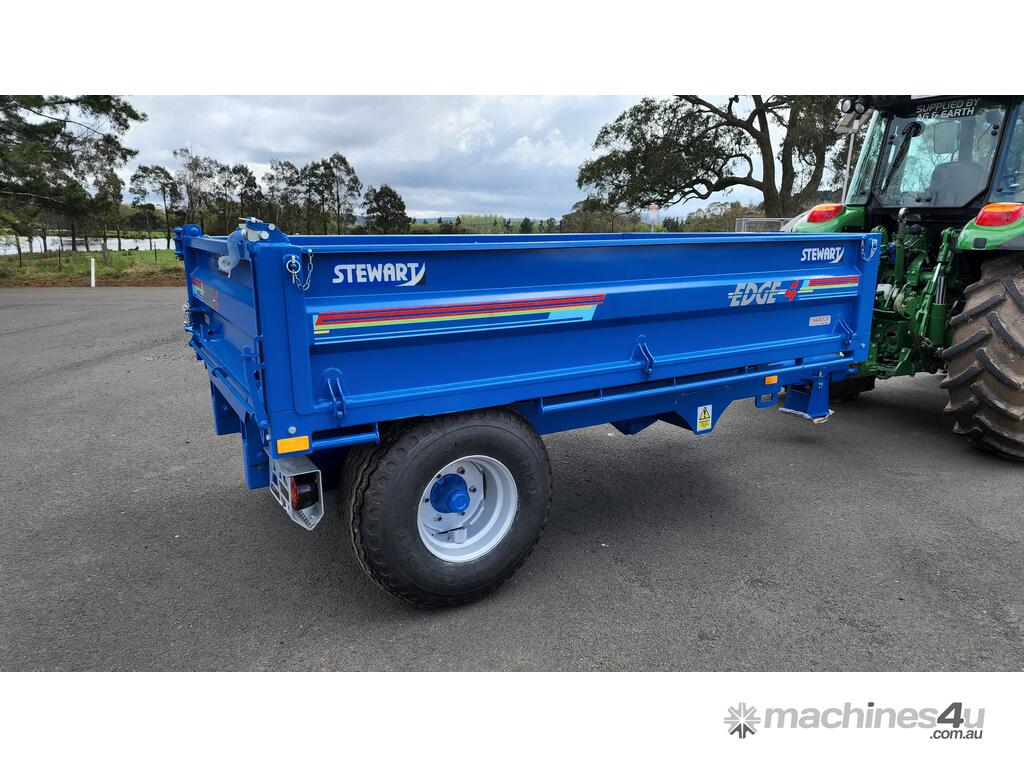

STEWART Edge-4 Drop Side Tipping Trailer
• Minimum 30HP required
• 4000kg Load capacity

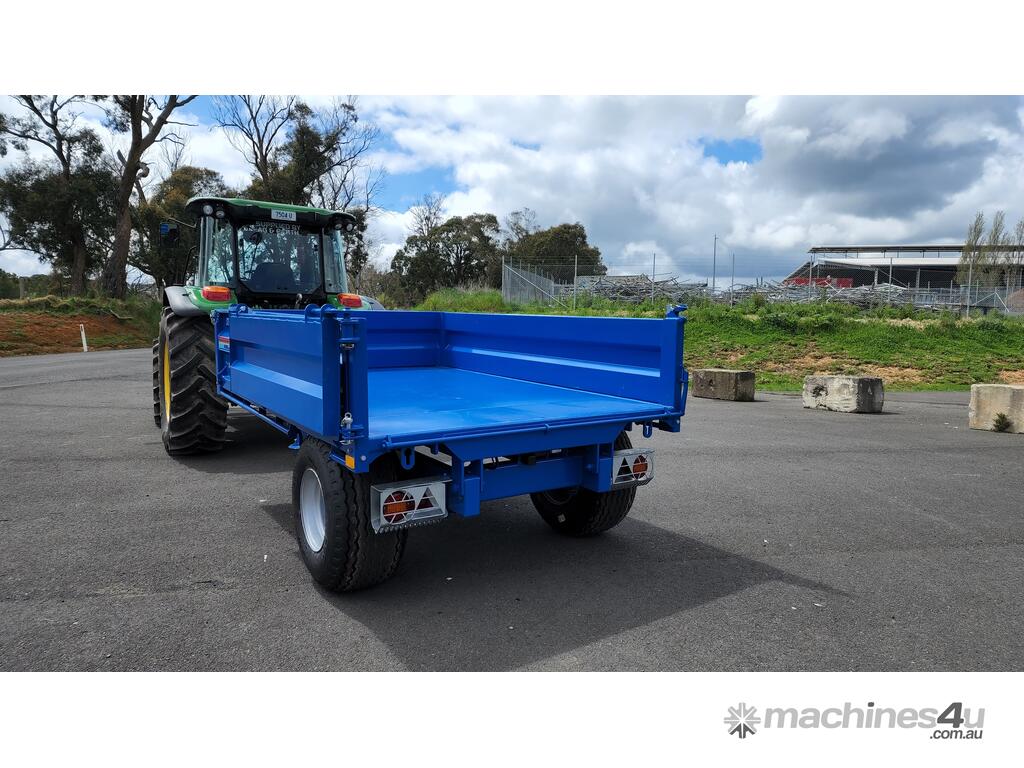

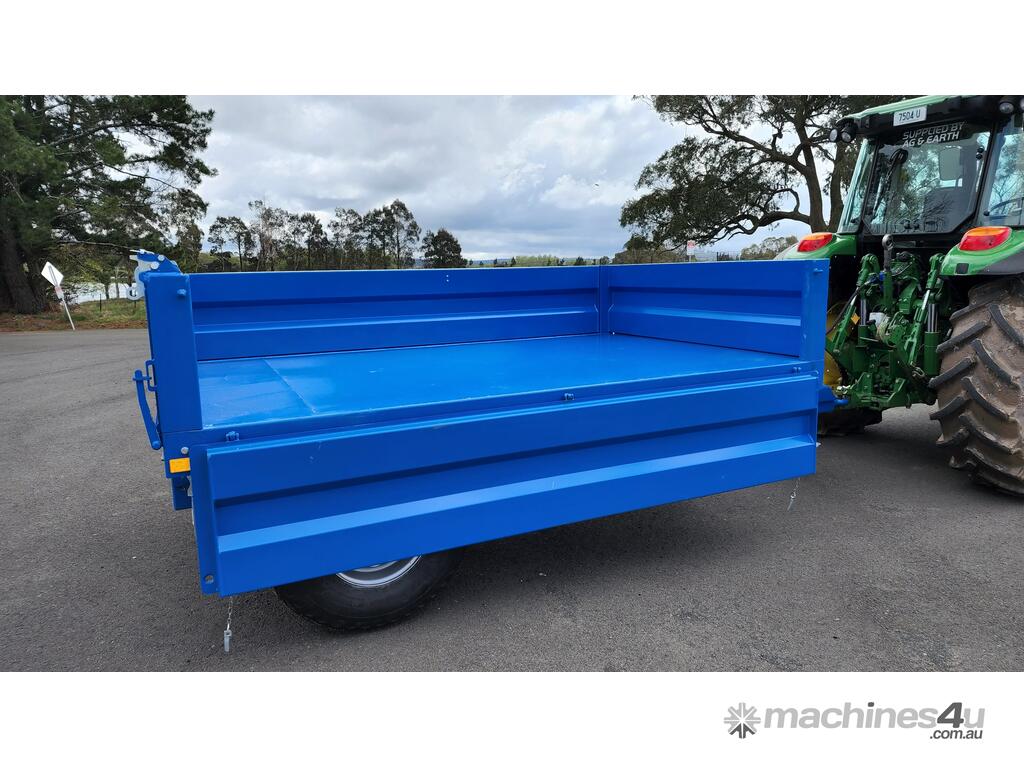

• 3000 x 1980 x 500mm Body w. Drop Sides
• 4mm Wall, 2mm Sides HARDOX

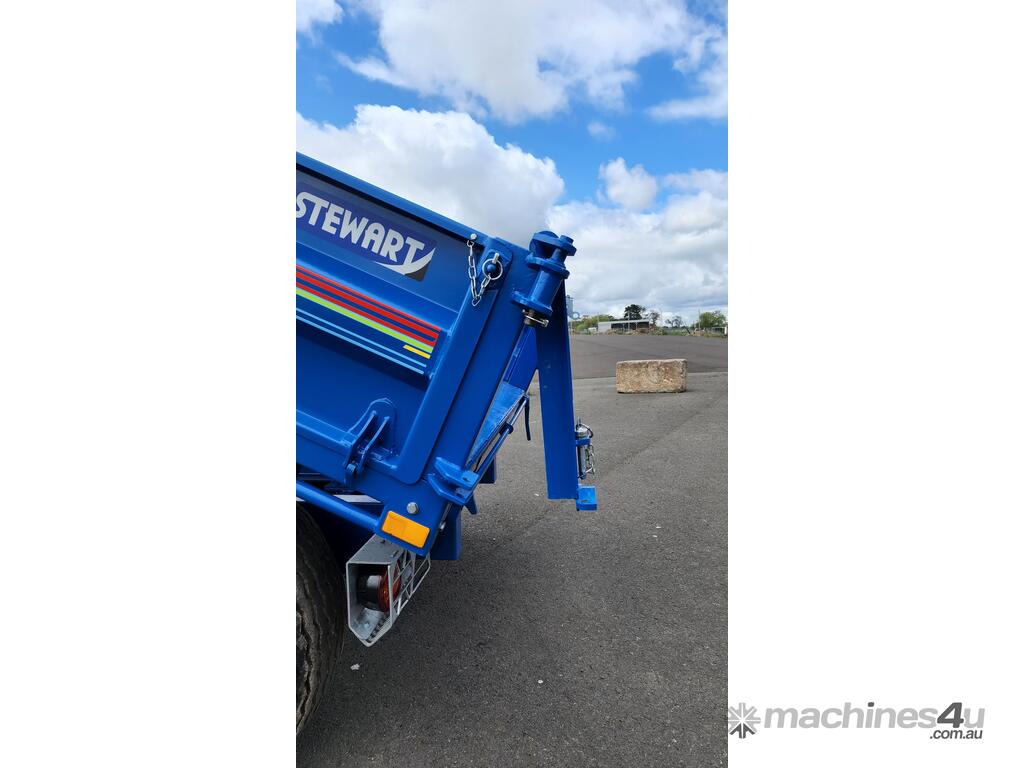

• 2-Way Tailgate w. Spreading Chain Attachments

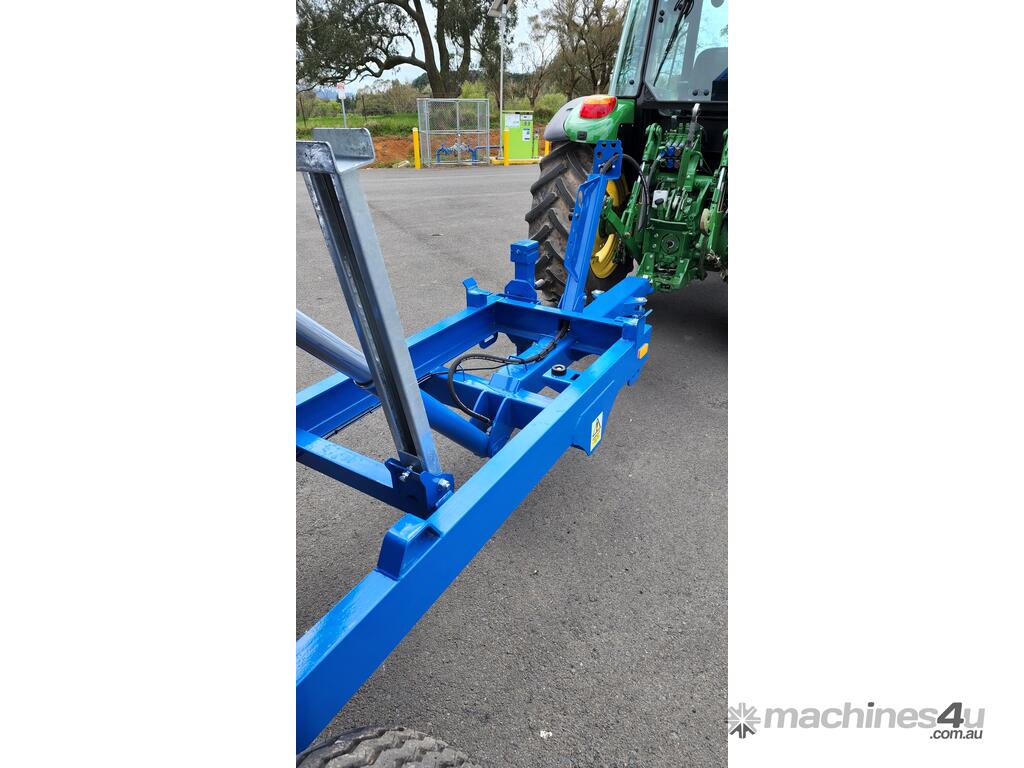

• HD Full Width Chassis, 180 x 75 Channel
• Single Axle, ADR 70mm 6 Stud (unbraked)

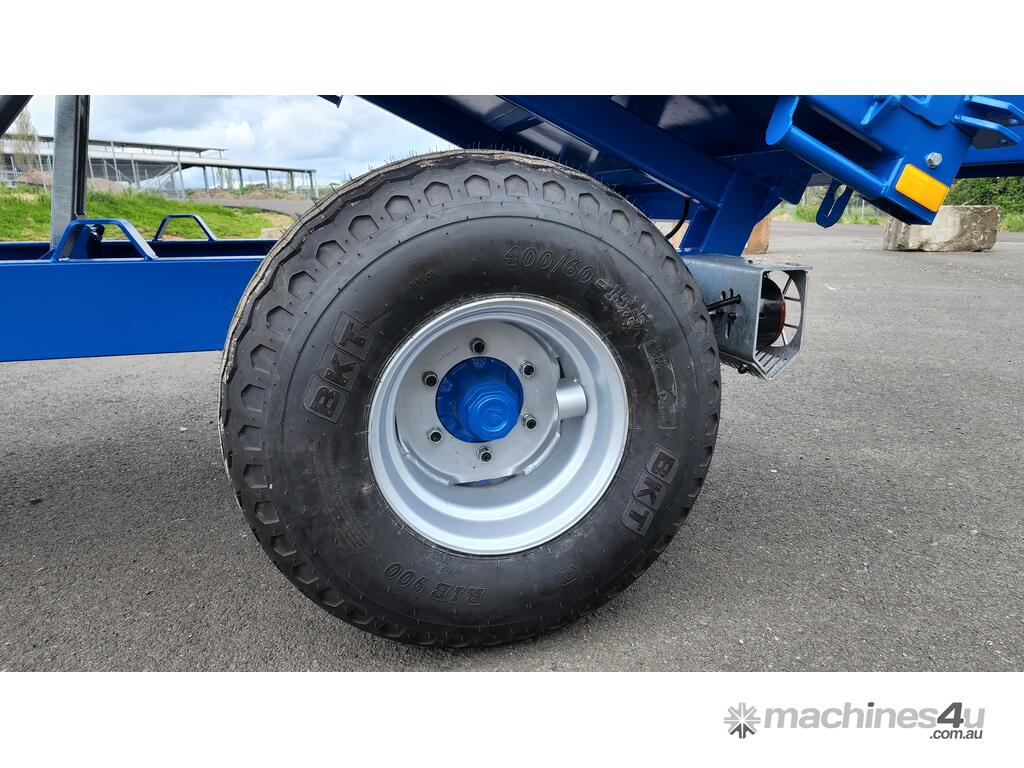

• 400/60x15.5 Flotation Tyres

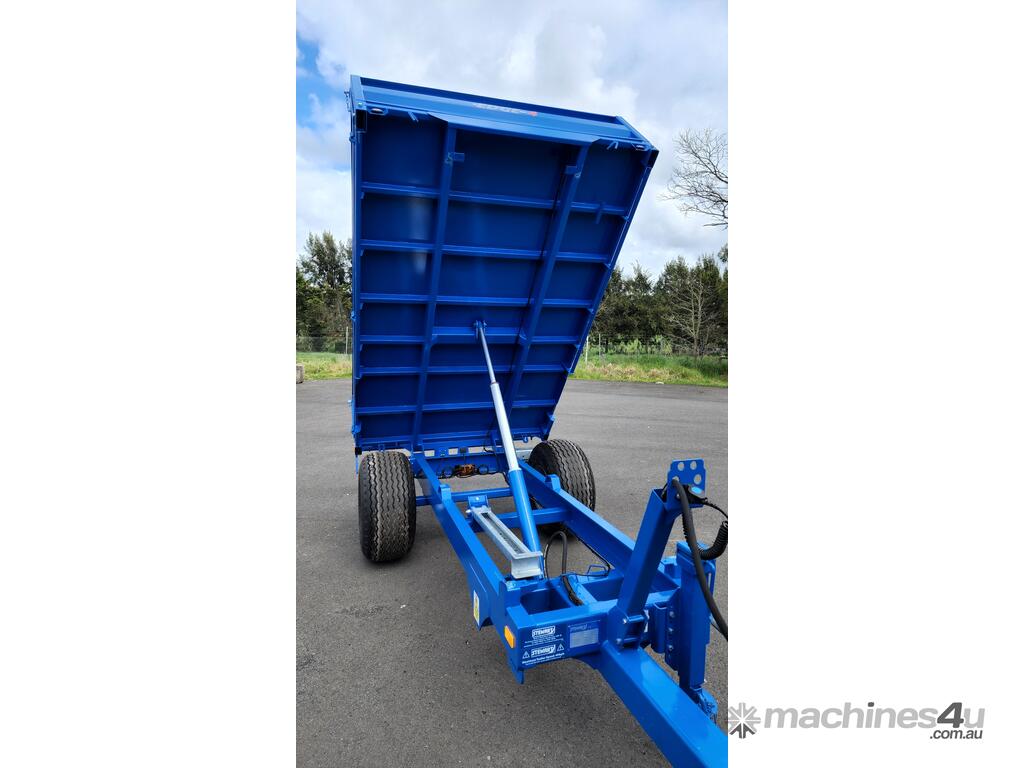

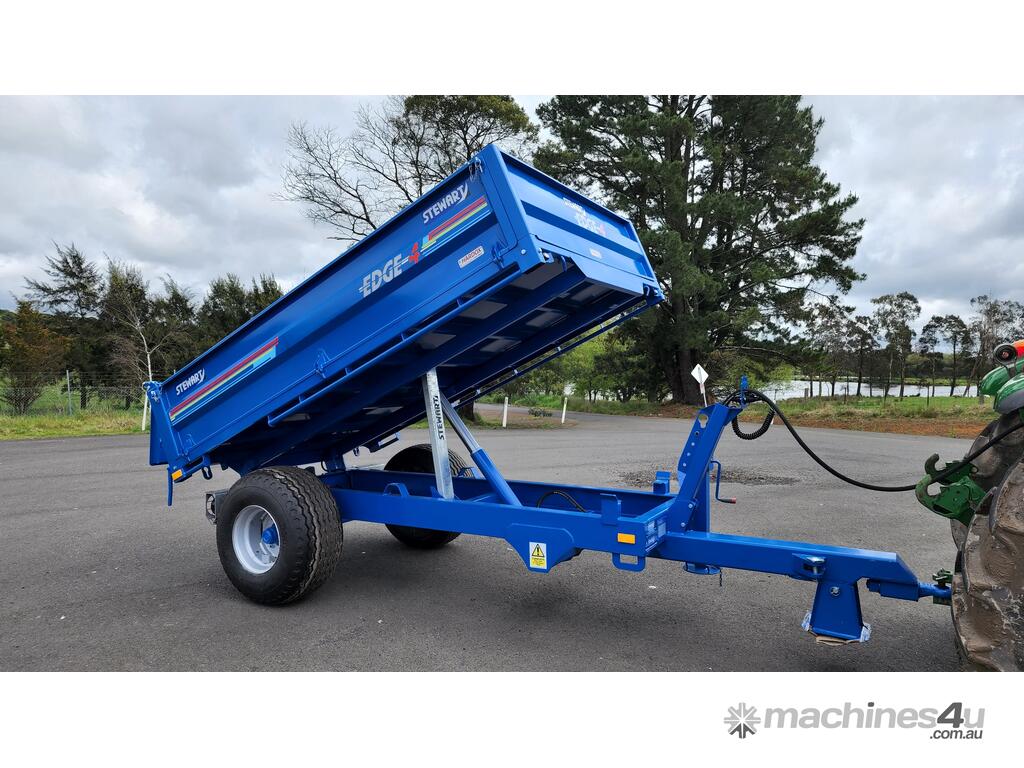

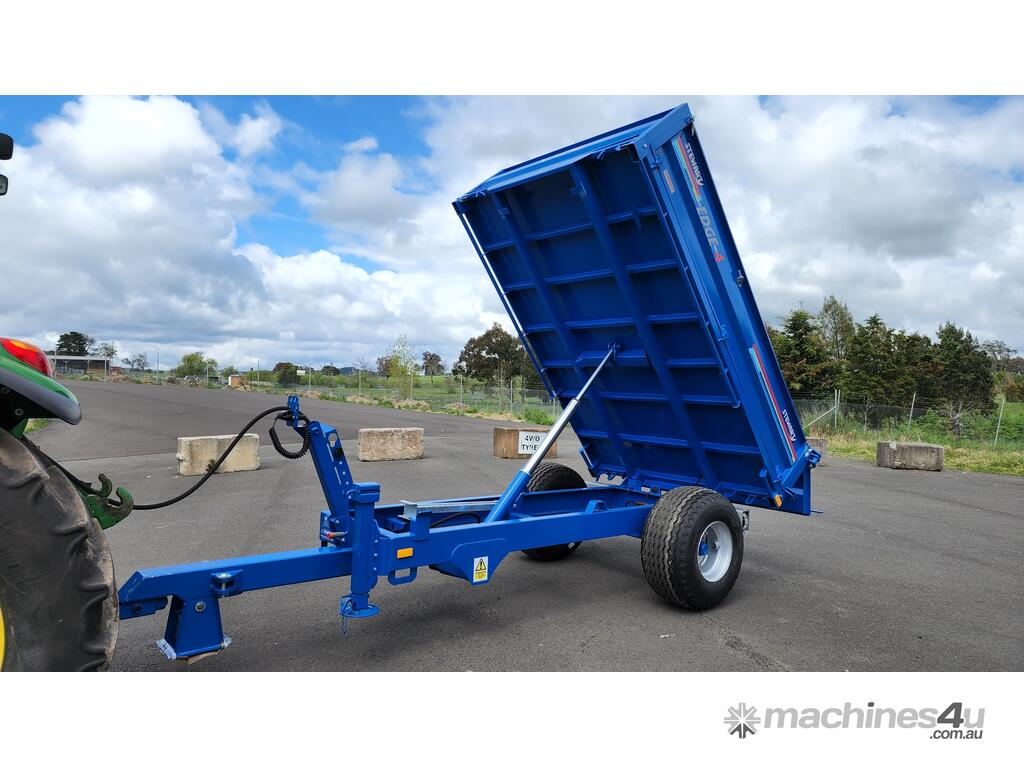

• 3-Stage Single Tip Ram, 3.5” Diameter, Chrome Plated
• Mechanical Jack Stand

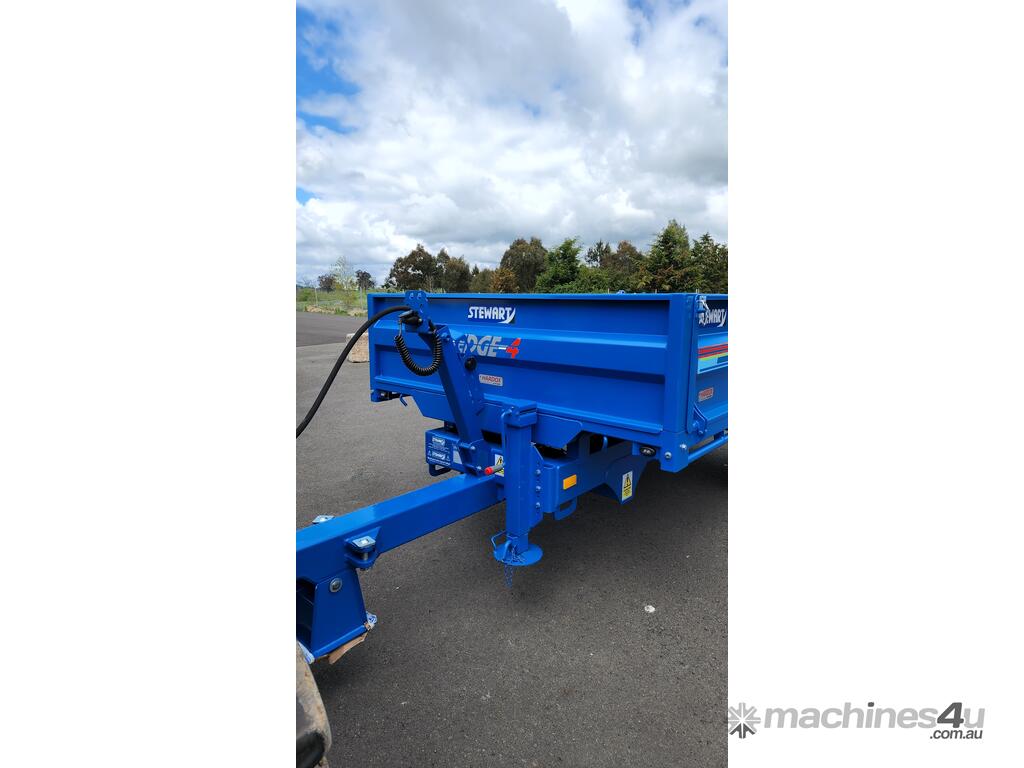

• 40mm Swivel Hitch w. Safety Chain Attaching Points
• Shot Blasted & Finished in 2-Pack PPG Flex Paint

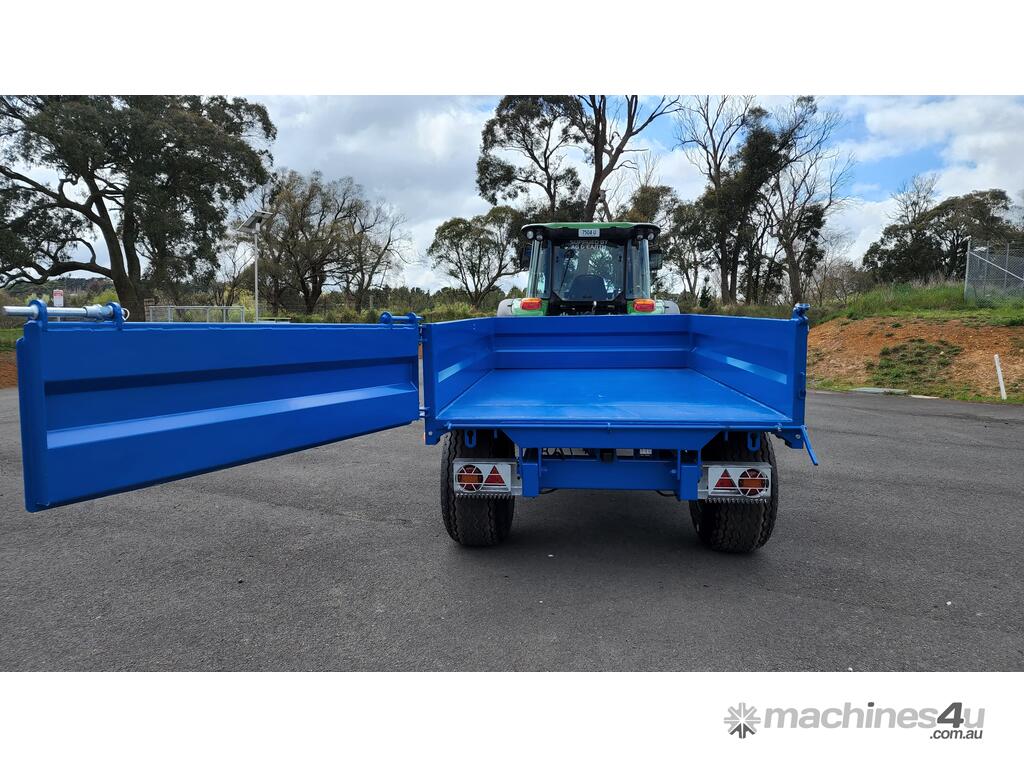

All EDGE trailers feature the 2-way tailgate design, enabling any load to be emptied or distributed via the rear tailgate. All sides can be removed, and these trailers can easily be converted into formidable flatbed trailers.

Designed and built in Scotland, for Australian conditions the all-new Stewart ‘Edge’ Drop-Sided Tipping trailers are built for you. Featuring full Hardox® body and sides meaning the trailer is very strong, protected from rock damage, and lighter in overall tare weight without sacrificing any strength. Other features such as dual axle hydraulic breaks and LED road lighting on the larger models.

Chrome-plated rams are a standard feature, ensuring long life without any fear of rust damage. All trailers are painted with 2-pack PPG flex paint to give an impressive fit and finish which complements the quality of the build and the pride of the Scottish owners!
