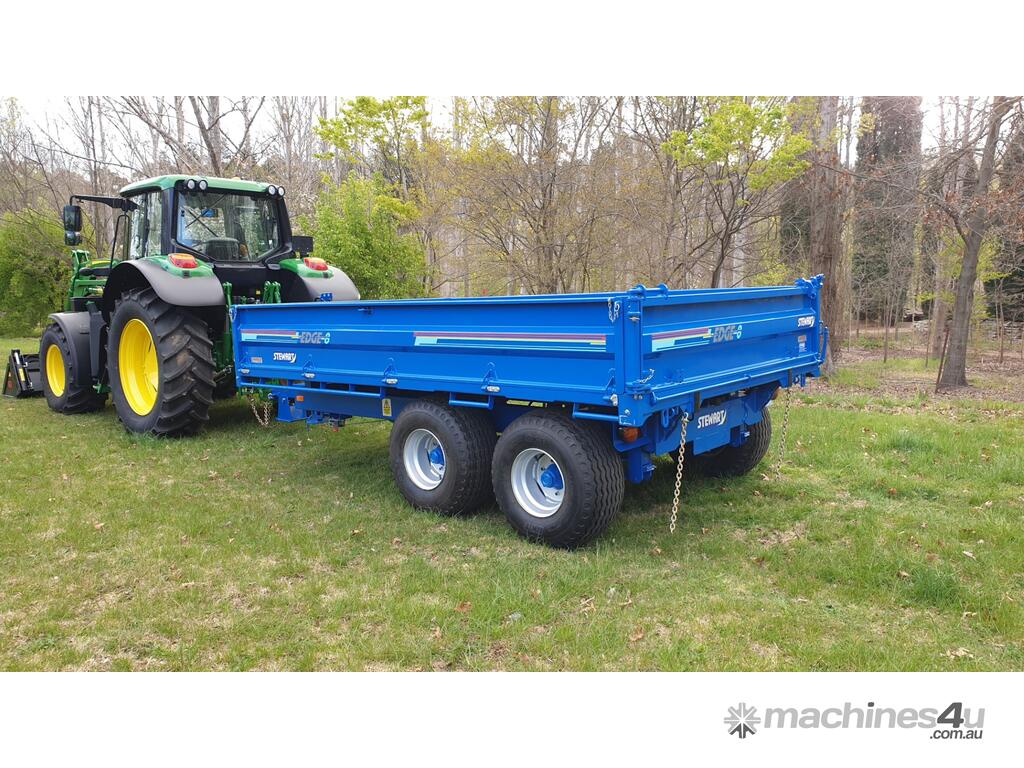

STEWART TRAILERS EDGE 8 DROP SIDE TIPPING TRAILER

The EDGE-8 Trailer, suited to general farming applications has many uses; whether it’s carting soil or gravel around the farm, moving hay and feed supplements to livestock, or even moving mulch around the garden.

STEWART Edge-8 Drop Side Tipping Trailer
• Minimum 75HP required
• 8000kg Load capacity

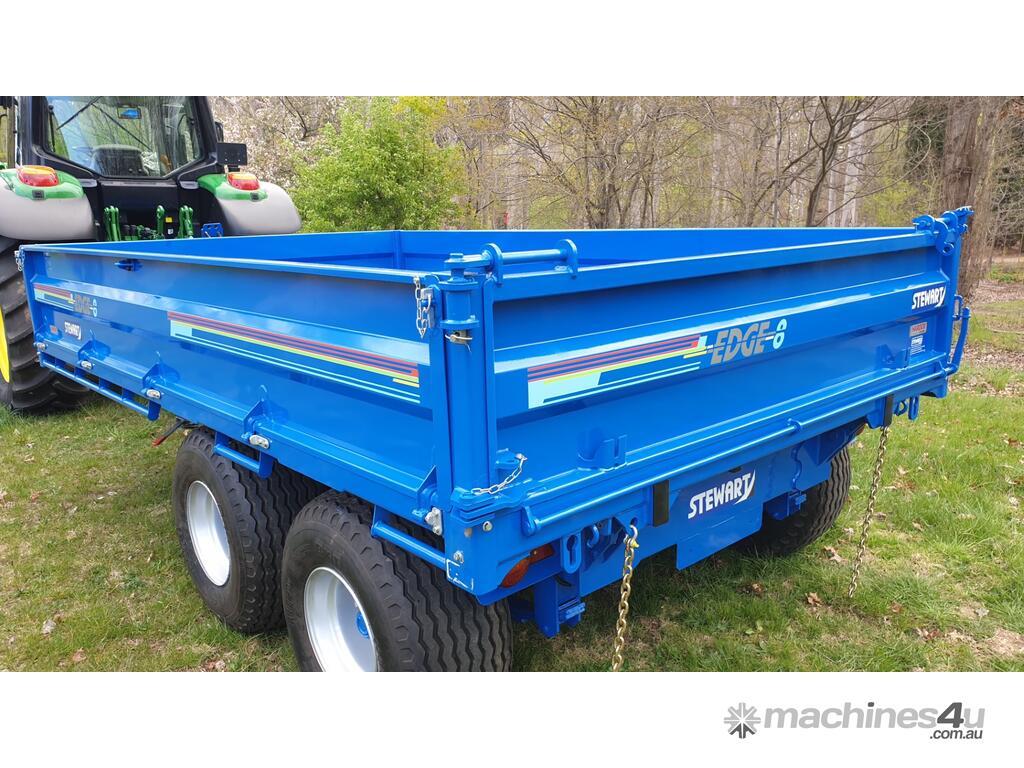

• 4000 x 2500 x 500mm Body w. Drop Sides

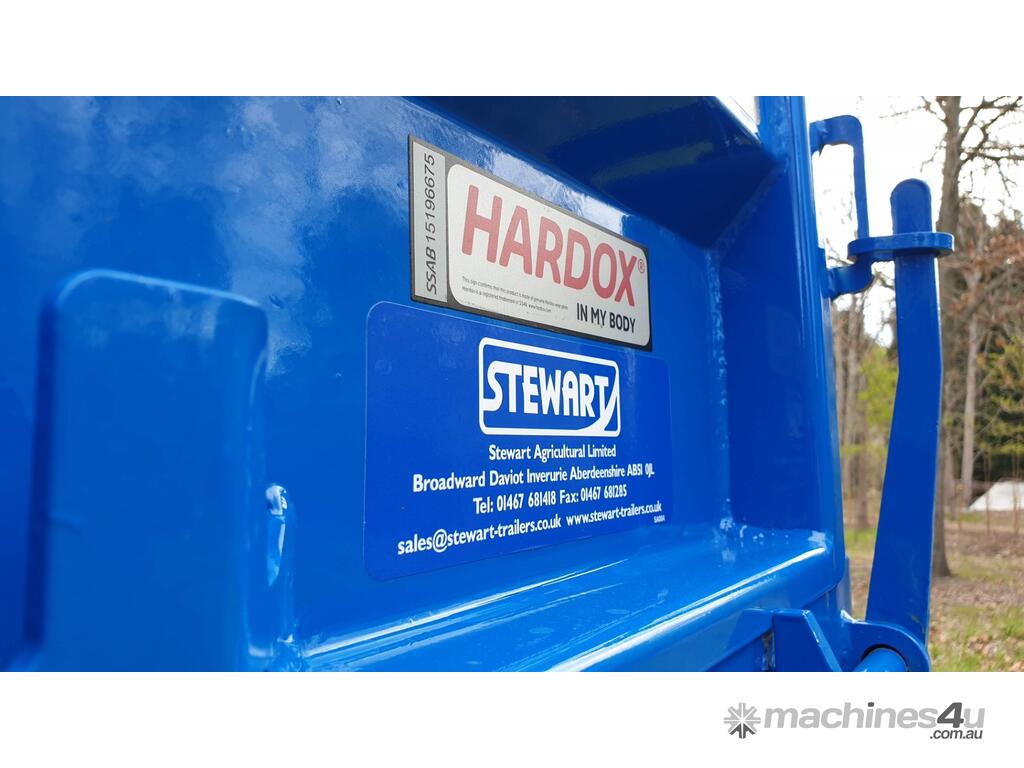

• 4mm Wall, 2mm Sides HARDOX

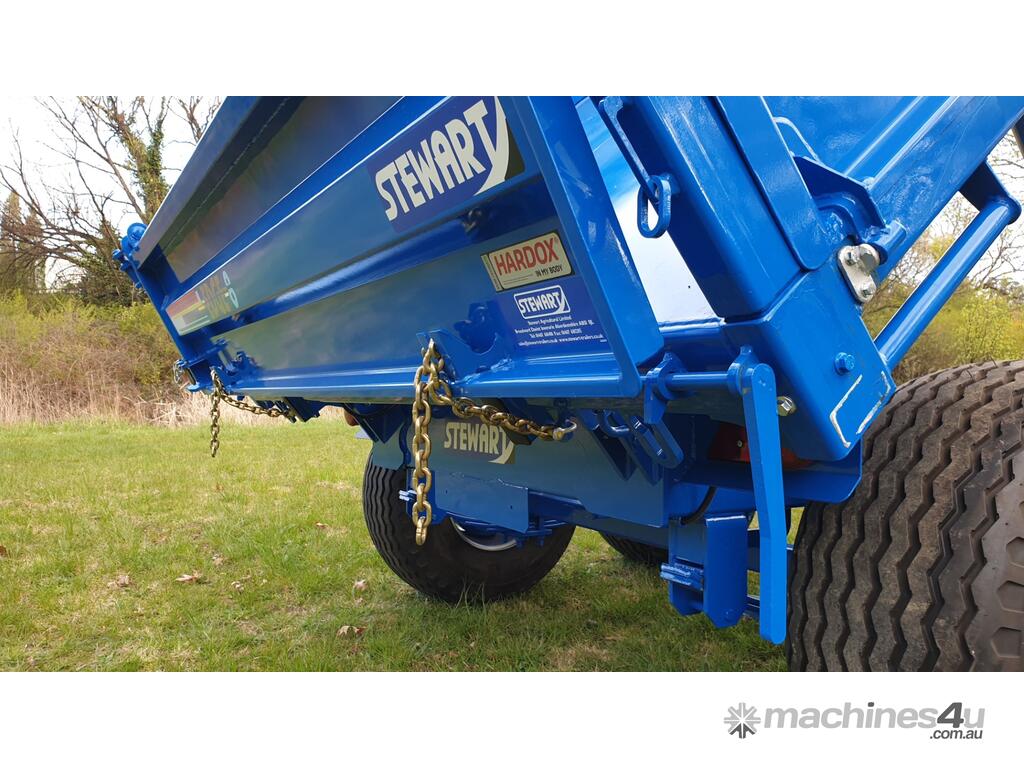

• 2-Way Tailgate w. Spreading Chain Attachments

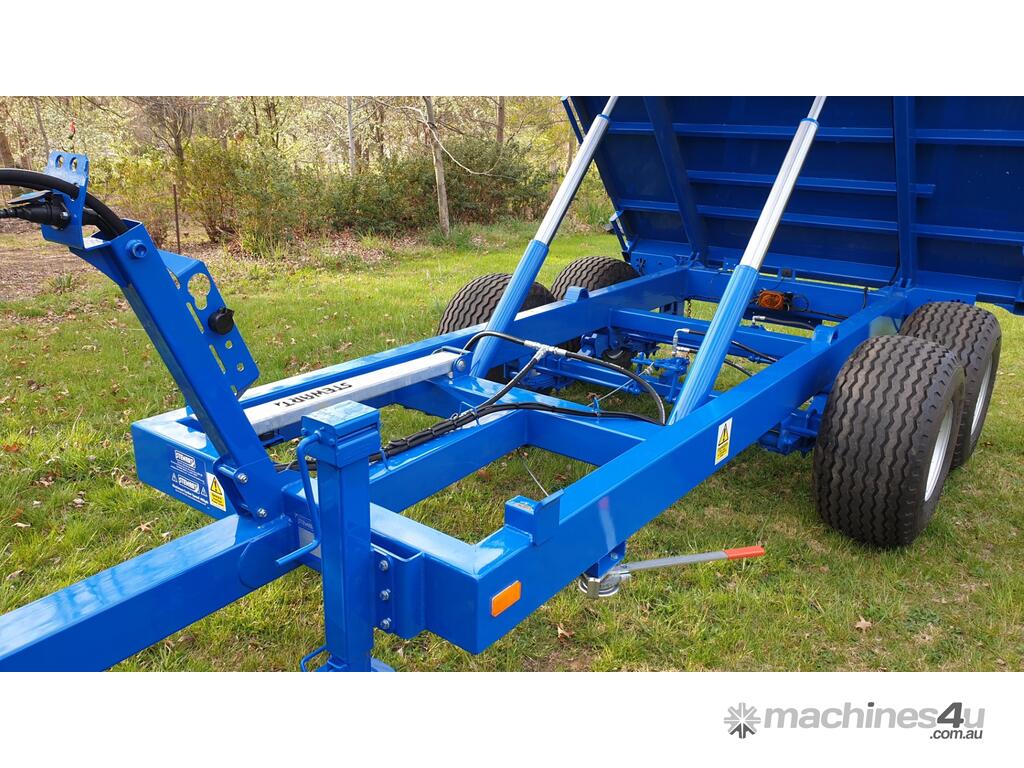

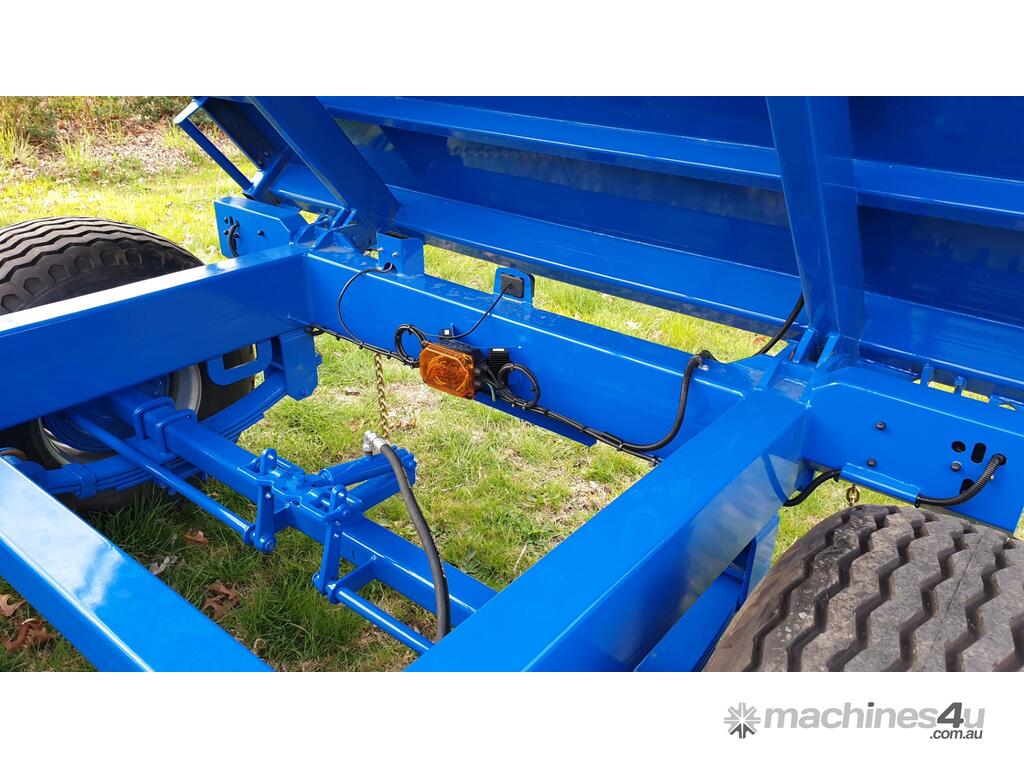

• HD Full Width Chassis, 200 x 100 RHS

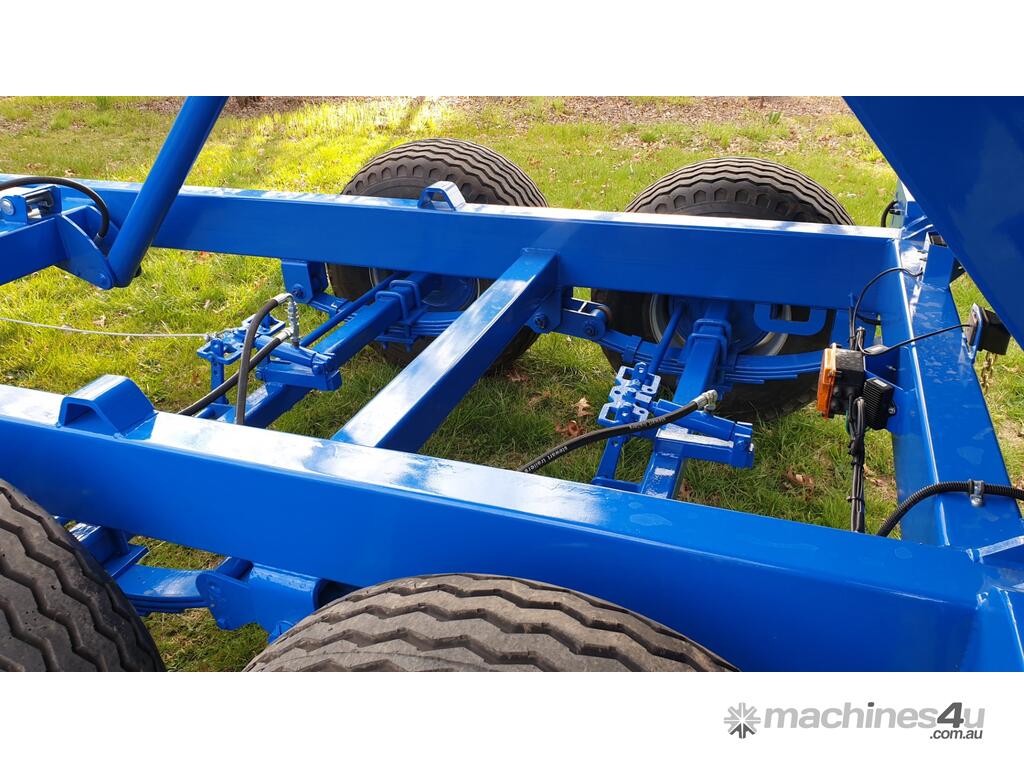

• Tandem Axle, ADR 70mm 6 Stud (350x60 Hydraulic Braked)
• 400/60x15.5 Flotation Tyres

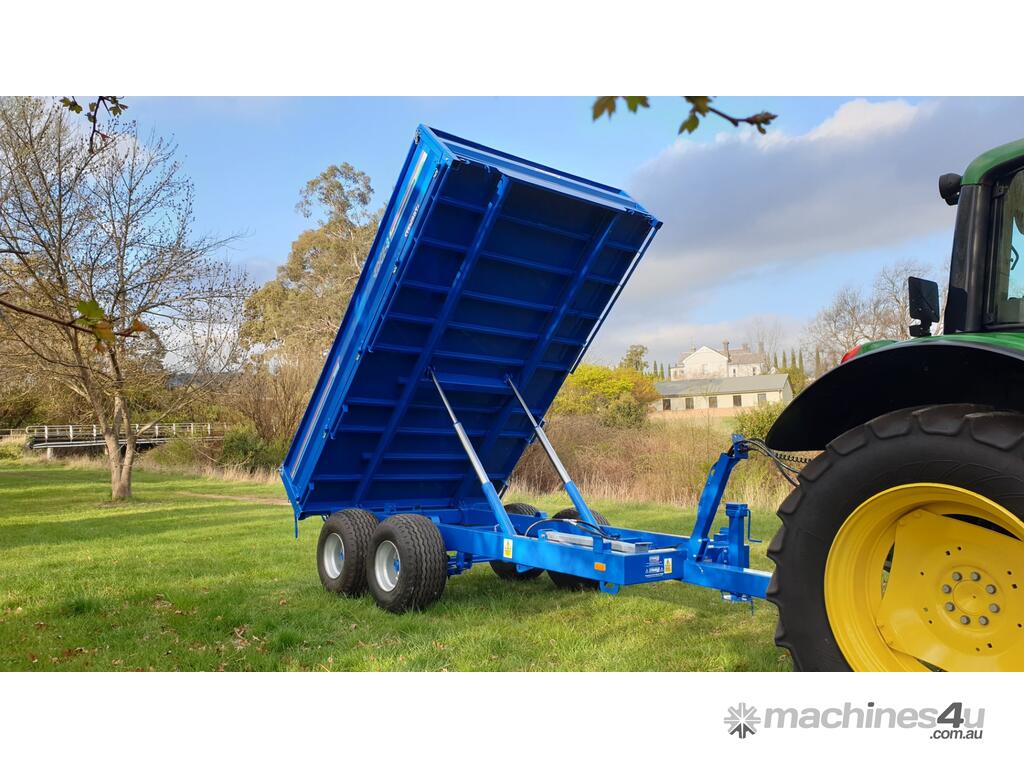

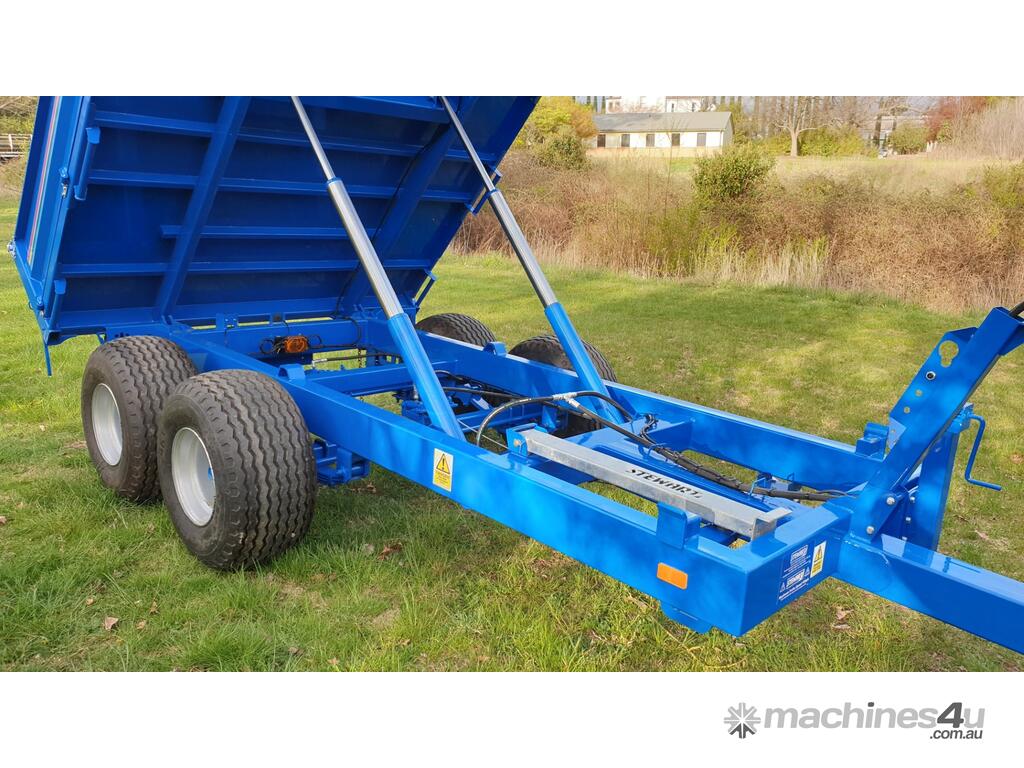

• Dual, 3-Stage Single Tip Ram, 3.5” Diameter, Chrome Plated

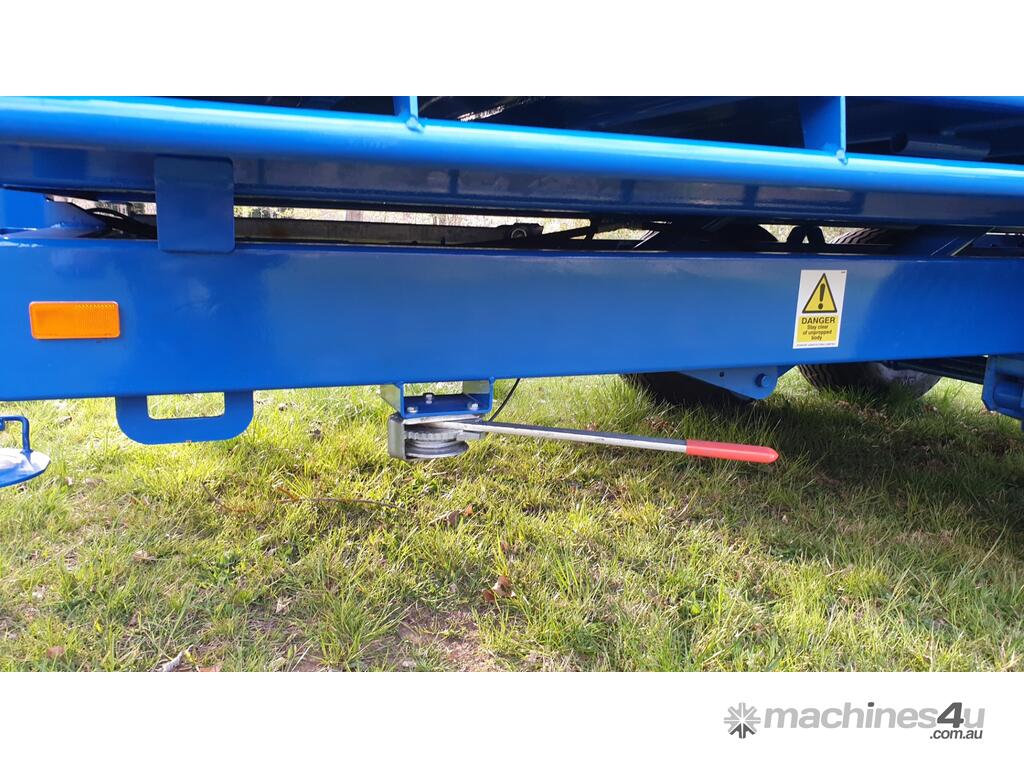

• Mechanical Jack Stand
• Full Road Light Kit
• 40mm Swivel Hitch w. Safety Chain Attaching Points
• Shot Blasted & Finished in PPG Flex Paint
Options:
• Rear Bale Extension
• Front & Rear Hay Racks
• Hydraulic Tailgate Latch

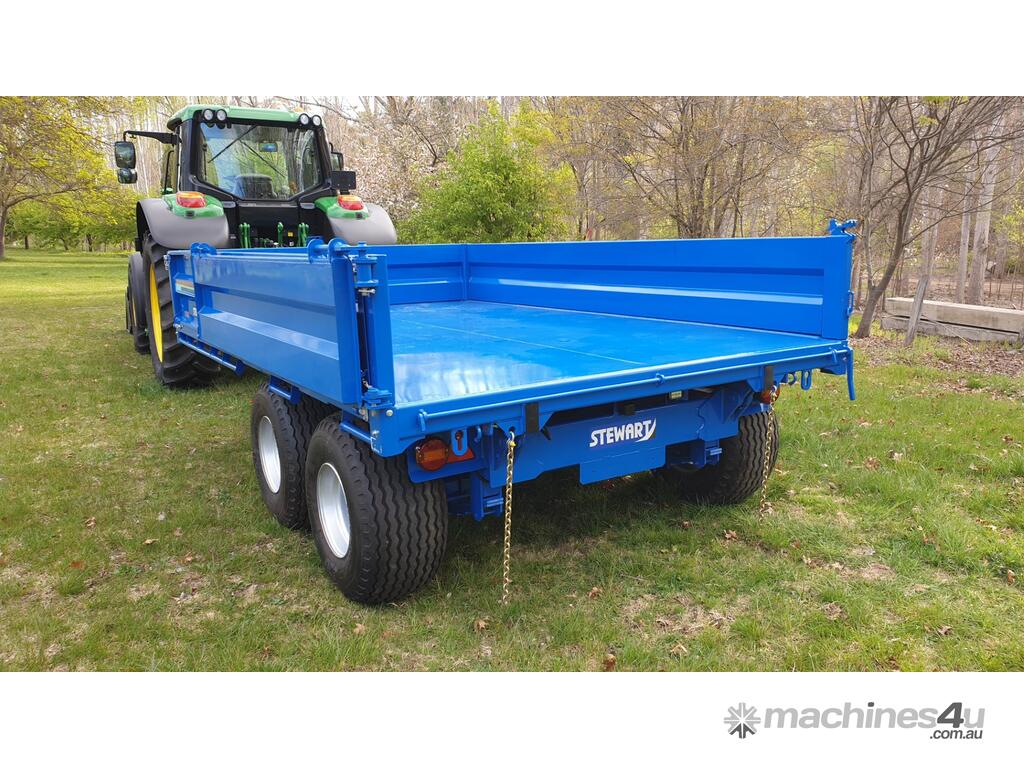

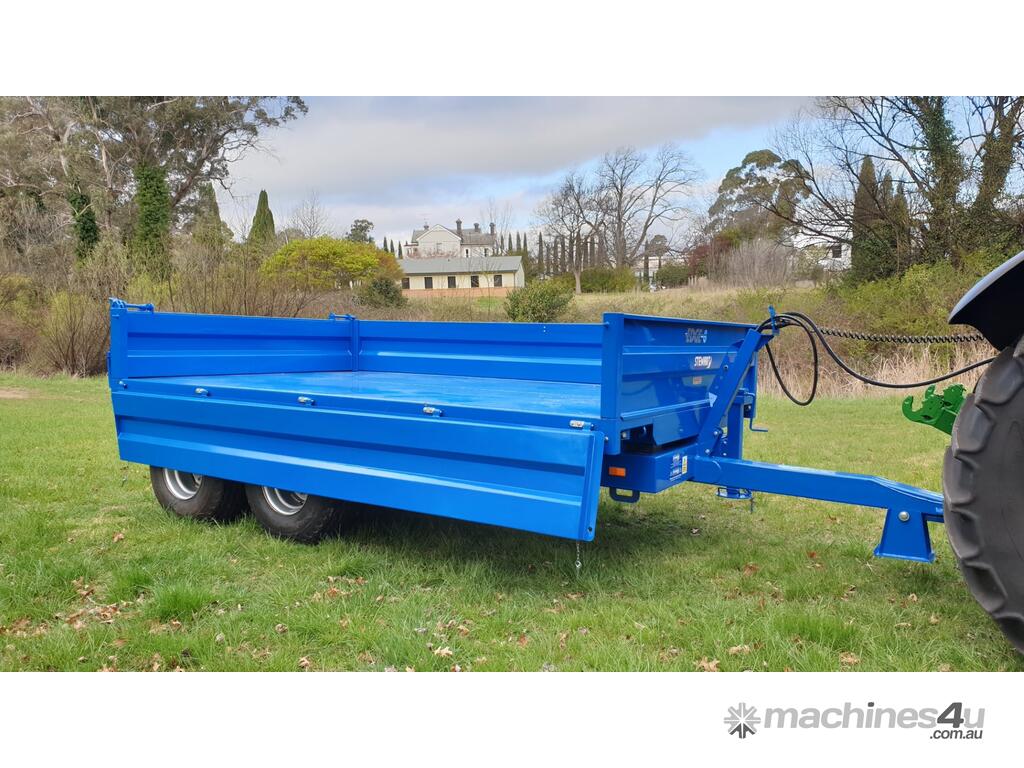

All EDGE trailers feature the 2-way tailgate design which enables any load to be emptied or distributed via the rear tailgate. All sides are able to be removed, easily converting these trailers into a formidable flatbed trailer.

Designed and built in Scotland for Australia, the all-new Stewart ‘Edge’ Drop-Sided Tipping trailers are built for you. Featuring full Hardox® body and sides meaning the trailer is very strong, protected from rock damage, and lighter in overall tare weight without sacrificing any strength. Other features such as dual axle hydraulic breaks and LED road lighting on the larger models means road towing is completely legal behind agricultural vehicles and our ADR axles are built to take it.

Chrome-plated rams are a standard feature, ensuring long life without any fear of rust damage. All trailers are painted with 2-pack acrylic gloss paint to give an impressive fit and finish which complements the quality of the build and the pride of the Scottish owners!
