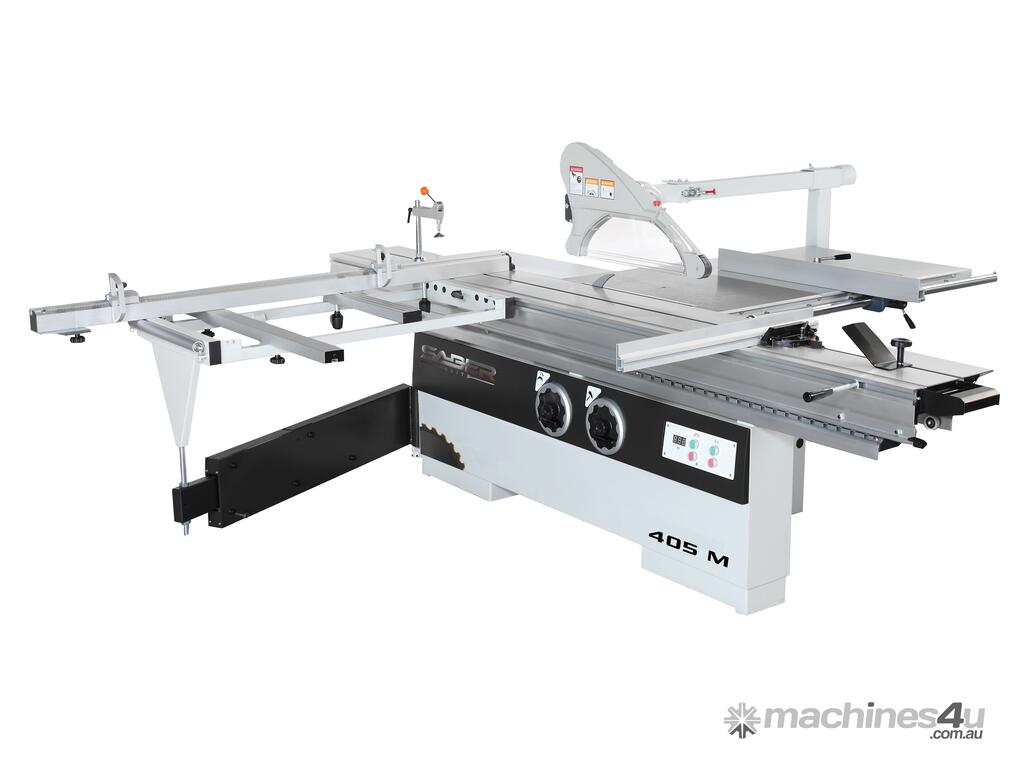

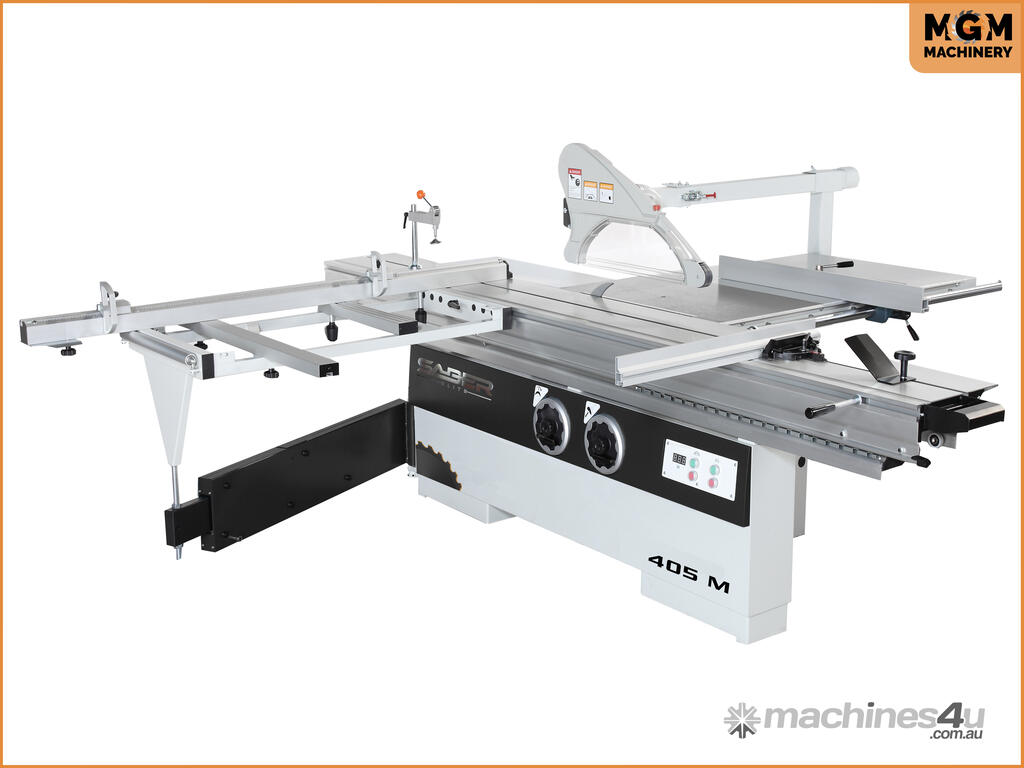

Saber Elite 405 M Panel Saw

The Saber 405 M has been designed to offer accuracy and longevity in a cost-effective sliding table panel saw. For the client who does not want an electronic machine, the
Saber Elite 405 M is a great choice.

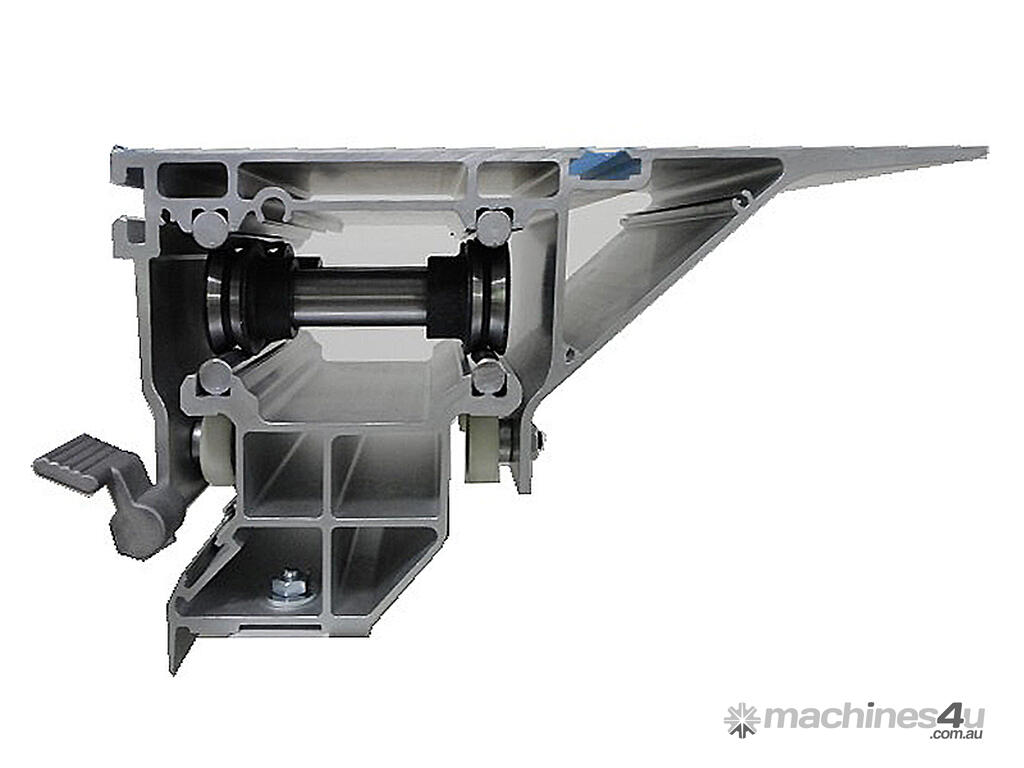

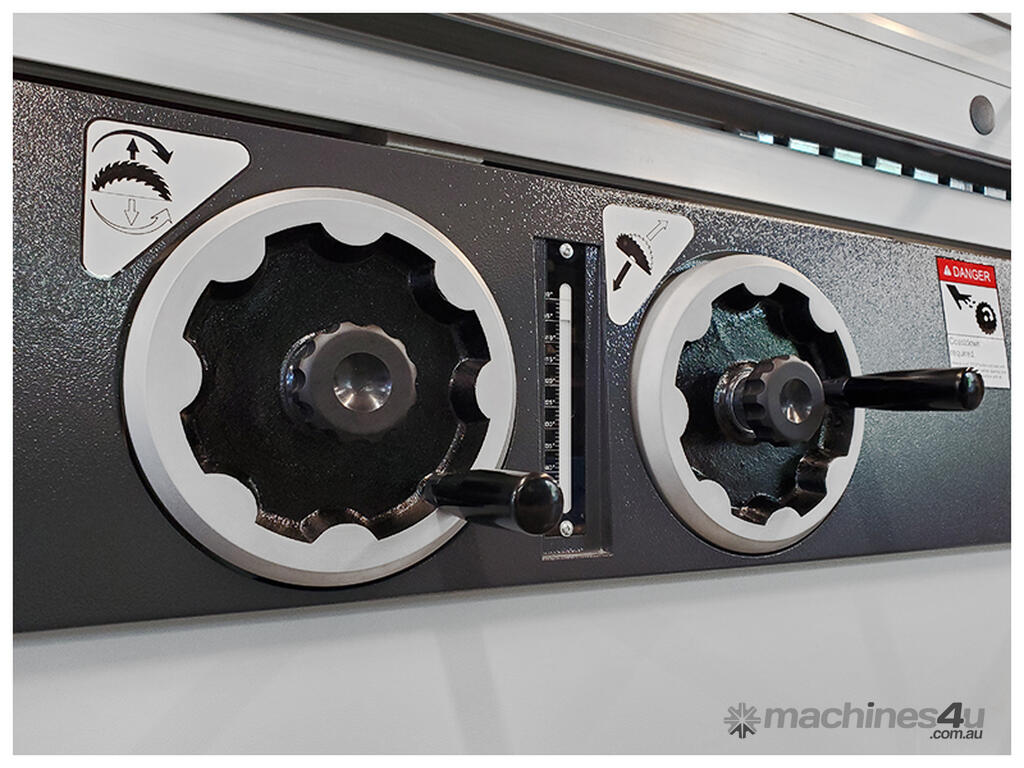

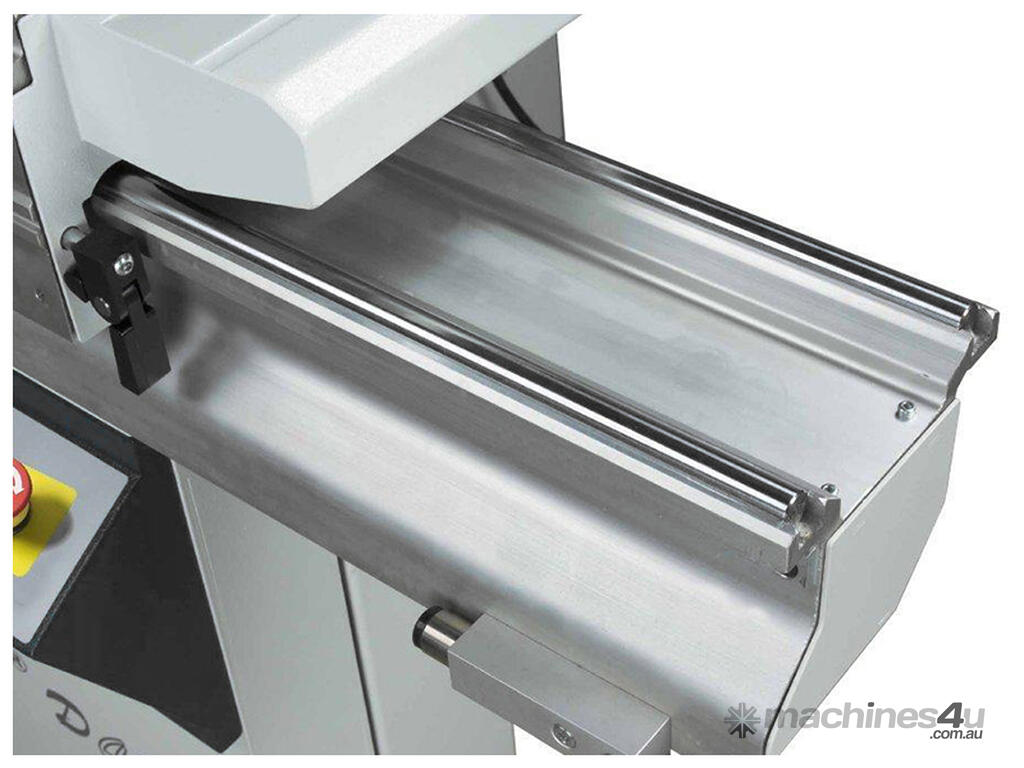

With a heavy-duty frame, manual rise, fall & tilt of the main blade and scribe. A heavy duty cast iron main table and a fantastic sliding table on hardened steel round bars, this machine certainly does not compromise and quality and represents the best value for your money on the market in Australia today.
Technical Specifications.


Technical Features.

Sliding table dimension (Available lengths x Width) 2600,3200,3800 x 378 mm
Cast iron table 548 x 896 mm
Extension table (rear) 952 x 896 mm
Extension table (front) 830 x 320 mm
Table size 1,500 x 1,726 mm
Main saw blade 305 mm
Main saw bore 30 mm
Max. cutting height at 90° 90 mm
Max. cutting height at 45° 64 mm
Main motor power 7.5hp 415v 50hz 3ph
Main blade speed 3,000/4,000/5,000 r.p.rn
Scoring saw blade 120 mm
Scoring saw blade bore 20 mm
Scoring blade motor power 1 HP (0.75 kw)
Scoring blade speed 8,000 r.p.m.
Cutting width 1,300mm
Cutting width adjustment Manual
Main saw blade tilting adjustment Manual (0° -45° )
Main saw height adjustment Scoring Manual
Saw adjustment Manual

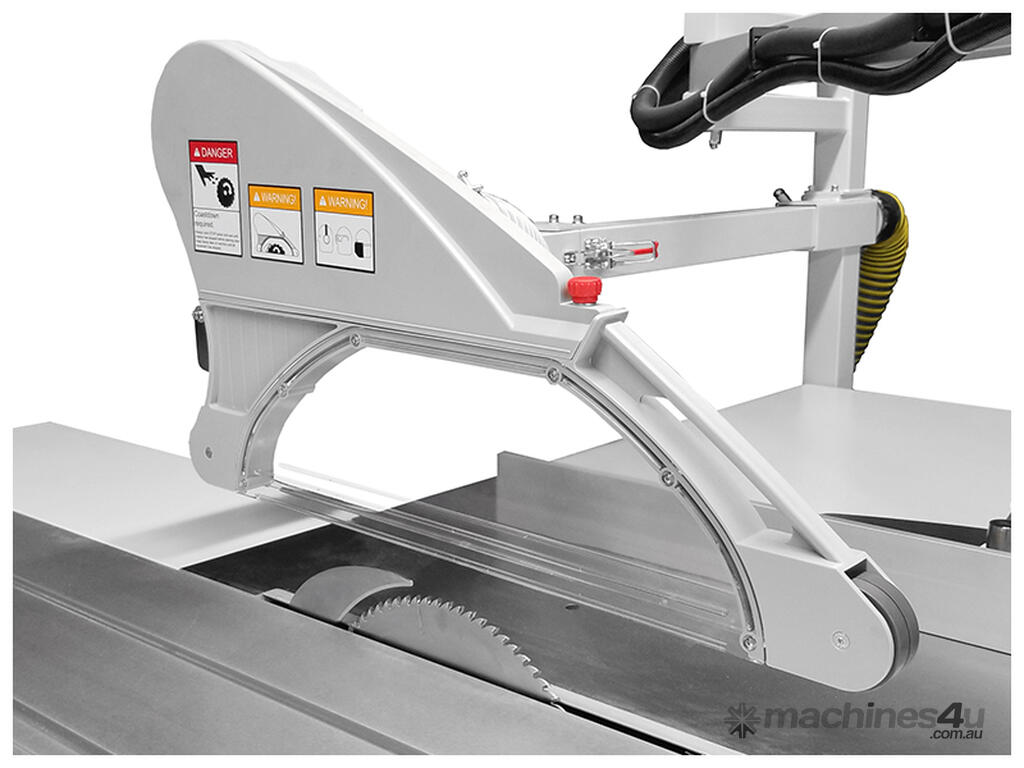

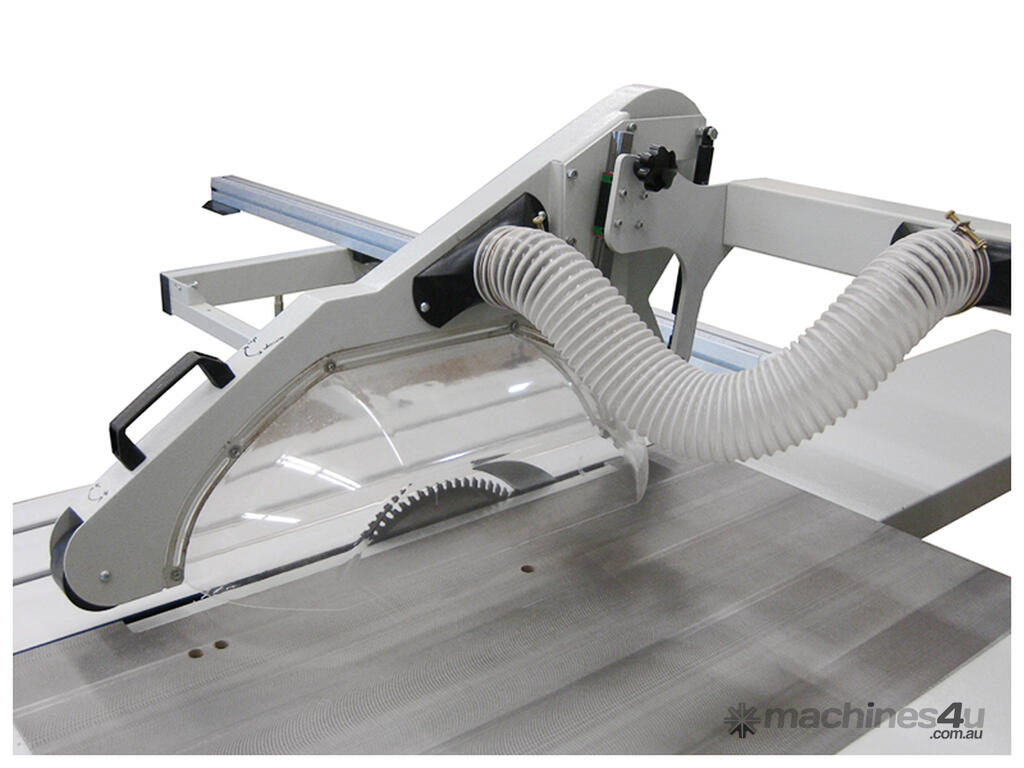

Saw guard (overhead guard option included)
