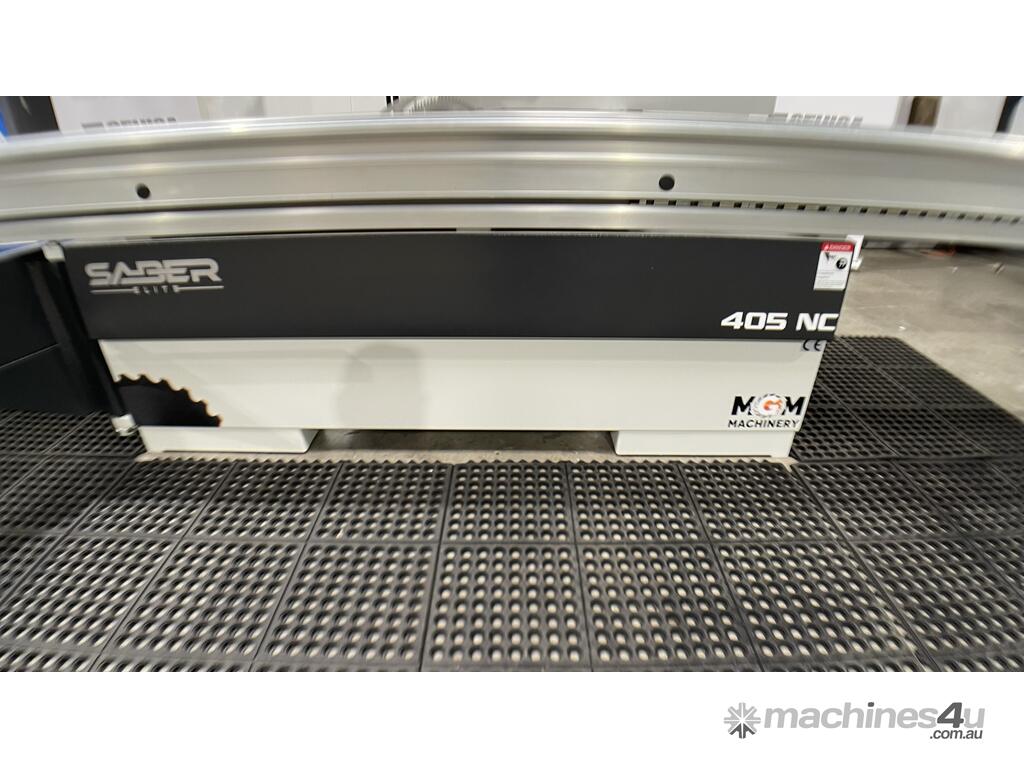

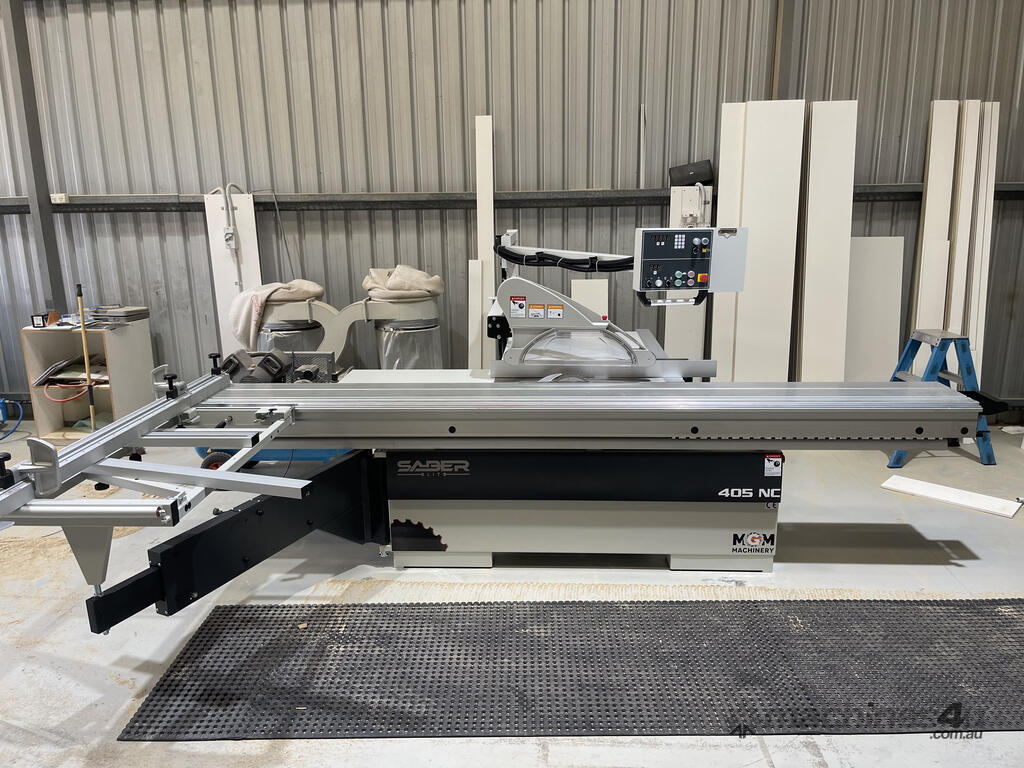

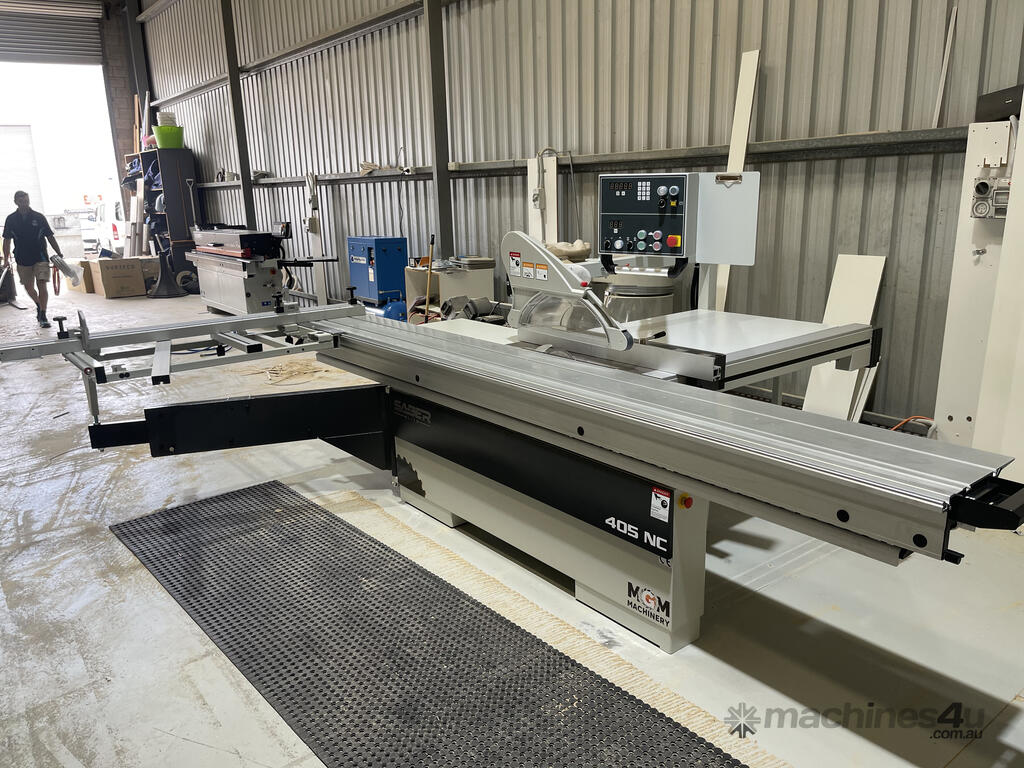

Saber Elite 405 NC By OAV (3800)

The Saber 405 NC has been designed to offer complete simplicity without overloading the controller with features that many shops these days believe redundant in today's market.

With the ever-increasing demand for a simple saw to compliment nesting solutions that have become the primary cutting device in the industry, many shops now want a no-frills simple controller that is reliable and easily rectified from potential issues.

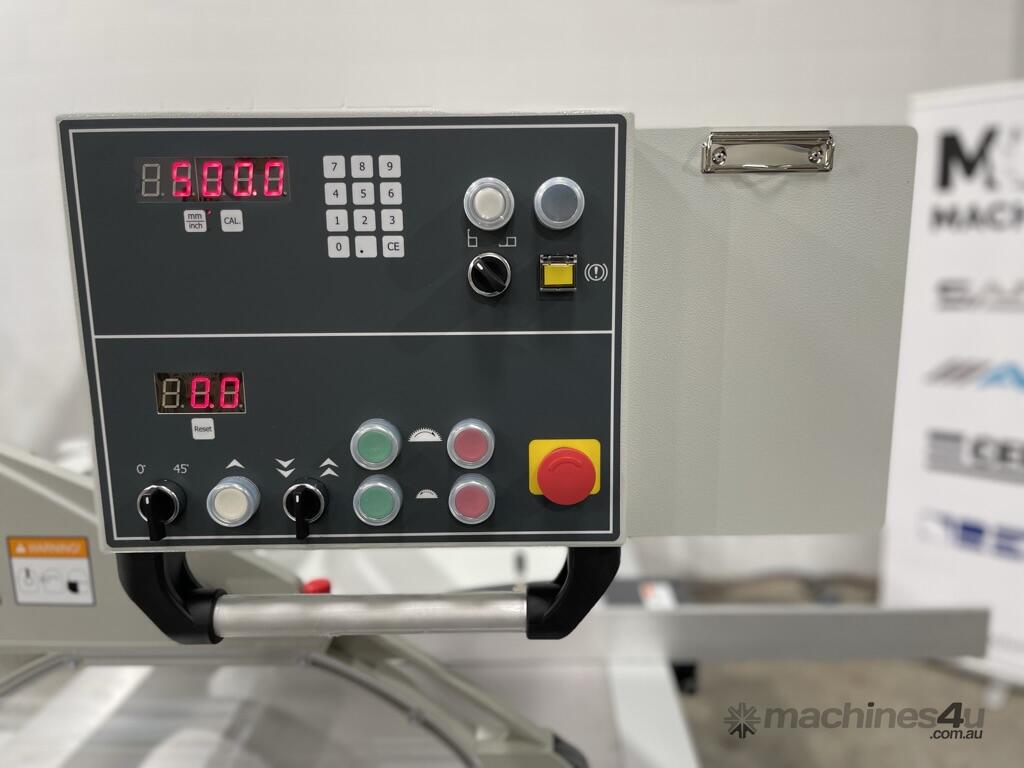

The Saber 405 NC has a simple PLC card running the controller and if it fails at any stage or is damaged, we can simply slide in a new one and away you go again - simple and sweet. This machine features auto rise, fall, and tilt of the main blade and an automatic rip fence all controlled from the simple analogue overhead control.

Technical Features.

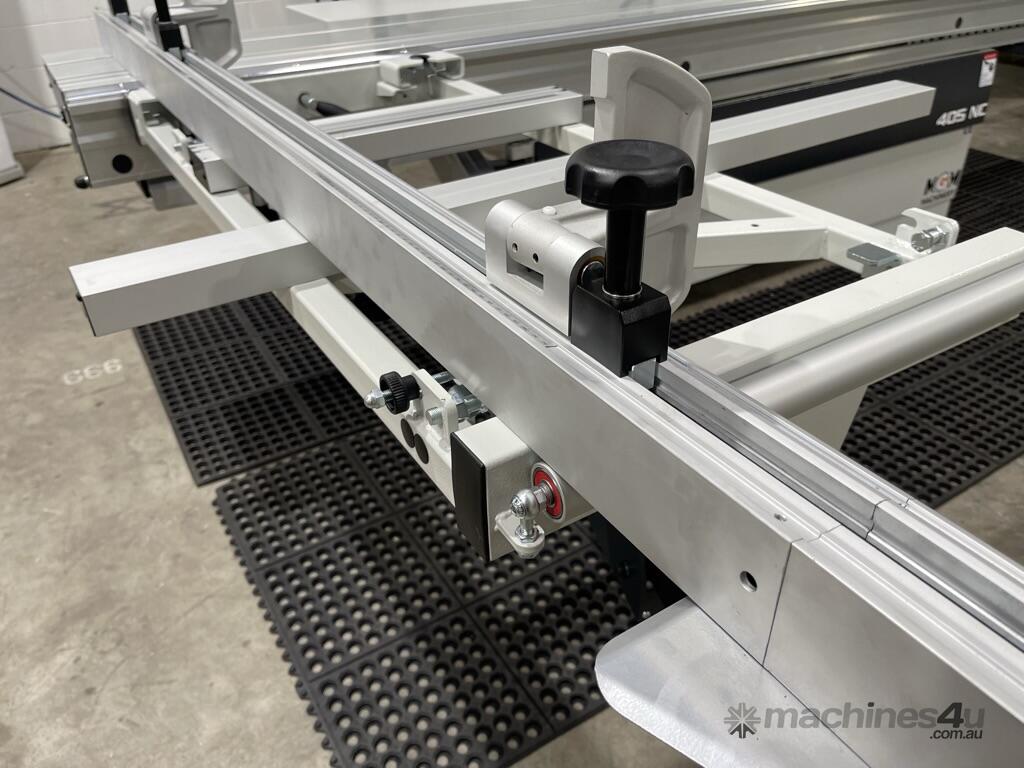

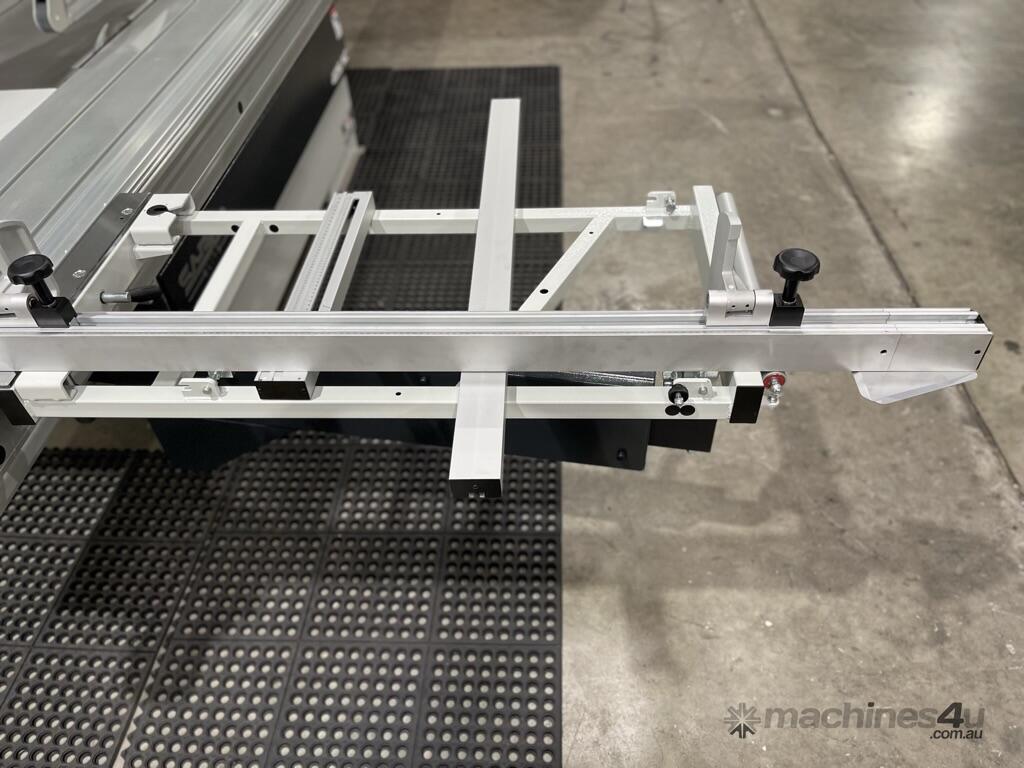

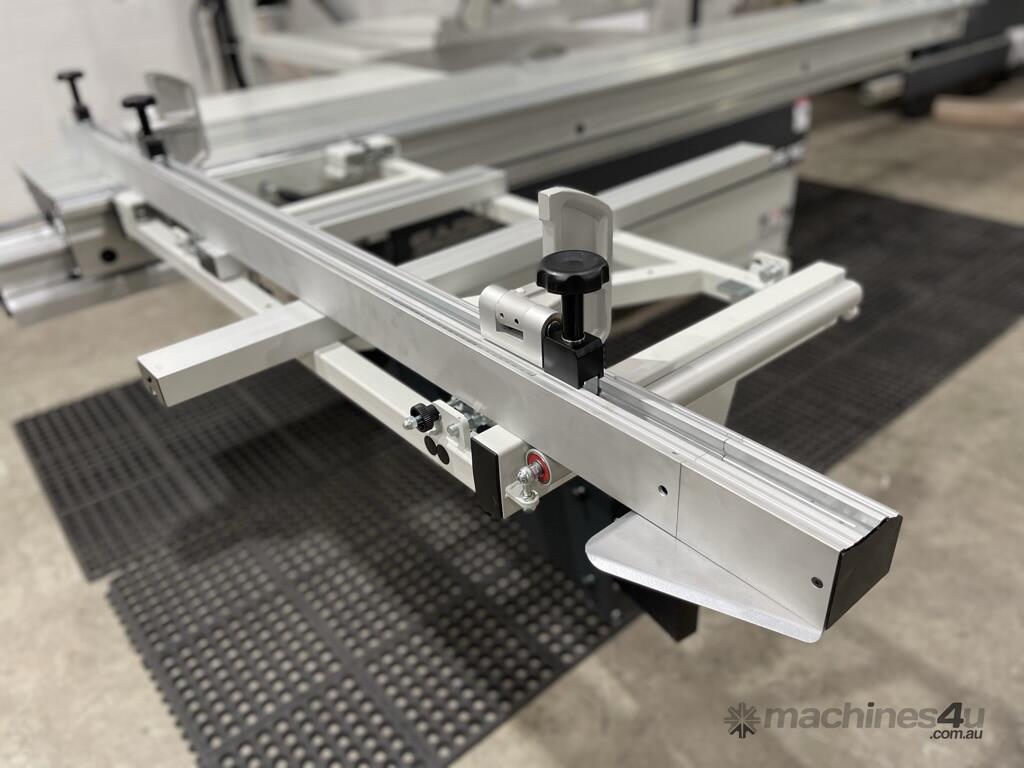

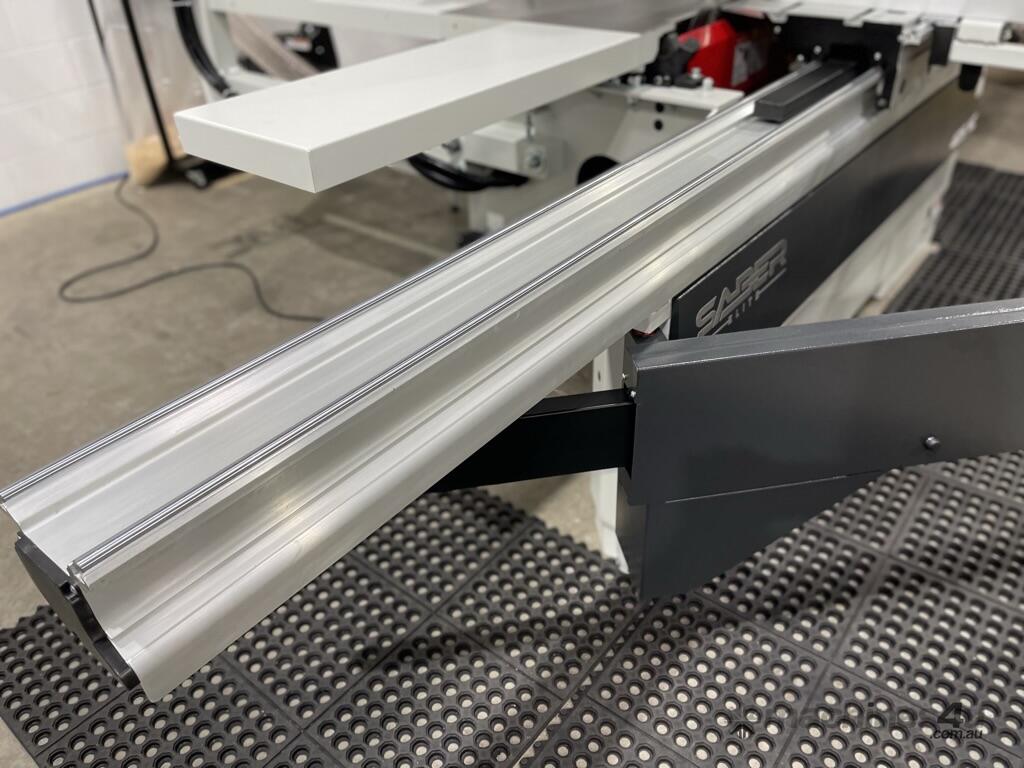

Sliding table dimension 3800 x 395 mm

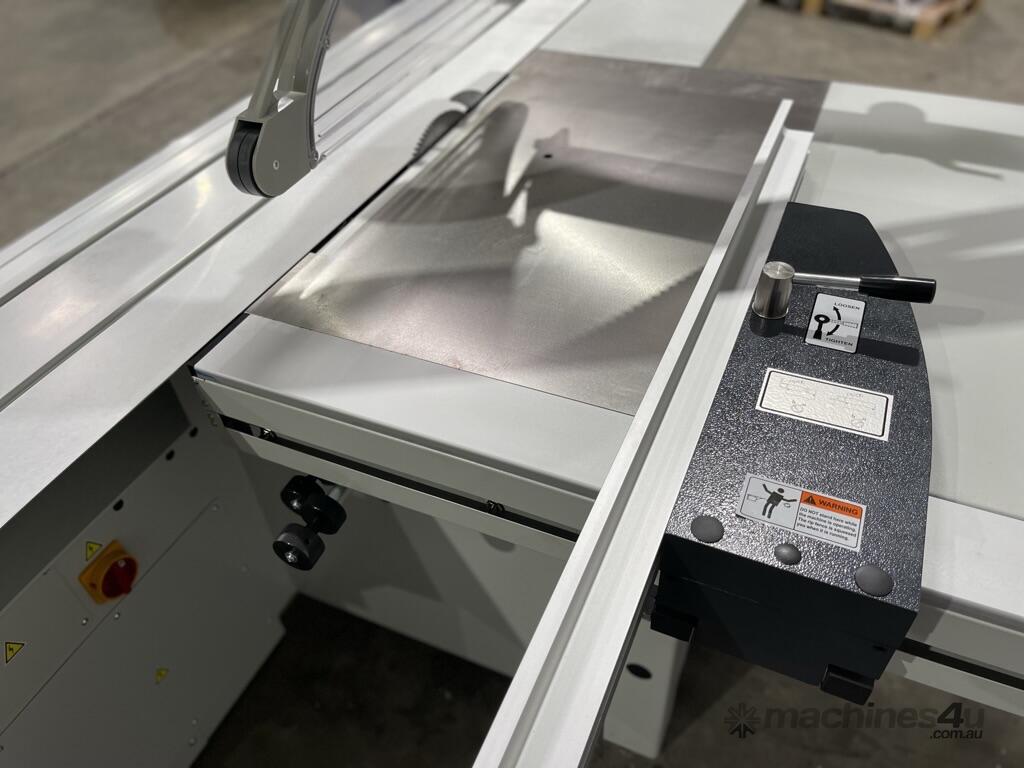

Cast iron table 548 x 896 mm
Extension table (rear) 952 x 896 mm
Extension table (front) 830 x 320 mm
Table size 1,500 x 1,726 mm
Main saw blade 355mm
Main saw bore 30 mm
Max. cutting height at 90° 105mm
Max. cutting height at 45° 70 mm
Main motor power 7.5 HP (5.6 kw)(3ph)
Main blade speed 3,000/4,000/5,000 r.p.rn

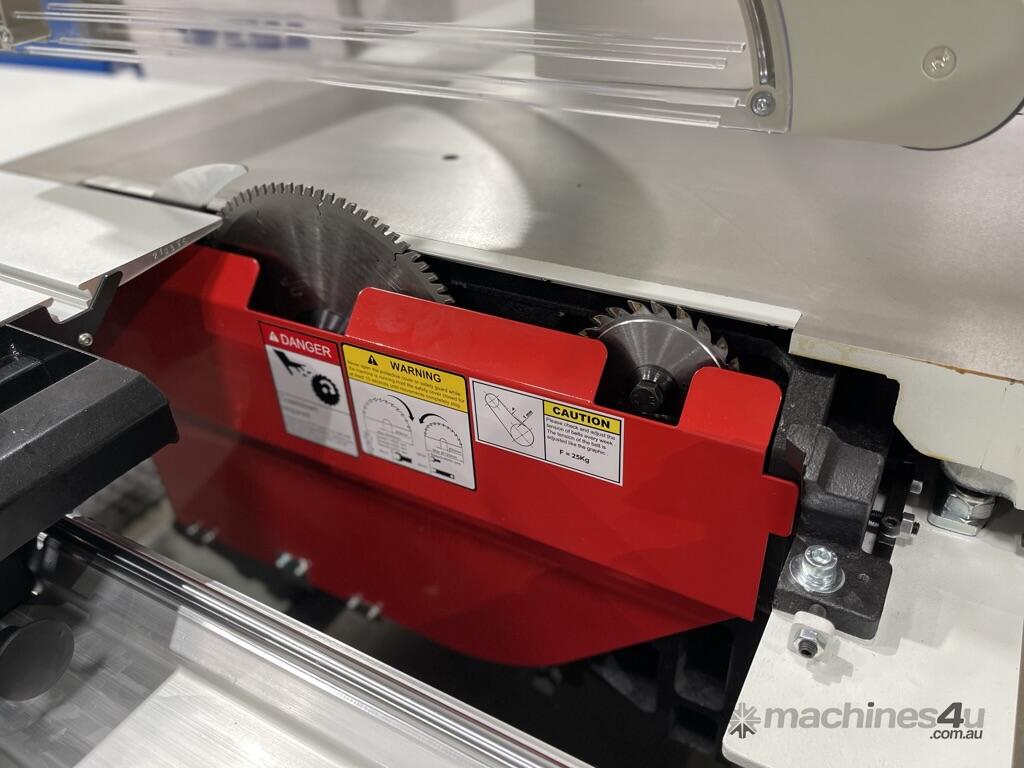

Scoring saw blade 120 mm
Scoring saw blade bore 20 mm
Scoring blade motor power 1 HP (0.75 kw)
Scoring blade speed 8,000 r.p.m.

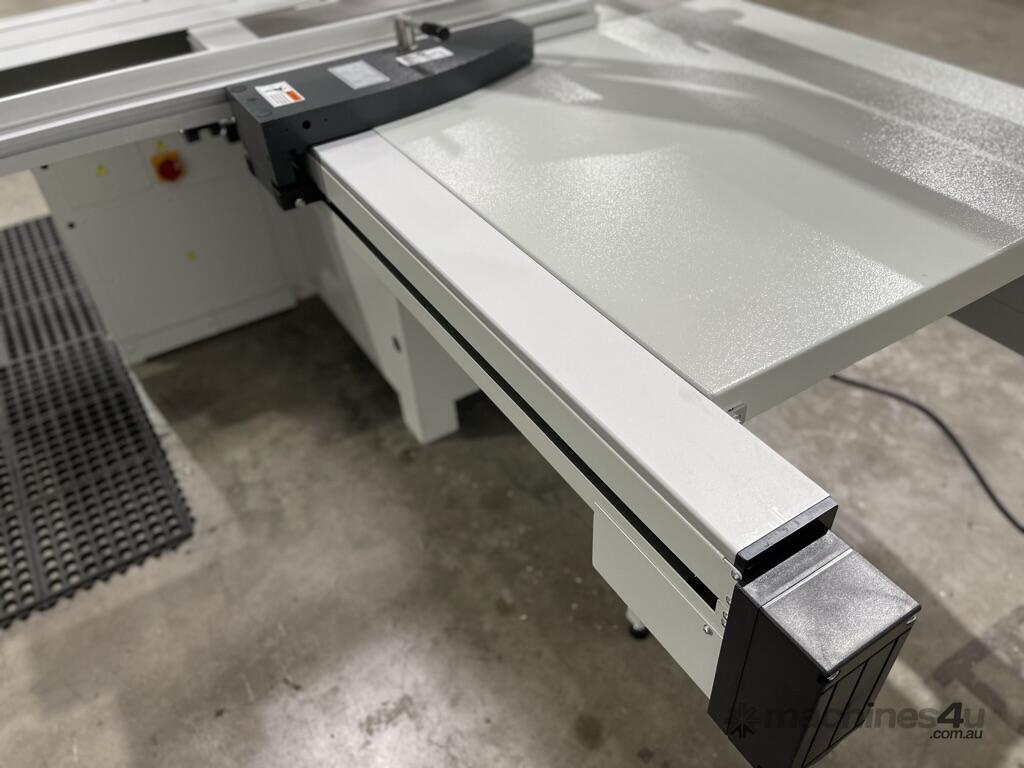

Cutting width 1,300mm

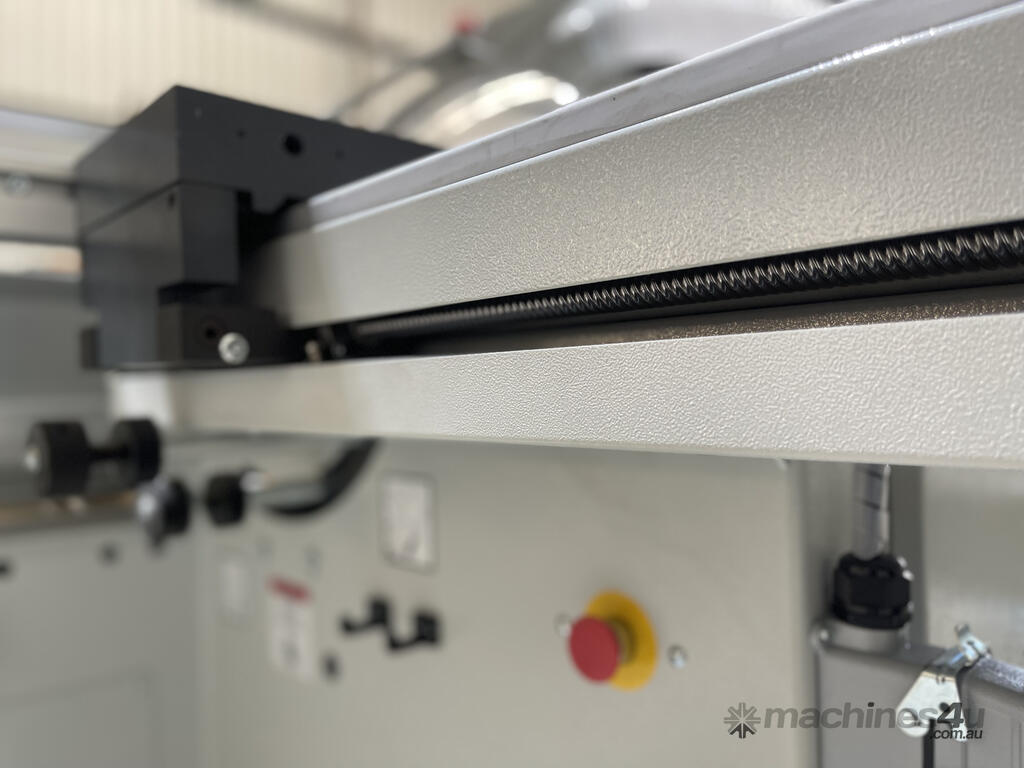

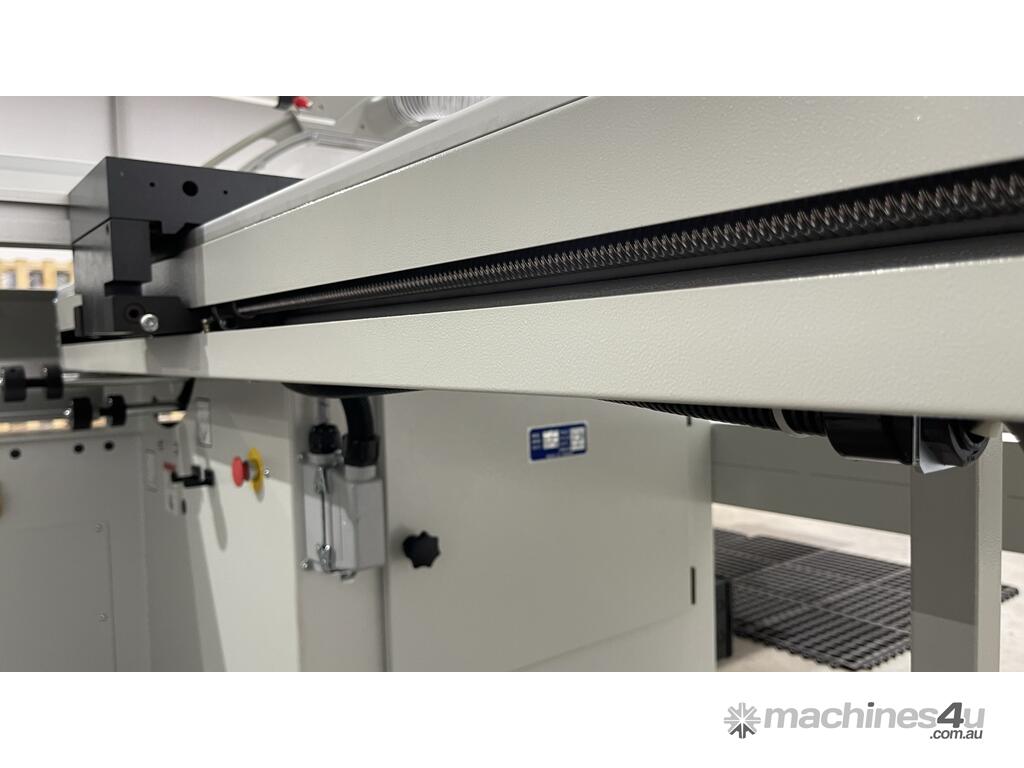

Cutting width adjustment Motorized
Main saw blade tilting adjustment Motorized(0° -45° )
Main saw height adjustment Scoring Motorized
Saw adjustment Manual

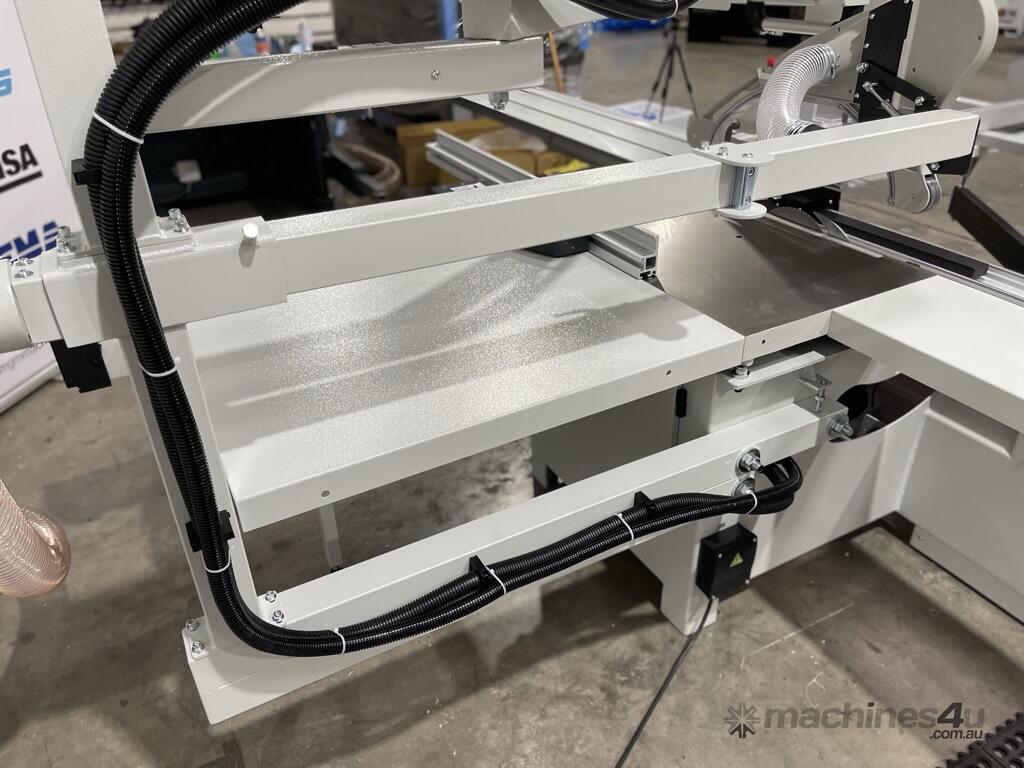

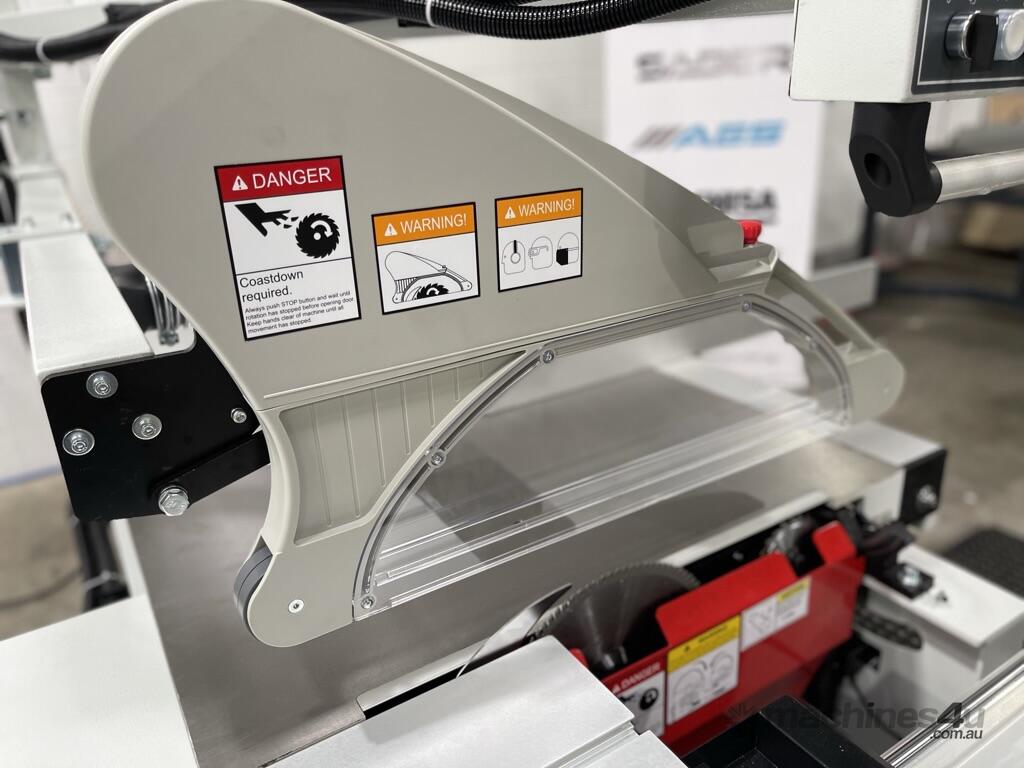

Saw guard (overhead guard option included)

Tables are available in two other sizes 2600mm and 3200mm in length.
