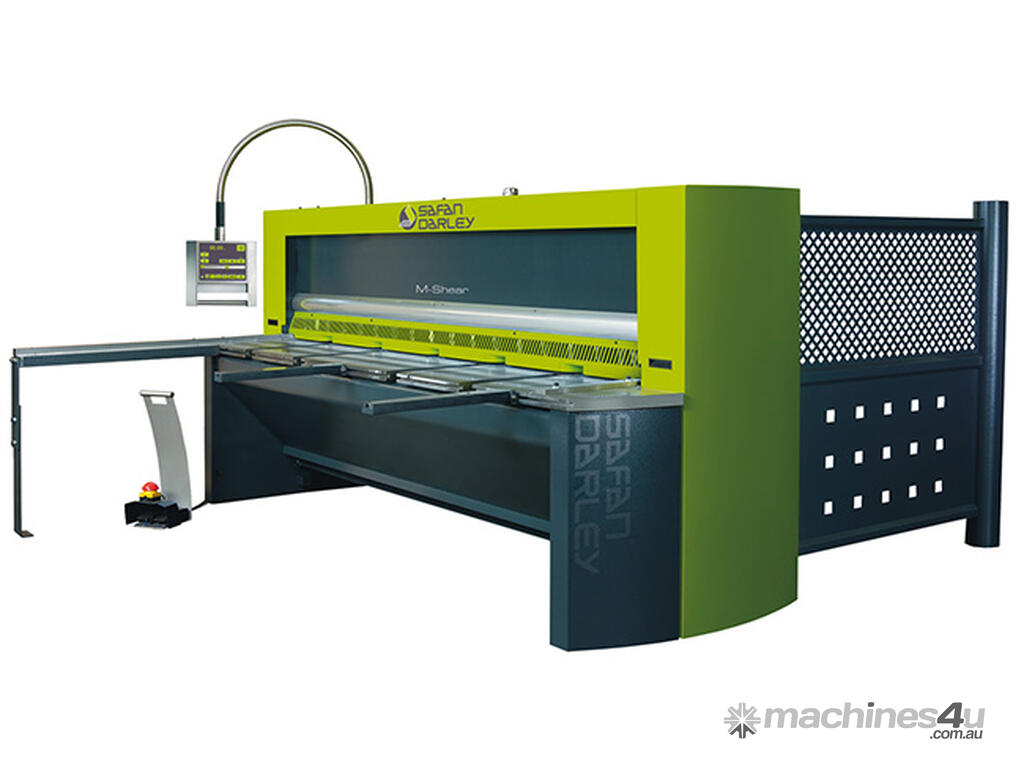

New SafanDarley Hydraulic Shears for sale - SafanDarley M-Shear

What makes these multifunctional shears unique is their innovative hybrid drive. The robust hydraulics is controlled by sophisticated electronics.

The SafanDarley M-Shear uses much less oil than hydraulic shears. The servo-electronic motor runs only when the cutting beam moves, which results in considerable energy savings and reduces wear. It also produces a low-noise cutting cycle.

Choice from more than 20 versions:
Cutting capacity, sheet thickness: 4 mm – 6 mm – 8 mm – 10 mm – 13 mm – 16 mm
Working length: 2050 mm – 2550 mm – 3100 mm – 4300 mm – 6100 mm – 6500 mm
Drive with servo-electronic motor and hydraulic pump
Oil tank only 22 litres

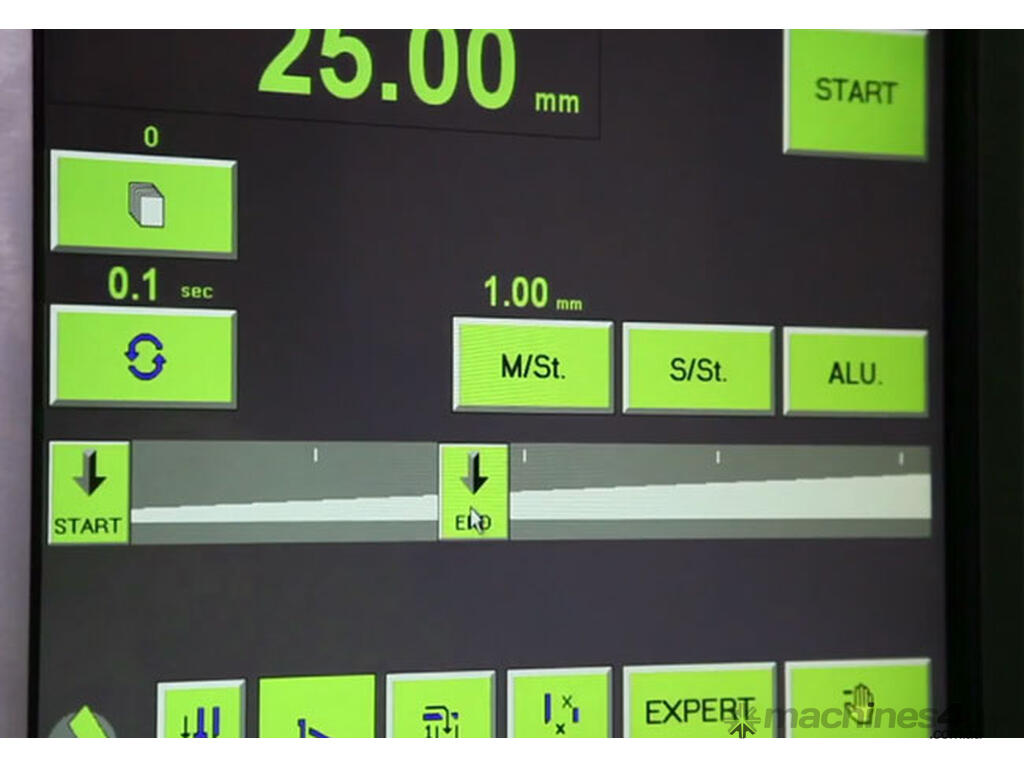

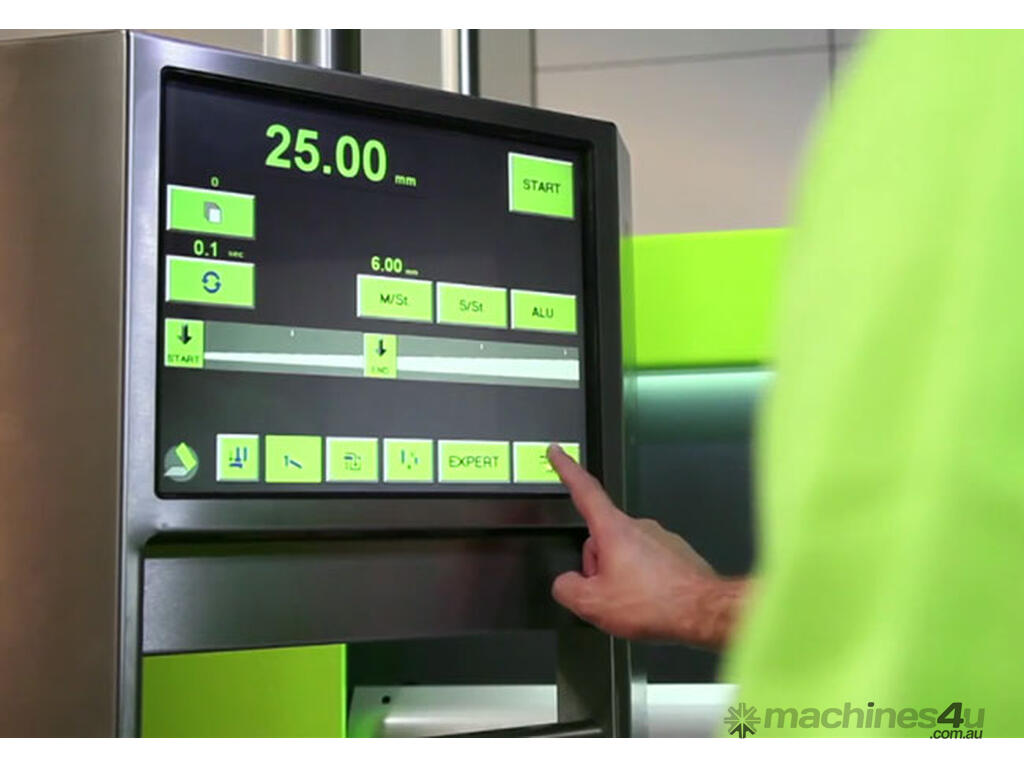

SafanDarley TS200 touch screen control; features include CNC programming of cutting programs
Fully automatic setting of cutting angle and stroke length
Torsion-free cutting of narrow strips
CNC-controlled backgauge.

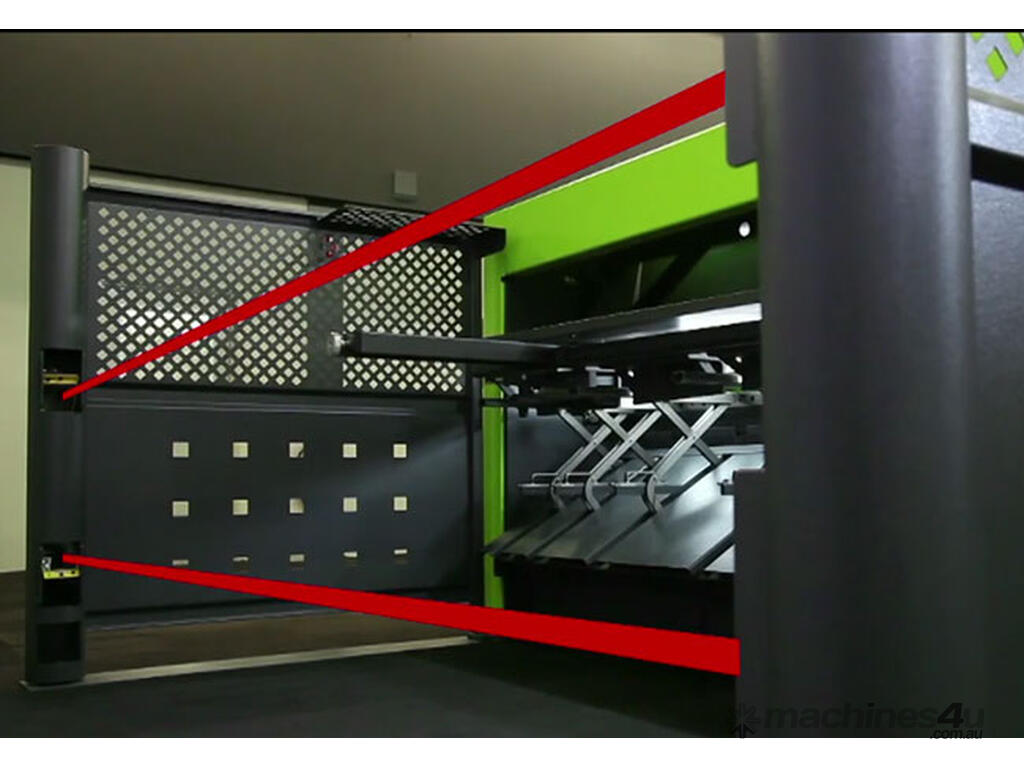

Safety provisions in accordance with European Machinery Directive
Optional pneumatic sheet-holding device

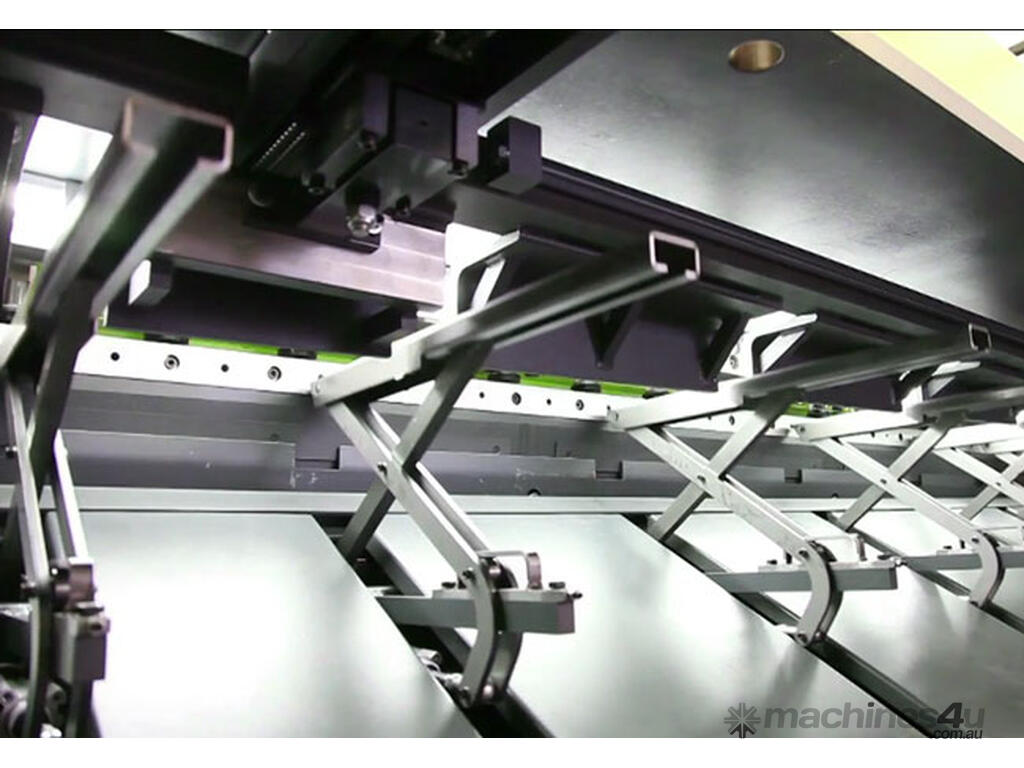

Optional sheet-support device with Return-to-Sender system
Optional scrap separation system
Optional automatic stacking system

For more information download the PDF brochure or contact us.
