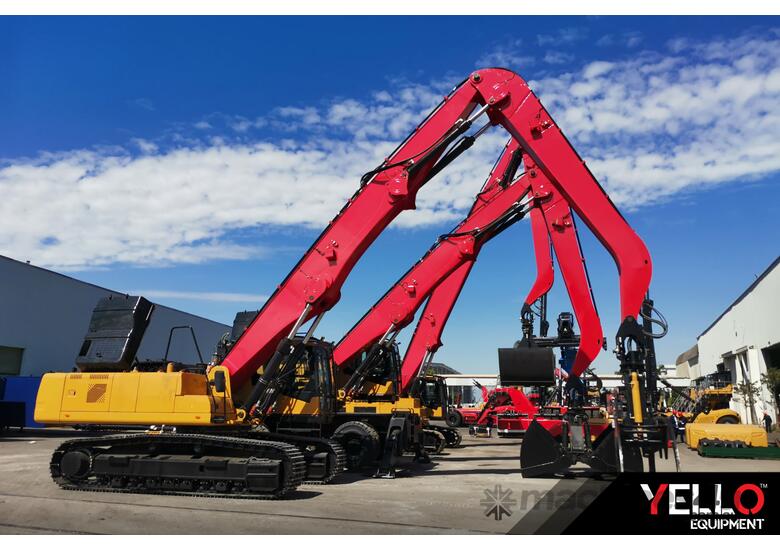

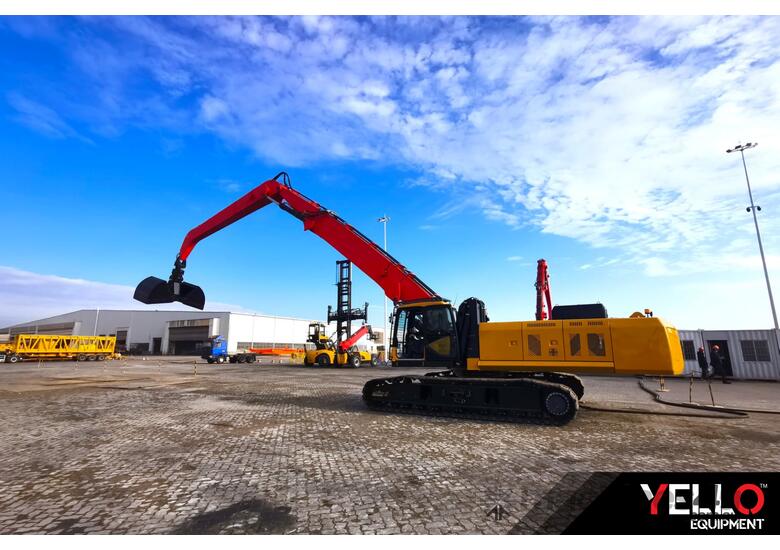

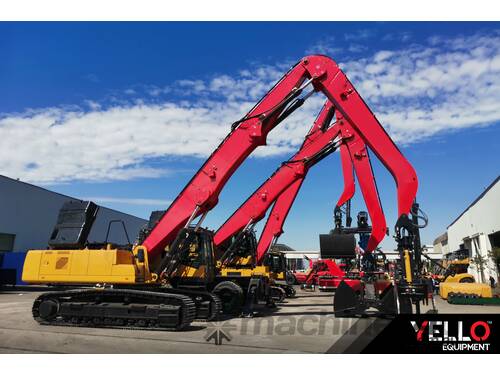

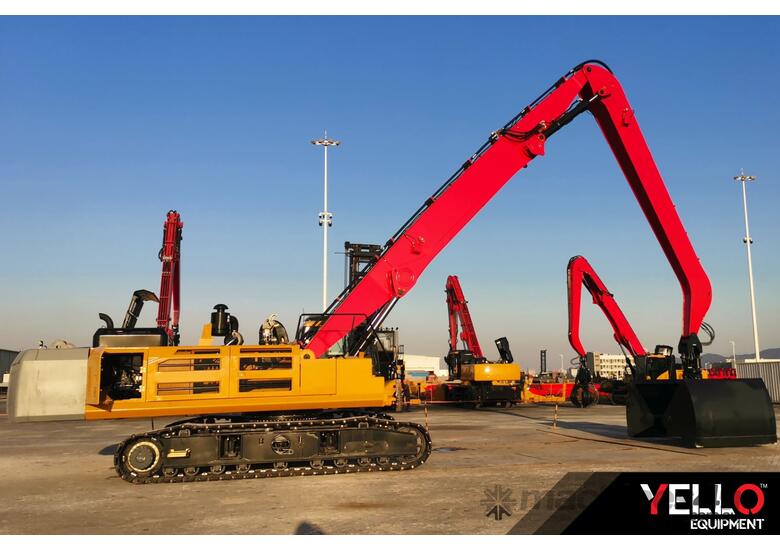

Sany Crawler Material Handler: SMHC35 - The top choice for heavy-duty operations!

This machine is known for its proven reliability, used worldwide in ports, recycling yards, and warehouses. The 35-ton series comes with a crawler configuration and offers two power options: a Japanese Mitsubishi engine delivering 147kW or an electric version. It also features five different grab options, ensuring suitability for a wide range of applications. With a Kawasaki hydraulic system, you get maximum efficiency and performance.

Specifications:

- Engine: Mitsubishi D06FRC-TAA (147 kW/2100 rpm)
- Fuel Tank Capacity: 465 litres
- Hydraulic System: Kawasaki K7V125DTP1N9R main pump, multitandem valve (KHCV25P), explosion-proof valves (KMX15RB), and a moveable cylinder (Hengli JSY24.5). The hydraulic system operates at 320 bar pressure, with a total displacement of 250 ml/r.
- Slewing Mechanism: Equipped with Soute GS14D20C.0 reducer and Kawasaki M5X180CHB rotary motor.
- Cab Lifting Height: 2650mm with a single four-linkage bar lifting structure.
- Boom and Arm Configuration: 14m boom, 8.6m moveable arm (S8630), and 6m stick (B6030), allowing a 13m working radius, maximum height of 13m, and a working depth of -6.0m.

Operational Specs:

- Gross Weight: 35,200kg
- Traveling Speed: 5km/h
- Gradeability: 40%
- Rotation Speed: 0-8 r/min
- Tail Turning Radius: 3010mm
- Track Centre Distance: 2590mm
- Track Drive Wheel Spacing: 3830mm
- Track Width: 600mm
- Dimensions (L x W x H): 5210 x 3190 x 3140 mm (without boom/attachment)

This machine is designed to handle the most demanding tasks with maximum efficiency and low fuel consumption, making it a top choice for heavy-duty operations. Contact Rick Heyne, Managing Director of HMS Equip

With over 30 years of experience, Rick ensures high standards of work and reliable service. His commitment to honesty, open communication, and long-term customer relationships sets HMS Equip apart.

Reach out today to experience dedicated service you can trust.
