Saturn High Purity Nitrogen Generators

Produce your own pure Nitrogen and safe up to 75% (!) of your yearly Nitrogen costs for your Laser Cutter. Get independent from the gas companies, no more lock in contract no more gas deliveries and pick ups. Huge saving potential and better cutting results at the same time due to much higher purity of the gas.

The Erre Due's high purity "Saturn" nitrogen generators is using a new technology compared to standard generators and can produce a continuous flow of up to 99.9999% pure Nitrogen with a saving of up to 75% of your yearly nitrogen costs!

This Generators are fully automated and extreme maintenance friendly, all settings are monitored and can be changed online.

The Saturn consumes a low amount of energy, just 0.5 kWh per one cubic metre of nitrogen, and requires only three cubic metres of air to produce one cubic metre of nitrogen.

The "Saturn" revolutionary system utilises Erre Due's expertise in hydrogen production. In addition to the Pressure Swing Adsorption process, nitrogen is purified by adding a small amount of hydrogen (0.5 to 1%) to remove oxygen impurities. The hydrogen binds with the oxygen to create water vapour, which is filtered out.

The resultant nitrogen is of a greater purity than that of any bottled gas, liquid tanks and traditional nitrogen generation available. In laser cutting, this purity results in an improvement in brightness and smoothness of the cut edge.

The fully automated system requires minimal maintenance, and so is less time consuming and safer to use than gas bottles and liquid tanks. There is no disruption from filling or bottle changing, and a reduced risk of injury.

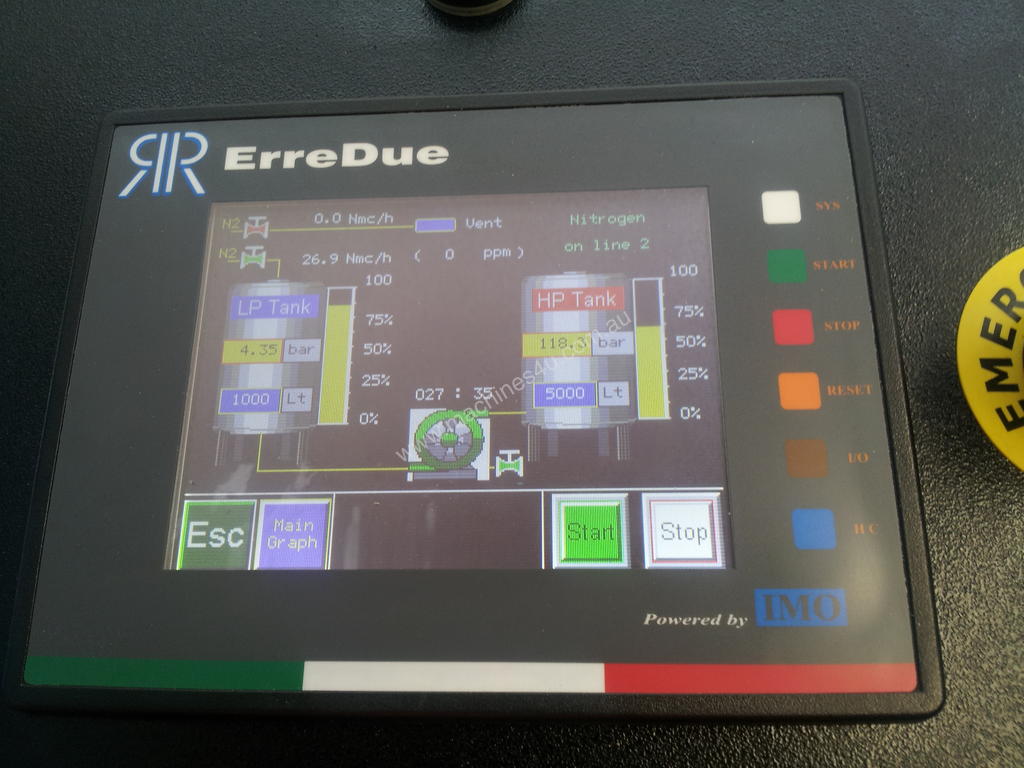

The generator is equipped with an advanced PLC control, with an intuitive graphical interface and modbus remote operating capability, allowing the system to be monitored and controlled by a remote operator. The latest generation OCS control system ensures total reliability.

A variety of generator configurations are available to meet your specific needs, and a modular design allows the system to grow with your nitrogen demands.

"Saturn" is efficient, convenient, and produces nitrogen at a low cost.

We installed already several of the Erre Due Generators all over Australia and amongst our customers are some of the biggest sheetmetal companies in ANZ ! Contact us for more information and to see if we can show you a Saturn Nitrogen Generator live at one our customers in your area.
