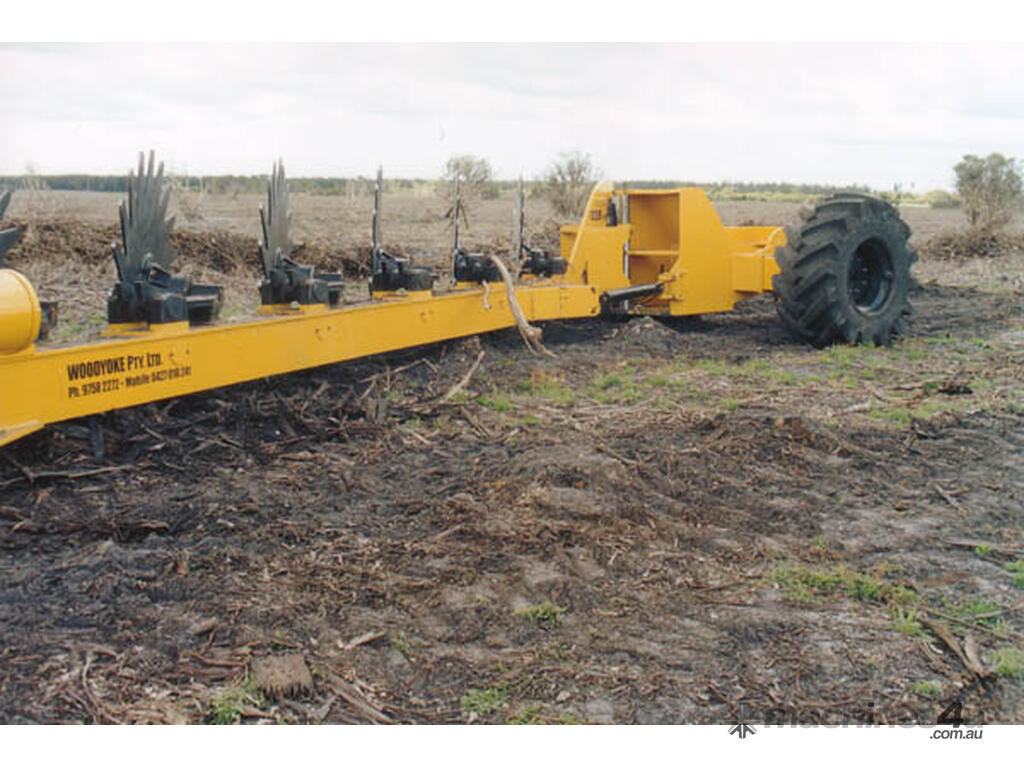

Savannah 1226M Rotary Rake.

Trailing Rotary Stickrake with heavy swivel-ball hitch plate; extended steering arc with 5" x 24" cylinder;

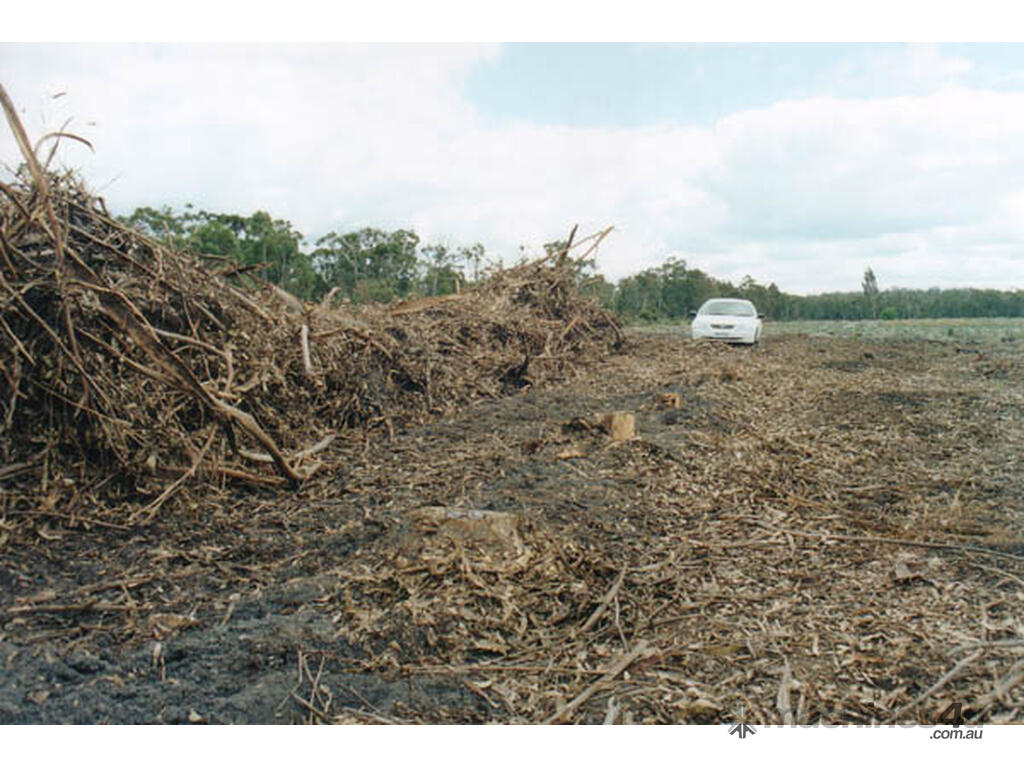

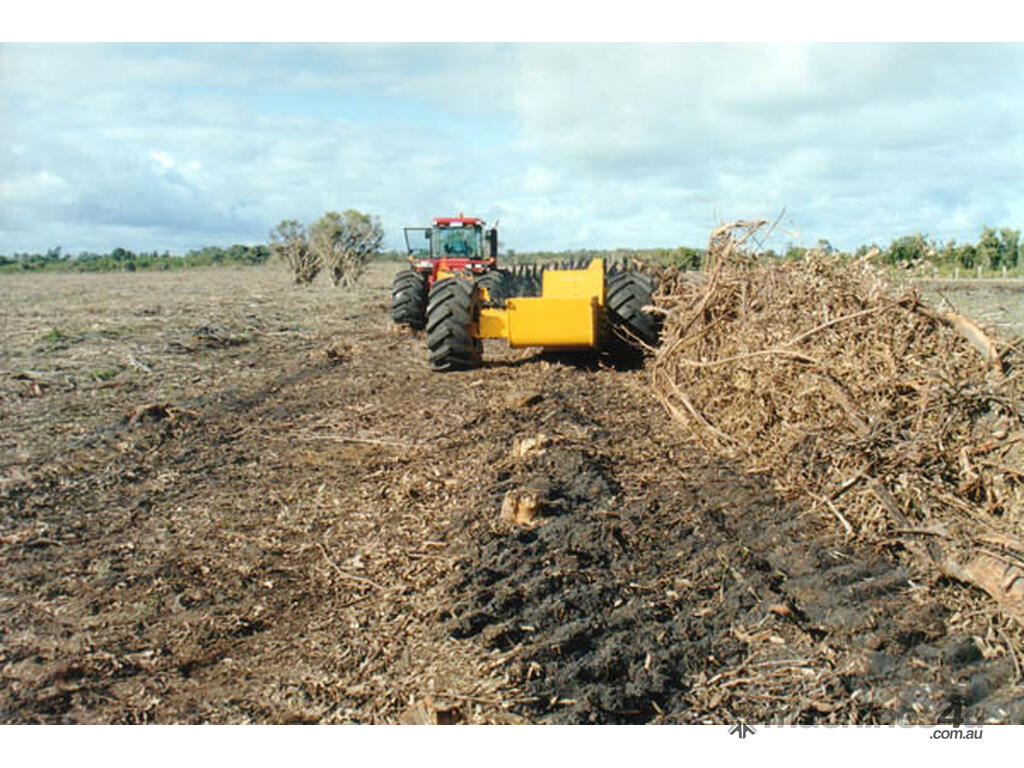

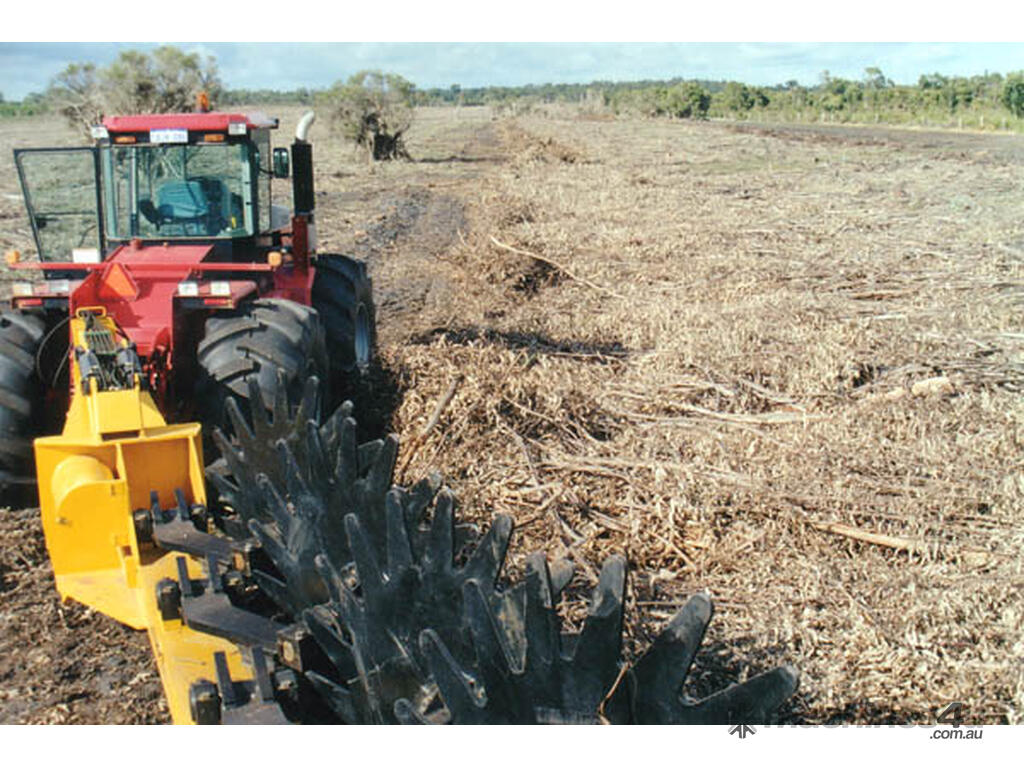

Rotary stickrakes are normally used in conjunction with a blade plow. One to two weeks after blade plowing a regrowth site, draw one of these trailing rakes behind a large wheel tractor, Cat Challenger or skidder across the site, to rake all the dead vegetation into windrows for burning. The size of the downed timber dictates the choice of rake.

Specifications
-Standard truck-type turntable hitch with matching bracket for attachment to tractor or prime-mover.
-Six, 2.0m high-tensile raking wheels.
-Two logger tyres on rear with hydraulically adjustable track width.
-Level-lift hydraulic control.
-Hydraulic operated width adjustment
-Up to 5m raking width
-Eight, heavy-duty wheel hubs to fit both rake wheels and transport wheels.
-Operating weight 13 tonnes.
