Scalping Screen | Primary Screening | 600tph | 16' x 5' |

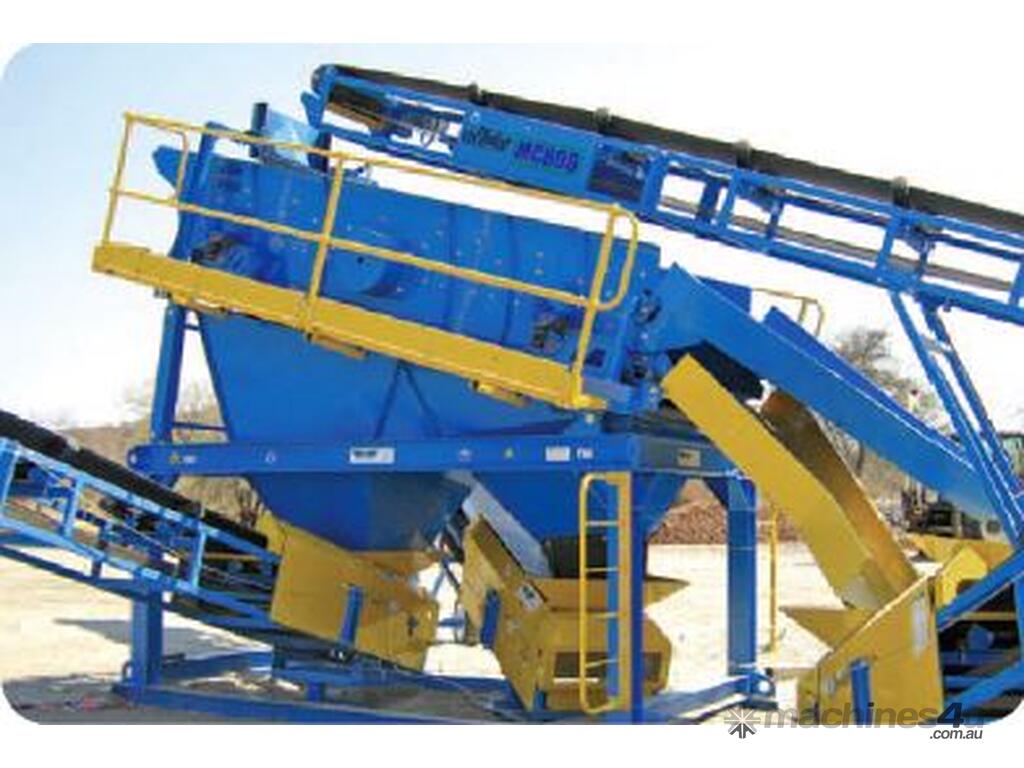

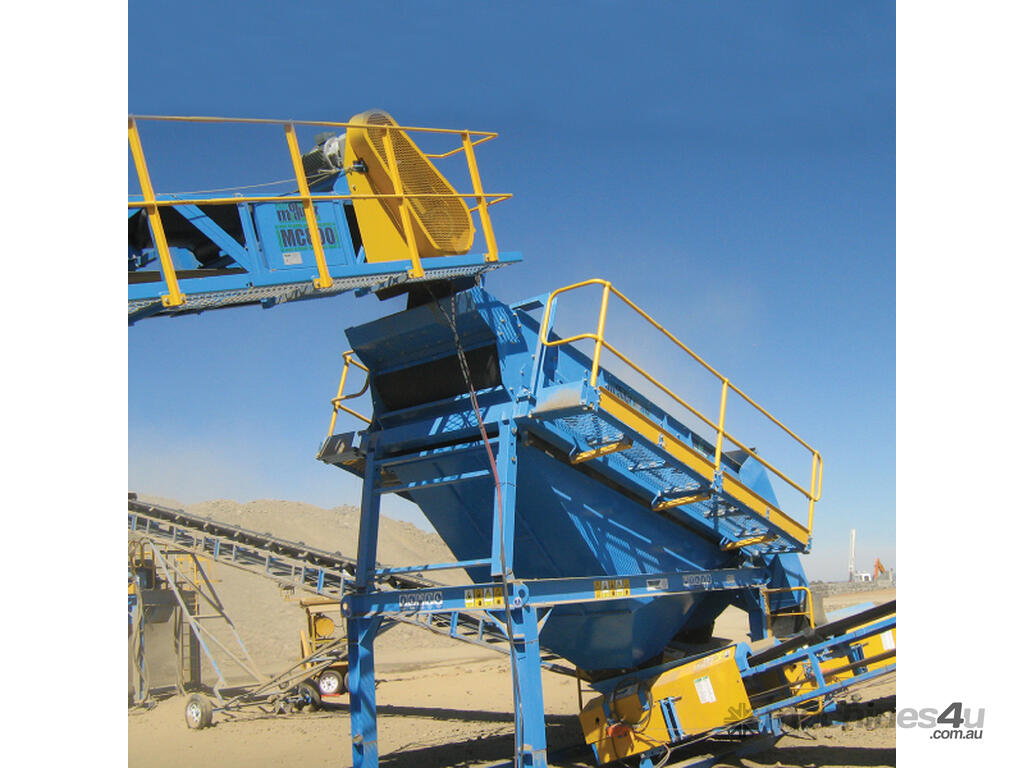

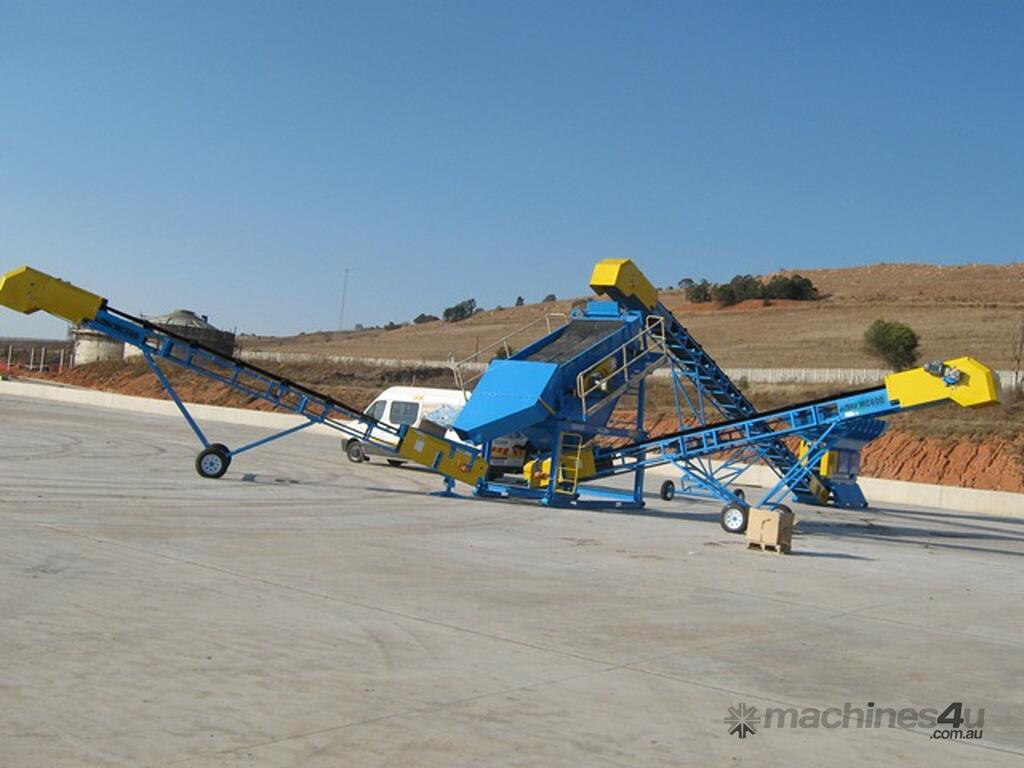

The DD4815 is a heavy duty, primary scalping screen, for the use of removing oversize material to feed primary crushing stations.

The screen is suitable for use in mining, quarrying, and demolition waste, asphalt, recycling applications, aggregates and coal. The large screen throw and various types of screening media ensures that sticky material and oversize material is separated quick and efficiently. The semi-mobile design construction allows for easy onsite installation and relocation and does not require civils.

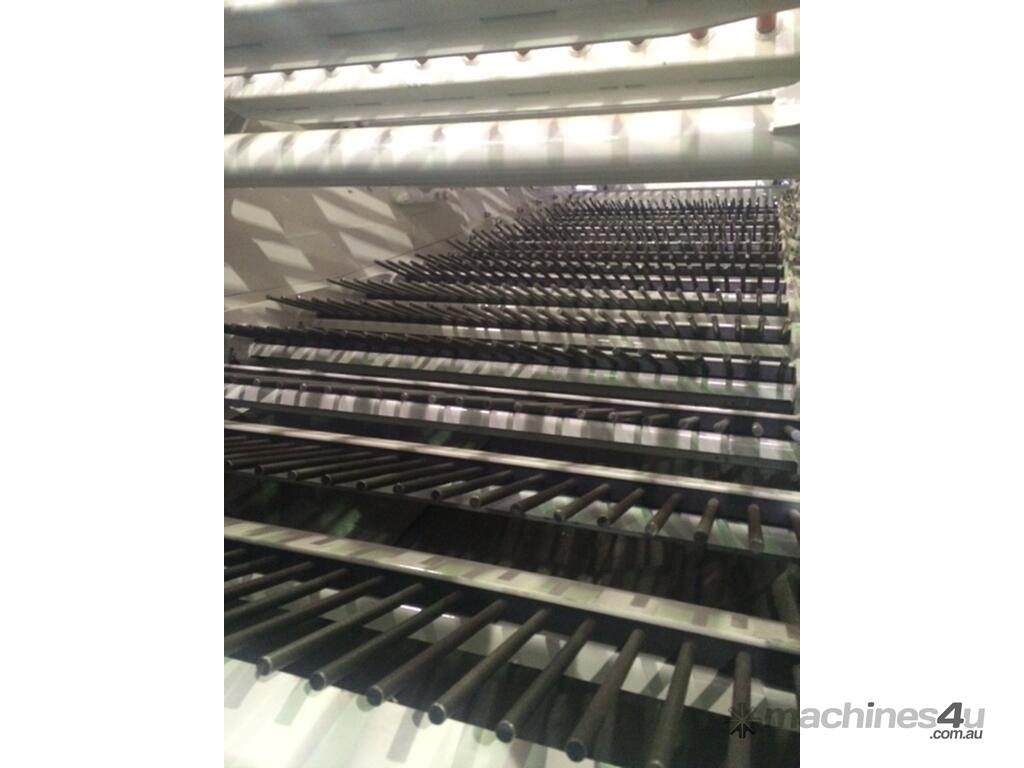

The large screen box can be fitted with a wide variety of media including bofar bars, rapid screen and/or meshes depending on the application. The top deck is side tensioned, and the bottom deck is end tensioned.

Technical Specifications:
- Top Deck: 4800mm x 1520mm (16’ x 5’) open screen area
- Bottom Deck: 3650mm x 1520mm (12’ x 5’) open screen area
- Top Deck: Square mesh, side tensioned
- Bottom Deck: Square mesh or piano wire, end tensioned
- Inclined adjustable screen angle support frame
- Maximum 400mm feed size
- Throughput up to 600tph (material dependent)
- 22kW motor

Dimensions:
- 10000mm wide x 6870mm long x 5445mm high

Options:
- Various chute setups
- Fines chute and sandbox on all chute options
- Removal of mounting frame and chutes

Exclusions: Freight, Installation, Electrical works
