Schechtl UK 100/S Manual segmented bending machine folder

MADE IN GERMANY

UK
• specialist for closed special forms
• bending beam can be lowered by handwheel and scale
• clamping beam pressure adjustable with a lever
Standard equipment

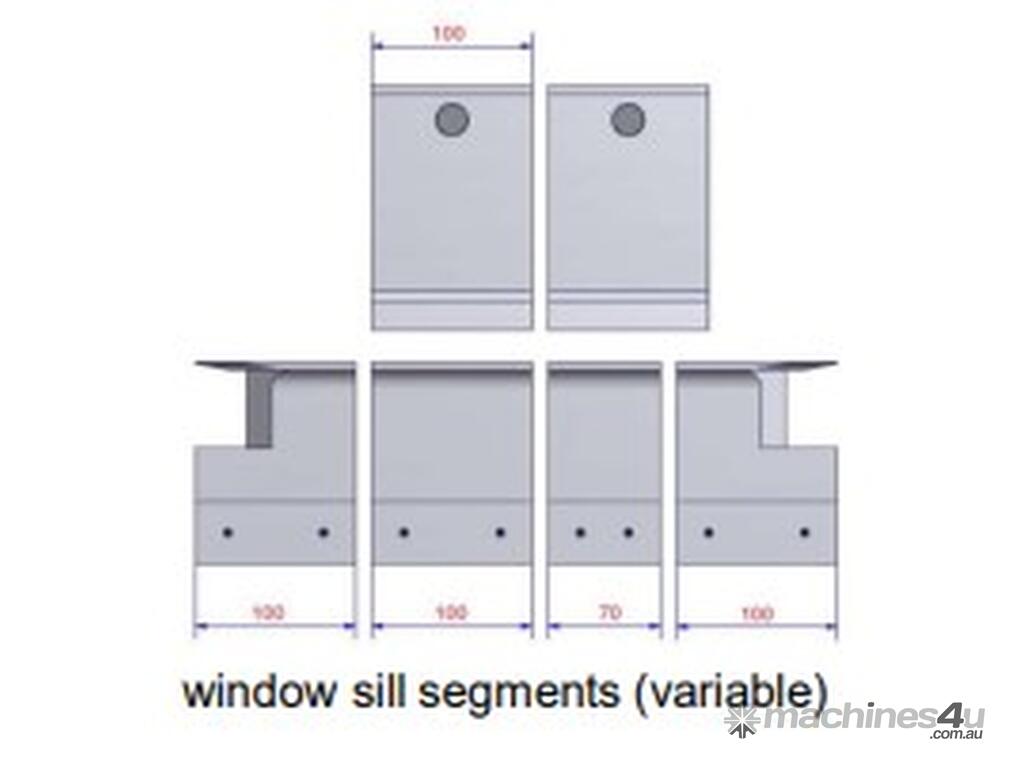

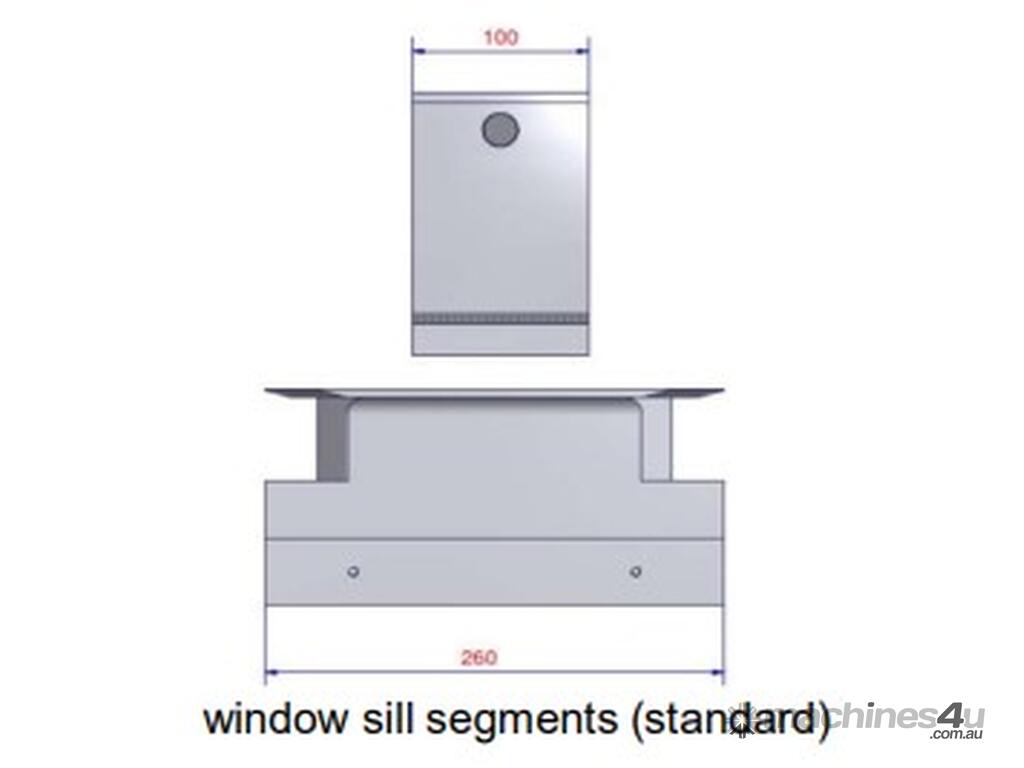

• segments with quick clamping system on clamping beam, bending beam and lower beam

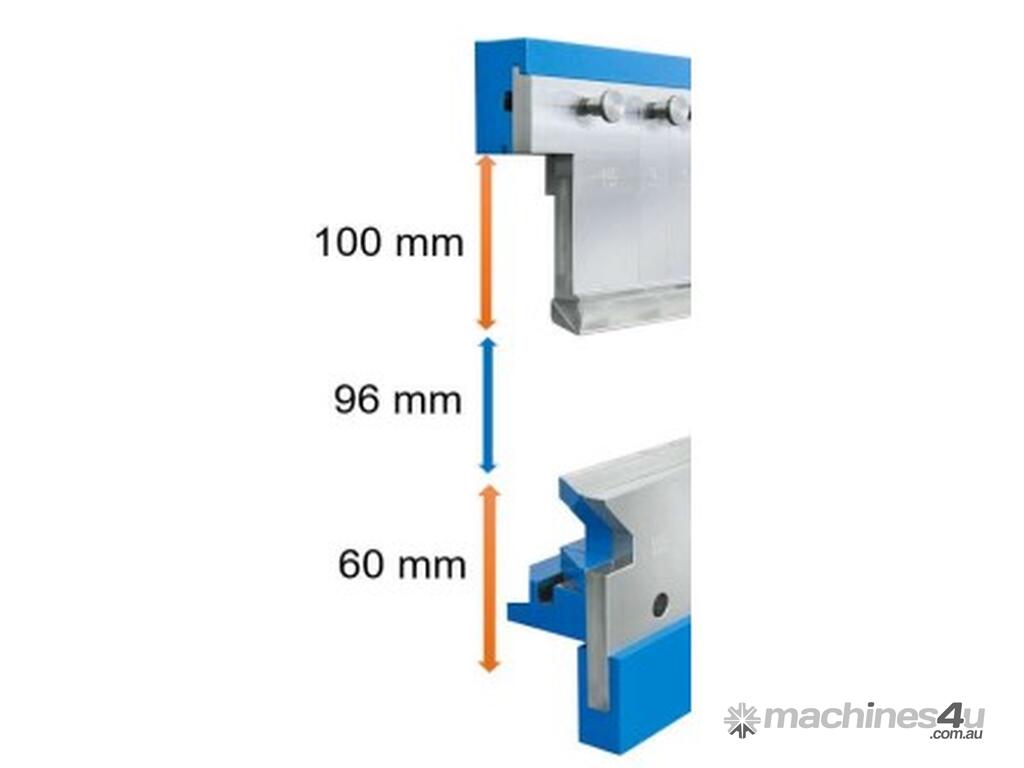

• 100 mm height of clamping beam segments, standard radius 1,1 mm
• 60 mm height of lower beam and bending beam segments
• clamping beam pressure setting and bending beam lowering device
• foot pedal, storage box and bending angle adjustment

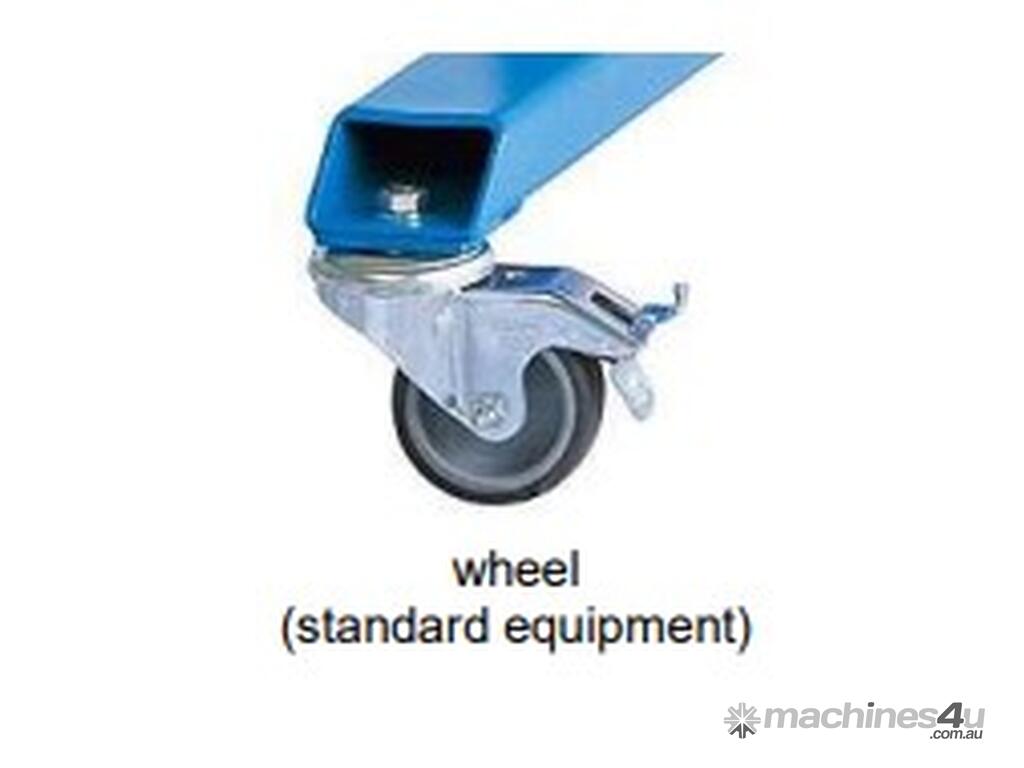

• 4 wheels

Model UK 100/S
Working length: 1.00mm
Bending capacity
Steel 400 N/mm²: 1,50mm
Aluminium 250 N/mm²: 2,25mm
Stainless steel 600 N/mm²:1,00mm
Copper 300 N/mm²: 2,00mm
Zinc 150 N/mm²: 2,00mm
Overall dimensions
Length: 1480mm
Depth (only the machine): 740mm
Total height: 1180mm
Weight: 260kg

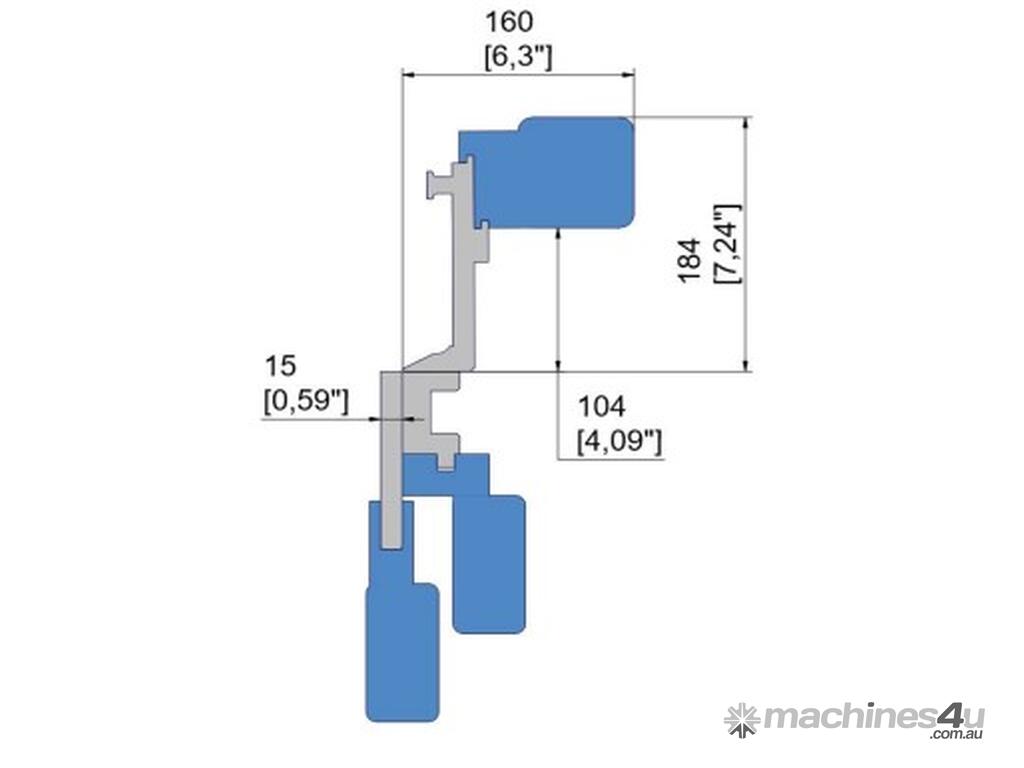

Clamping beam opening height: 96mm
