Schechtl UKV 100/S Manual segmented bending machine

MADE IN GERMANY

UKV
• even more bending power than model UK
• specialist for closed special forms
• bending beam can be lowered by handwheel and scale
• clamping beam pressure adjustable with a lever

Standard equipment
• segments with quick clamping system on clamping beam, bending beam and lower beam

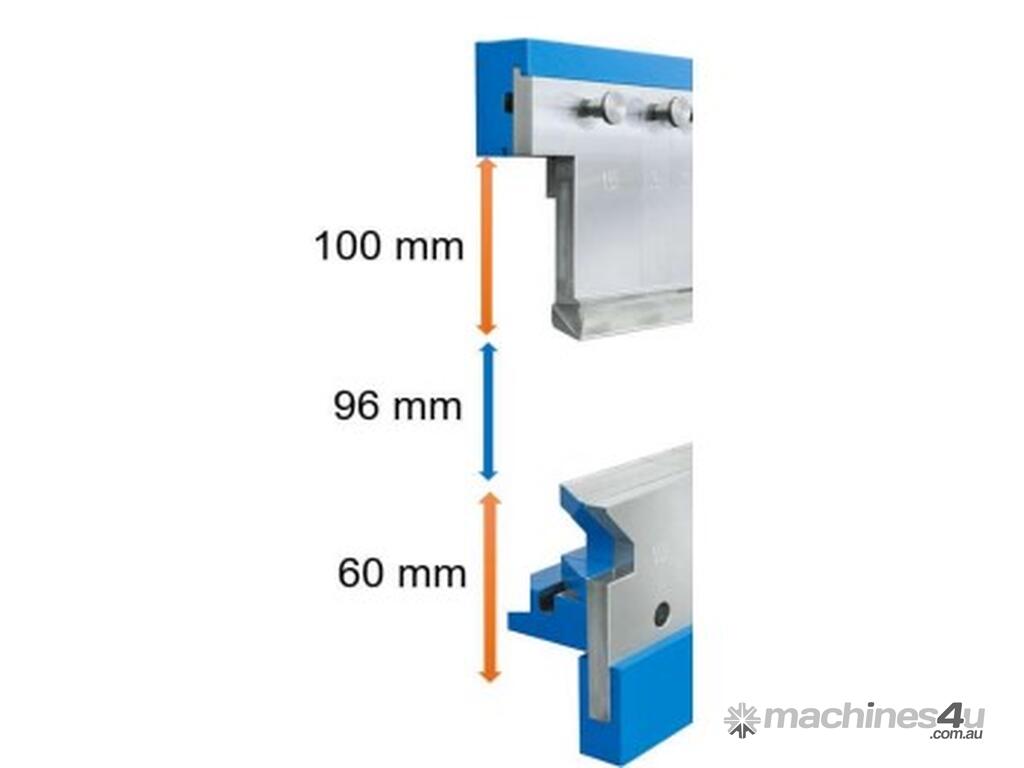

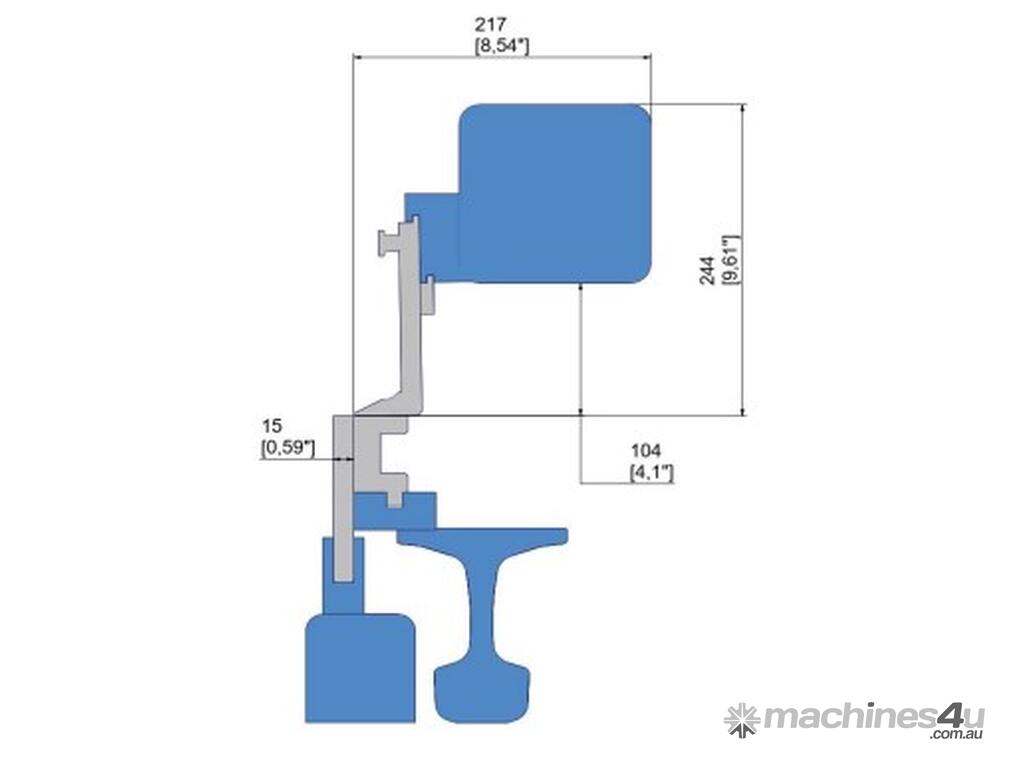

• 100 mm height of clamping beam segments, standard radius 1,1 mm
• 60 mm height of lower beam and bending beam segments
• clamping beam pressure setting and bending beam lowering device

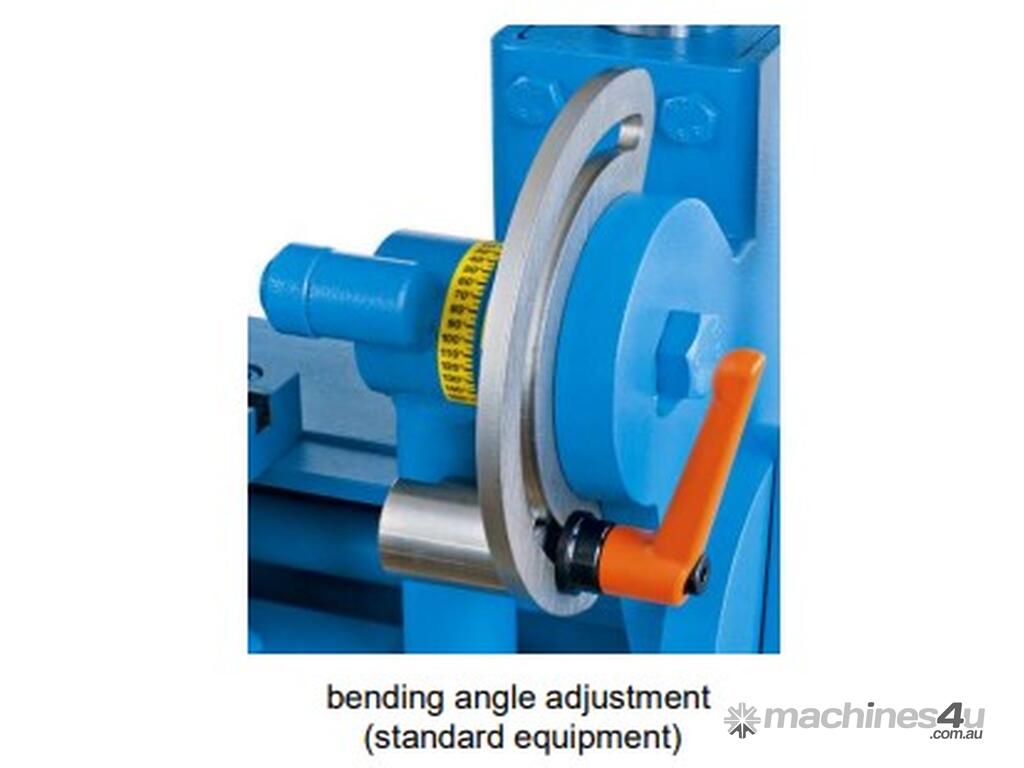

• foot pedal, storage box and bending angle adjustment

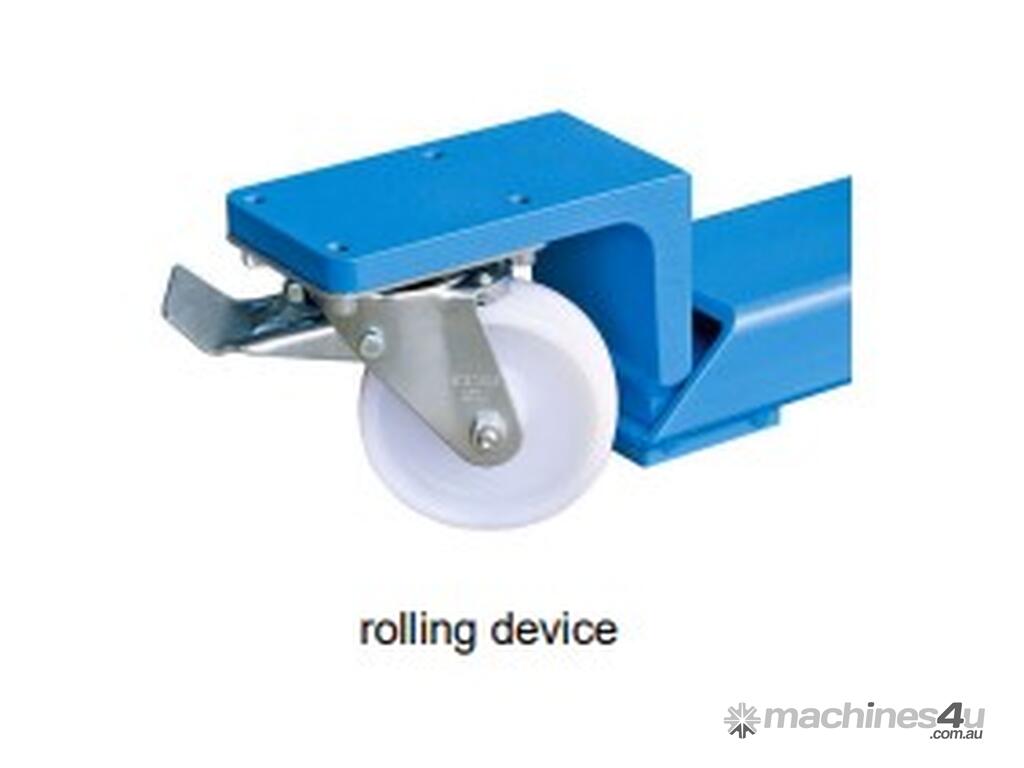

• Set of 4 castors

Model: UKV 100/S
Working length: 1000mm
Bending capacity
Steel 400 N/mm²: 1,50mm
Aluminium 250 N/mm²: 2.25mm
Stainless steel 600 N/mm²: 1.00mm
Copper 300 N/mm²: 2.00mm
Zinc 150 N/mm²: 2.25mm
Overall dimensions
Length: 1340mm
Depth (only the machine): 740mm
Total height: 1200mm
Weight: 530kg
Clamping beam opening height: 96mm
