Schechtl UKV 150/S Manual Segmented Folder

MADE IN GERMANY

UKV
• even more bending power than model UK
• specialist for closed special forms
• bending beam can be lowered by handwheel and scale
• clamping beam pressure adjustable with a lever

Standard equipment
• segments with quick clamping system on clamping beam, bending beam and lower beam

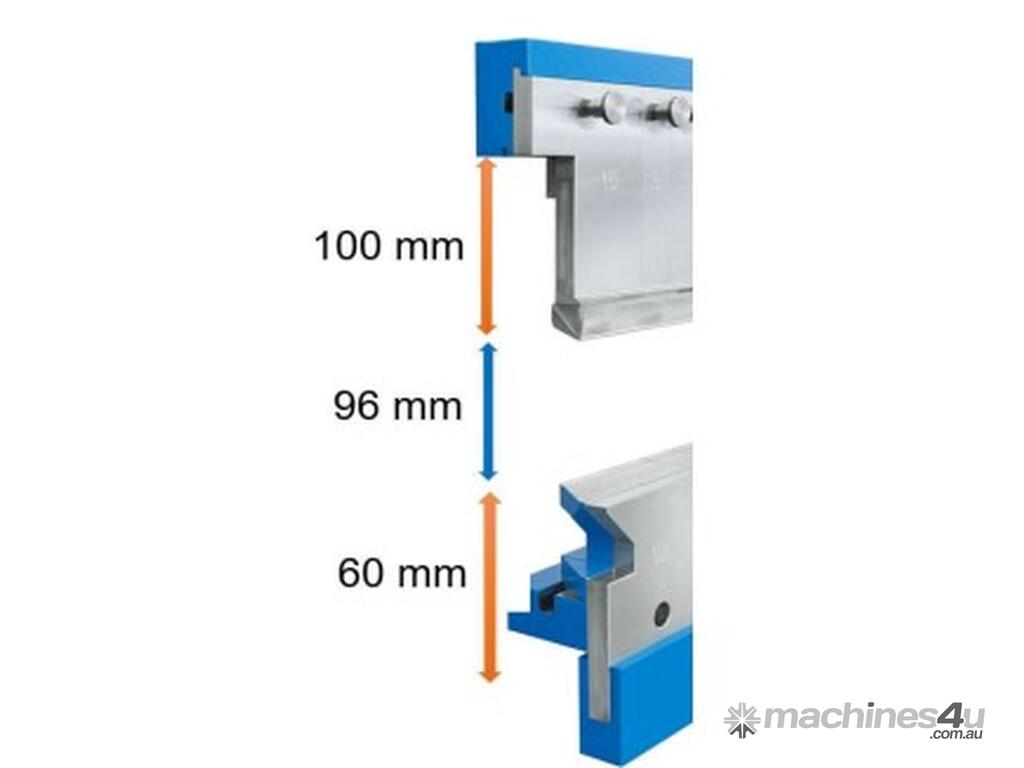

• 100 mm height of clamping beam segments, standard radius 1,1 mm
• 60 mm height of lower beam and bending beam segments
• clamping beam pressure setting and bending beam lowering device

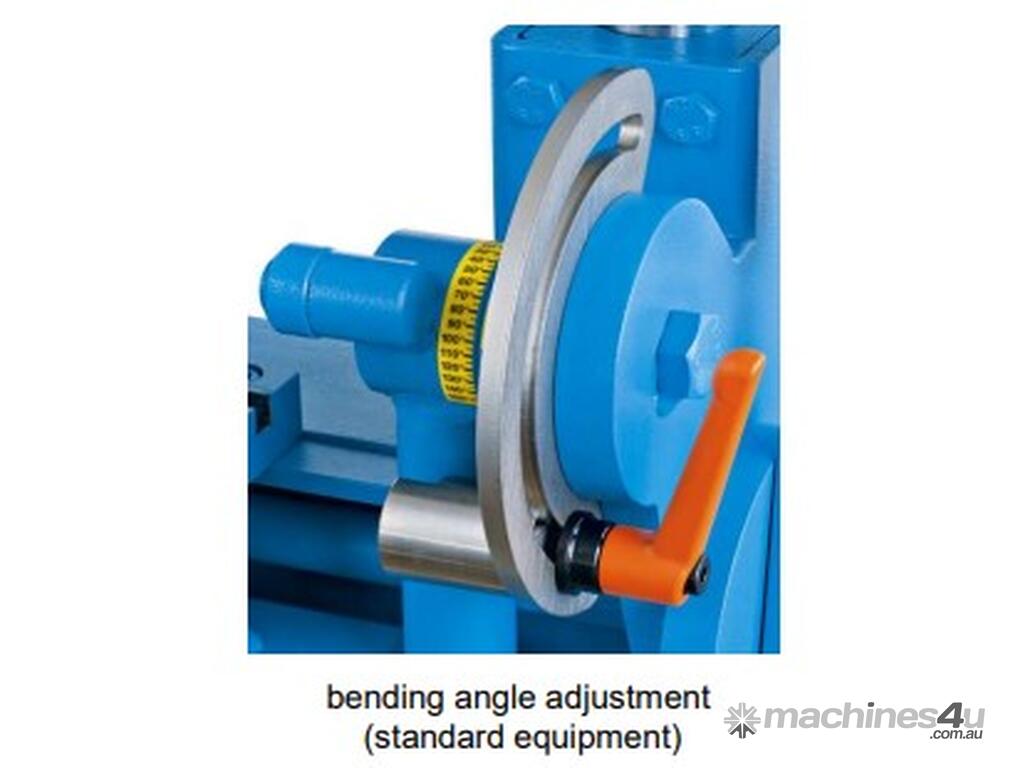

• foot pedal, storage box and bending angle adjustment

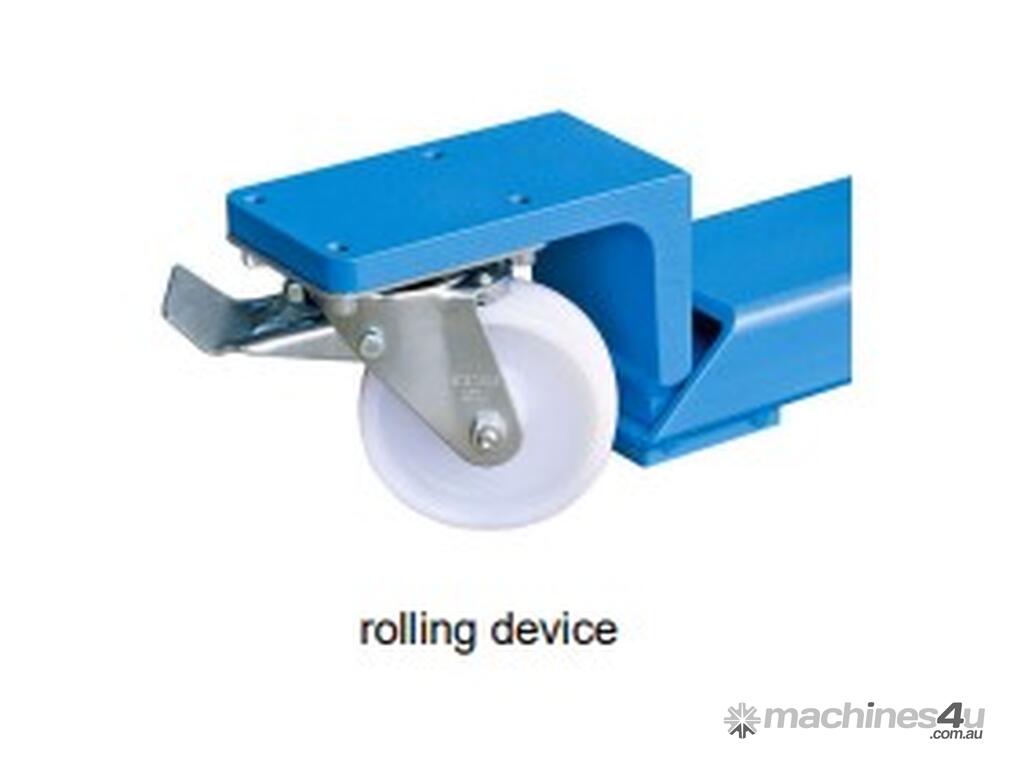

• Set of 4 castors

Working length: 1500mm
Bending capacity:
Steel 400 N/mm²: 1.50mm
Aluminium 250 N/mm²: 2.25mm
Stainless steel 600 N/mm²: 1.00mm
Copper 300 N/mm²: 2.00mm
Zinc 150 N/mm²: 2,50mm
Overall dimensions
Length: 2.010mm
Depth (only the machine): 800mm
Weight: 562kgs
Clamping beam opening height: 96
