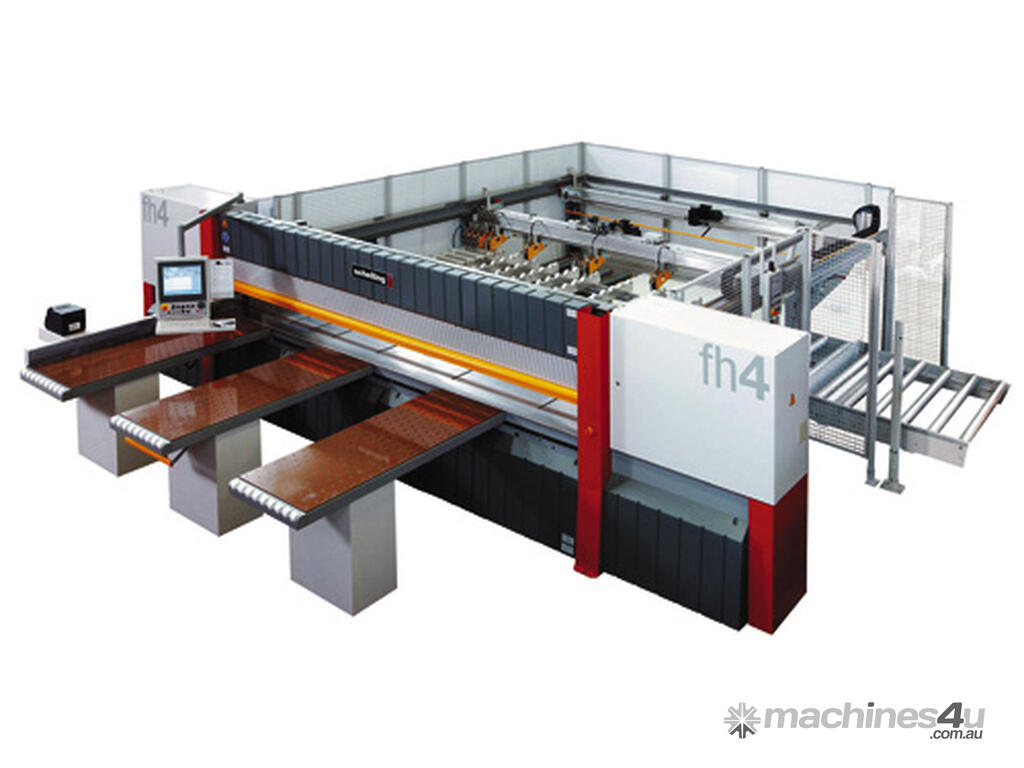

Schelling FH4 Beam Saw. Maximum productivity and automation

Schelling by Wood Tech. Aus Owned and Operated. Local Service and Parts in 5 States. Download Brochure Now.

he fh4 / fh5 is a cut-to-size automated saw for both demanding craftsmen and for those just starting with industrial production. It unifies Schelling’s complete know-how and typical quality characteristics.

Precision and consistently accurate cutting combine with automation and optimized processes to deliver a high degree of productivity. A power of 24.5 Hp (18kW) enables the fh4 automated wood panel saw to easily process all types of wooden boards, even unusual types.

Highlights
- Maximum productivity due to versatile automation options
- Slidable air floatation table for handling advantage
- Lift table with separate push-off carriage for efficient infeed
- Highest angular accuracy due to double strip aligning device

Other Features
Powerful and efficient – 15 kW motor output
Maximum productivity due to versatile automation options
Handling advantage: Slidable air floatation table
Vacuum infeed
Highest angular accuracy due to double strip aligning device
Trendsetting ergonomics and security
Cutting of the narrowest strips to 40 mm in width
Single sheet and book cut to 80 mm thickness (depending on material)
Solid wood cut
Postforming and softforming cut
Grooving and rabbeting
Insert grooving / insert rabbeting / V-grooving
Window cutting
Laminate and veneer cut
MCS control (Windows platform) – simple and intuitive to control incl. cutting pattern generator
Comes standard with large 22? display
HPO cutting pattern optimization (optional) for optimum creation of cutting patterns


SPECIFICATIONS:

Feeder travel speed:
forward 0 – 80 m/min (0 – 25 m/min CE) 0 – 262 ft/min
back 0 – 80 m/min 0 – 262 ft/min


Saw travel speed:
forward 0 – 120 m/min 0 – 394 ft/min
back 0 – 120 m/min 0 – 394 ft/min


Clamp opening:
90 mm 3.54
Main saw motor power:
15 kW 20 HP


Main saw blade:
Diameter max. 355 mm 13.97“
Projection max. 98 mm 3.85“
Cutting height dep. on material/blade type


Cutting length:
fh ,300 mm 129?
fh ,300 mm 169?
Weight:
fh 4 330 man. Approx. 6,000 kg 13,200 lbs
fh 4 430 man. Approx. 7,000 kg 15,500 lbs
