Schlebach EHA3-100 Electro-Hydraulic Notching Machine

for round-shaped notching, preforming and folding
of 25mm standing seam profile
-400 Volt, 3-Phase
-max. profile width: 1000 mm
-segmented clamping device in the upper cheek for multiple folds
-max. fold width: 40 mm

Processes standard profiles as well as profiles with clip relief

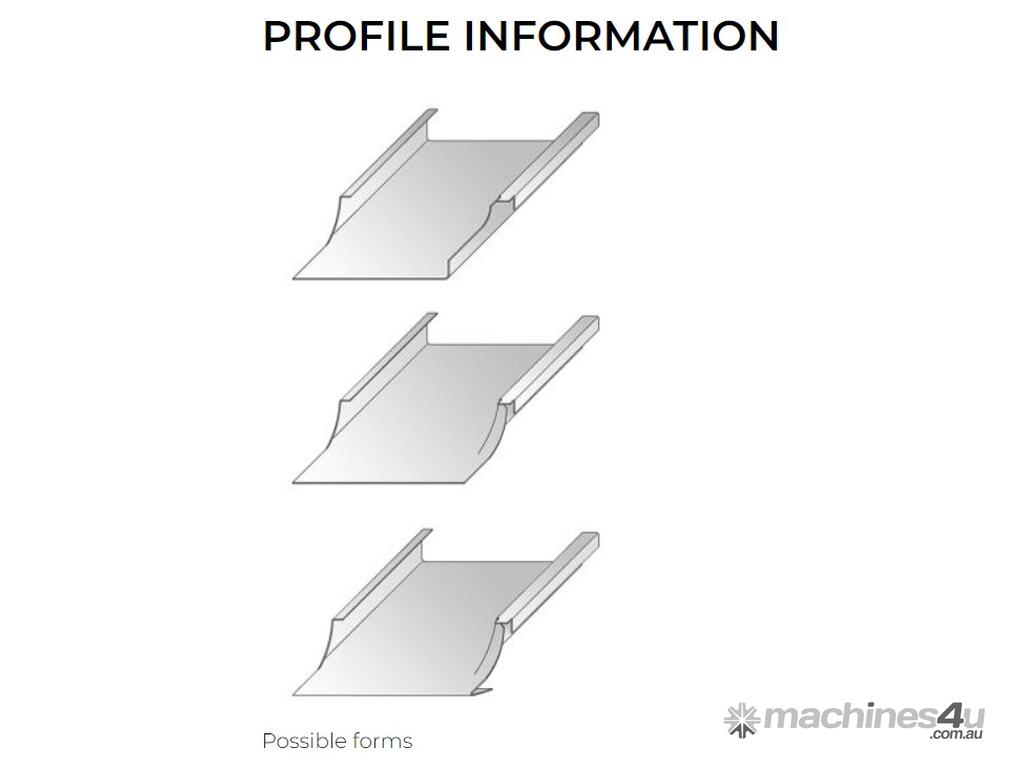

Notching, feeding forward and folding-back in three series-connected operations
Production of round cutouts
Prepares for bottom and top seam ends on roofs, dormers, façades and parapets
Eaves and roof inflexion points, channels, monopitch roofs, façade bases, faceplates, verge flashing and window lintels
Pre-profiled parallel panels are produced in three series-connected operations
Conical or tapered shaped panels are produced in four series-connected operations alternately
Equipped with segment rails in the upper beam, bending beam and the supporting table
Various edging work, e.g. on rhombic plates and shingles quickly and efficiently
Suitable for mirrored covering and coffered roof slabs

Supply voltage 400 V / 50 Hz / 3 Ph.
Drive power 1.1 kW
Working width 300 – 800 mm (infinitely variable)
Notching depth 0 – 80 mm (infinitely variable)
Fold-over length 15 – 40 mm (infinitely variable)
Edging angle 0 – 170° (infinitely variable)
Processable materials Titanium zinc up to 0.8 mm
Copper up to 0.8 mm
Aluminium up to 0.8 mm
Sheet steel (galvanized and coated) up to 0.7 mm
Stainless steel up to 0.5 mm
Dimensions (L x W x H) 1,650 mm x 1,500 mm x 1,200 mm
Weight 590 kg
