Schlebach EHA3 Electro-Hydraulic Notching Machine

EHA3

Schlebach - EHA3 Electro-Hydraulic Notching Machine
for round-shaped notching, preforming and folding
of 25mm standing seam profile
-400 Volt, 3-Phase
-max. profile width: 800 mm
-segmented clamping device in the upper cheek for multiple folds
-max. fold width: 40 mm

Processes standard profiles as well as profiles with clip relief

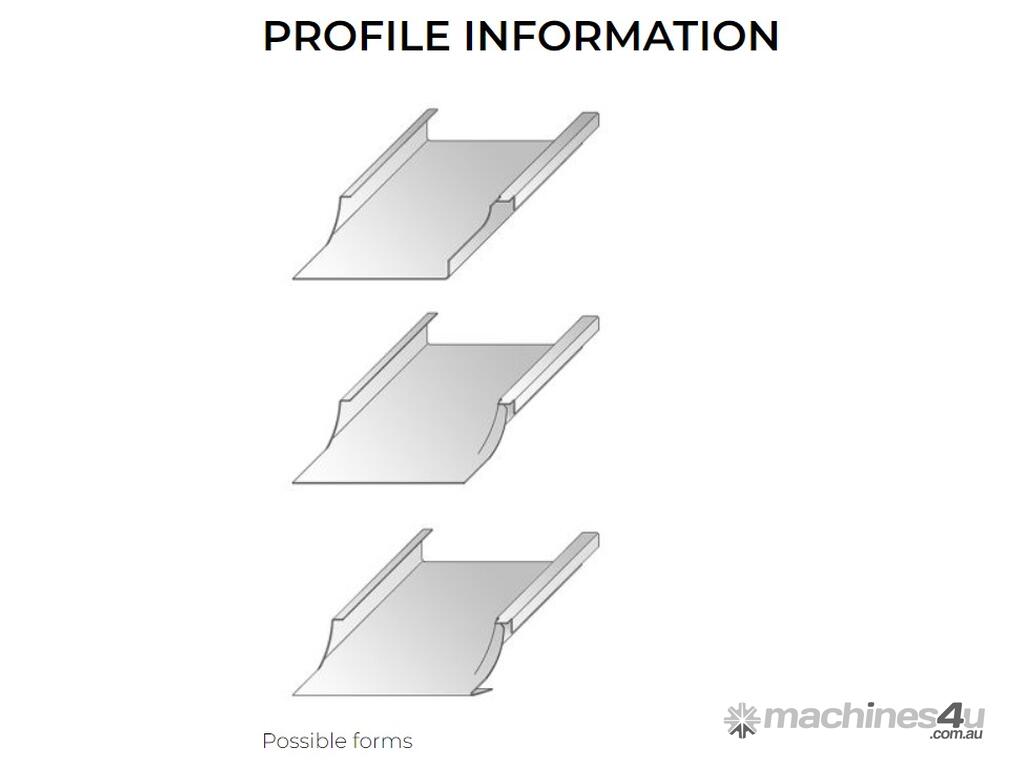

Notching, feeding forward and folding-back in three series-connected operations
Production of round cutouts
Prepares for bottom and top seam ends on roofs, dormers, façades and parapets
Eaves and roof inflexion points, channels, mono pitch roofs, façade bases, faceplates, verge flashing and window lintels
Pre-profiled parallel panels are produced in three series-connected operations
Conical or tapered shaped panels are produced in four series-connected operations alternately
Equipped with segment rails in the upper beam, bending beam and the supporting table
Various edging work, e.g. on rhombic plates and shingles quickly and efficiently
Suitable for mirrored covering and coffered roof slabs

Technical Specifications
-400 Volt, 3-Phase
-max. profile width: 800 mm
-segmented clamping device in the upper cheek for multiple folds
-max. edge length 40 mm
connection voltage 400V / 50Hz / 3ph
drive power 1.1kW
working width 300 - 800 mm (continuously adjustable)
notch depth 0 – 80 mm (continuously adjustable)
edge length 15 – 40 mm (continuously adjustable)
edging angle 0 – 170° (continuously adjustable)
Processable Materials Titanium zinc up to 0.8 mm
Copper up to 0.8 mm
Aluminum up to 0.8 mm
Sheet steel (galvanized and coated) up to 0.7 mm
Stainless steel up to 0.5 mm
Dimensions (L x W x H) 1,650mm x 1,500mm x 1,200mm
Weight 590kg
