Schlebach Quadro KS Profiling Machine

The QUADRO-KS profiling machine is a versatile and multifunctional profiling system. The flexible profiling options already proven in the basic QUADRO variant are supplemented in the QUADRO-KS variant by the conical profiling operating mode. In this case, the strip is transported, cut at an angle and profiled in a single operation, irrespective of the profile shape. This results in a possible field of application, e.g. the economical production of long, conical profile webs for dome or tent roof shapes or also long conical fitting webs.

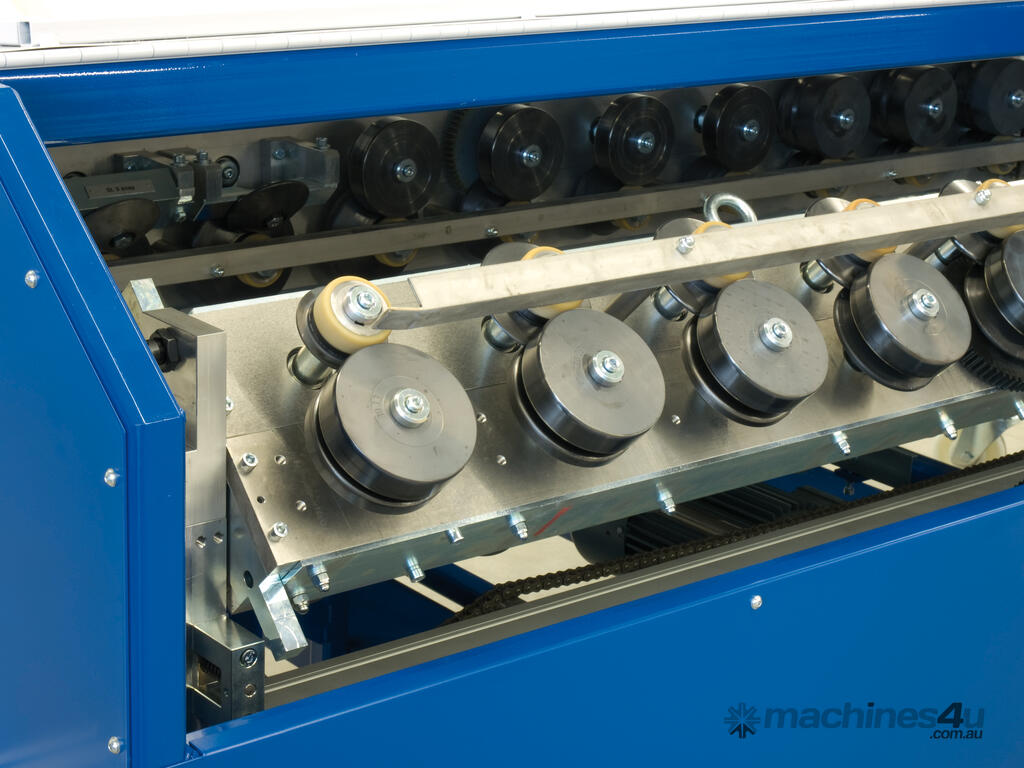

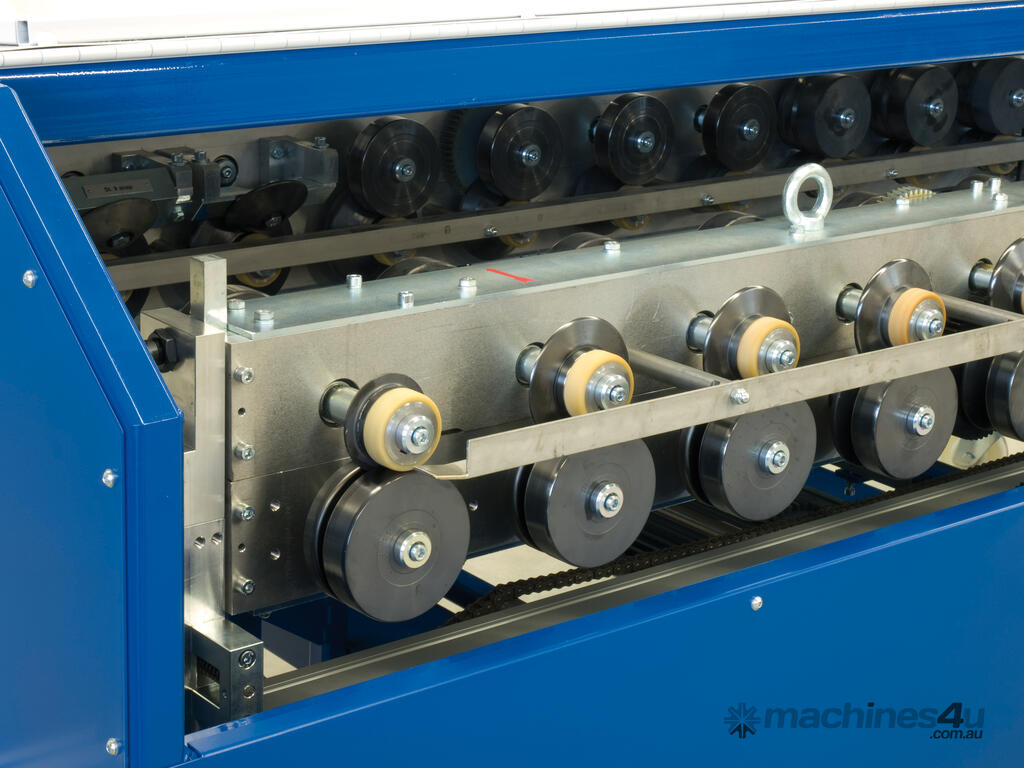

Thanks to the clever interchangeable cassette system, a large number of different profiles can be produced economically on machines of the Quadro series. Very short changeover times by swiveling or exchanging cassettes.

QUADRO SERIES
Robust, versatile and multifunctional
User-friendly PLC control with touch panel
Stepless width adjustment 300 – 800 (1250/XXL)
Low length tolerance of approx. 1-2 mm
Feed rate 14, alternative 20 m/min
Selection of a variety of roof and façade profiles / special profiles to meet customers’ wishes
Exchangeable cassette system for short changeover times
High profile quality thanks to the large number of forming stations
Can also be used for single-sided passes for conical panels
Electrically powered roller shears to perform cross cuts with automatic cutting
Can be adapted to suit many applications thanks to extensive accessory range / additional modules
Shortest panel length approx. 700 mm / depending on material and profile
Optional cutters for panel lengths over approx. 100 mm
Optional longitudinal cutter (LS) for producing fitting strips (see Quadro KS)
Forklift pockets for safe transport
QUADRO KS
Compact machine from the Quadro series

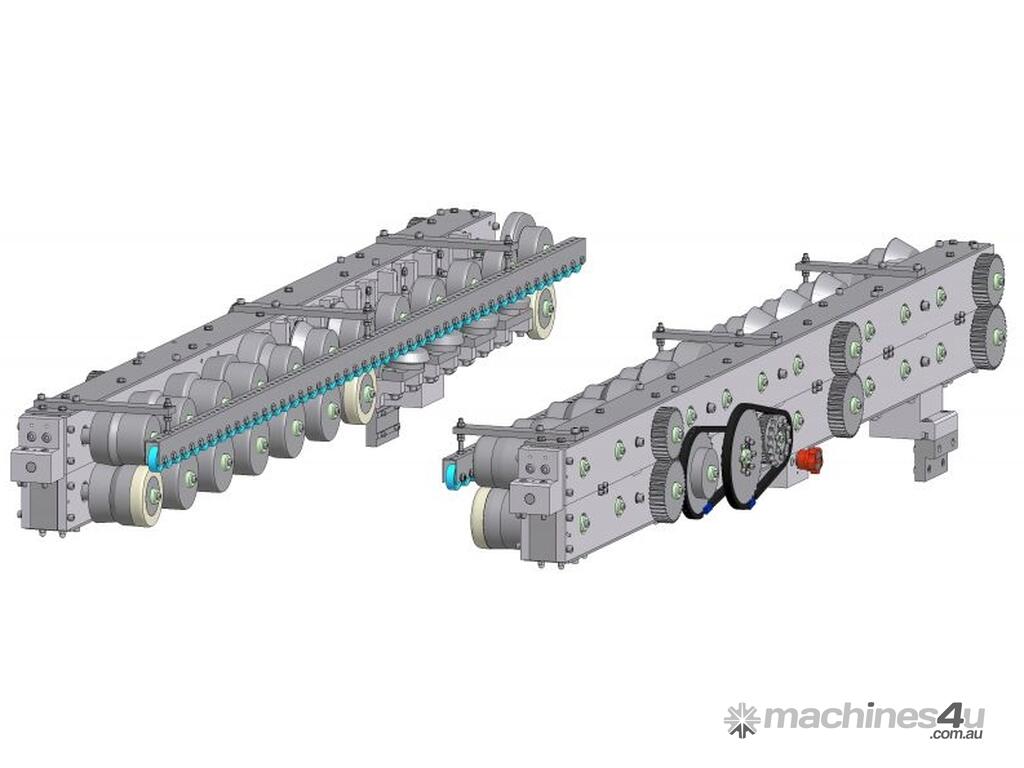

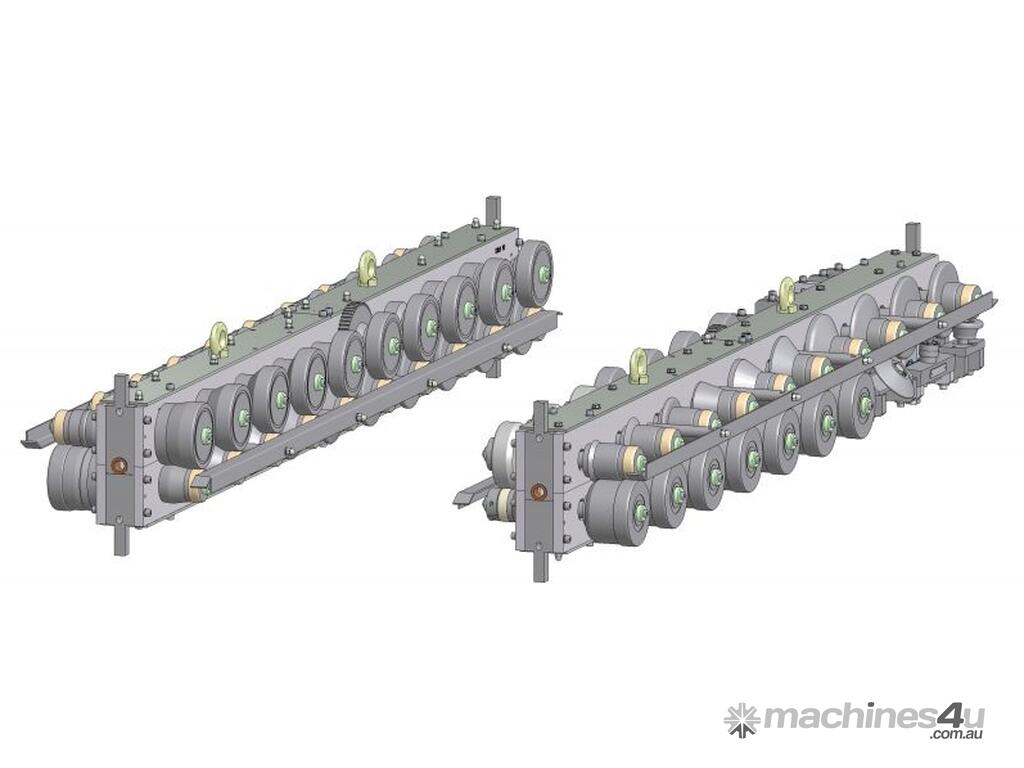

Pivotable exchangeable cassettes with 10 forming stations
Exchangeable cassettes with 12 forming stations (not pivotable)

Technical Specifications

Profiling Machine Quadro KS
(art.-no. 011)
without cassettes
with LM – electronic length measurement in units of 1 mm
with RS – motorized roller shear for crosswise cutting
with LS – roller shear to slit the material lengthwise before
profile shaping takes place
for parallel profiling and cutting
Infeed width 200 - 800 mm infinitely adjustable
for conical profiling and cutting
Infeed width 300 - 720 mm if there is 1° cutting angle
Infeed width 300 - 700 mm if there is 2° cutting angle
Infeed width 300 - 670 mm if there is 3° cutting angle
mobile on 4 rollers (2 with steering rollers)
approx. 14 m/min profiling speed
Drive system: gear motor 2,2 KW
Voltage: 400 Volt, 50 Hz., 3-Phase
