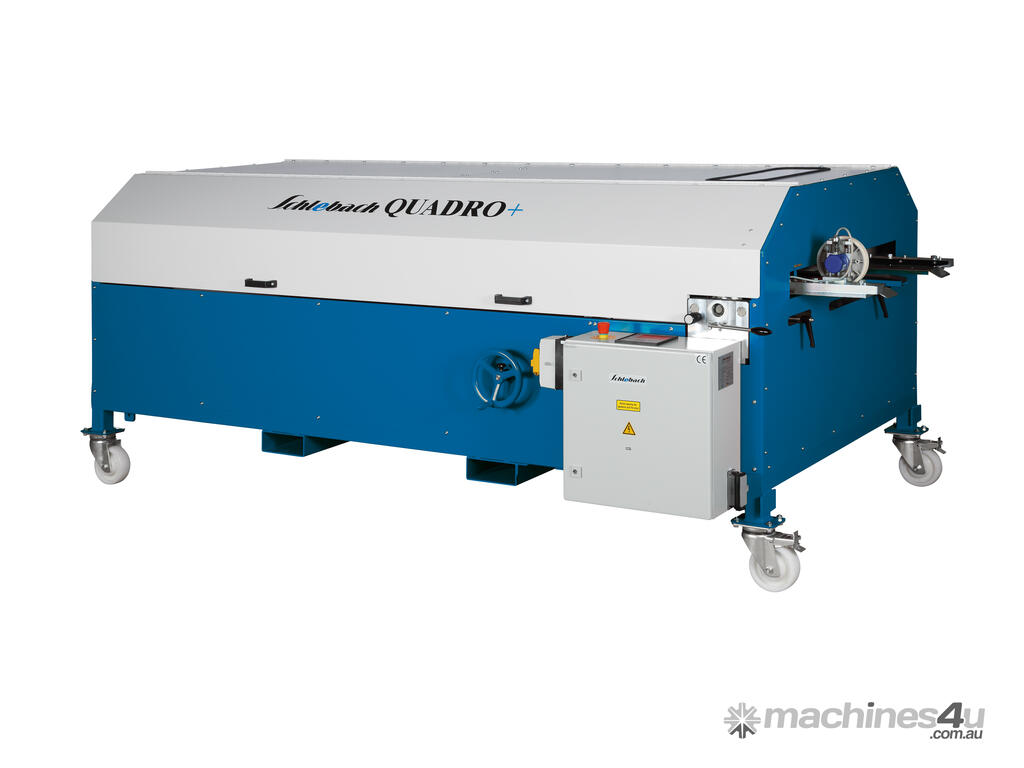

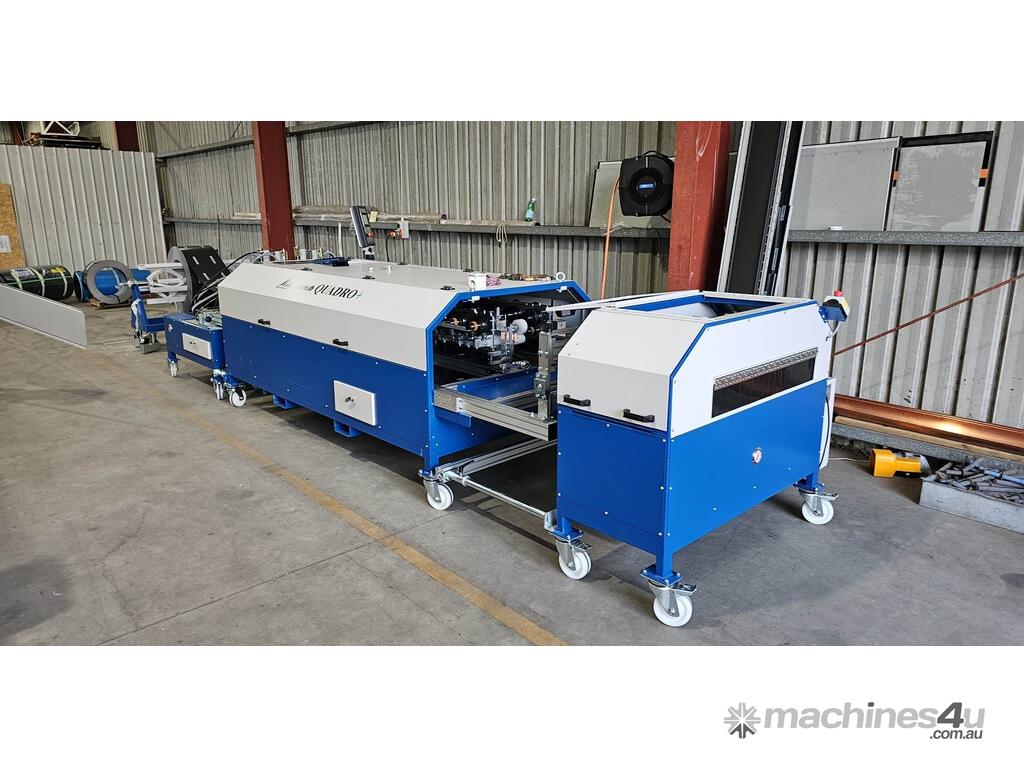

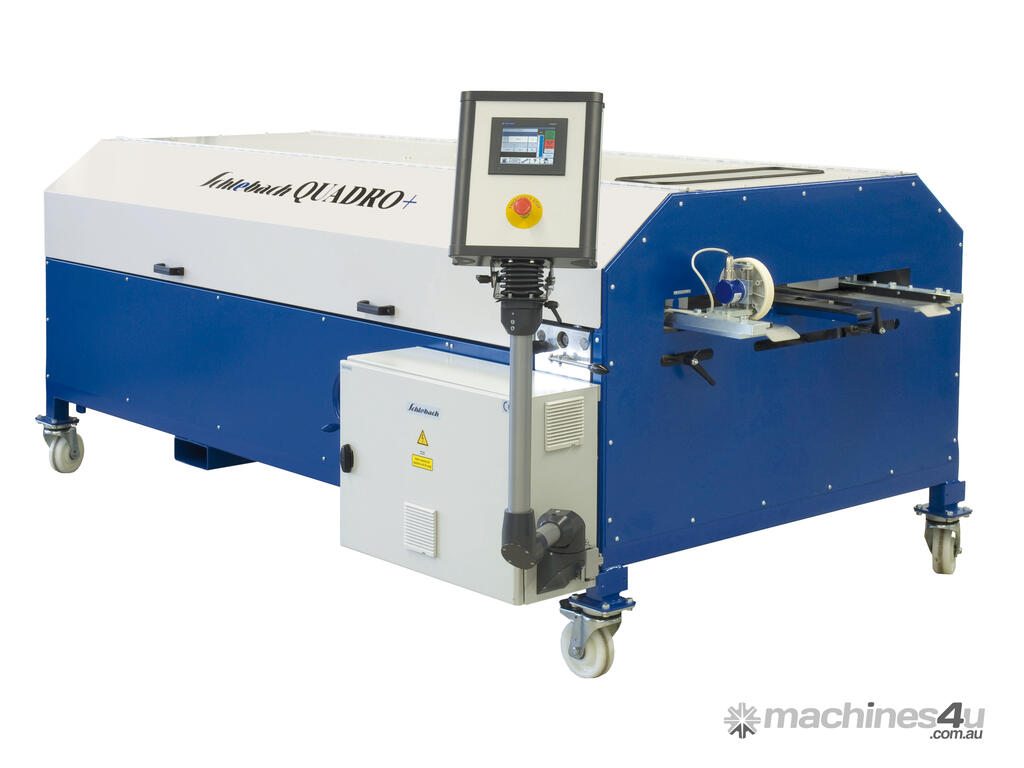

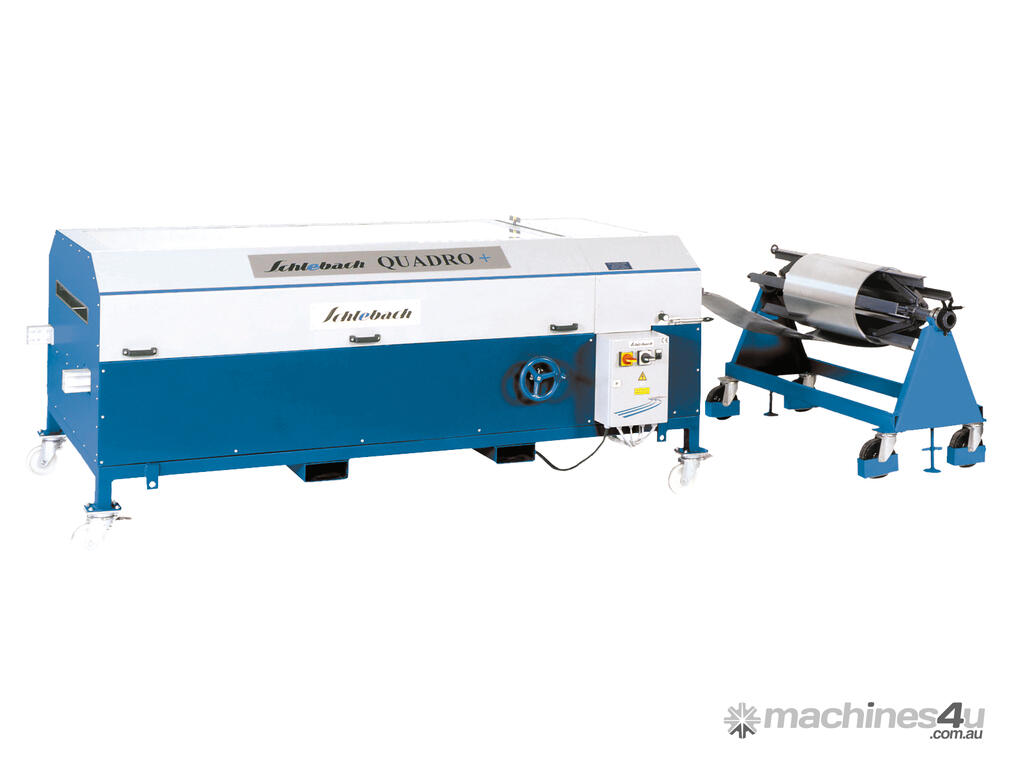

Schlebach Quadro Roll Forming System

The QUADRO profiling machine is a versatile and multi-functional profiling shaping system. The basic machine is designed to produce sheet metal profiles for a large variety of applications with a user-friendly system and very short retooling times.

The profiling machines exchangeable cassette system with 10 or 12 forming stations provide for very short retooling times for different profiles. This means that the Quadro machine can be used effectively and economically for a variety of different profile shapes.

An ingenious design permits customers to select the required equipment individually, i.e. the type of application of the machine. The machine can also be upgraded at any time by the addition of another cassette, or various accessories.

Technical Data
Strip run-in width: from 300 mm to 800 mm
Gauges: non-ferrous metals , 0.6 mm-0.8 mm
Sheet steel: 0.5 mm - 0.7 mm
Stainless steel: 0.4 mm - 0.5 mm
Dimensions: L x W x H 3,120 x 1,720 x 1,250 mm
Weight: app. 1.260 kg
Feed rate: 14 m/min.
Drive: 2,2 kw, 400 volt, 3-ph

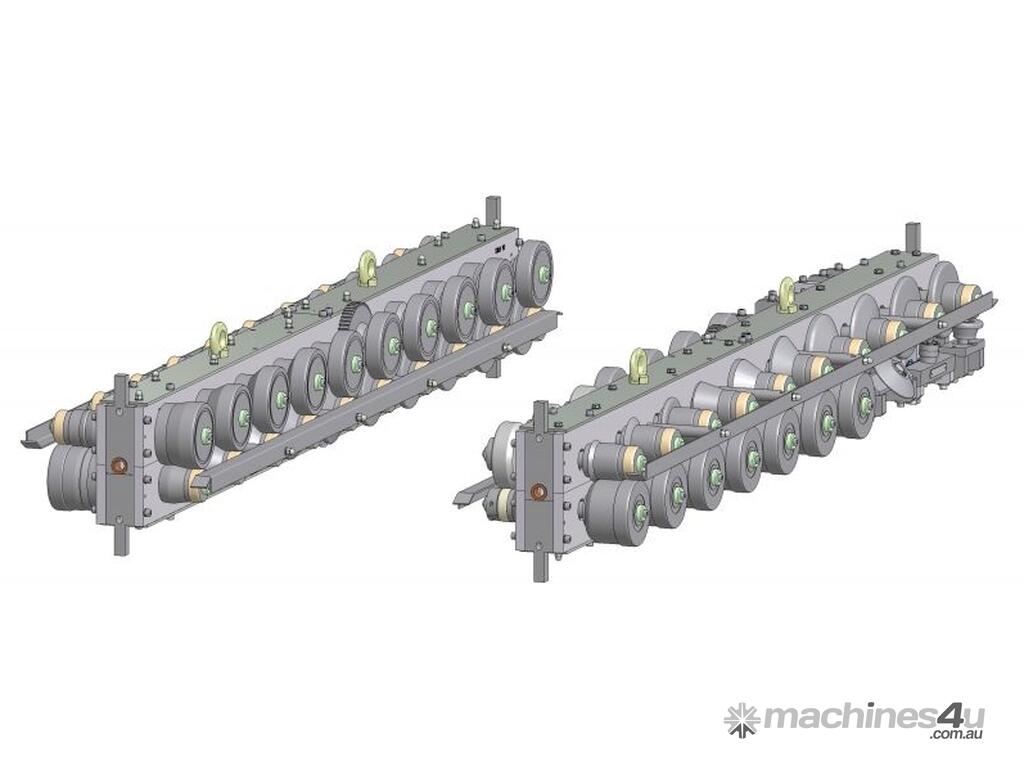

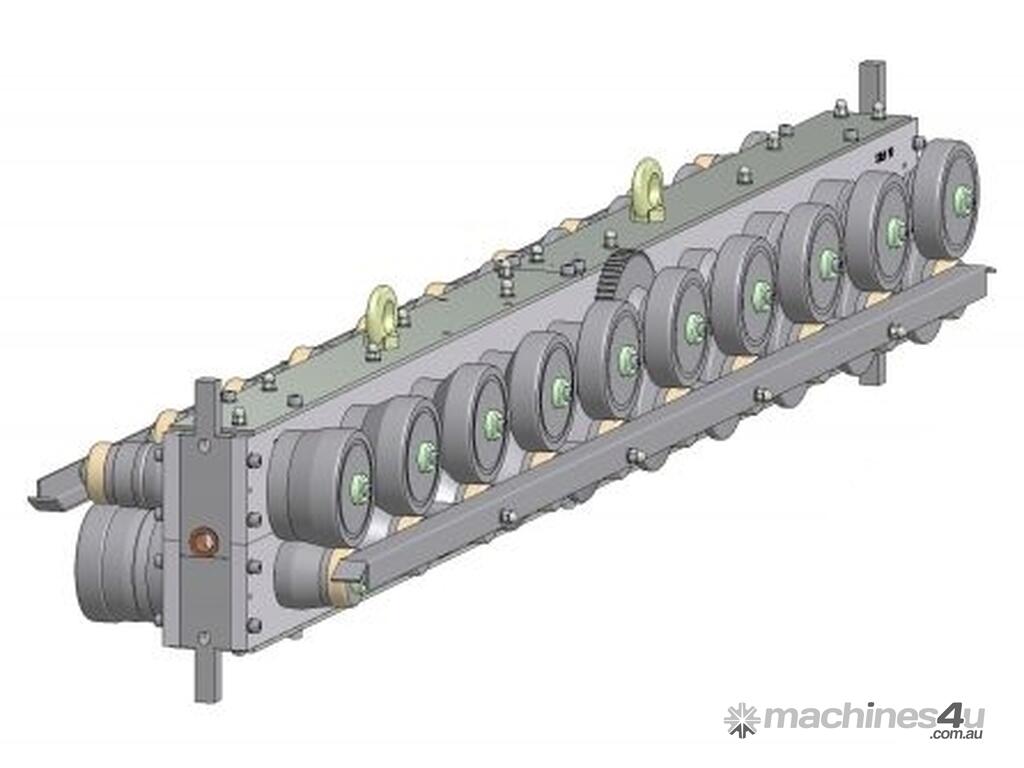

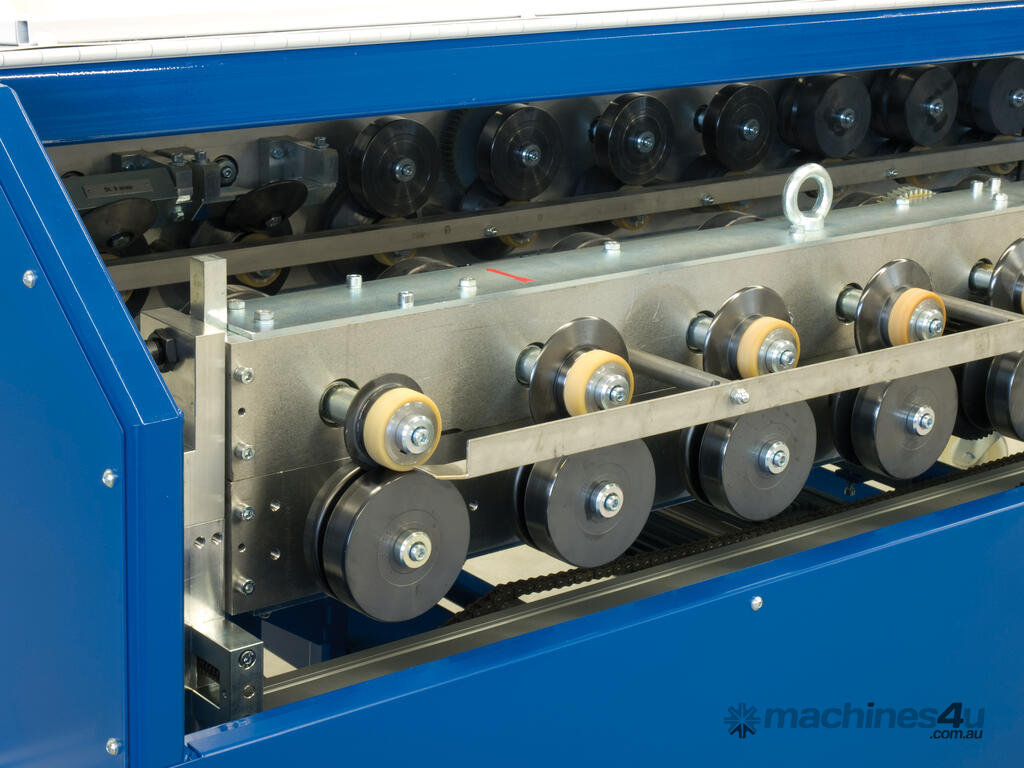

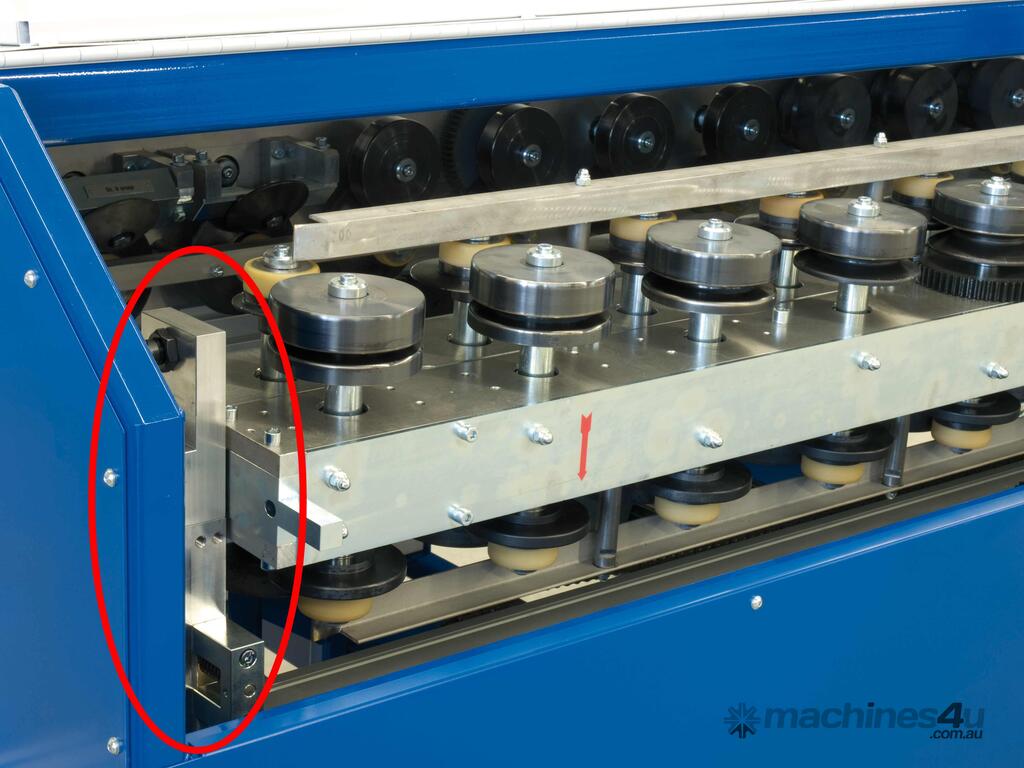

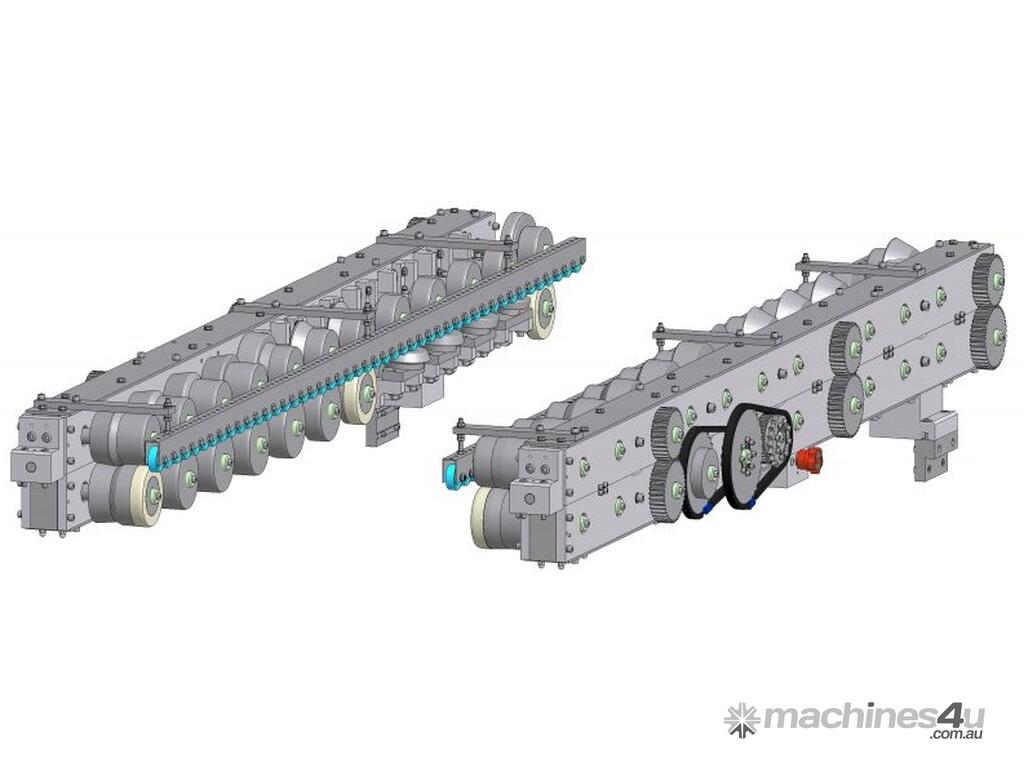

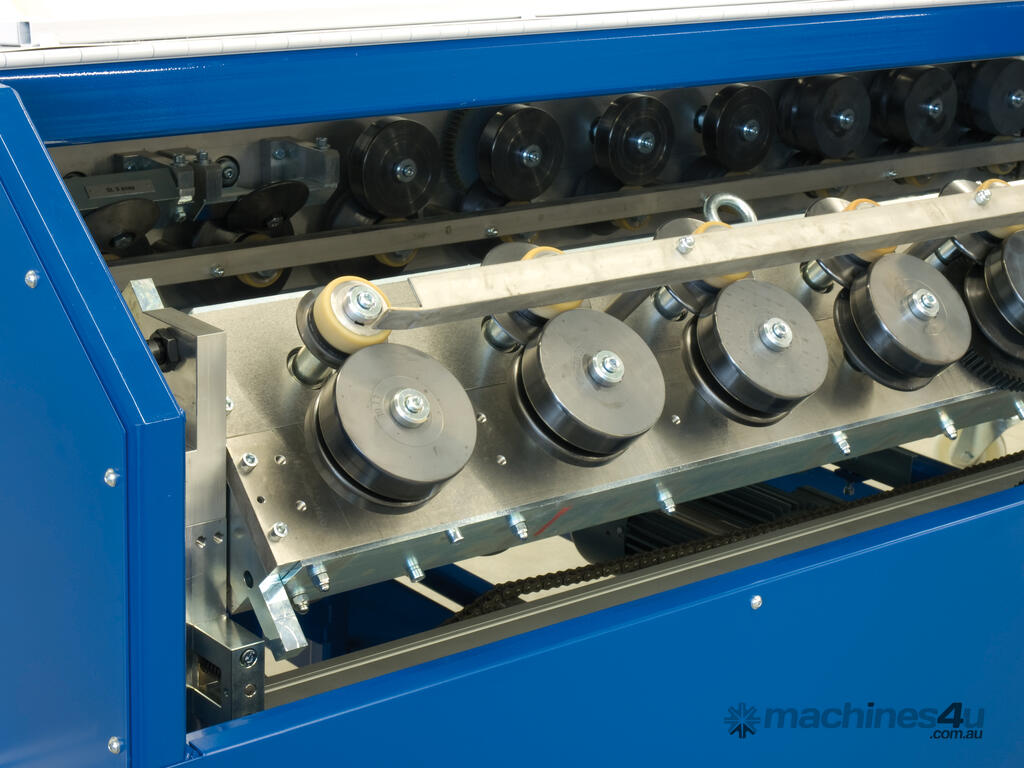

Exchangeable cartridges with 10 roller
stations may be swivelled:

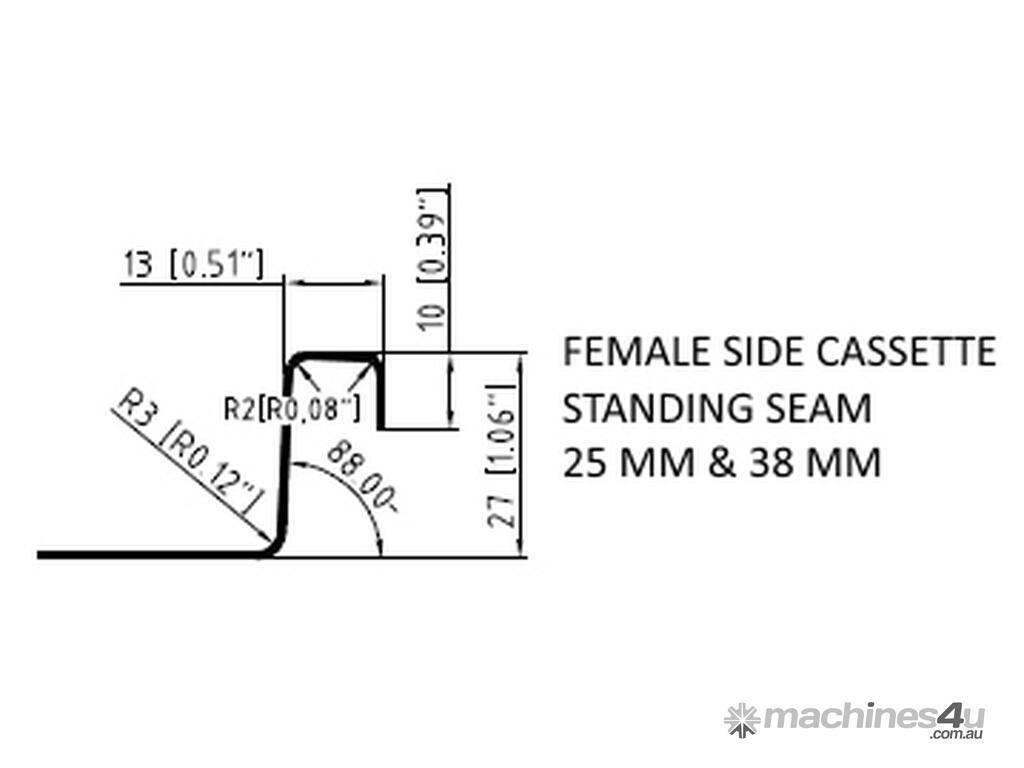

• Standing seam profiles with and without Clip-Relief
Profile heights of 25+ 32 + 38 mm

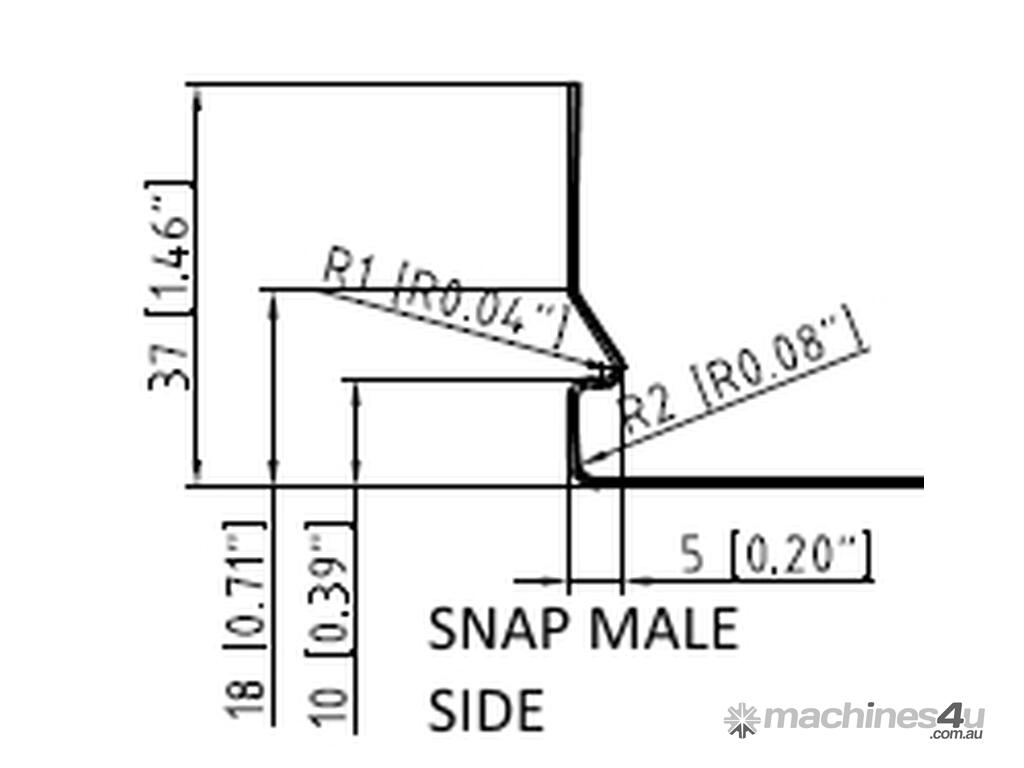

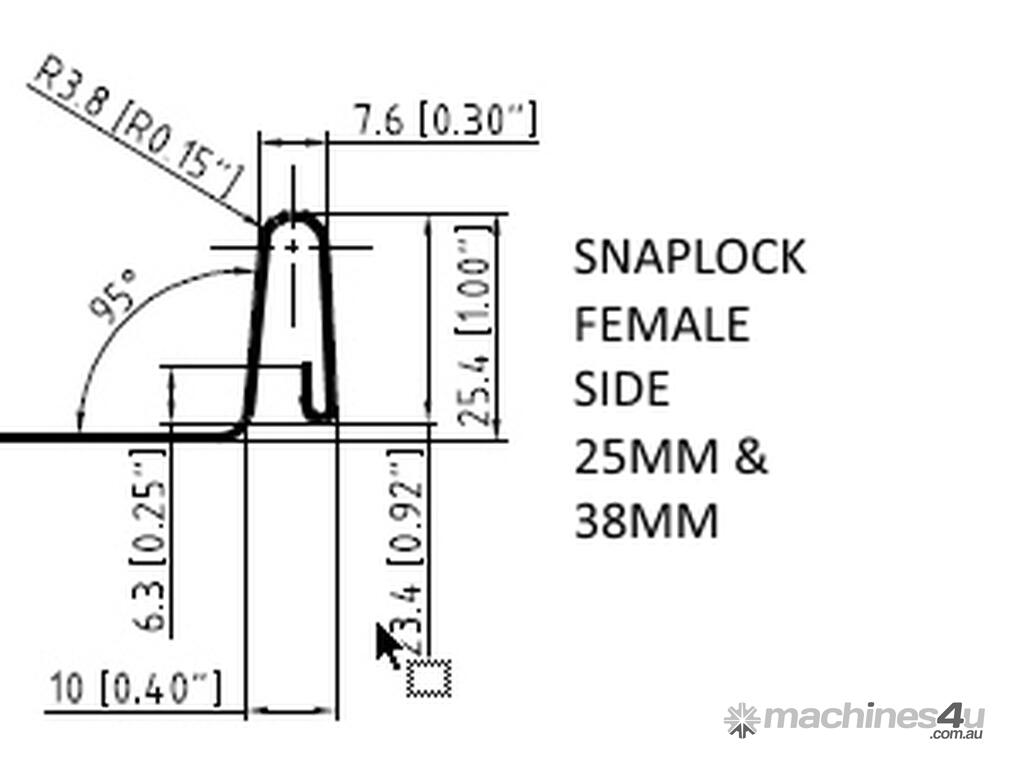

• SNAP-folded profile with and without Clip-Relief
Profile heights of 25 and 38 mm

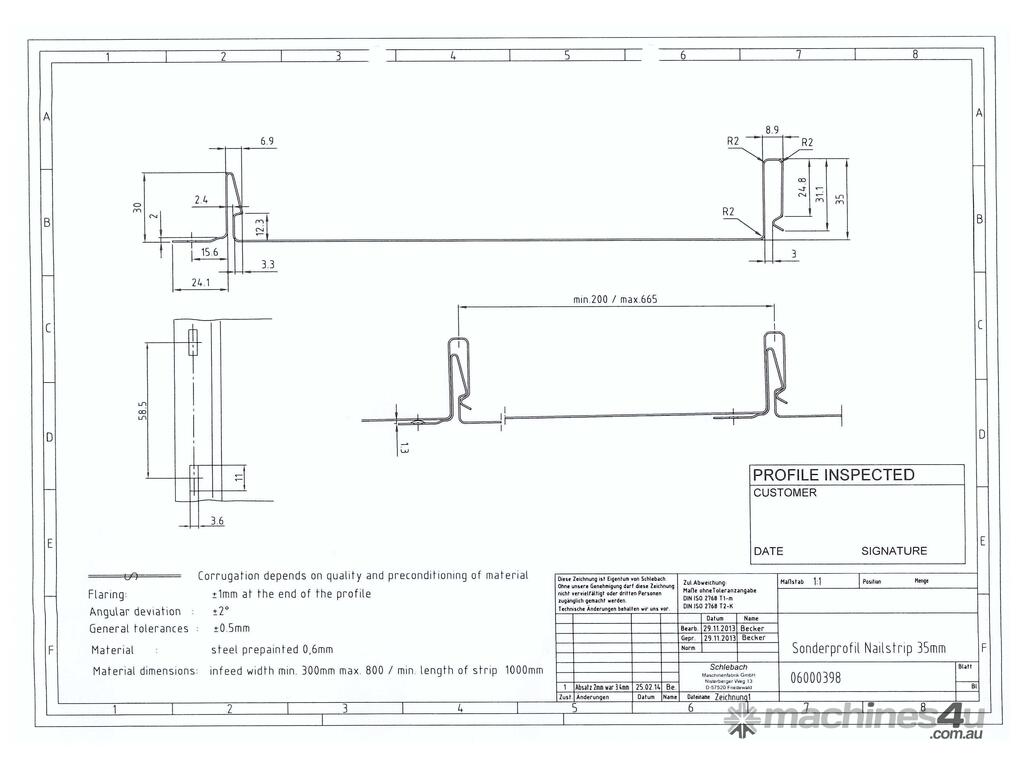

• NAIL Strip system for profile heights
of 25 and 38 mm
• U - profile with a turn-up height of up to 38 mm

Exchangeable cartridges with 10
roller stations , can not be swivelled:
• 50 mm standing seam profile
• 50 mm folded profile with clip-relief

Exchangeable cartridges with 12
roller stations , can not be swivelled:
• Sofit Panel

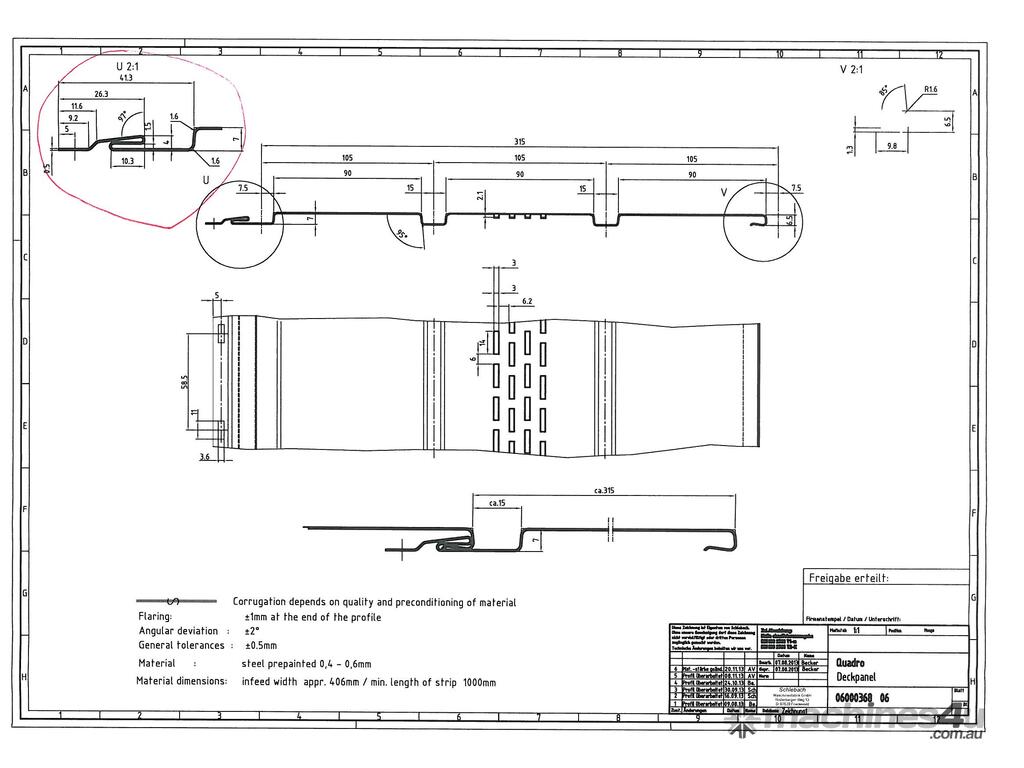

• Stepped tile panel
• 44,5 mm snap-profile

Model 00037
with LM – electronic length measurement, in units of 1 mm
with RS - motorized roller shear for crosswise cutting with
Infeed width: 300 - 800 mm infinitely adjustable

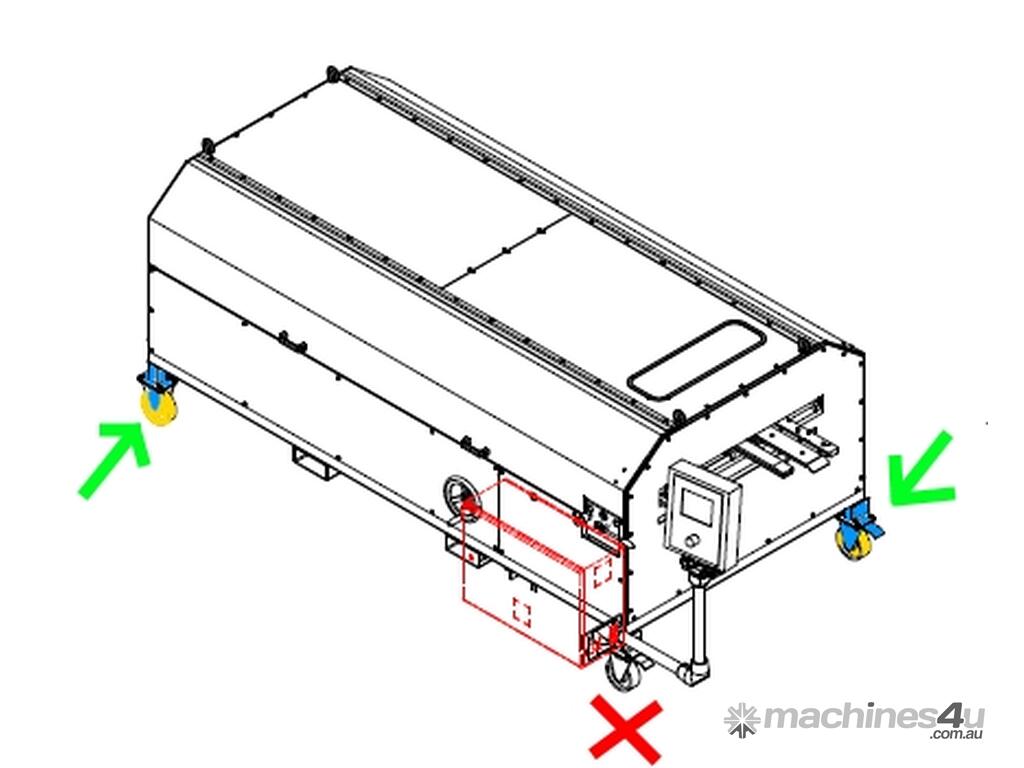

mobile on 4 rollers (2 with steering rollers),
complete ready for use ,
approx. 14 m/min profiling speed
Drive system: gear motor 2,2 KW
Voltage: 400Volt, 50 Hz., 3-Phase or 230V, 50/60 Hz, 1-Phase

Model 00051
with LM – electronic length measurement, in units of 1 mm
with RS - motorized roller shear for crosswise cutting
with LS - disc shear LS for longitudinal cutting before profiling
Infeed width: 200 - 800 mm infinitely adjustable
mobile on 4 rollers (2 with steering rollers),
complete ready for use ,
approx. 14 m/min profiling speed
Drive system: gear motor 2,2 KW
Voltage: 230Volt, 50/60 Hz, 1-Phase or 400 Volt, 50 Hz, 3 Phase

Model 00046
with LM – electronic length measurement, in units of 1 mm
with RS - motorized roller shear for crosswise cutting with
with PK - pneumatic. clutch (incl. pressure supply unit and manometer)
with Interface for attachment of QA 60 or UKST
with drive for pull-out attachment
(pull-out attachment and frame extension not included!)
Infeed width: 200 - 800 mm infinitely adjustable
mobile on 4 rollers (2 with steering rollers),
complete ready for use ,
approx. 14 m/min profiling speed
Drive system: gear motor 2,2 KW
Voltage: 400Volt, 50Hz., 3-Phase


Model 00048
with LM – electronic length measurement, in units of 1 mm
with RS - motorized roller shear for crosswise cuttingwith
with LS - lengthwise cutting device
with PK - pneumatic. clutch (incl. pressure supply unit and manometer)
with Interface for attachment of QA 60 or UKST
with drive for pull-out attachment
(pull-out attachment and frame extension not included!)
Infeed width: 200 - 800 mm infinitely adjustable
mobile on 4 rollers (2 with steering rollers),
complete ready for use ,
approx. 14 m/min profiling speed
Drive system: gear motor 2,2 KW
Voltage: 400Volt, 50Hz., 3-Phase
