Schmalz Vacuum clamping systems for your CNC

Schmalz Vacuum pods.

All different types and sizes to fit most brands of CNC machines.

Replacement rubbers available also..

Most pods are in stock and are at great prices!
Spare Parts for CNC Machining Centers
Large Range of Vacuum Blocks
Long Product Lifetime
Easy Replacement of Spare Suction Plates..

Spare Parts for CNC Machining Centers
Vacuum clamping systems from Schmalz are used on machines made by many different manufacturers.
Depending on the types and applications of the machines, the following systems are used:

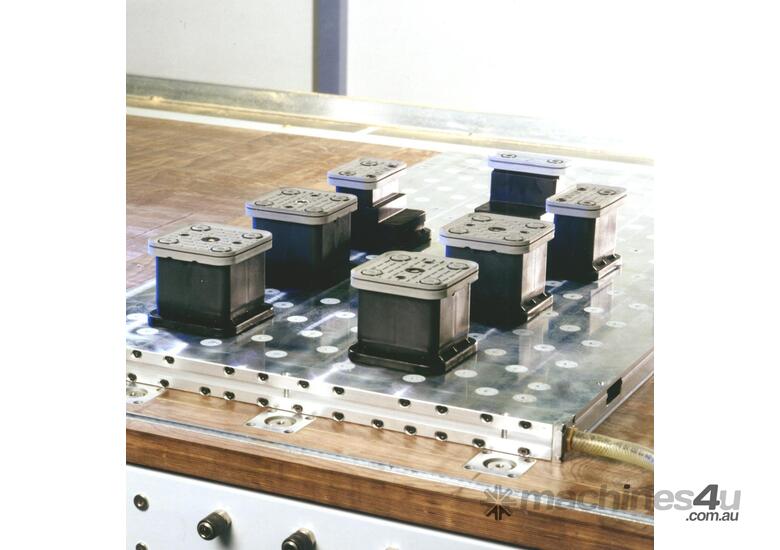

• VC-G (with hose connections, for smooth tables),
• VC-T (hose-free),
• VC-K1 or VC-K2 (for Schmalz consoles with single or two circuits).
Schmalz offers a large number of spare parts both for Schmalz vacuum clamping systems and for systems of other manufacturers. Allowing for the highest quality and functionality, all Schmalz products are designed for efficient production.

The highlights at a glance:
Holding force: Vacuum force up to 850 N and a horizontal holding force of 600 N! The systems hold work pieces safely, even at high cutting forces!

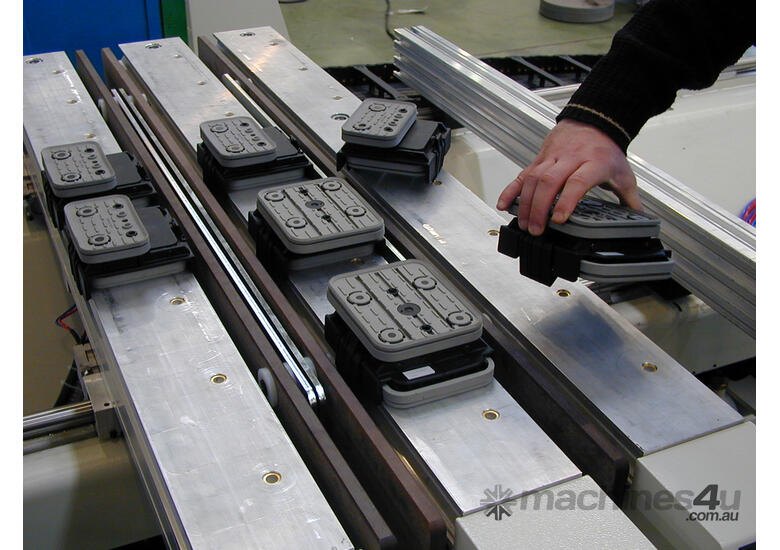

Hose-free versions: Permit quick positioning of the vacuum blocks without hoses (no danger of collisions).
Flexibility: Large selection of various vacuum block types and heights.
Dimensional accuracy: Defined supports guarantee a dimensional accuracy of within +/- 0.06 mm (measured under standard conditions).
Lifetime: High-quality, hard-wearing plastic materials guarantee a long operational lifetime.
Replacement suction plates: The suction plates can be replaced very quickly and easily.
Lift-off system: An integrated lift-off system (optional) permits heavy work pieces to be slid horizontally without damage to the sealing lips.
