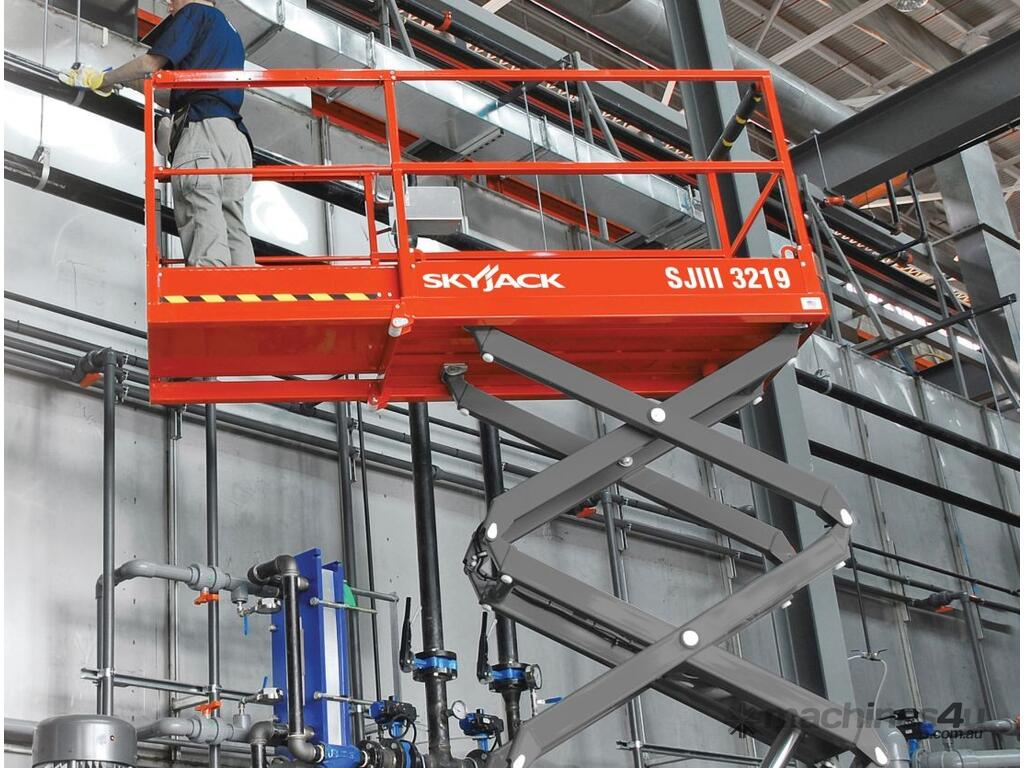

Scissor Lift Skyjack 3219 Electric (NG) - Hire

5.64m / 1,476kg

Skyjack’s Compact DC Electric Scissor Lifts offer Skyjack’s easy to service, low maintenance design in a compact and versatile package. Equipped with variable speed front wheel hydraulic drive, and 90° steering, both models are capable of maneuvering in the smallest spaces. Featuring a 0.91 m roll out extension deck,

these models offer work heights up to 7.79 m. Both platforms boast an industry leading capacity 227 kg.

FEATURES & BENEFITS

STANDARD FEATURES

DC motor controller
Drivable at full height
Variable speed, front two wheel hydraulic drive
90° Steering (zero inside turning radius)
Dual holding brakes
Proportional controls for drive & lift functions
3’ (0.91 m) Roll out extension deck
24V DC Power source
Low voltage battery protection
30% Gradeability
Solid rubber, non-marking tires
Pothole protection system
110V AC Outlet on platform with GFI
28 mph Wind rating (12.5 m/s)
Tilt alarm with drive & lift cut-out
All motion audible alarm
Lanyard attachment points
Operator horn
Forklift pockets and tie down/lift lugs
Relay based control system
SKYCODEDTM color coded and numbered wiring system
Telematics ready

SPECIFICATIONS

Maximum Platform Height
5.64m
Overall width
0.81 m
Overall length
1.80 m
Gross weight
1,476 kg
Wind Rating
12.5m/s
Max Number of People
2
