19.38m / 9,752kg

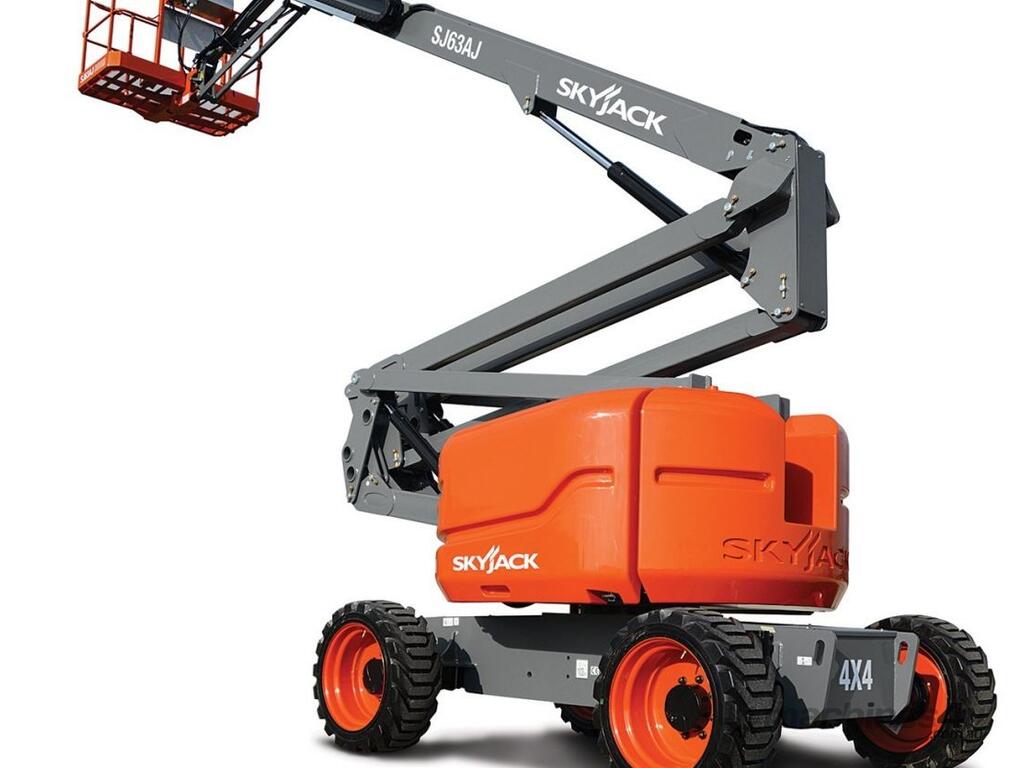

The Skyjack SJ63 Boom Lift is designed for versatility and combines a working height of 21.38 m, a horizontal reach of 12.19 m, and an up and over clearance of 8.38 m. The Skyjack SJ63 Boom Lift’s superior positive traction and terrain-ability are provided by the axle based 4WD system used in many of Skyjack’s product designs, which accounts for a proven low maintenance, rugged and reliable drive train. The 360 degree turret rotation and zero tail swing allow for flexible operation in tight locations. The Skyjack SJ63 Boom Lift also has a unique open centre knuckle riser design for improved visibility and compact dimensions, it also features “straight boom functionality” allowing the boom to reach the ground with the riser fully elevated, increasing productivity and give below ground reach capabilities.
FEATURES & BENEFITS
Other key features include;
direction sensing driving and steering controls.
analog based controls and.
Skyjack’s standard colour coded and numbered wiring system.
Ideal for outdoor construction and industrial applications
Tight turning radius and zero tail swing on most models for manoeuvring in confined areas
High ground clearance, two- or four-wheel drive and rough terrain features available
Quiet diesel engine options deliver excellent power, torque, grade ability and terrain ability
Full-time positive drive traction system and active oscillating axle (most models) for traction on rough terrain
Self-levelling platform rotates 90° to either side on non-jib models
Jib boom models available for extra working range
SPECIFICATIONS
Maximum Platform Height
19.38 m
Overall width
2.44 m
Overall length
9.14 m
Gross weight
9,752 kg
