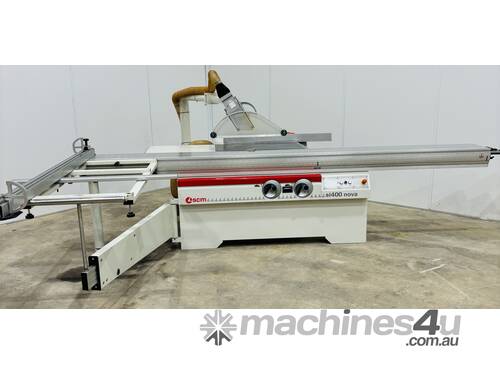

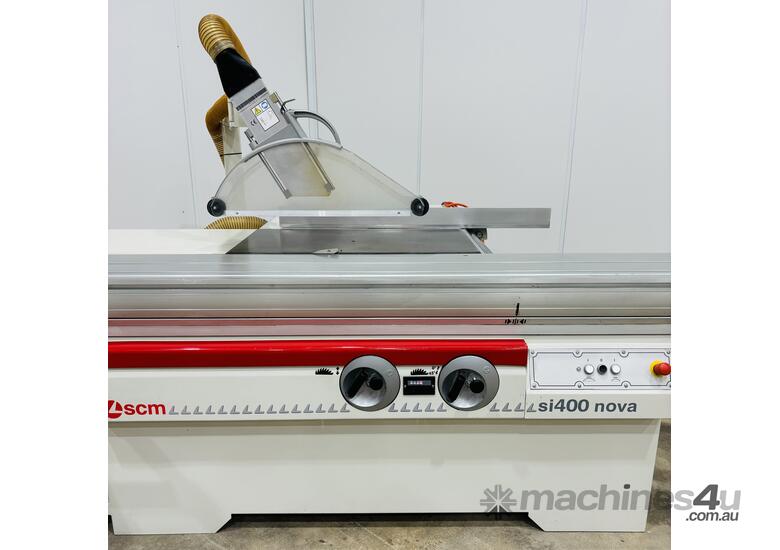

si400 Nova Sliding Table Panel Saw
Description
9 HP main motor
1 HP scribe motor
3800 sliding table
Note: Machine can take up to a 400 mm blade
Scoring blade diameter 120 mm
Arbor speed main blade is 4,000 RPM and scoring blade is 8,500 RPM
Depth of cut at 0 deg. is 140 mm (5.5") and at 45 deg. is 97 mm (3.8")
MAJOR FEATURES:

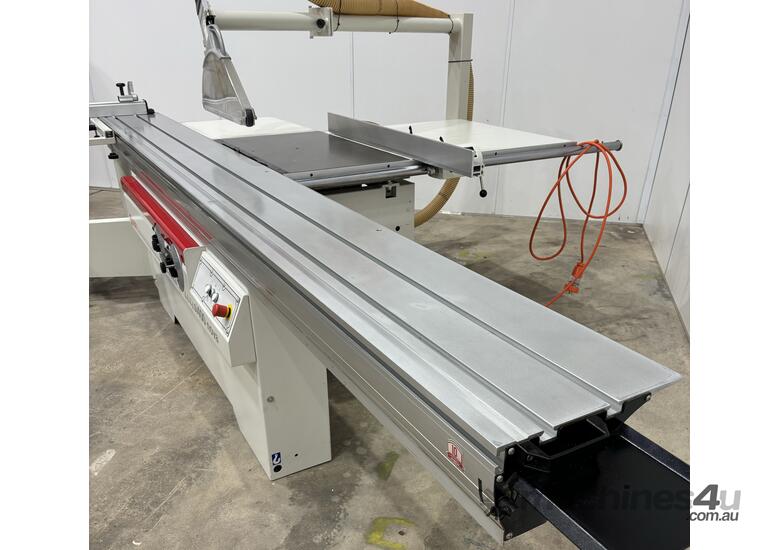

Anodized aluminum sliding table with hardened steel guides
Separate scoring motor
Tilting arbor from 0 to 45 degrees
Overhead mounted blade guard with dust outlet
Heavy industrial aluminum extrusion crosscut fence with flip stops
"EZ Dial" adjustable split scoring blade assembly.
Machine is ready for pick up in Wetherill Park.
