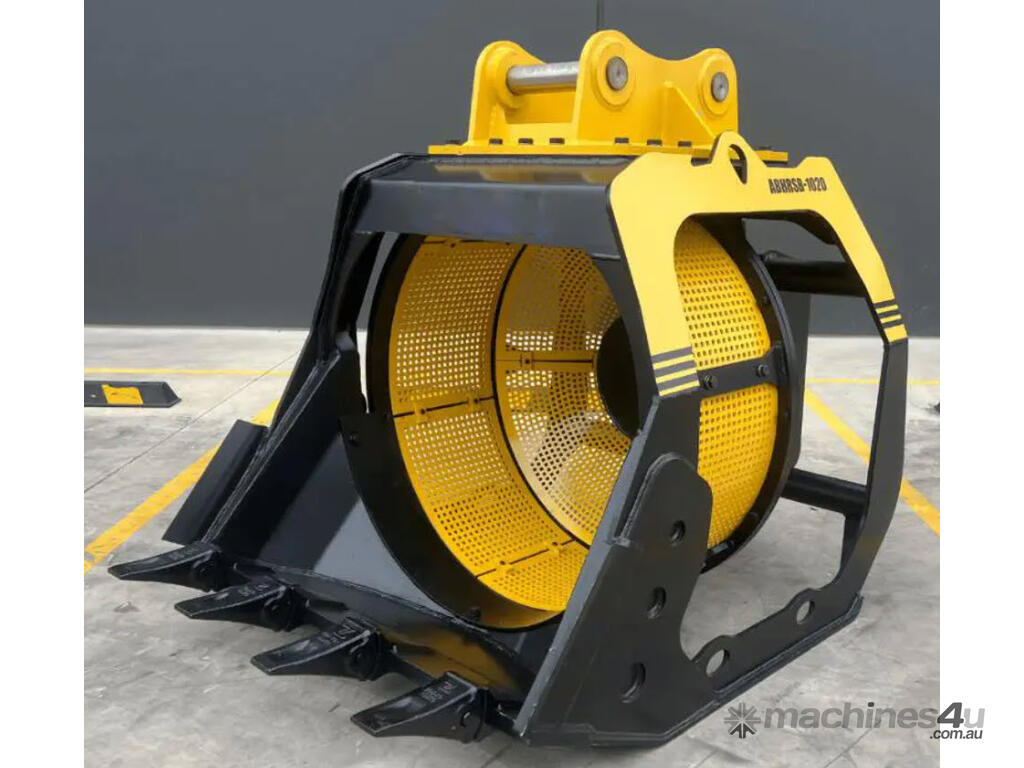

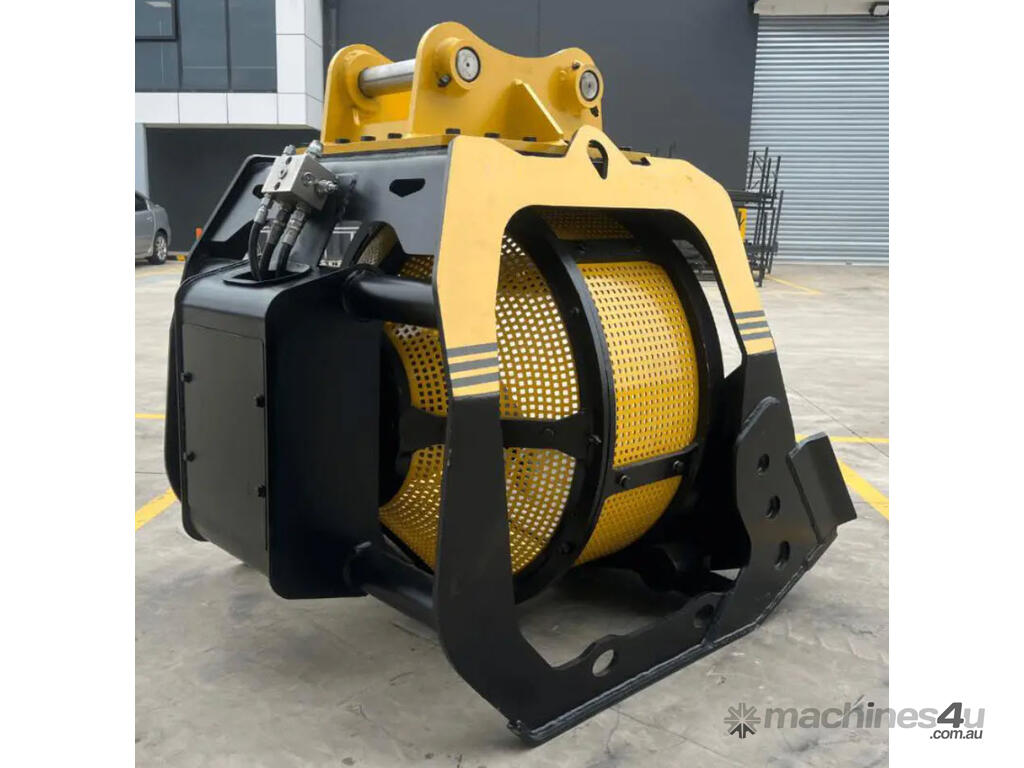

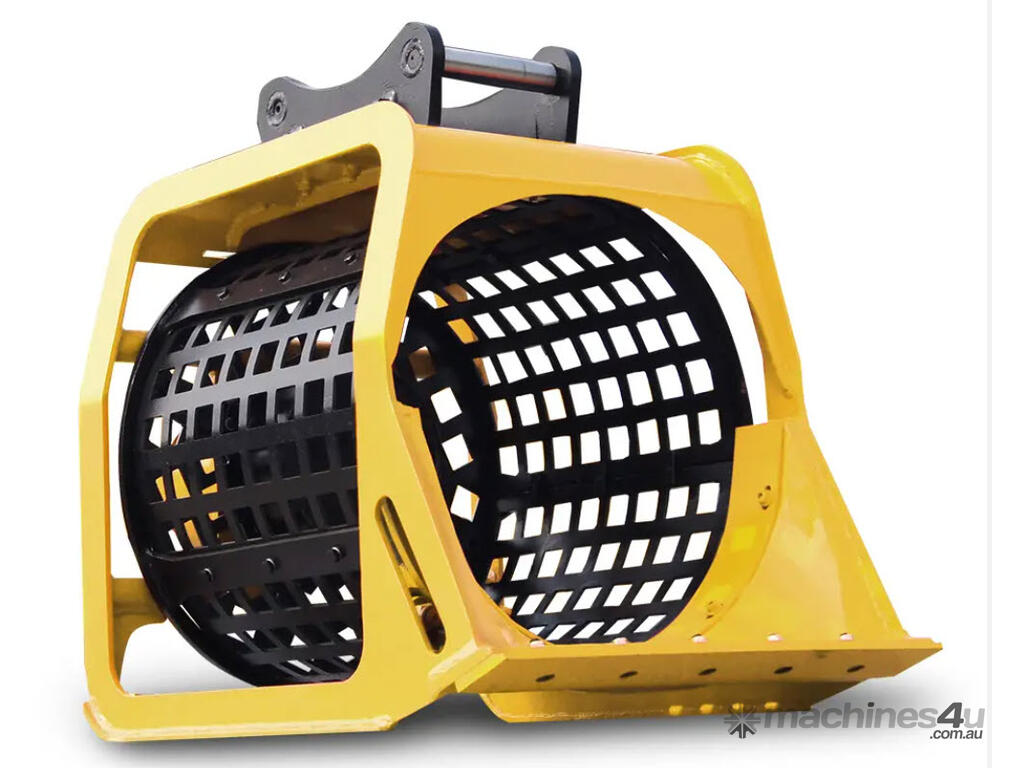

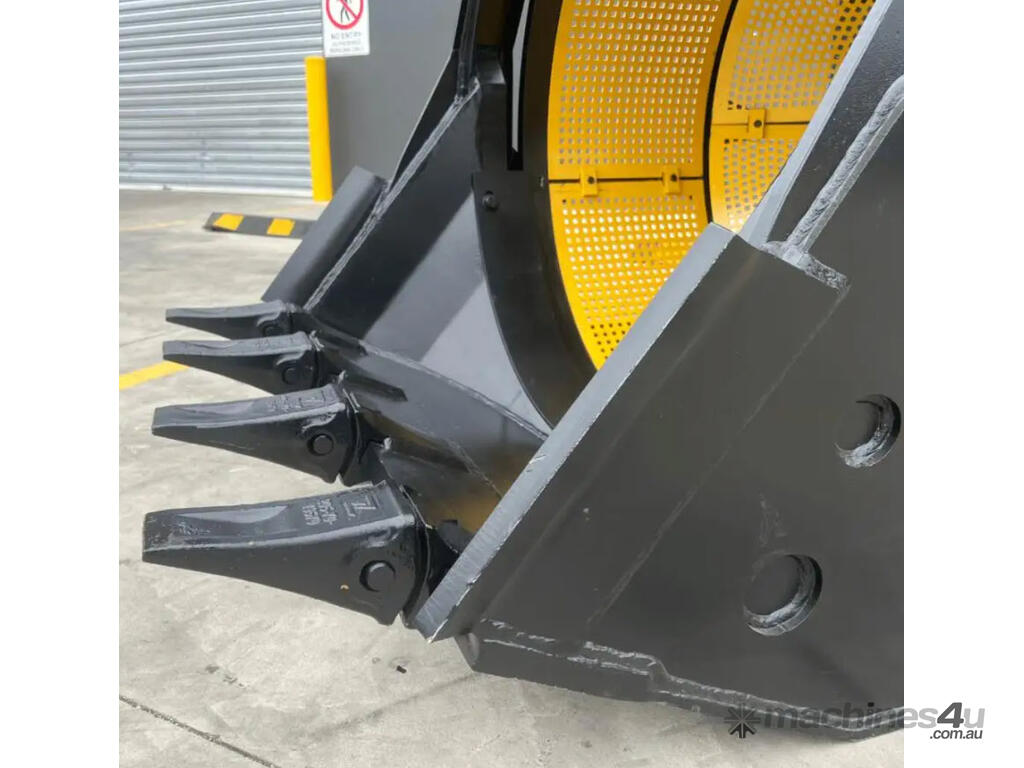

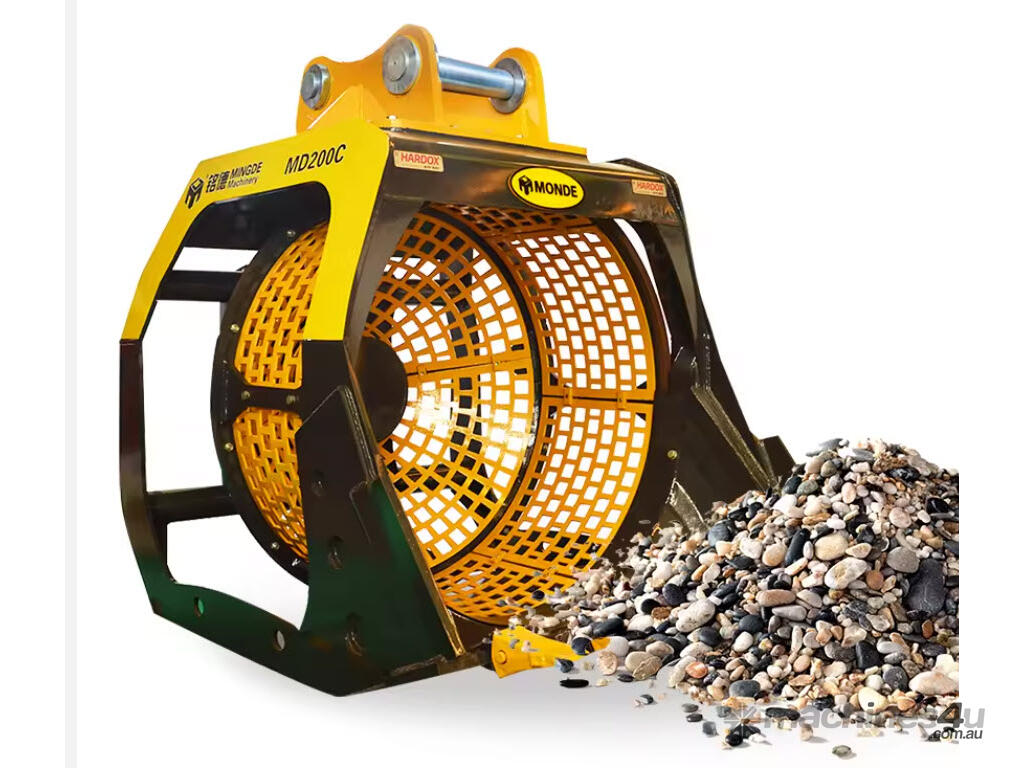

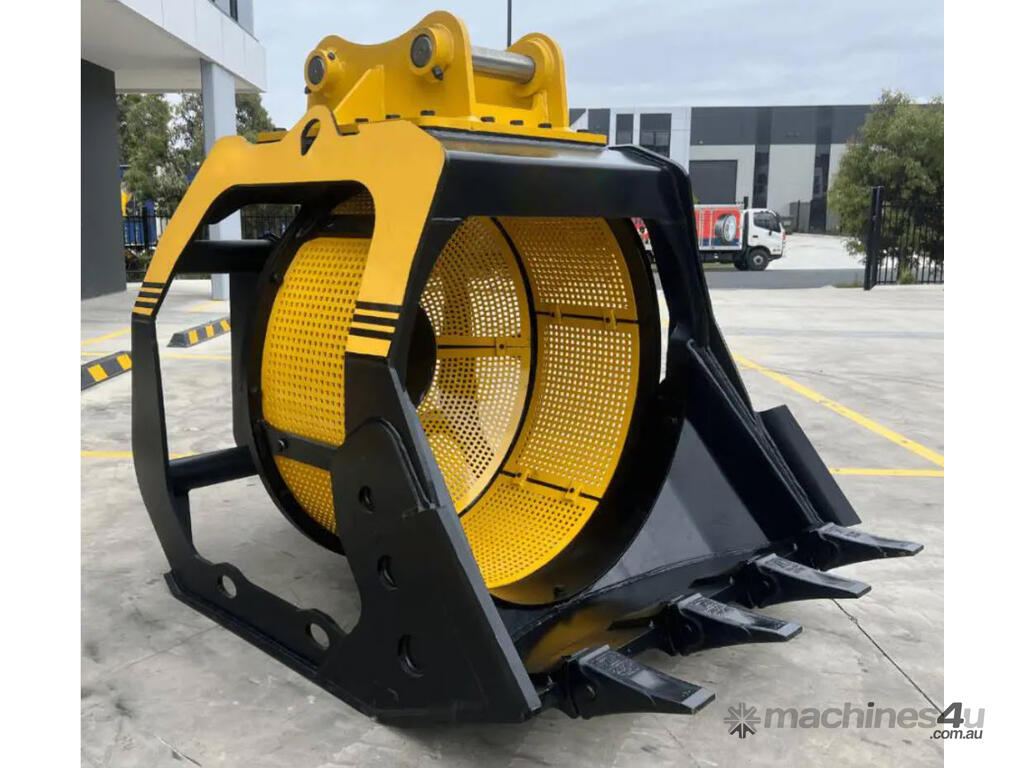

Screening Bucket, Rotary

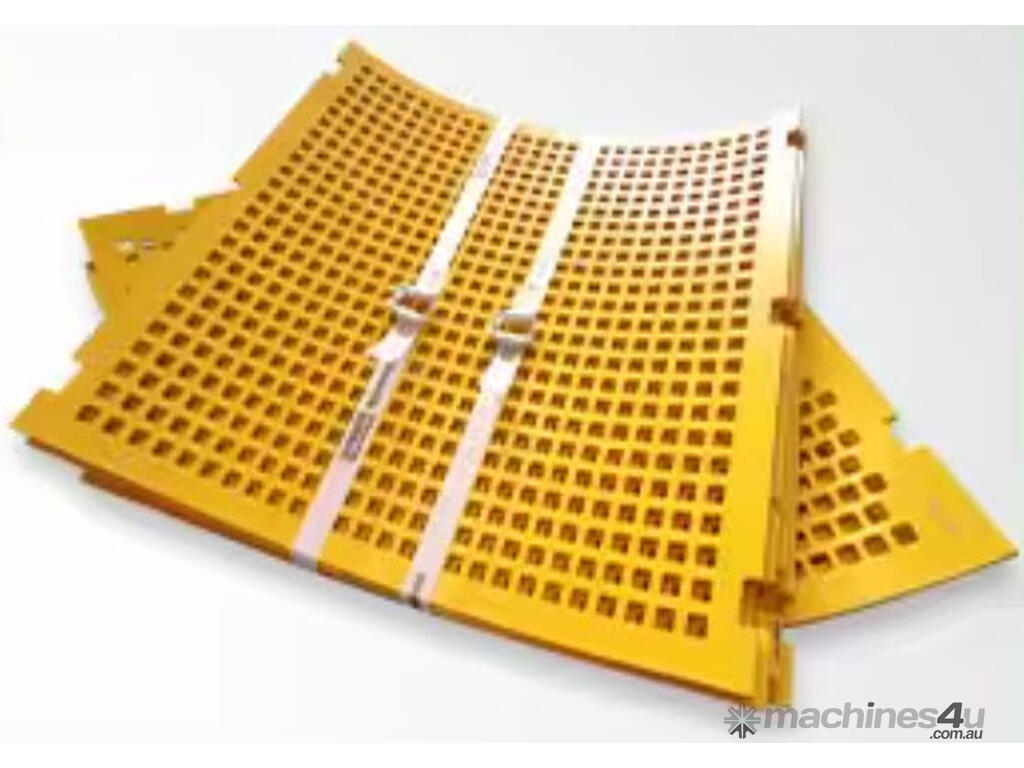

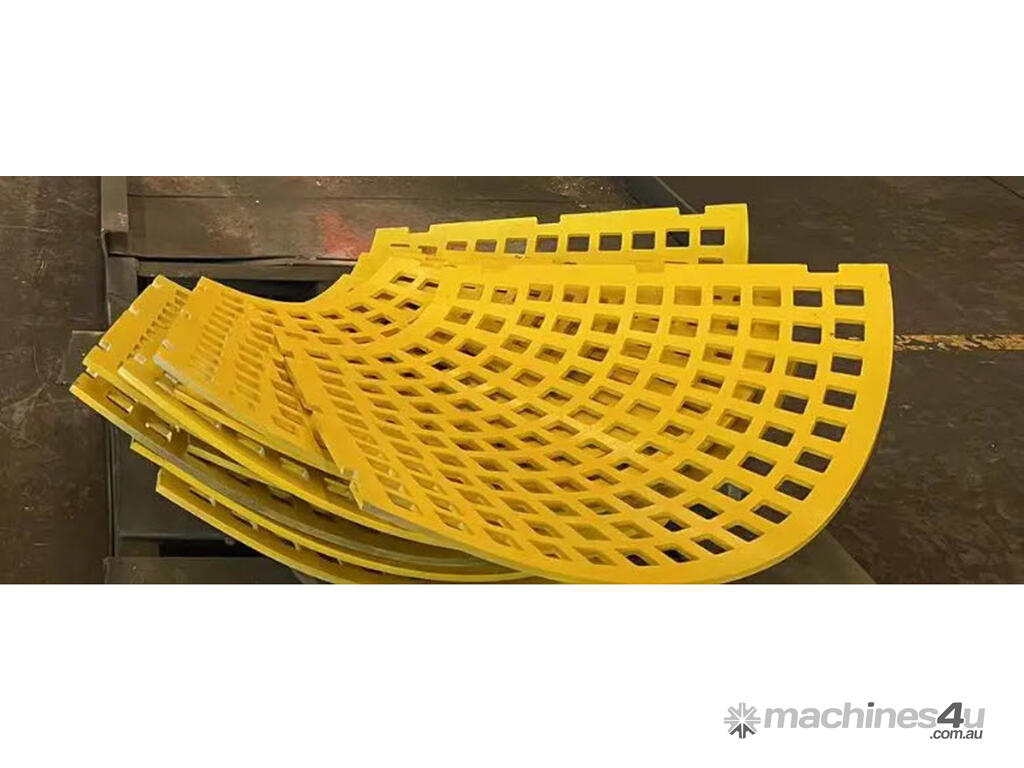

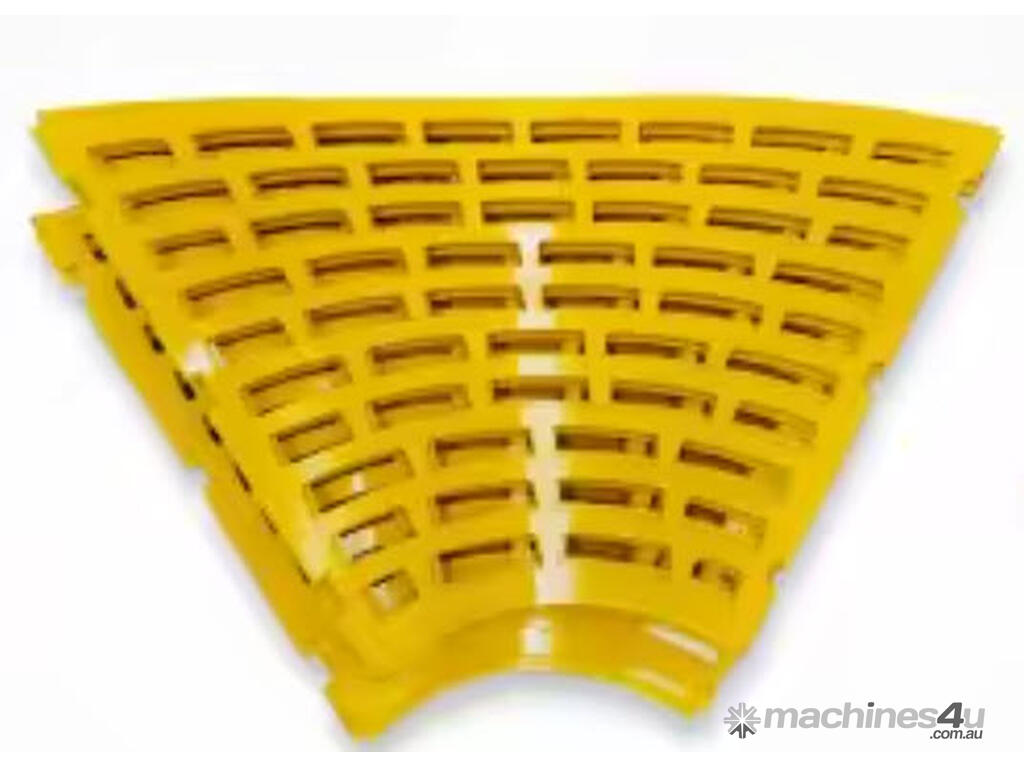

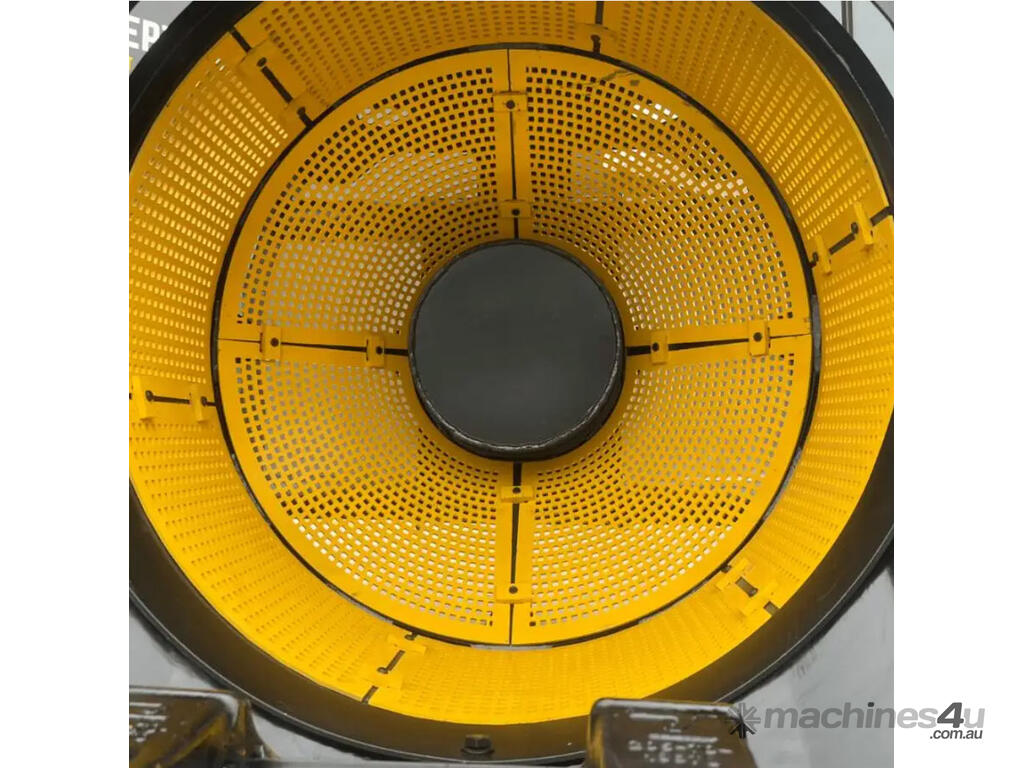

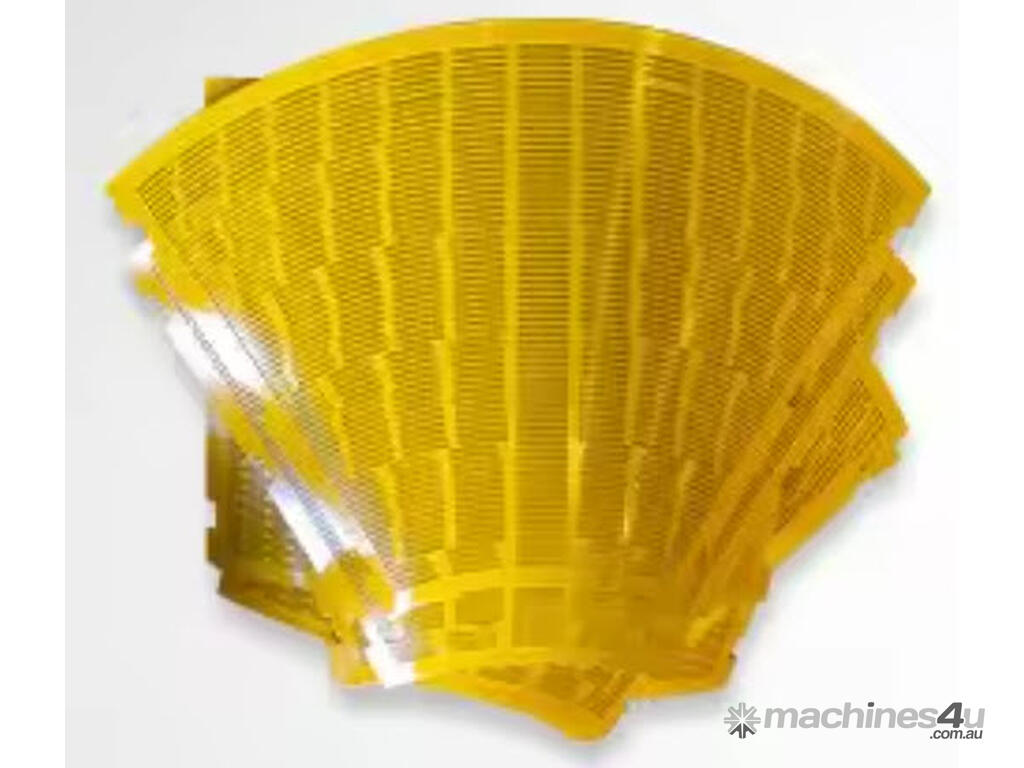

VICON rotary screen buckets are especially designed to screen sand and gravel ,hard rock stones and washing sand underwater. The efficiency of the rotary screen on an excavator, is higher than that of the ordinary screen bucket. Screen mesh hole specifications can be selected according to the size of the material(1-150mm), with the screens being easy to replace, which greatly reduces the loss of machinery time.The screening hopper is suitable for screening various materials and has excellent mechanical properties. Its high productivity and durability can meet the needs of crushing operations in quarries, mines and large construction sites.

Model MSB01 MSB02 MSB08 MSB12 MSB16 MSB18
Machine Class(t) 1.5-3 3.5-5. 11- 29-38
Rotary Screen Diameter(mm) 500 610 810 1000 1350 1500
Rotating Speed(r/min) 35 60 65 65 65 65
Working Pressure(bar) 120 150 220 230 250 250
Oil Flow(L/min) 20 30 60 80 110 110
Weight(kg) 158 245 530 1020 1920 2430
