Semi Automatic Ø 510mm Double Column Single Mitre

Manufactured in Italy, the Olimpus range of FMB gear drive double column saws is engineered for efficient cutting of heavy materials. Capable of handling hollow and solid bars up to Ø540mm (with the SHO option) and beams up to 450x750mm, these saws are designed for optimal performance.

Key Features:

Semi-Automatic Operation:
-The saw is user-friendly and integrates easily with material handling equipment to boost productivity.

Precision and Versatility:
- Cutting Capacity:
- Round: Ø 510mm
- Section: 450 x 750mm
- Optional Bundle Cutting:
- Packs up to 430 x 670mm

Swivel Saw Head:
- Mitre cutting from 0° to 45°

VAT Cutting Angle Display:
- Includes material self-centering during vice closing

Advanced Mechanics:

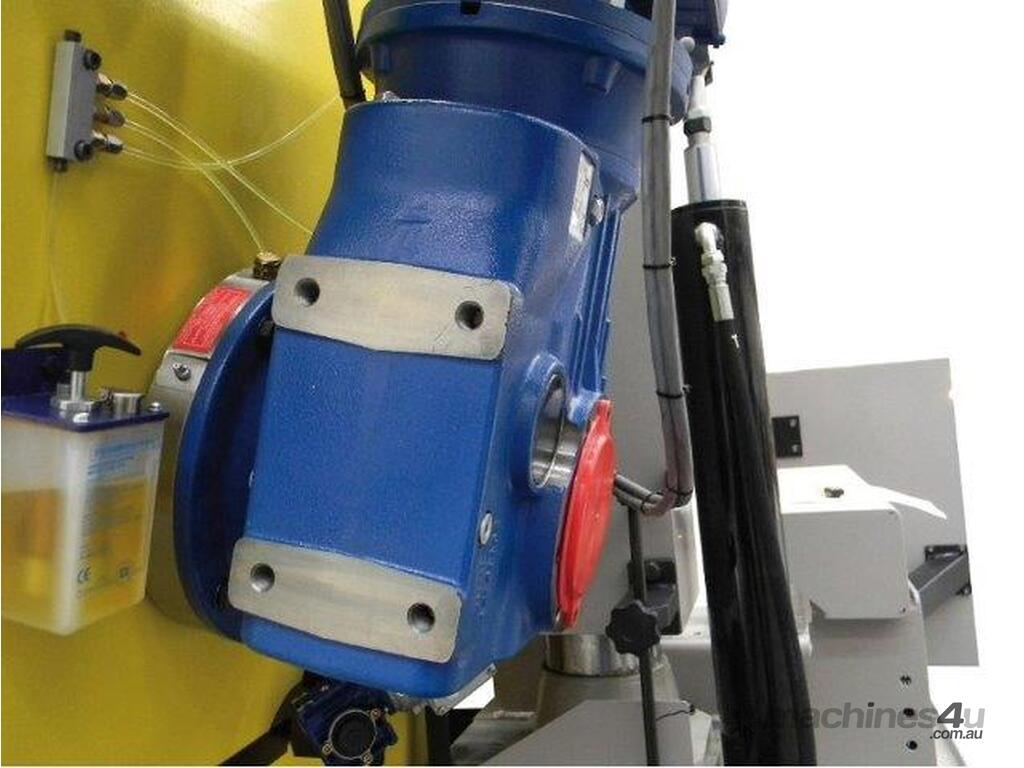

- Gearbox:
- Features hardened and ground gears, lubricated with long-lasting grease.

Blade:
- Large 41 mm wide blade for optimized cutting.

Cutting Speed:
- Infinitely variable via inverter (16-120 m/min)

Down Feed:
Infinitely variable, utilizing two centrally lubricated chrome columns.

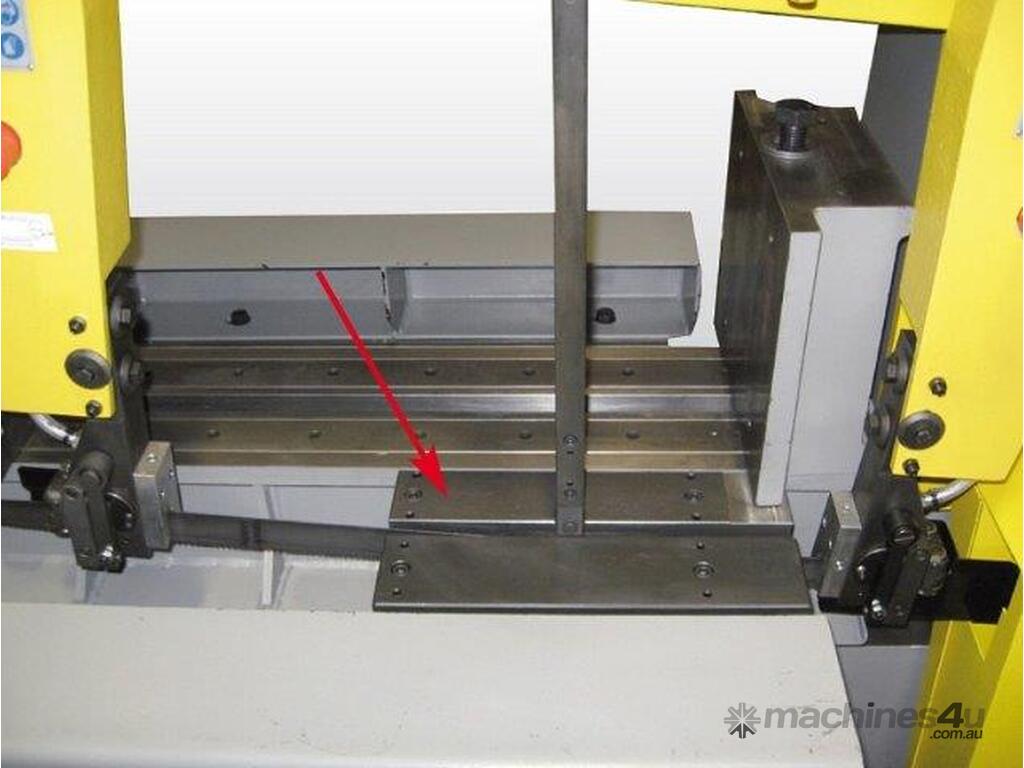

Hydraulic Vice:
- Mechanical movement with wear-resistant jaws.

Durability and Support:
- Work Areas:
- Wear-resistant surfaces on both loading and unloading sides.
- Support Surface:
- Rugged design for easy material loading.

Machine Base:
- Heavy-duty fabricated for added stability.

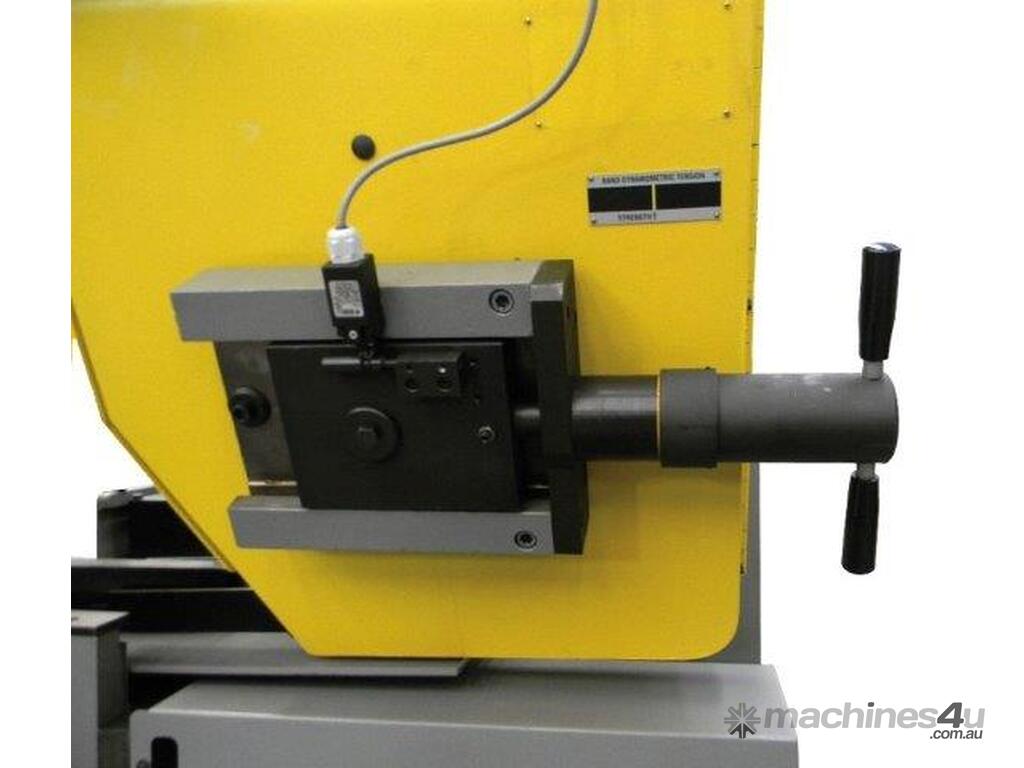

Mechanical Blade Tensioning:
- Ensures optimal blade performance.
- Broken Blade Detection:
- Automatically shuts down the machine in case of blade failure.

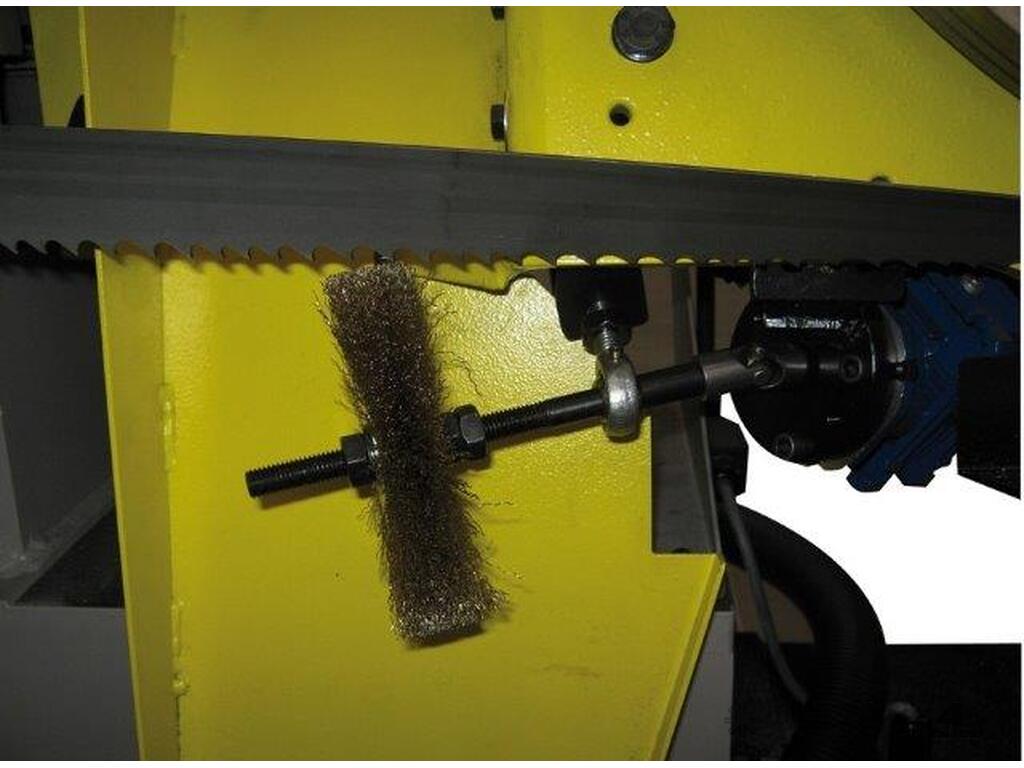

- Integrated Blade Cleaning Brush:
- Motorized for continuous maintenance.

The Olimpus bandsaw’s design facilitates faster sawing of structural steel square tubes by reducing the number of teeth in contact with the material at any given time.

Place Your Order:
Contact us today to place a factory order and enhance your cutting operations with the high-performance Olimpus range. Experience superior productivity and reliability with a machine designed to meet the highest standards.
