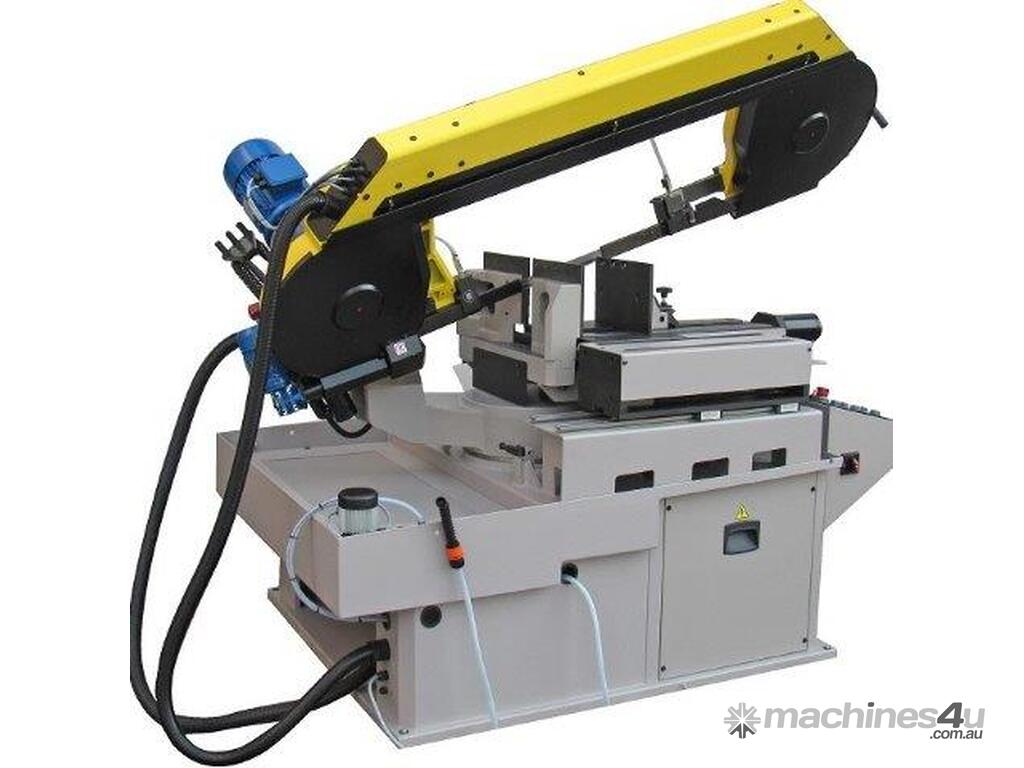

Semi Automatic Bandsaw Ø 330mm Double Mitre

Manufactured in Italy, the FMB Pegasus DS Semi-Automatic Bandsaw features a heavy-duty welded frame and a wide range of optional equipment to enhance your cutting cycle. Renowned for its cutting accuracy, large capacity, and pivoting saw head, this bandsaw offers the ideal solution for customers who demand superior quality and performance.

Key Features:

Maximum Cutting Capacity:
- Round: Ø 330mm
- Section: 330 x 650mm
- Bundle Cutting Capability:
- Handles bundles up to 200 x 480mm

Swivel Saw Head with Mitre Cutting:
- Right Mitre Cutting: 0 to 60°
- Left Mitre Cutting: 0 to 45°

Cast Bow with Three-Part Material Structure:
- Materials: Aluminium alloy, steel, and cast iron
- Benefits: Improves rigidity and reduces blade flexing
- Large 34 mm Wide Blade:
- Optimized for efficient and precise cutting

Semi-Automatic Operation:
- Streamlined controls for ease of use

Infinitely Variable Cutting Speed:
- Range: 16-120 m/min via inverter
- Infinitely Variable Down Feed allows precise adjustment for various materials

DTI – Interrupted Cutting:
- Features a microswitch for intermittent cutting

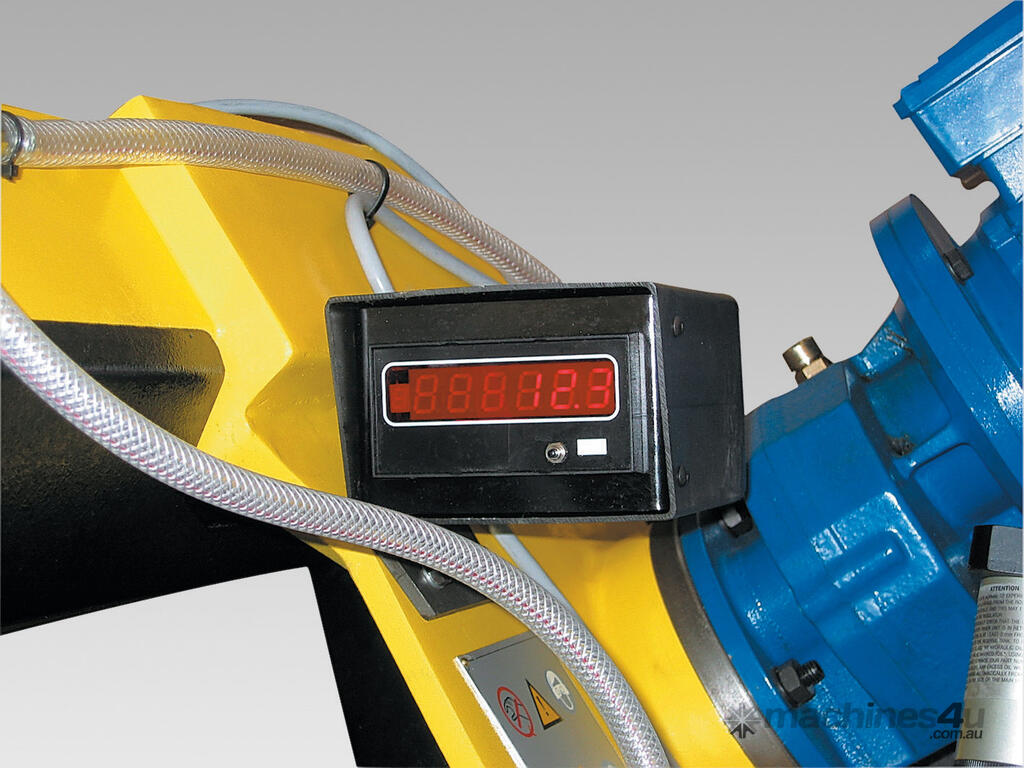

Blade Speed Regulator:
- Enables precise adjustment of blade speed

Advanced Blade Guides:
- Combination of side bearings, carbide plates, and top bearings for optimal support

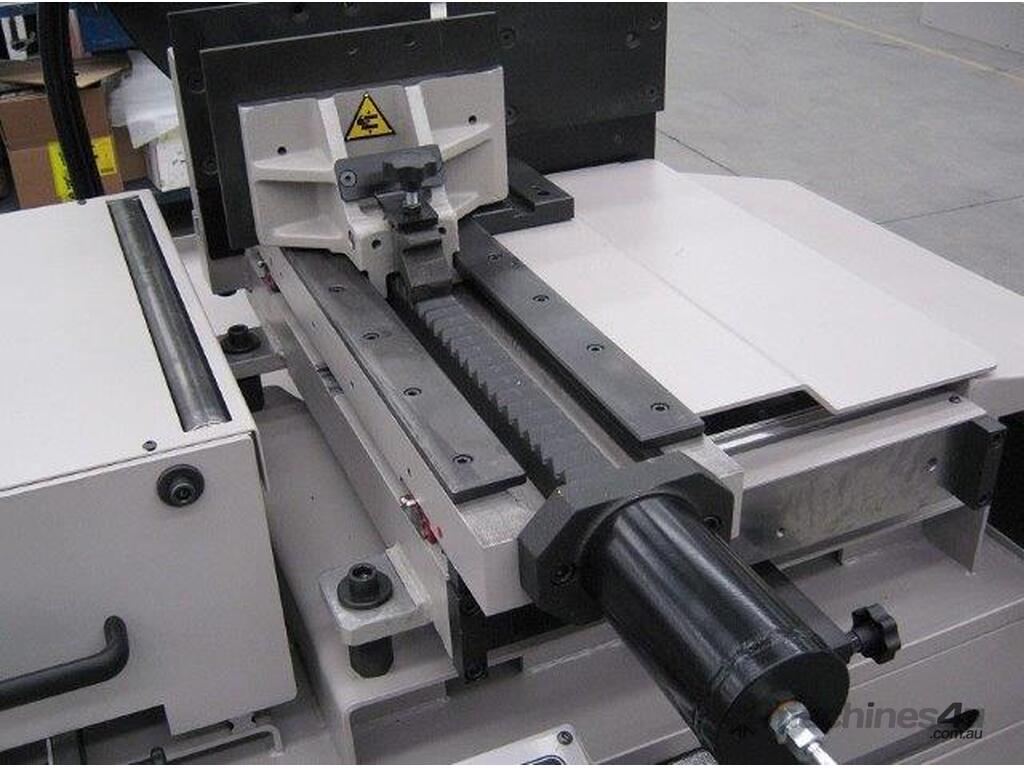

Manual Positioning Vice:
- Hydraulic quick-action clamping for secure and rapid positioning

Heavy-Duty Machine Base:
- Fabricated for durability, includes a locking cabinet
- Dual Rollers on Infeed Side Supports material loading for easy handling

Mechanical Blade Tensioning:
- Ensures consistent blade tension and performance
- Broken Blade Detection Automatically shuts down the machine to prevent damage
Integrated Motorized Blade Cleaning Brush keeps the blade clean for optimal cutting performance and reduced maintenance

Place Your Order:
Contact us today to place a factory order and enhance your cutting operations with the high-performance Olimpus range. Experience superior productivity and reliability with a machine designed to meet the highest standards.
