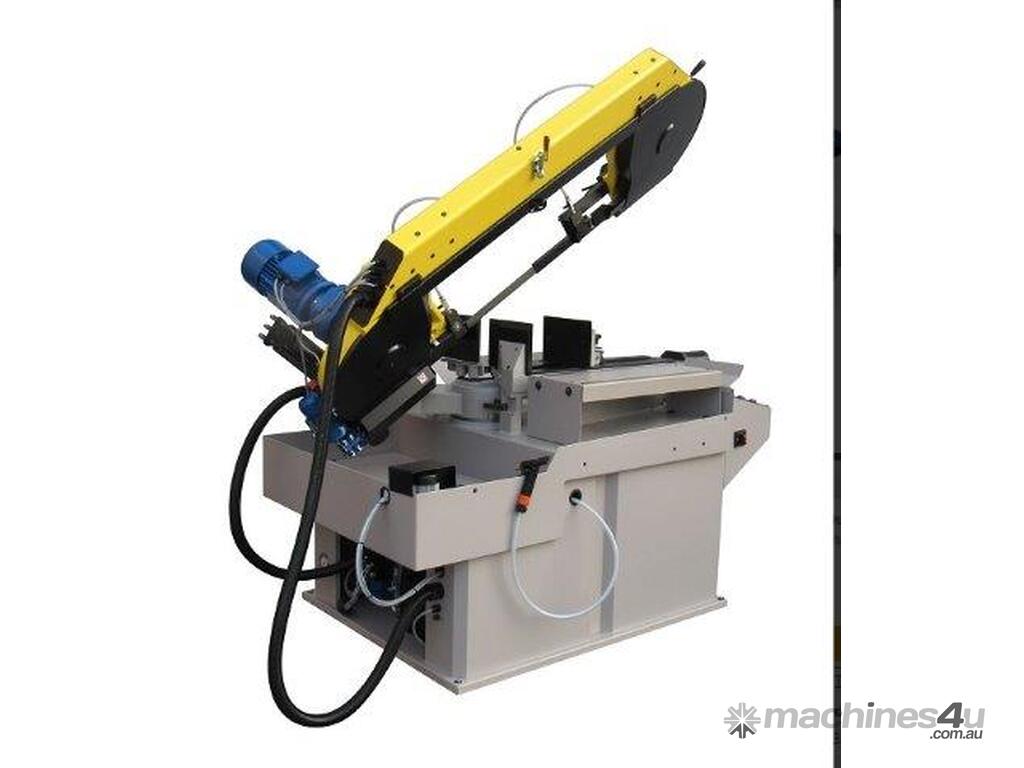

Semi Automatic Bandsaw Ø 330mm Single Mitre

Manufactured in Italy, the FMB Pegasus XL Semi-Automatic Bandsaw features a heavy-duty welded frame and a comprehensive array of optional equipment to enhance your cutting cycle. Known for its precision, large capacity, and pivoting saw head, this bandsaw is the ideal solution for those who demand exceptional quality and performance.

Key Features:

Maximum Cutting Capacity:
- Round: Ø 330mm
- Section: 330 x 650mm
- Optional Bundle Cutting:
- Supports bundles up to 200 x 480mm

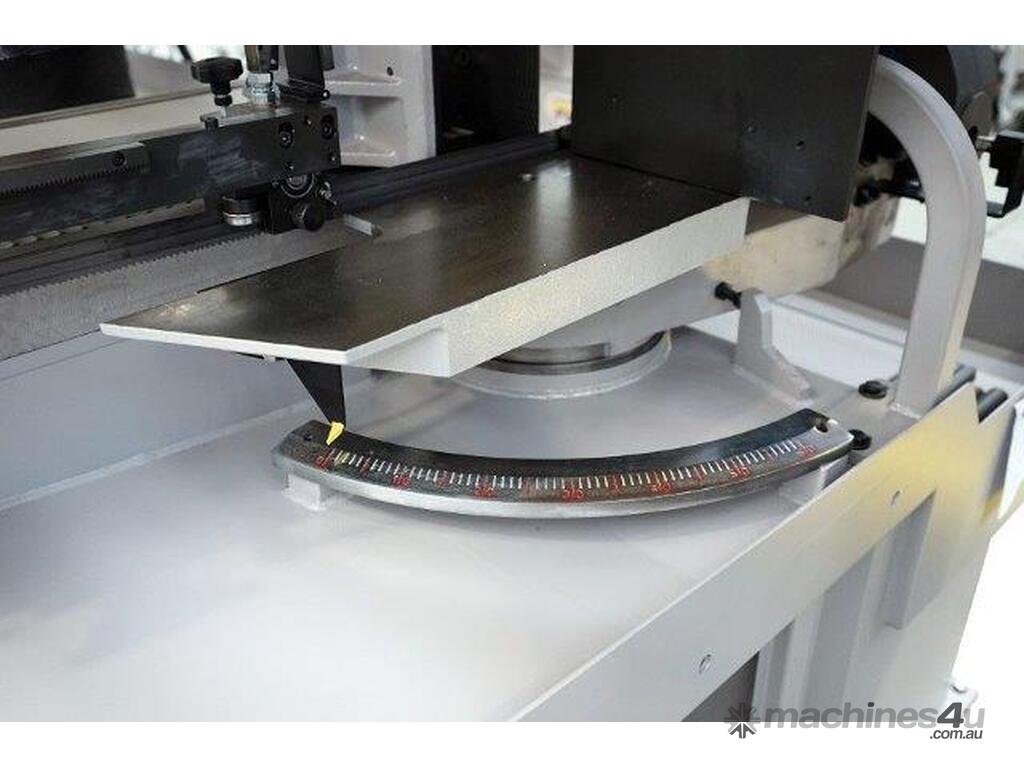

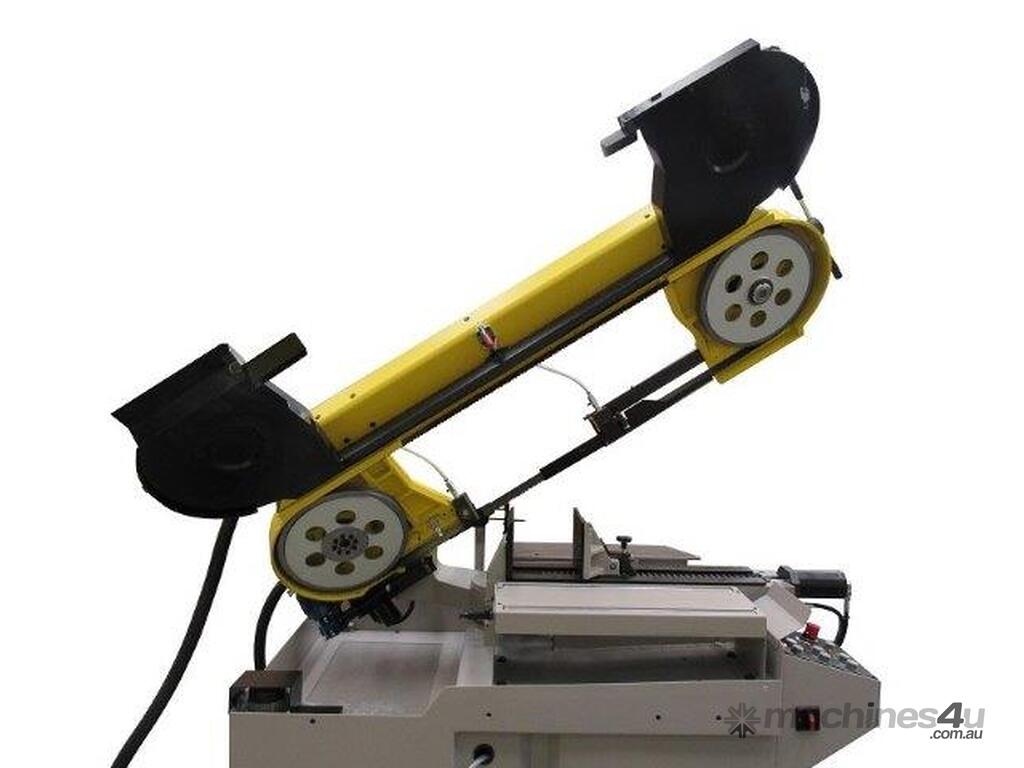

- Swivel Saw Head with Mitre Cutting:
- Adjustable from 0 to 60°

Cast Bow with Three-Part Material Structure:
- Materials: Aluminium alloy, steel, and cast iron
- Enhances rigidity and reduces blade flexing
- Large 34 mm Wide Blade:
- Optimized for efficient and precise cutting

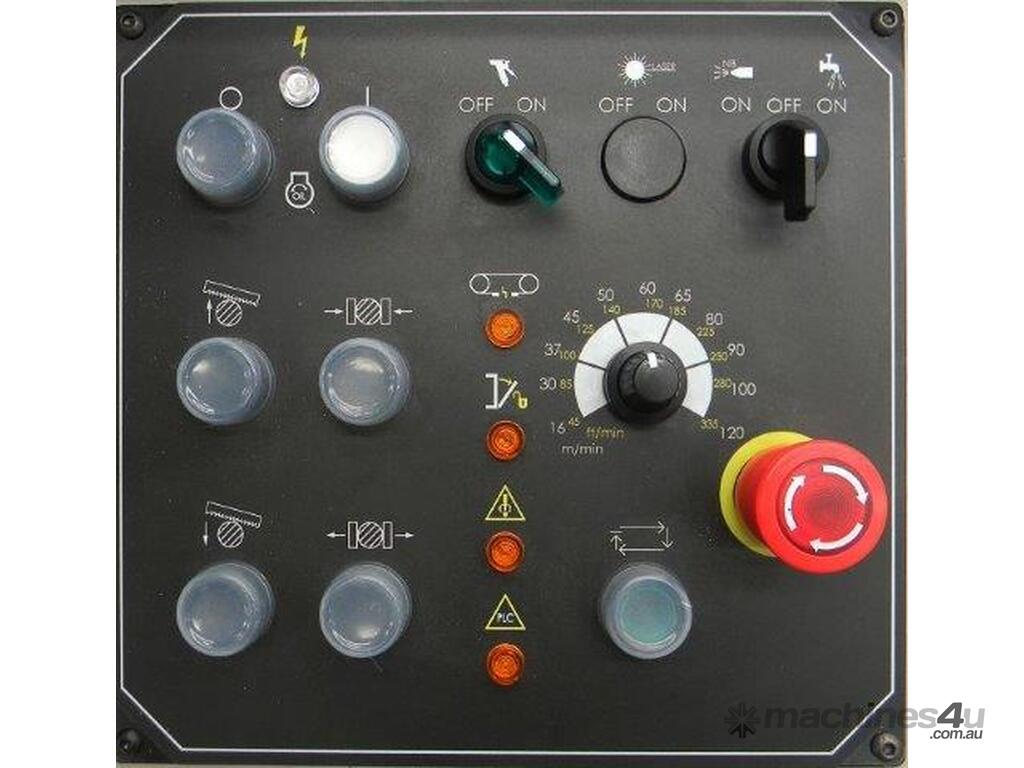

Semi-Automatic Operation:
- Streamlined controls for ease of use
- Infinitely Variable Cutting Speed adjustable range 16-120 m/min via inverter
- Infinitely Variable Down Feed allows precise adjustment for various materials
- DTI – Interrupted Cutting features a microswitch for intermittent cutting
- Blade Speed Regulator enables fine-tuning of blade speed

Advanced Blade Guides:
- Combines side bearings, carbide plates, and top bearings

Manual Positioning Vice:
- Hydraulic quick-action clamping for secure workpiece positioning

Heavy-Duty Machine Base:
- Fabricated for durability with a locking cabinet
- Dual Rollers on Infeed Side supports material loading for ease of handling

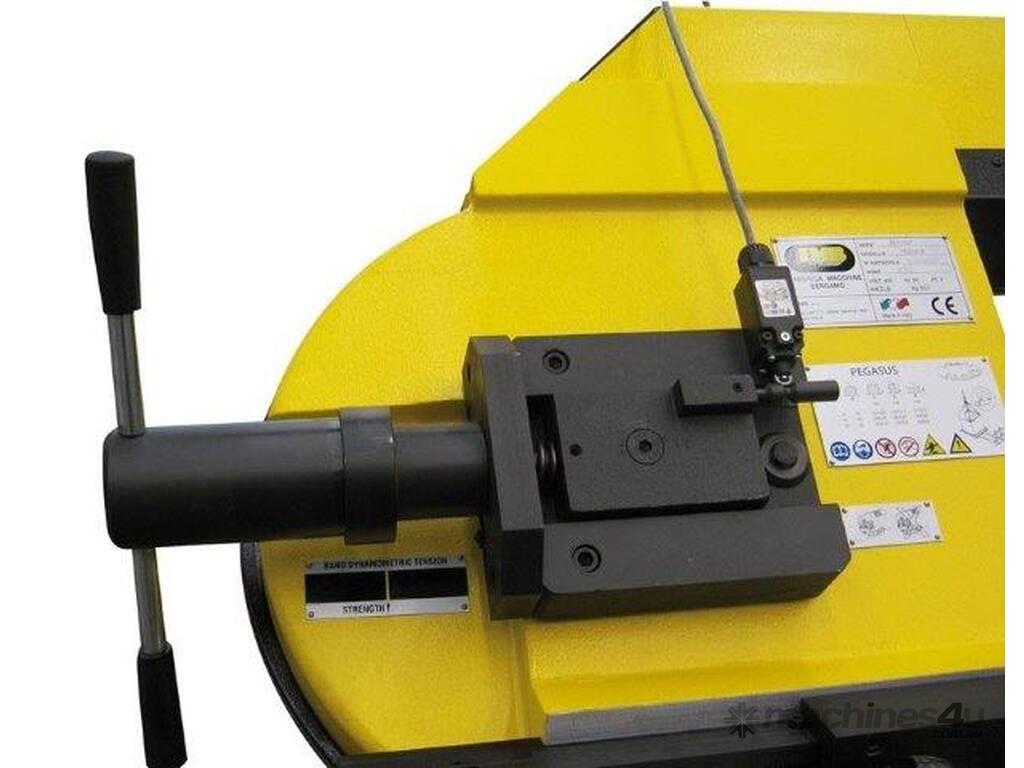

Mechanical Blade Tensioning:
- Ensures consistent blade tension and performance
- Broken Blade Detection automatically shuts down the machine to prevent damage
- Integrated Motorized Blade Cleaning Brush keeps blade clean for optimal cutting performance

Place Your Order:
Contact us today to place a factory order and enhance your cutting operations with the high-performance Olimpus range. Experience superior productivity and reliability with a machine designed to meet the highest standards.
