Semi Automatic Bandsaw Ø 330mm Single Mitre

Discover the FMB Hercules Semi-Automatic Bandsaw, expertly manufactured in Italy. Designed for exceptional durability and precision, this bandsaw features a heavy-duty welded frame and a broad selection of optional equipment to enhance your cutting process. Its impressive accuracy, large capacity, and pivoting saw head make the FMB Semi-Automatic Mitre Bandsaw an ideal choice for those who demand top-notch quality and performance.

Click here to download the Brochure

Key Features:

Maximum Cutting Capacity:

Accommodates round materials up to Ø 330mm and sections up to 330 x 510mm, ensuring versatility for various cutting needs.
Optional Bundle Cutting:

Capable of handling bundle sizes up to 200 x 480mm for efficient processing of multiple pieces.
Advanced Cast Bow:

Constructed with a three-part material structure combining aluminium alloy, steel, and cast iron. This design enhances rigidity and reduces blade flexing for precise cuts.
Wide 34 mm Blade:

Designed for optimized cutting performance, allowing for smooth and efficient operation.
Semi-Automatic Operation:

Streamlines the cutting process with user-friendly controls for improved efficiency.

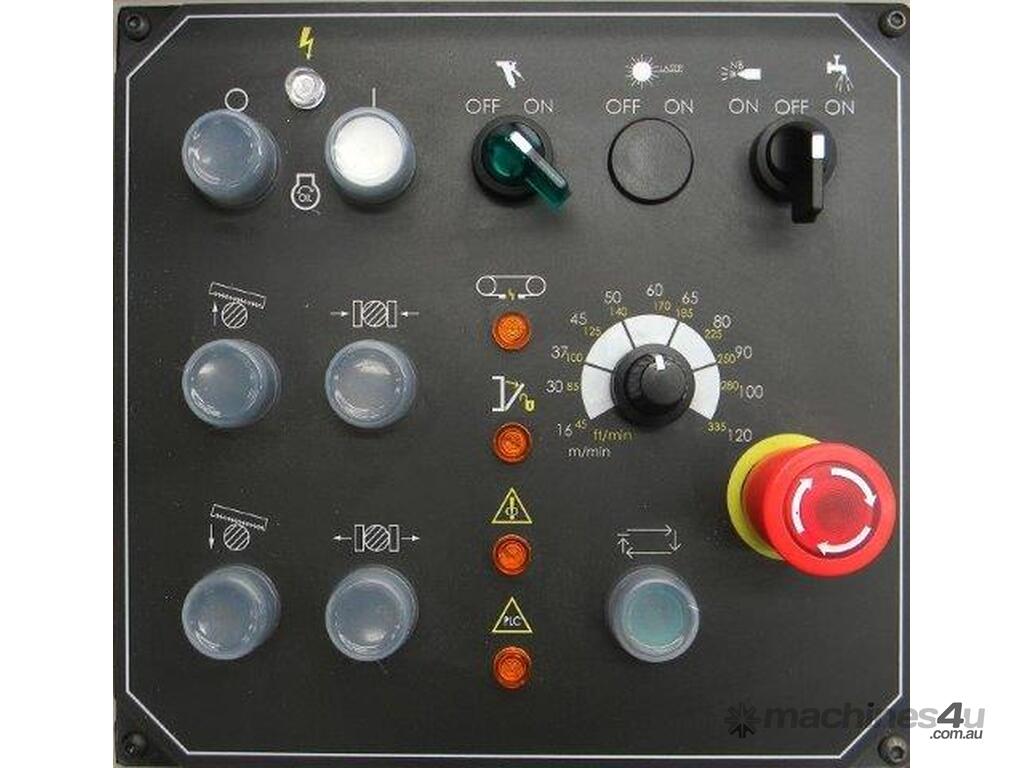

Variable Cutting Speed:

Features an inverter-controlled speed range of 16-120 m/min, allowing you to adjust cutting speed based on material requirements.
Adjustable Down Feed:

Offers infinitely variable down feed of the bow to accommodate different cutting tasks and materials.
DTI – Intermittent Cutting:

Equipped with a microswitch for interrupted cutting, enhancing operational flexibility.
Comprehensive Blade Guides:

Utilizes a combination of side bearings, carbide plates, and top bearings to ensure precise blade alignment and longevity.

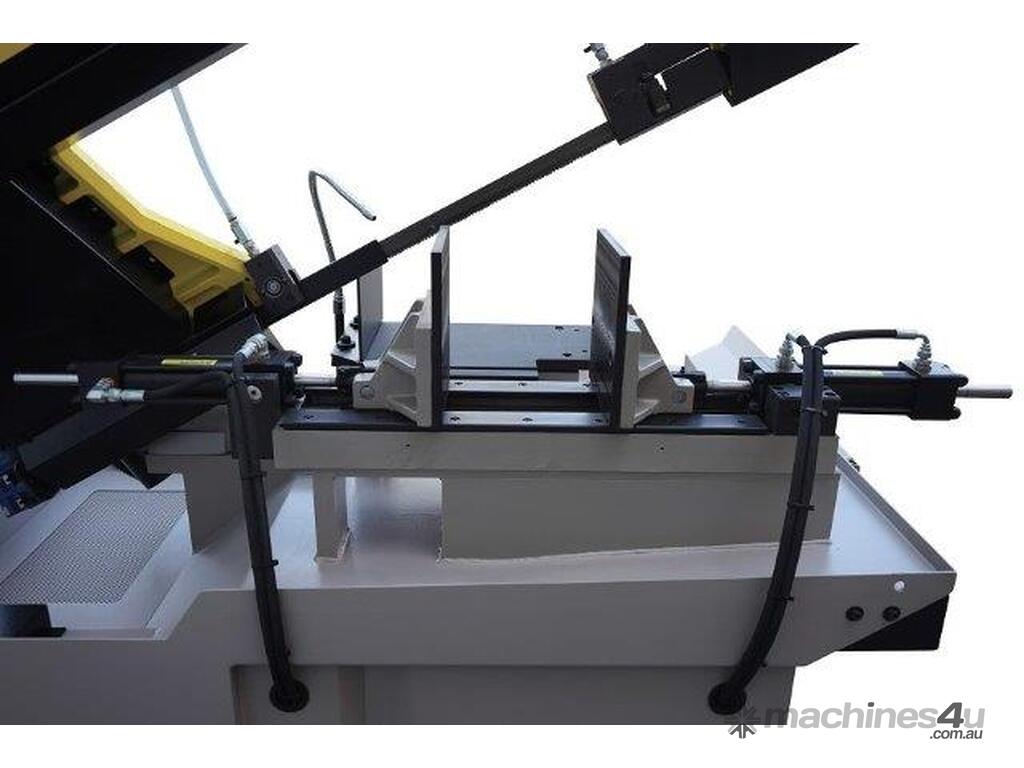

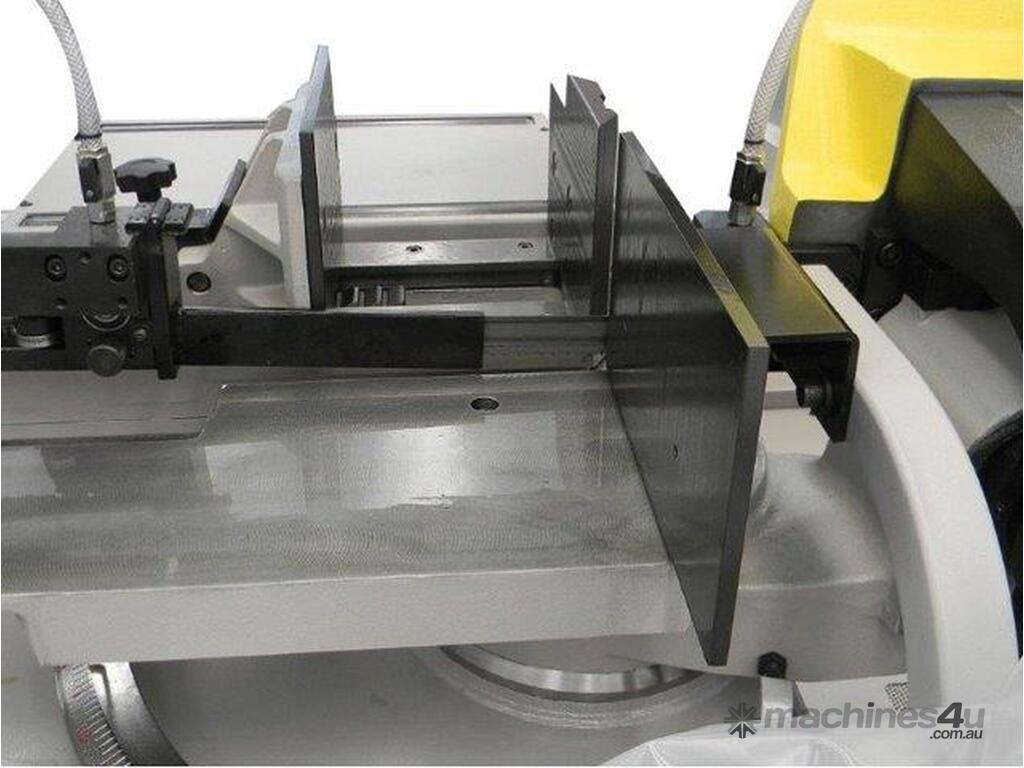

Manual Positioning Vice:

Features hydraulic quick-action clamping for secure and rapid positioning of workpieces.
Heavy-Duty Machine Base:

Constructed with a fabricated base and locking cabinet to provide stability and secure storage.
Mechanical Blade Tensioning:

Ensures proper blade tension for consistent cutting performance and extended blade life.
Automatic Blade Detection:

Detects broken blades and automatically shuts down the machine to prevent damage and ensure safety.
Integrated Blade Cleaning Brush:

Keeps the blade clean for optimal performance and reduced maintenance.

Place Your Order:
Contact us today to place a factory order and enhance your cutting operations with the high-performance Olimpus range. Experience superior productivity and reliability with a machine designed to meet the highest standards.
