Semi Automatic Bandsaw Ø 510 Double Column

Manufactured in Italy, the Olimpus range of FMB gear drive double column saws is designed for efficient cutting of heavy materials. These saws can handle hollow and solid bars up to Ø540mm (with the SHO option) and beams up to 450x750mm.

Key Features:

Precision Cutting:
- The saw head moves along large, centrally lubricated columns.
- The blade is inclined at a 5° angle to the material, reducing the number of teeth in contact at one time and enabling faster cutting of structural steel square tubes.

Versatile Operation:
- Cutting Capacity:
- Round: Ø 510mm
- Section: 450 x 750mm
- Optional Bundle Cutting:
- Packs up to 430 x 670mm

Advanced Mechanics:

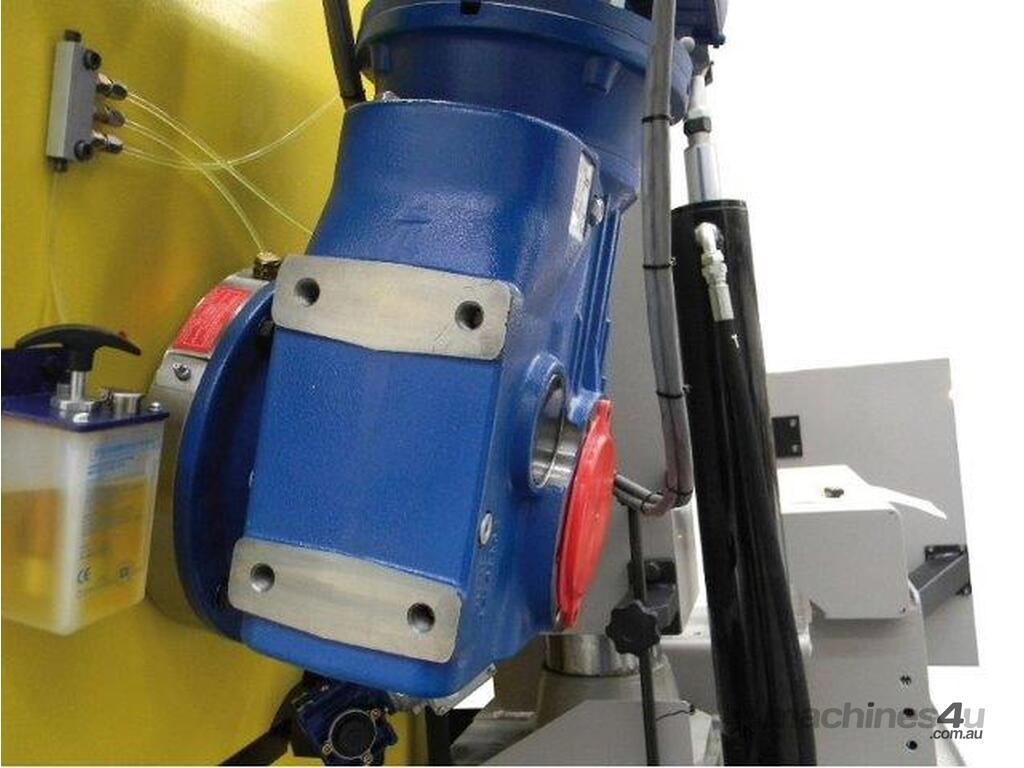

- Gearbox with hardened, ground gears, lubricated with long-lasting grease.
- Large 41 mm wide blade for optimized cutting.
- Infinitely variable cutting speed (16-120 m/min) via inverter.
- Infinitely variable downfeed of the bow through centrally lubricated chrome columns.

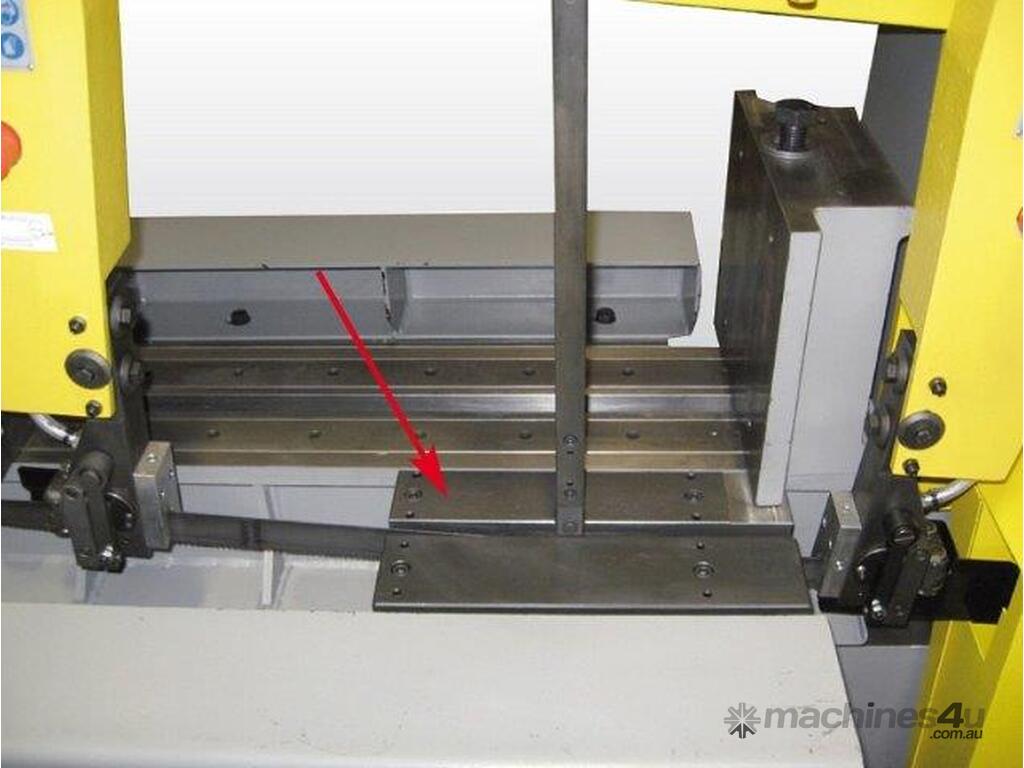

- Hydraulic vice with mechanical movement and wear-resistant jaws.

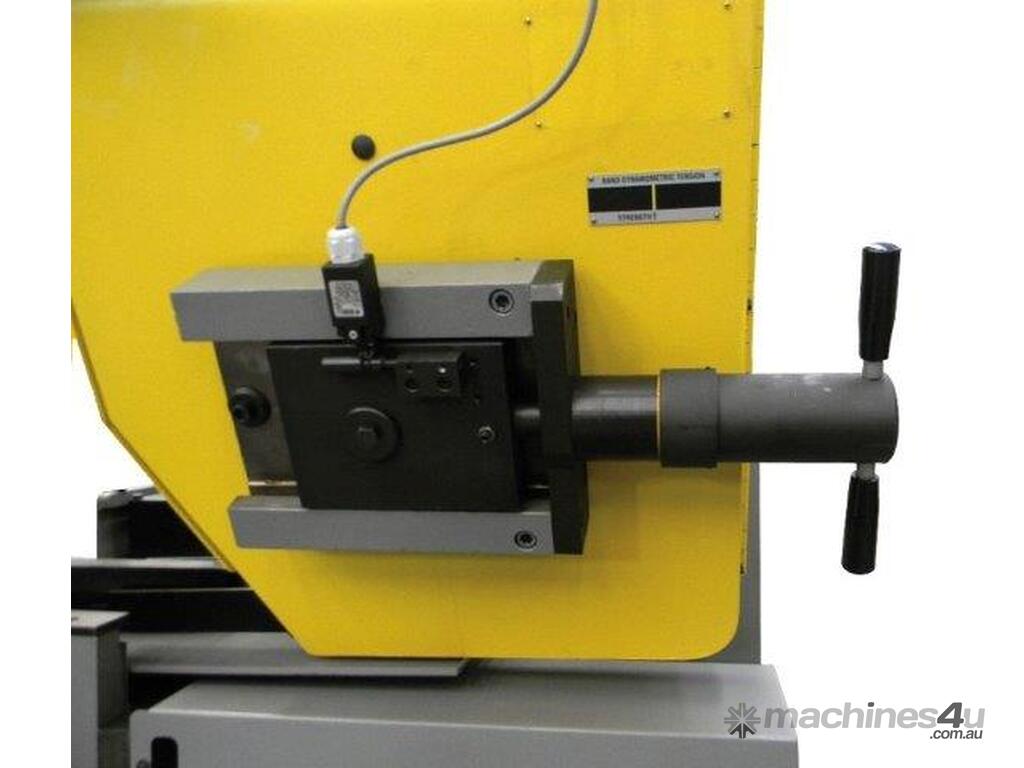

- Mechanical blade tensioning and automatic shutdown for broken blade detection.

Enhanced Durability:
- Durable work areas on both loading and unloading sides.
- Sturdy support surface for easy material loading.
- Heavy-duty fabricated machine base.

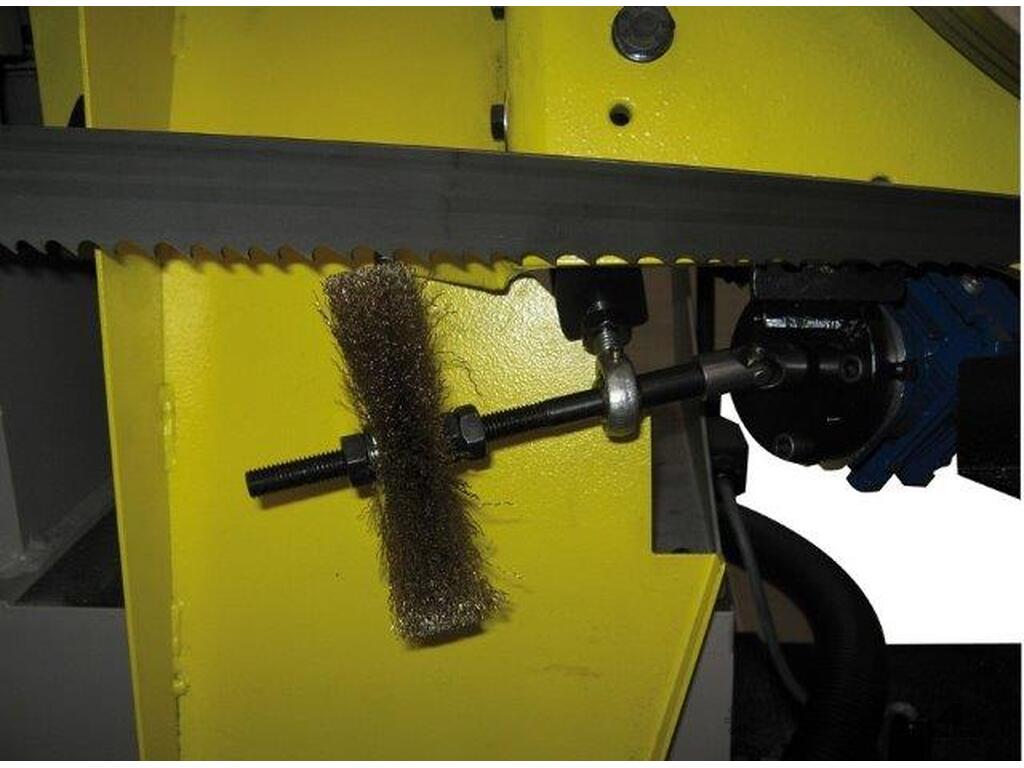

- Integrated motorized blade cleaning brush.

The Olimpus bandsaw is user-friendly and can be combined with material handling equipment to boost productivity.

Place Your Order:
Contact us today to place a factory order and enhance your cutting operations with the high-performance Olimpus range. Experience superior productivity and reliability with a machine designed to meet the highest standards.
