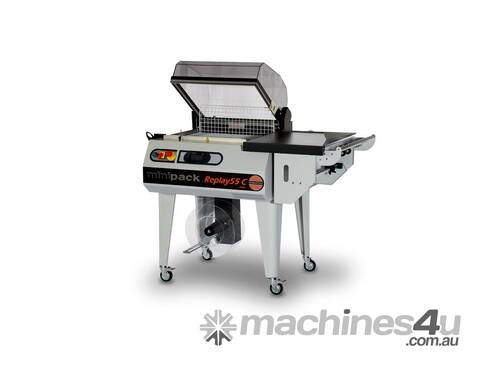

Semi Automatic Shrink Wrapping Machine: Replay 55 Evo (PLC)

Seals and Shrinks In One Operation

Sealing Bar Dimensions: 540mm X 390mm

SEMI AUTOMATIC SHRINK WRAPPING MACHINE

Ultra performing steel heating elements: reduces shrinking time by 50% and heating time by 60%
Soft Shrink fan speed adjustment: perfect heat-shrinking even in case of very light or flexible products. Sealing do not open. Very low noise decibels. Exclusive patent
Comfort Zone Fan Stop: the fan stop is a “green” solution for energy savings (20%) and greater operator comfort during packaging, since the fan stops at the same time as the opening of the hood
New, latest-generation card: quality components. 4-digit screen
Cooling of sealing bars: increased productivity and improved sealing
Hood automation: increased productivity

PLC

The graphic touch-screen control panel has an user friendly menu in 8 different languages, with 10 easy to- manage storable programs to meet all programming needs.
The LCD 3.4” display offers visibility and comprehensive information.
The USB communication port allows immediate software updating in the event of maintenance operations.
Possibility of “automatic” working cycle (processing cycles in sequence and programmable pause interval) or “manual” (individual working cycle).
The control logic is managed by a Schneider Electric PLC, with capillary service and components that can be procured practically everywhere.
The PLC can be accessed through a hatch on the front for easier maintenance.

Optional Features
Stainless steel packaging plate
Smoke intake
Blowing unit
High hood 300 mm
Film re winder
Film opening sheet metal
2nd reel support
2nd bench reel support

MACHINE SPECIFICATIONS
Power Supply 415 v
Phase 3ph
Power Max 3.8 kw
Max Output 0-500 p/h (pph)
Max Product Dimensions 500x380x200mm
Max Film Roll Dimensions (Diameter) 250mm
Max Film Roll Dimensions (Width) 600mm
Working Plate Height 925mm
Machine Dimensions with Open Hood 1260x810x1310mm
Machine Dimensions with Closed Hood 1260x810x1165mm
Packed Machine Dimensions 1520x1140x880mm
Machine Weight (Net/Gross) 142/166kg
