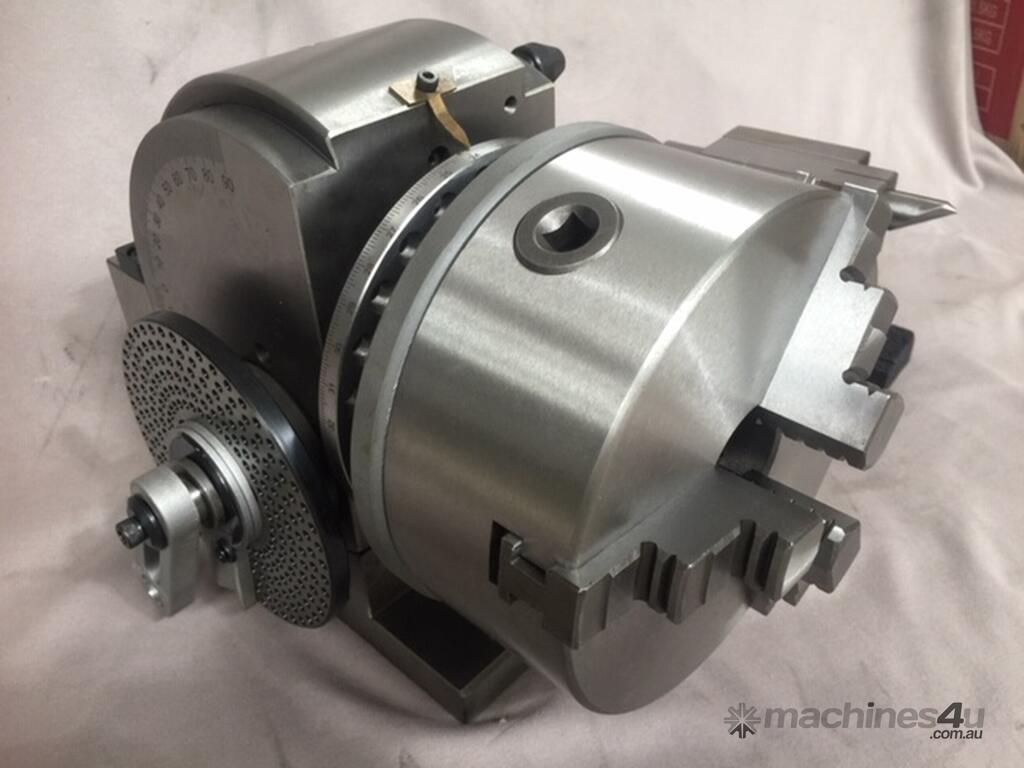

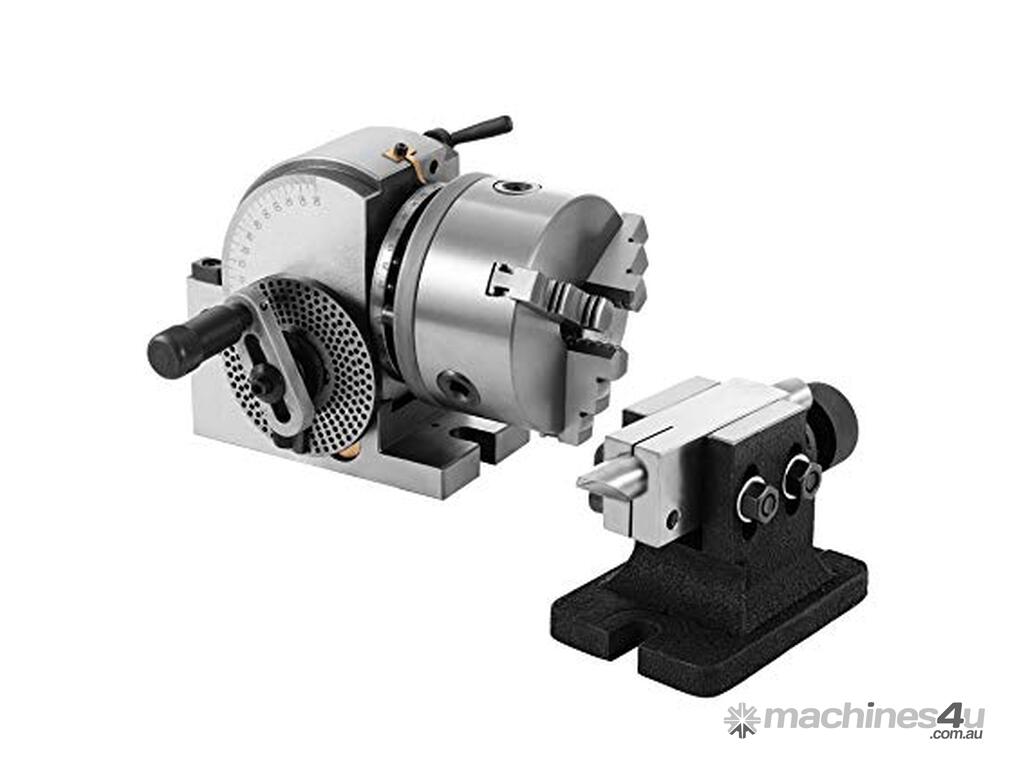

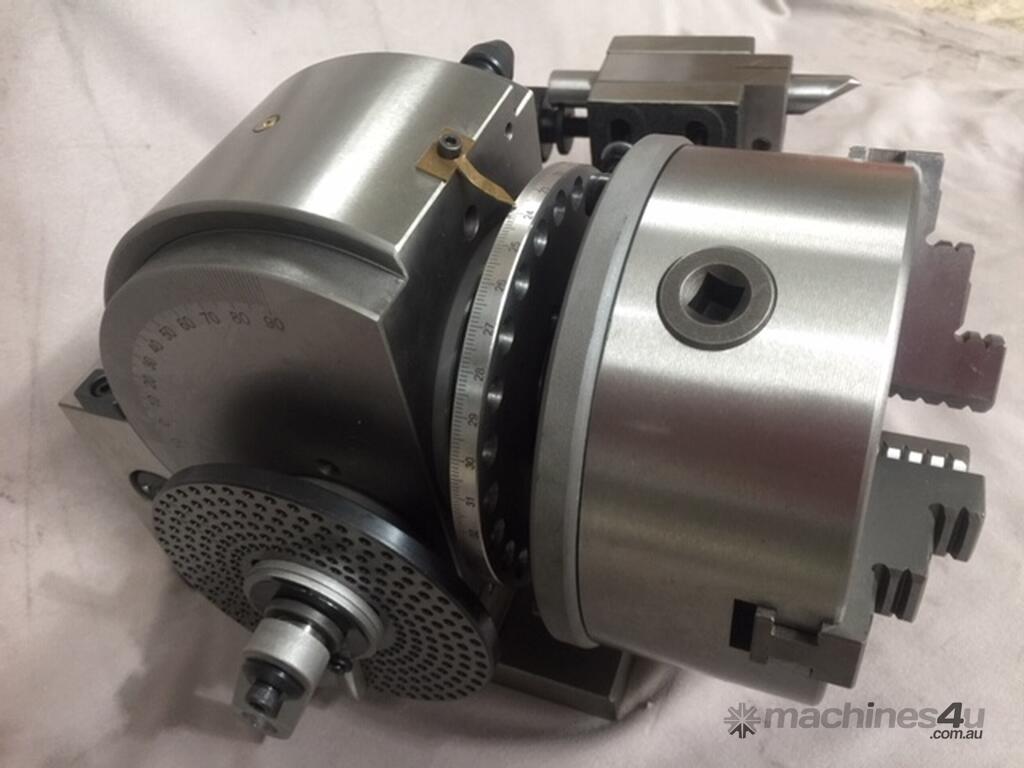

Semi Universal Dividing Head BS-1, Comes With 6" with 160mm 3 Jaw Chuck.

Description:
Dividing Head is a tool that is used to divide a circle into equal spacers.
The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other.

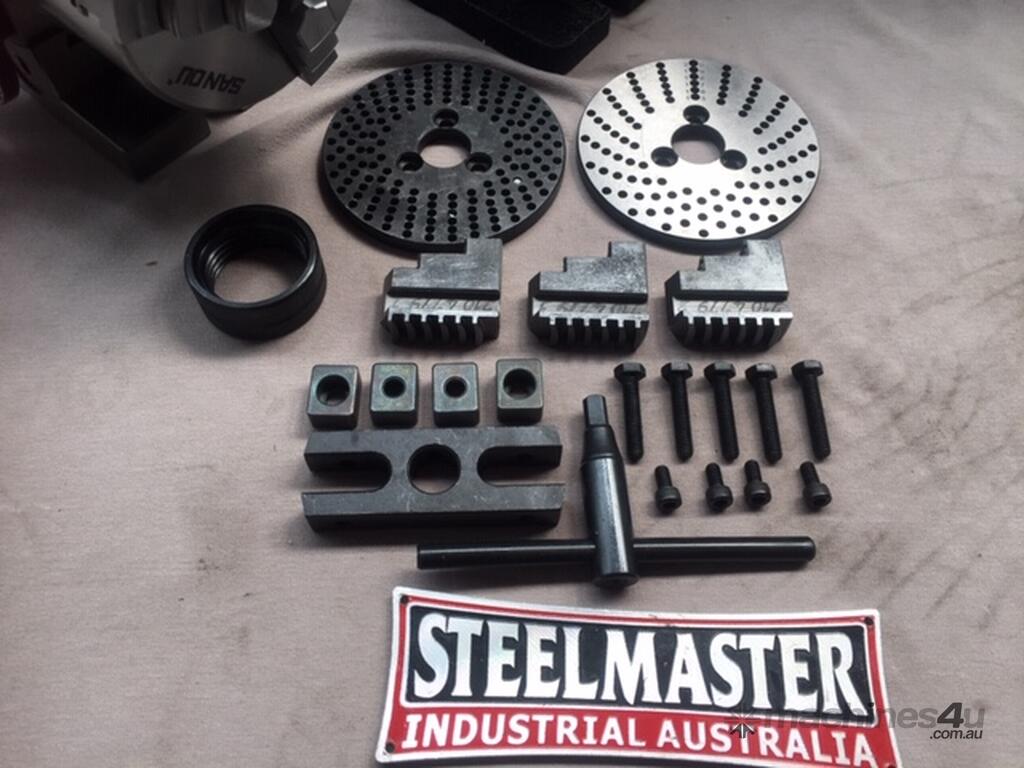

Feature packed with the following accessories

- 3 Jaw Chuck 160 mm
- Spare jaws
- Tail stock
- chuck key

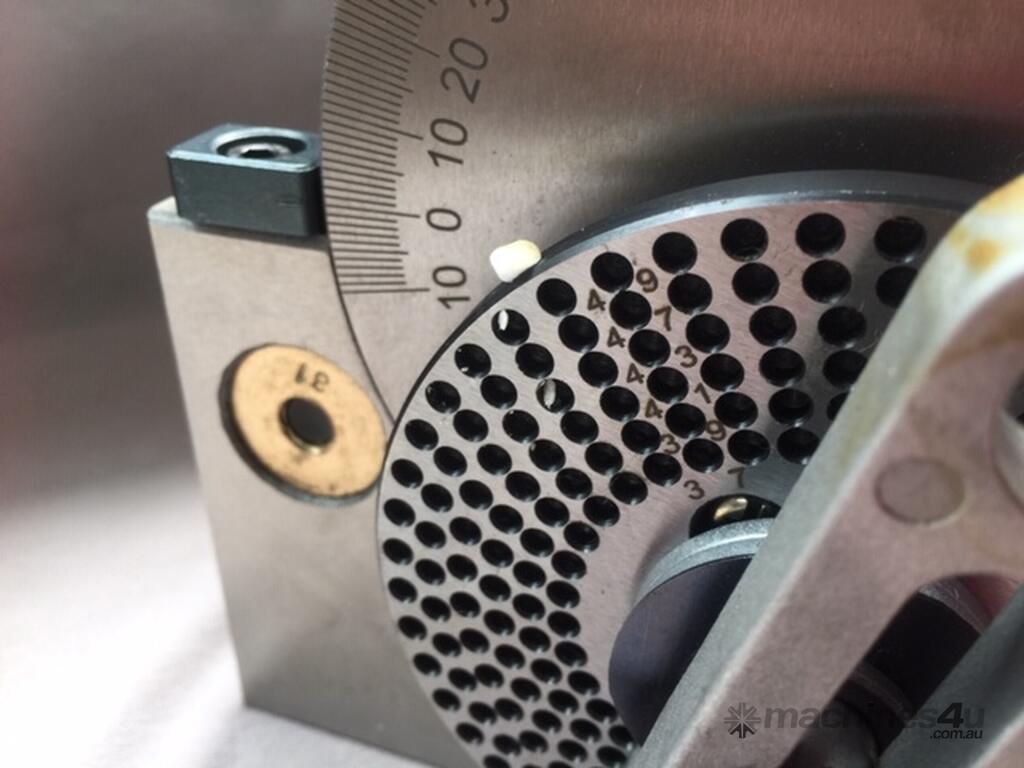

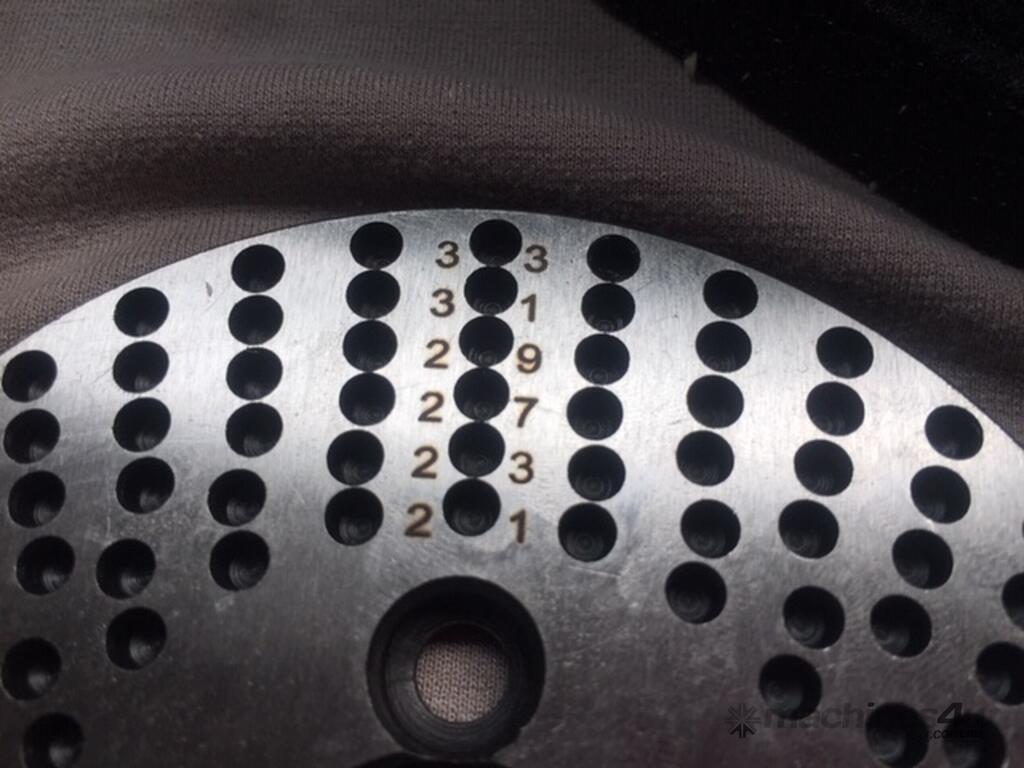

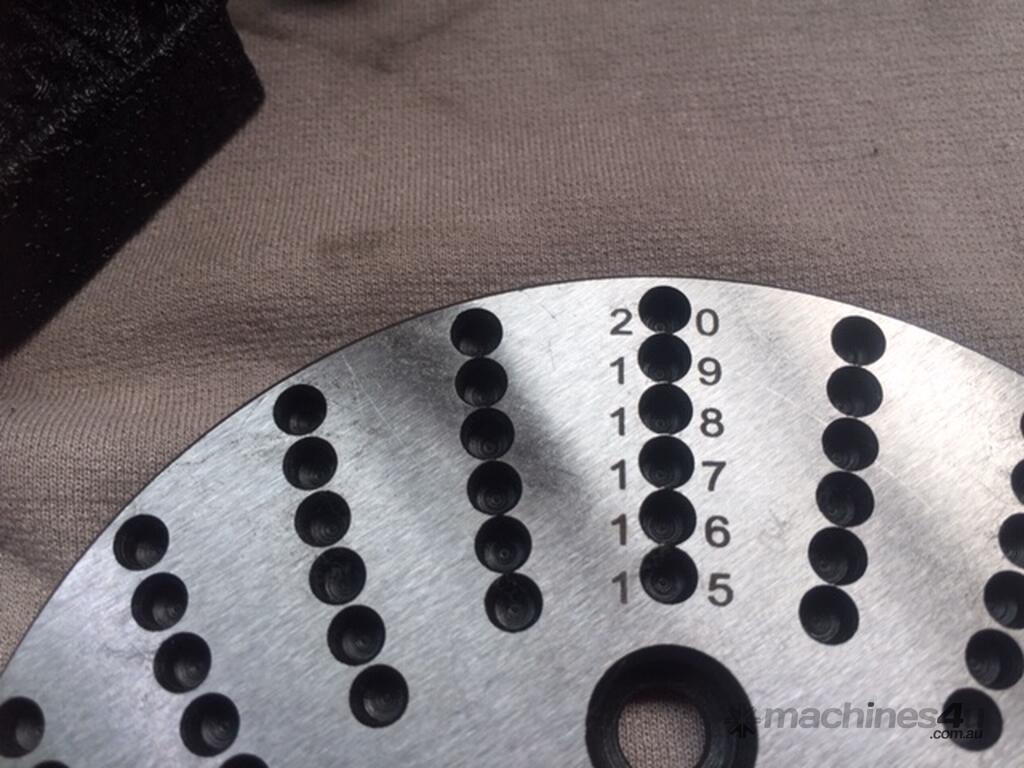

- 2 x dividing plates

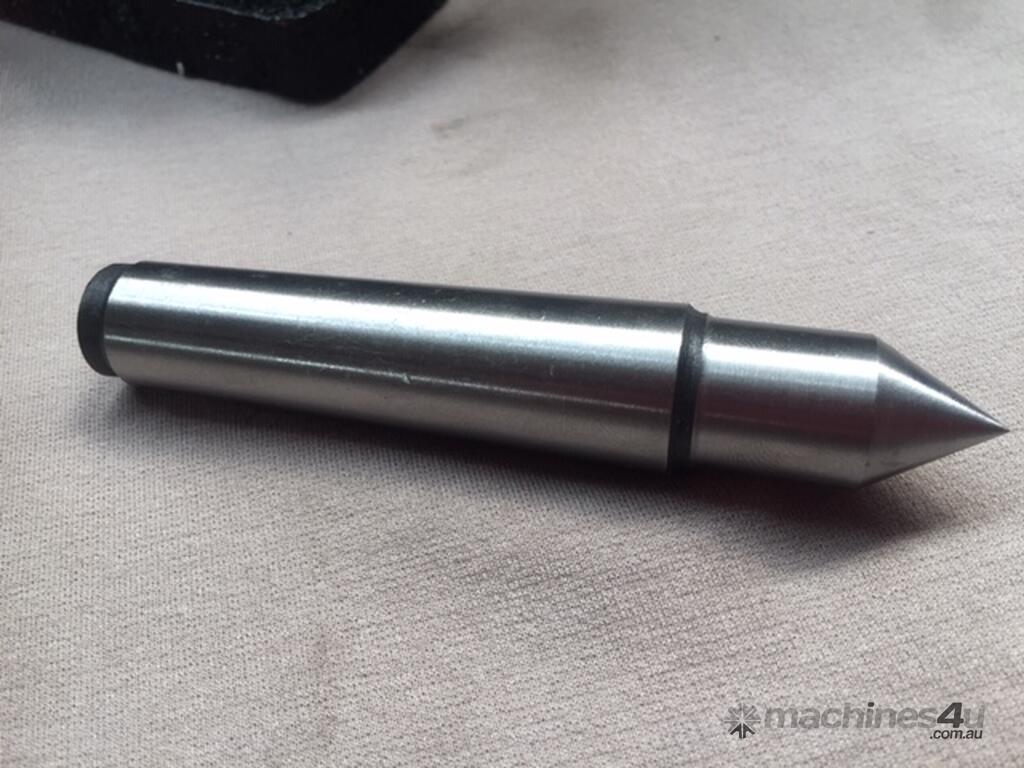

- Dead centre
- Drive dog

FEATURES :
- Hardened and ground spindle rigidly held between taper roller bearings
- Improved design for a more accurate chuck mount
- The head can be swiveled from 10º below horizontal to 90º vertical
- Designed to carry out all types of gear cutting, precision dividing
- Slotted base on dividing head & tail-stock for use with key steel to align quickly on machine


Specifications:
Dividing head:
- Taper 3 mt
- Bore 20 mm
- Overall length 293 mm
- Overall width 156 mm
- Height 220 mm

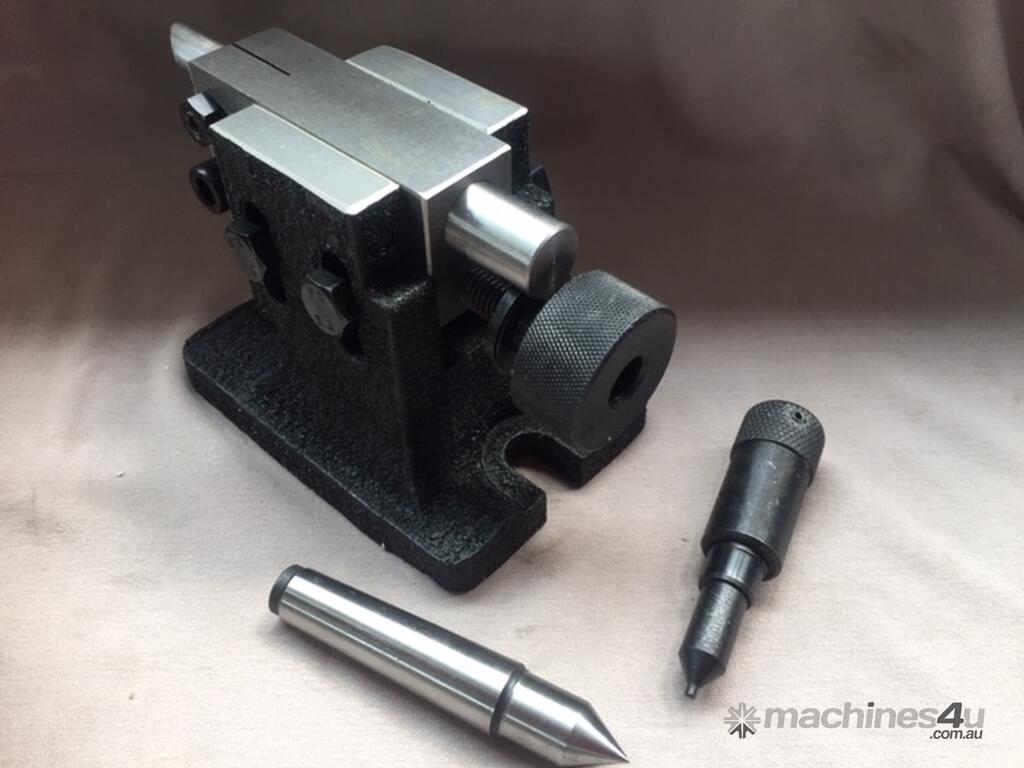

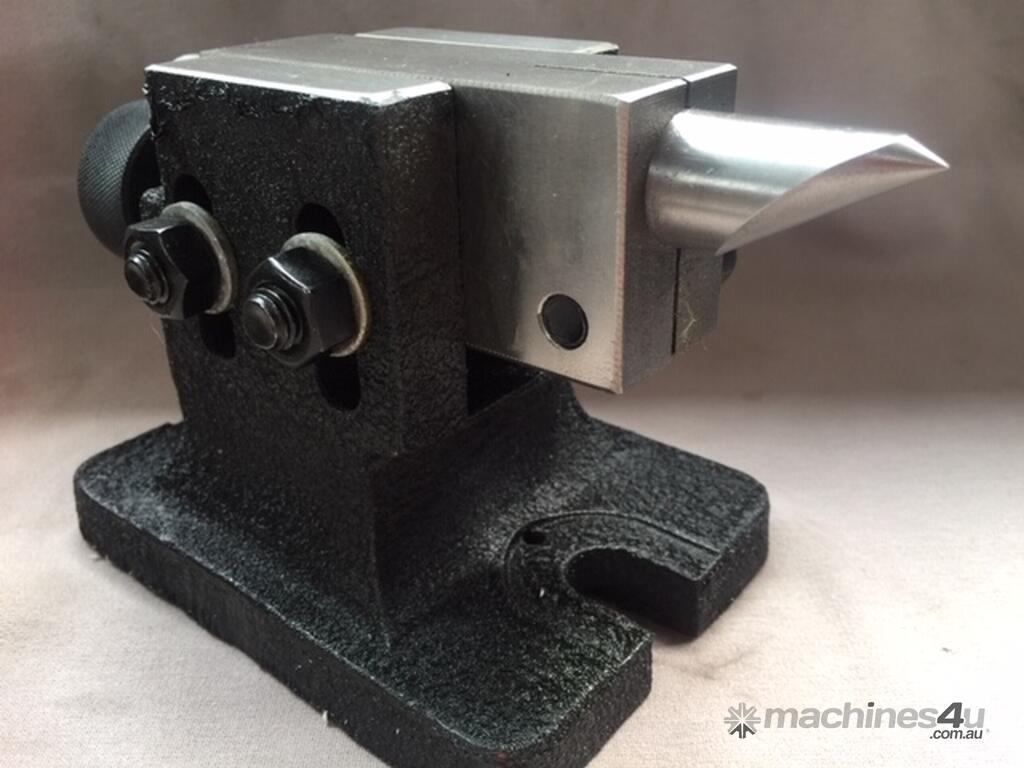

Tail-stock
- Top length of tail-stock 191mm
- Bottom of tail-stock 150mm
- height to pin 128mm
- Overall height 137mm
- Top Width 88mm
- Bottom width 108mm
- Overall weight 38kg

- product ordering code: 13+0063
