Semi Universal Dividing Head, Comes With 3-4 Jaw Chucks 100mm.

Name: Semi Universal Dividing Head Comes With 3-4 Jaw Chucks 100mm
Brand: steelmaster
SKU: 13-0061
Price: 799 AUD
Availability: InStock

DANDENONG SOUTH, VIC - Delivers Nationally

$799 AUD($879 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Universal Mills

Make:

STEELMASTER

No. in Stock

Year:

2024

Member Since: Sep 2012

Gold Member

Listings: 302

Part Number:

13+0061

Sellers stock ID:

13+0061

Description

Dividing Head is a tool that is used to divide a circle into equal spacers.
The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other.

Set comes with the following parts.

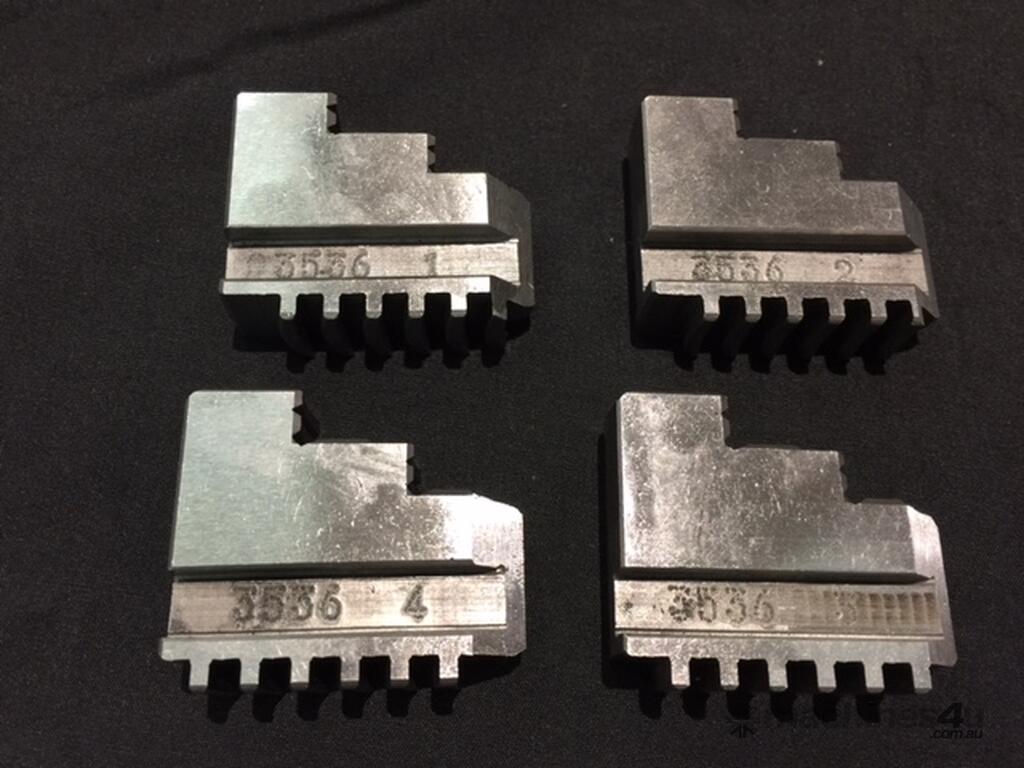

• Spare jaws

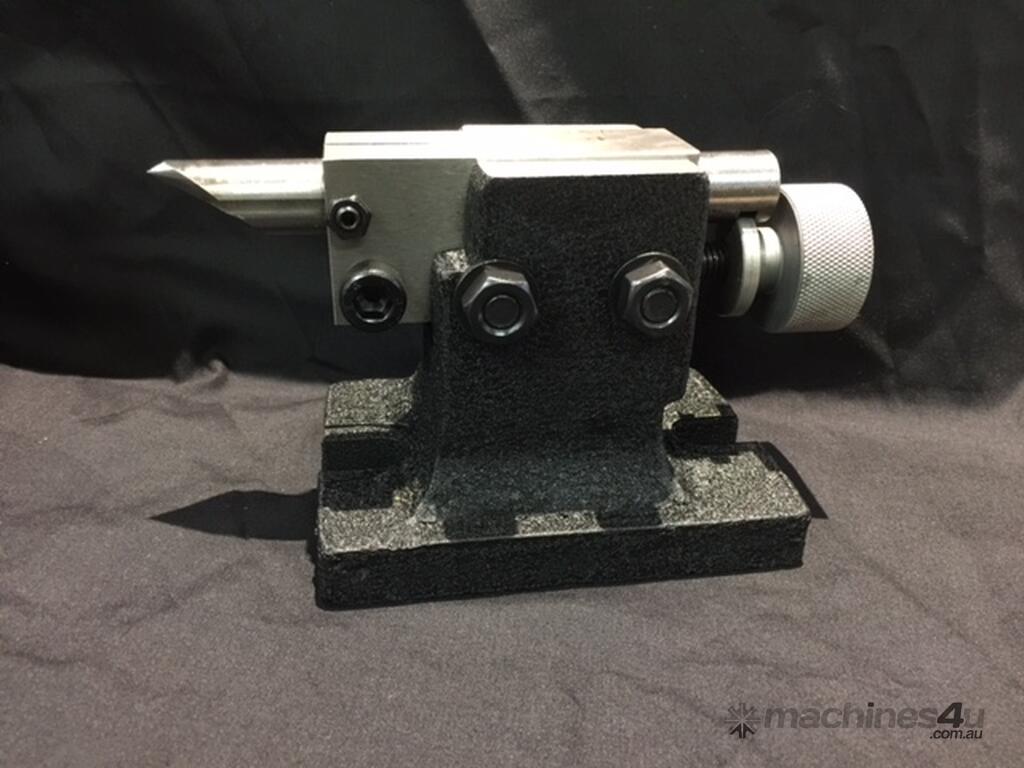

• Tail stock

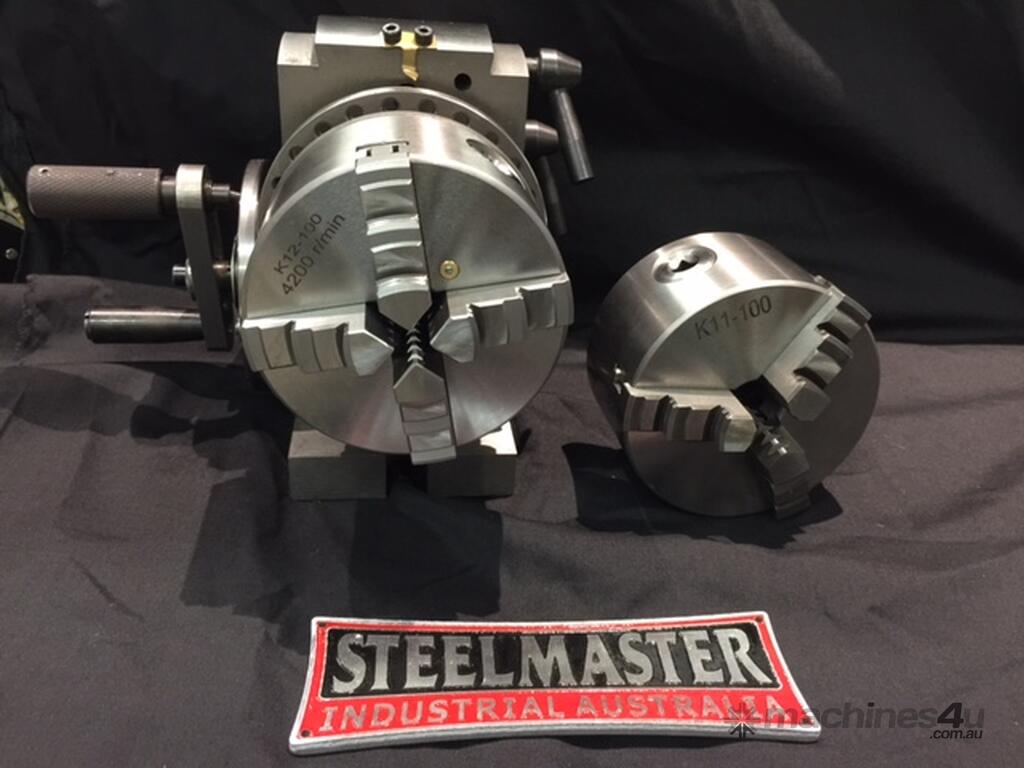

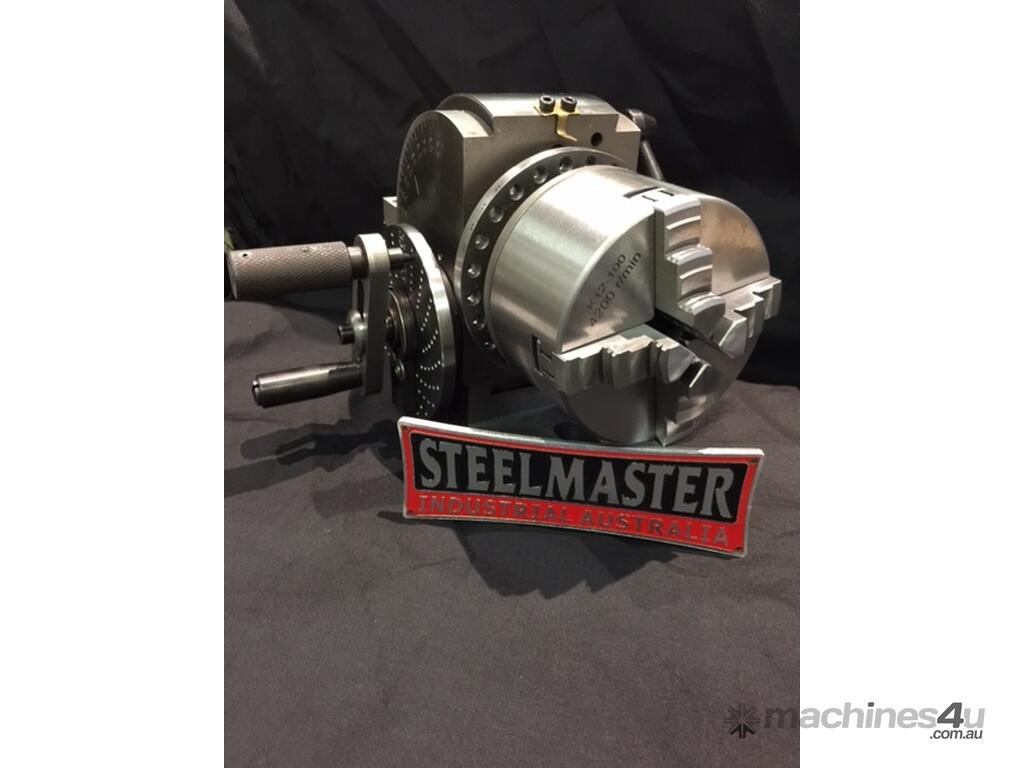

• 4 jaw Chuck 100 mm

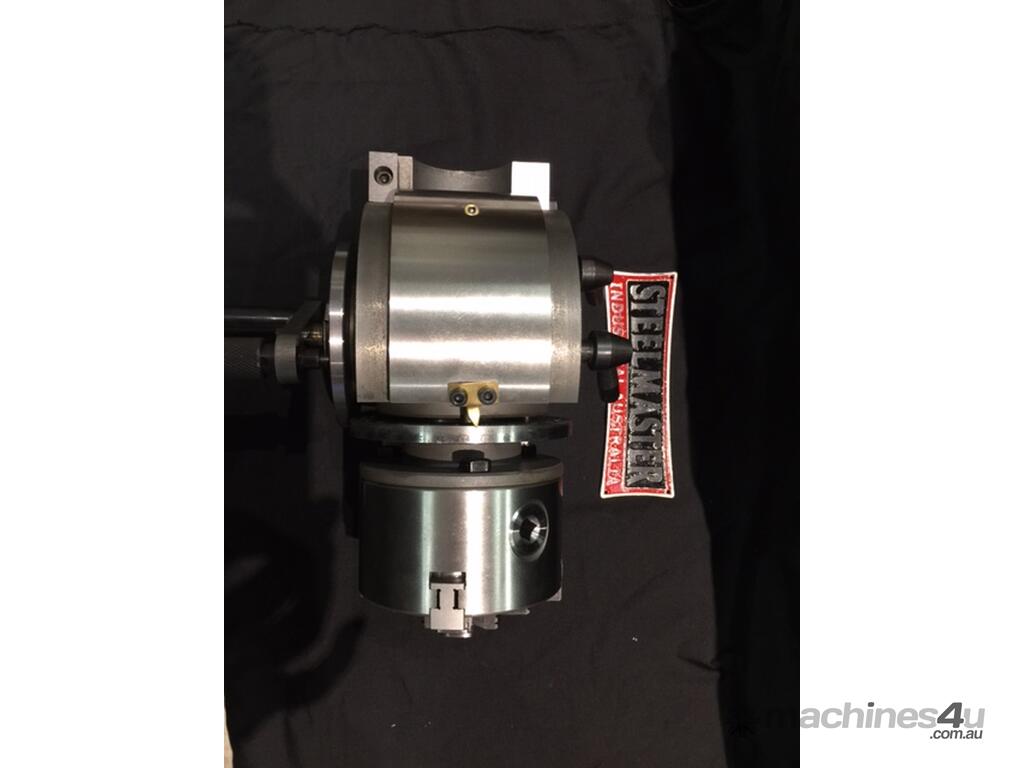

• 3 Jaw Chuck 100 mm
• 2 chuck keys
• Rotary Table

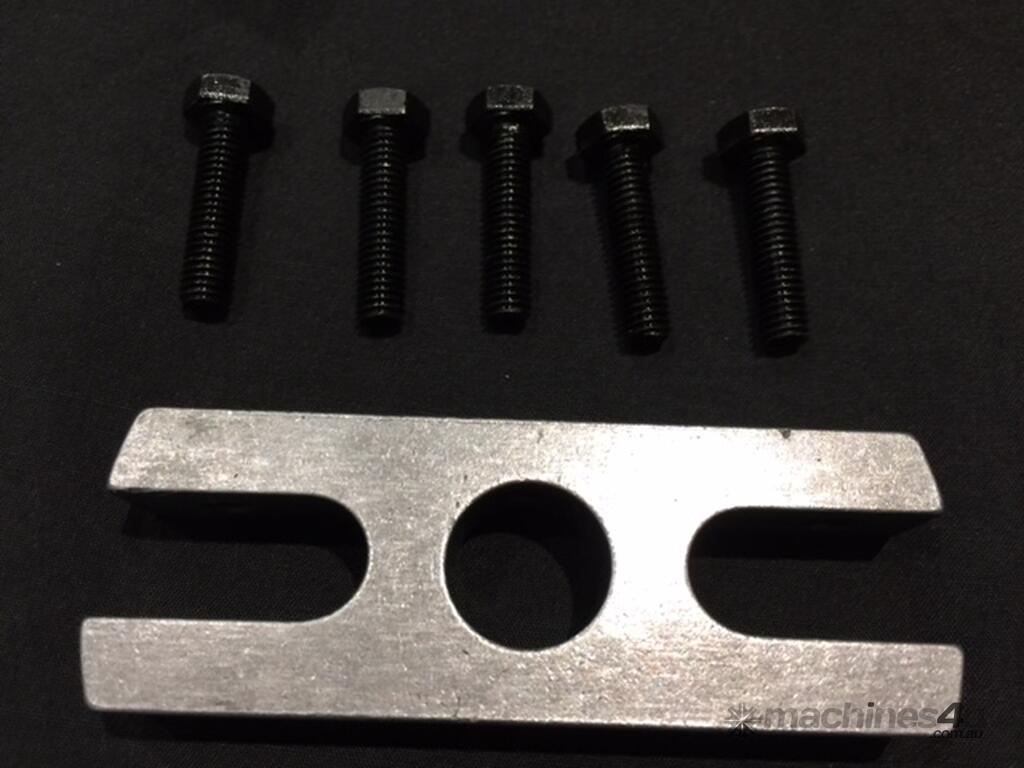

• Plus a few more spares
• Dead centre
• Drive dog

FEATURES :

• Hardened and ground spindle rigidly held between taper roller bearings
• Improved design for a more accurate chuck mount

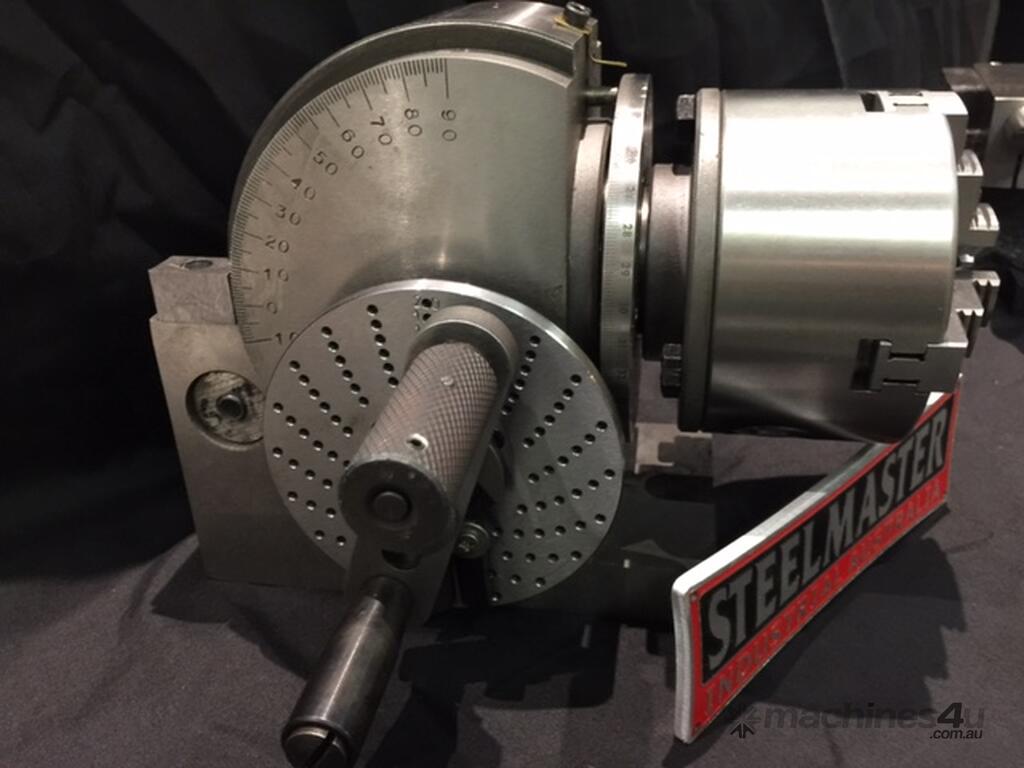

• The head can be swivelled from 10º below horizontal to 90º vertical
• Designed to carry out all types of gear cutting, precision dividing
• Slotted base on dividing head & tailstock for use with key steel to align quickly on machine
