Seppi MIDIFORST drago discharge forestry mulcher with collection into trailer

Seppi MIDIFORST drago

discharge forestry mulcher with collection into trailer 100-190 HP
Would you like to use the mulch ejected by the tree shredder? Do you need to keep the ground clean? Whatever the reason, if you need to collect the mulch from your soil, here is the solution!

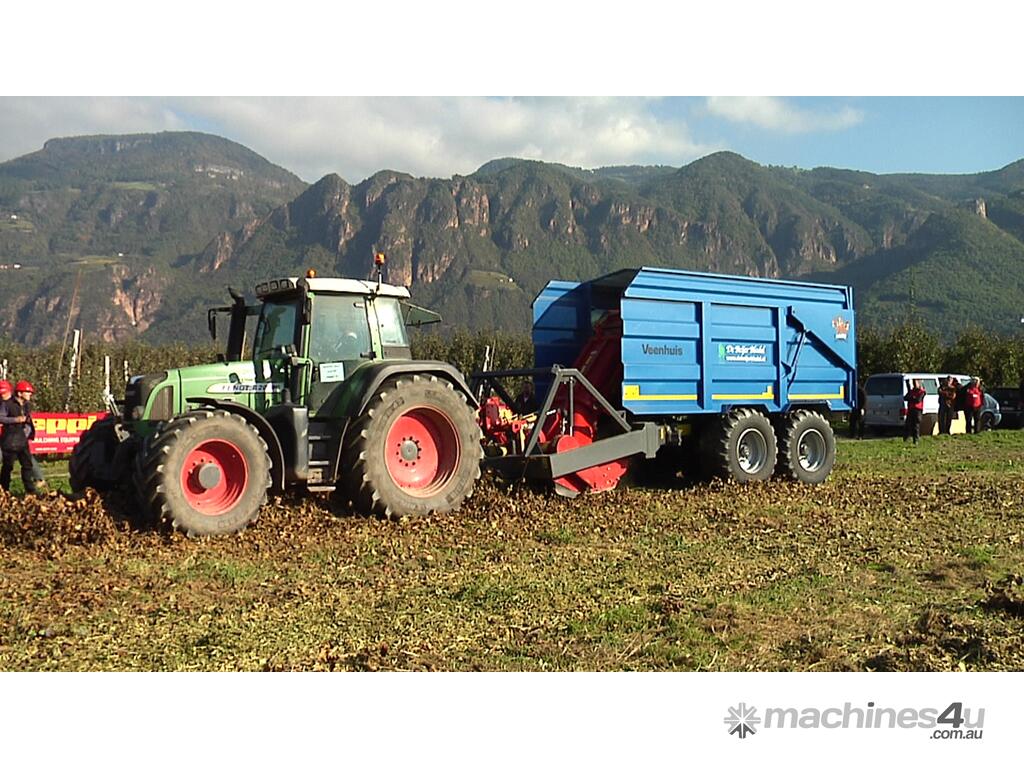

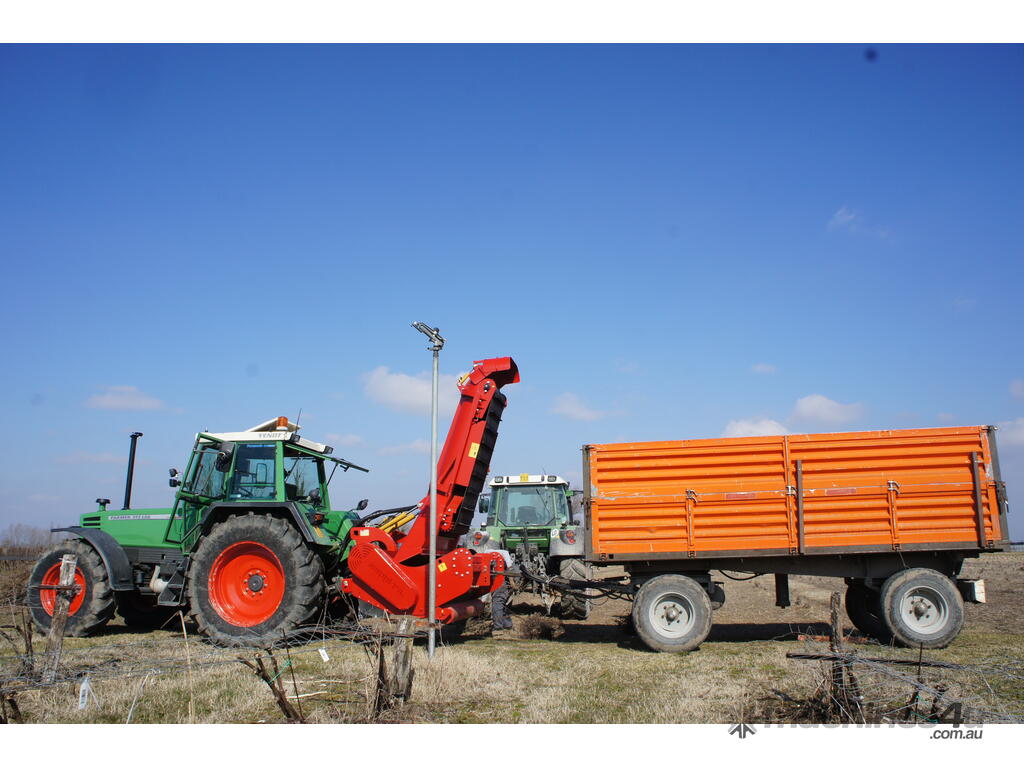

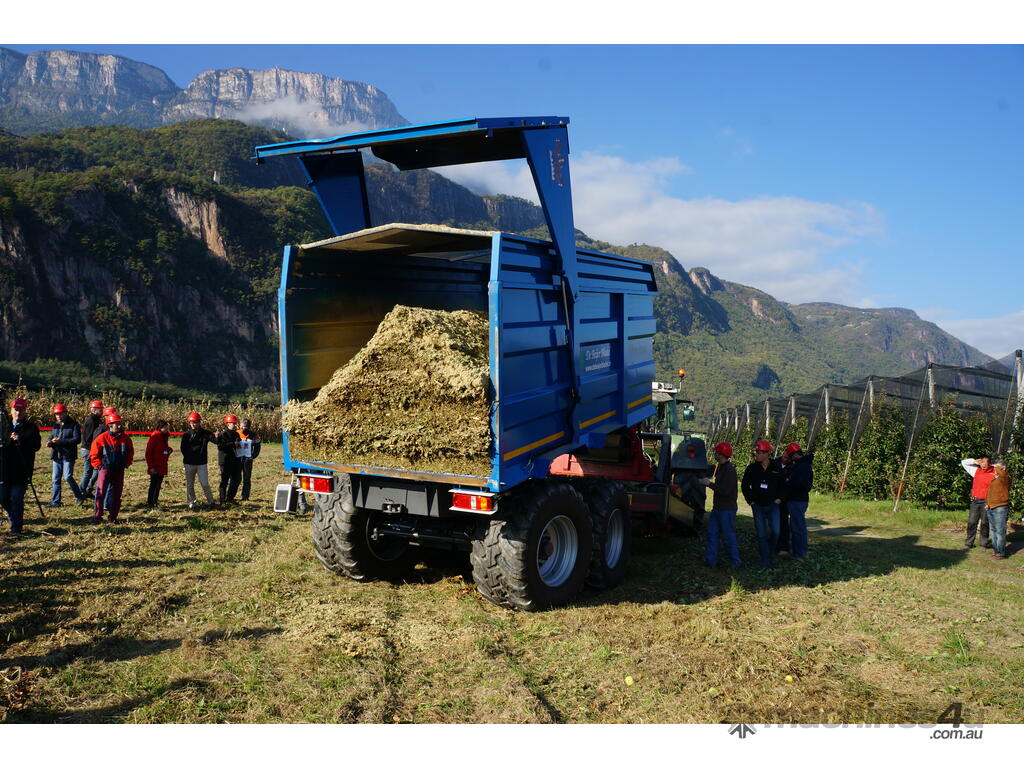

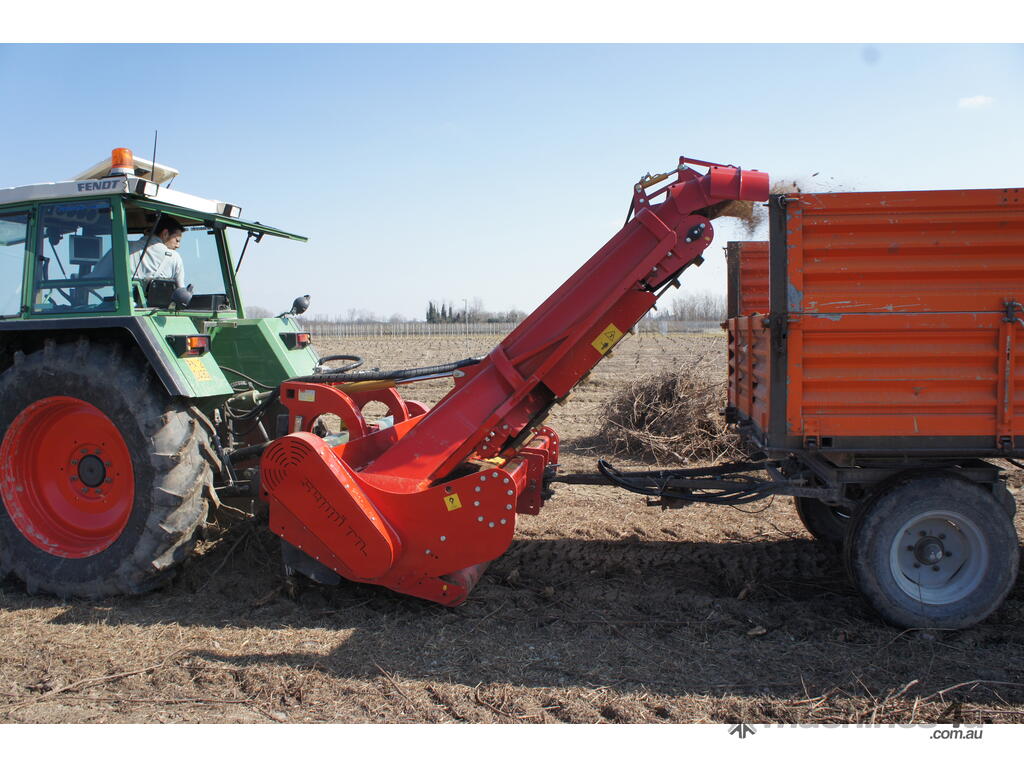

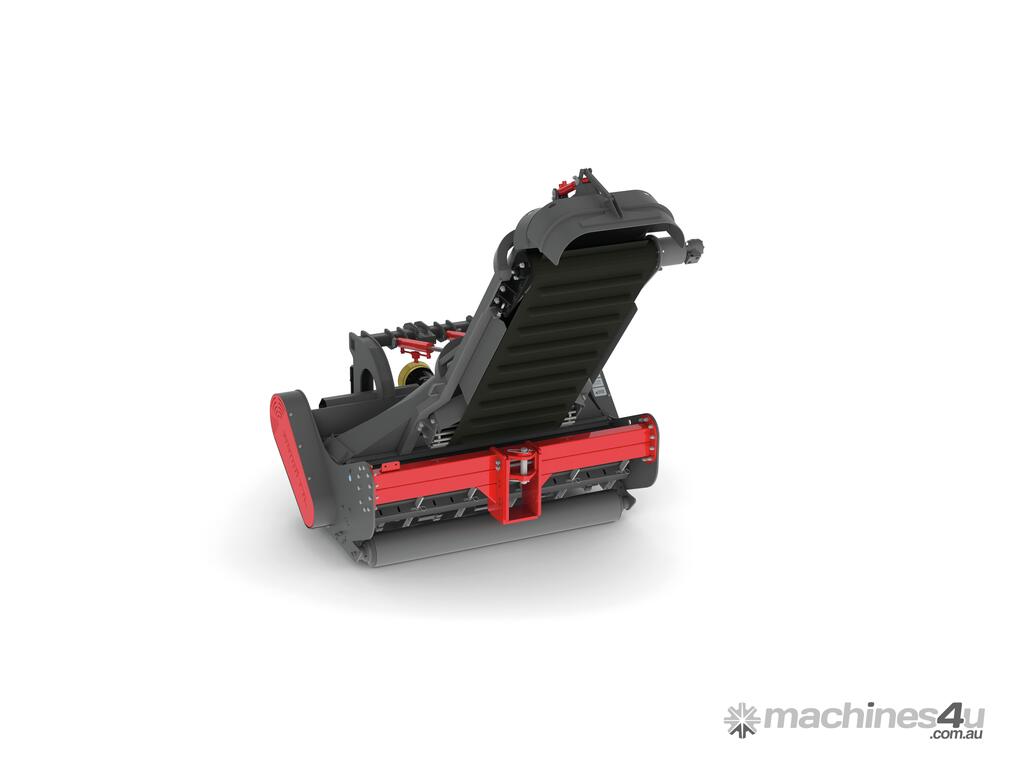

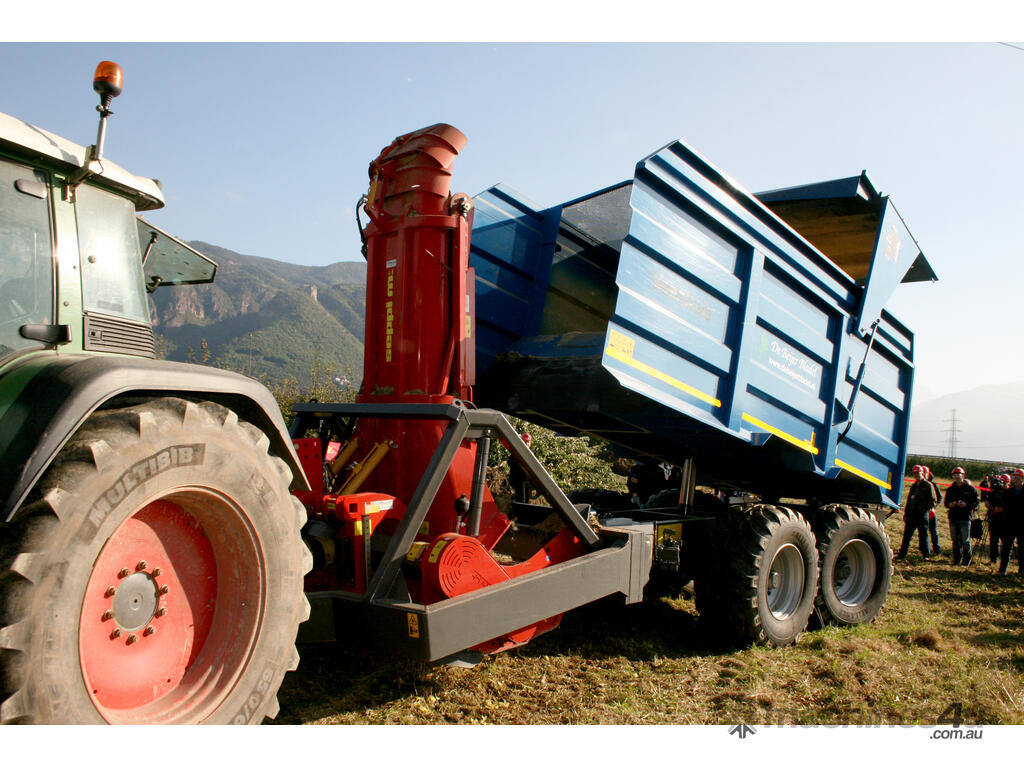

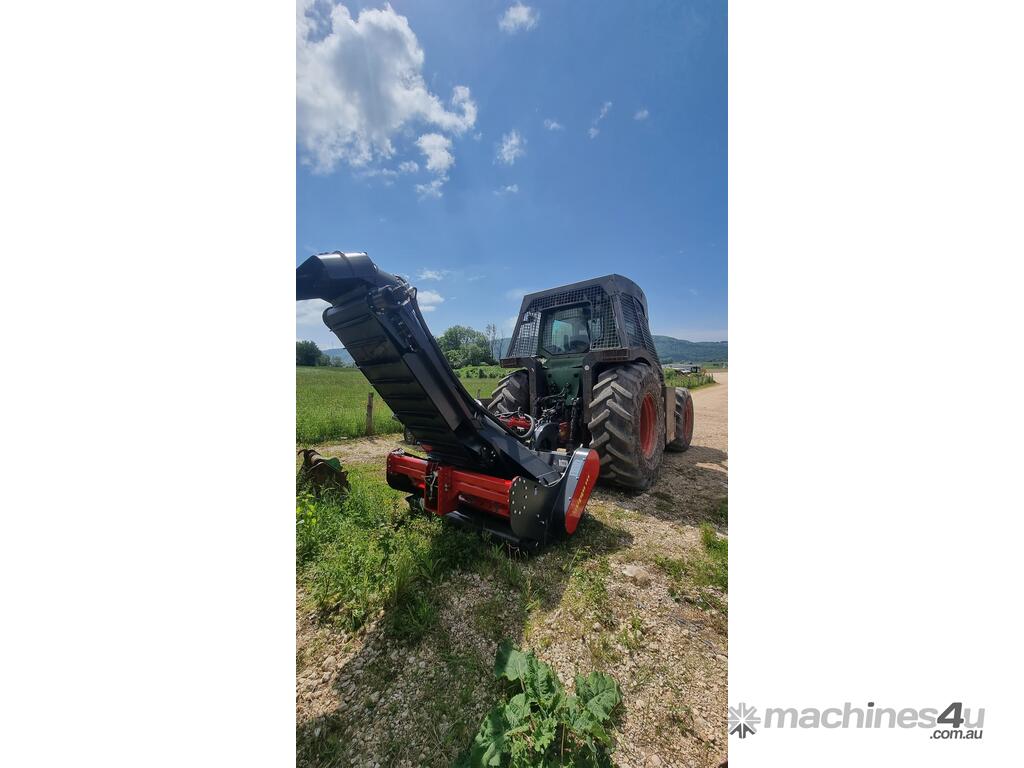

The mulched material is taken by a conveyer belt up the chute and can then be collected and carted away in a trailer, leaving the soil clear of material. The MIDIFORST drago mulcher collects wood up to 15 cm [6“] from the forest floor for further use. As well as wood various other materials such as grass, leaves and biodegradable waste can be mulched and collected. Aerodynamic chute transports dry and also wet material in large quantities to the top for efficient discharge. The chute is with hydraulic folding, also the chute deflector is hydraulicaly adjustable. Wear-resistant conveyor belt for high discharge. 4 staggered rows of counterknives inside the casing will give a perfect result when mulching.

MIDIFORST Drago has a draw bar for attachment of a trailer.

Productivity 30-60 m3/h [39 – 78 yd³/h] by typical applications.

Available working width: 200 cm [79?]

STANDARD VERSION

Collection of material for energy production

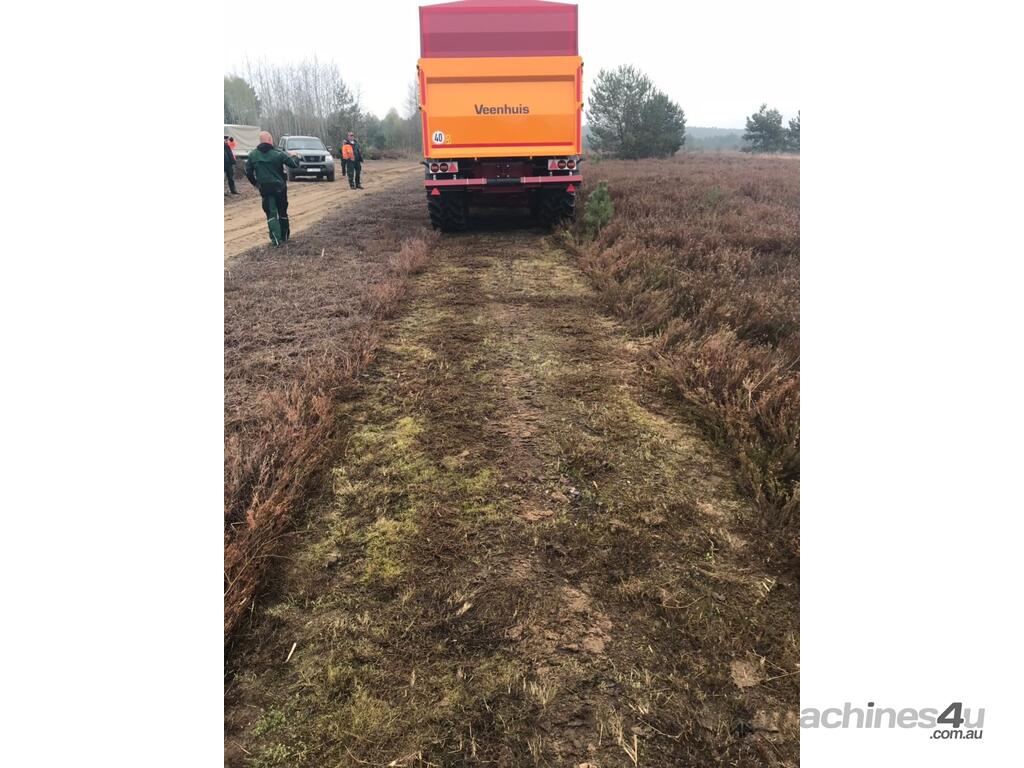

Clearing of site for replanting
Collection of biomass for composting
Environmental clearing in urban areas

STANDARD VERSION

Mulches wood up to 15 cm [6”] Ø
With chute for material collection into trailer

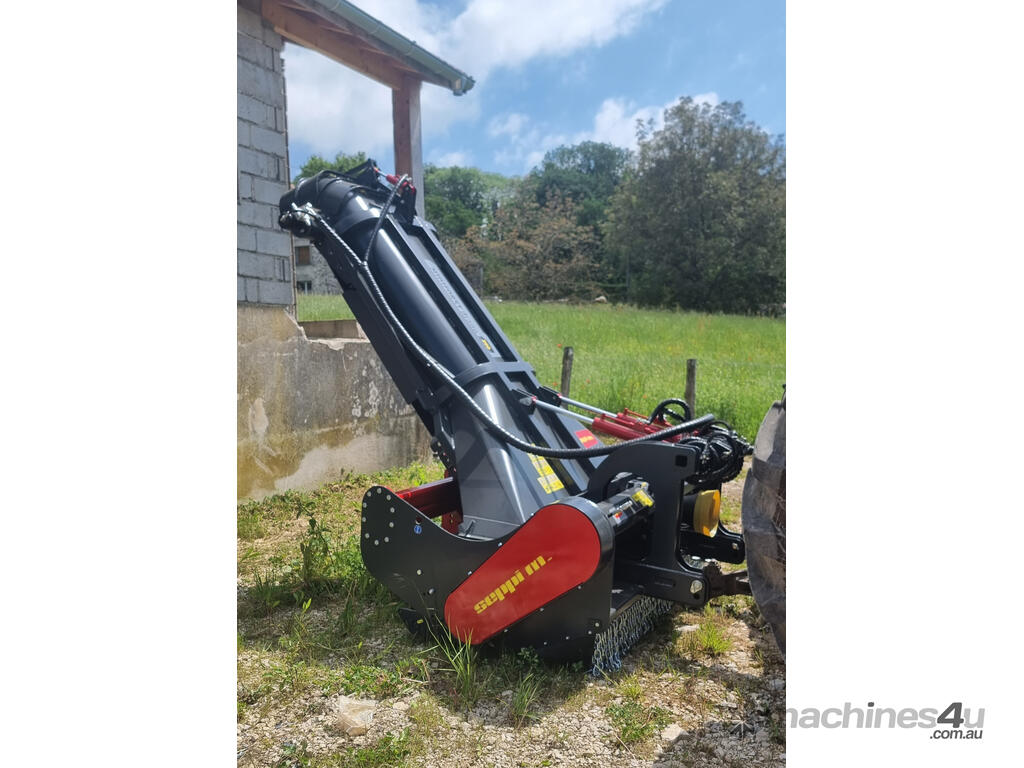

Hydraulically adjustable chute

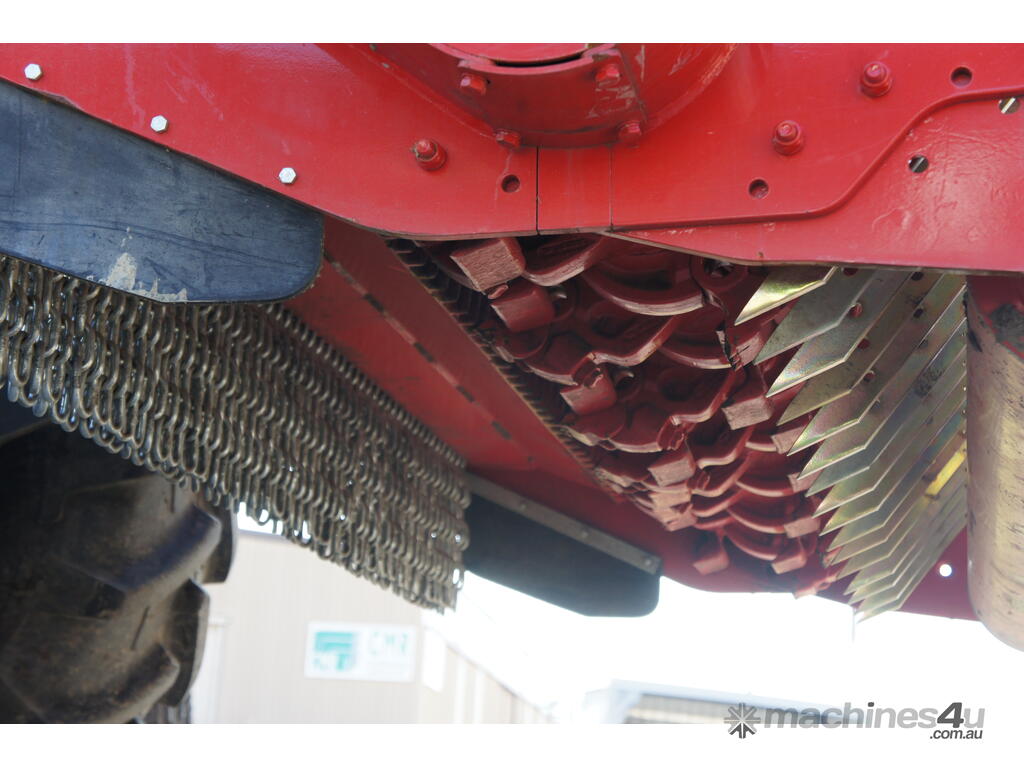

Standard rotor: combination of fixed tungsten carbide tips hammers and SMW flails
Working speed 0-5 km/h
ISO 3-point rear linkage cat. 2 central fixed
1000 rpm gearbox with freewheel
Shaft input 1 3/8” Z=6
Double drive with 10 belts
Trailer hitch
Support roller
Adjustable rear hood with variable rakes
Front and rear protection with chains
Colour: red RAL 3020

OPTIONS

PTO drive shaft
Chevrons
