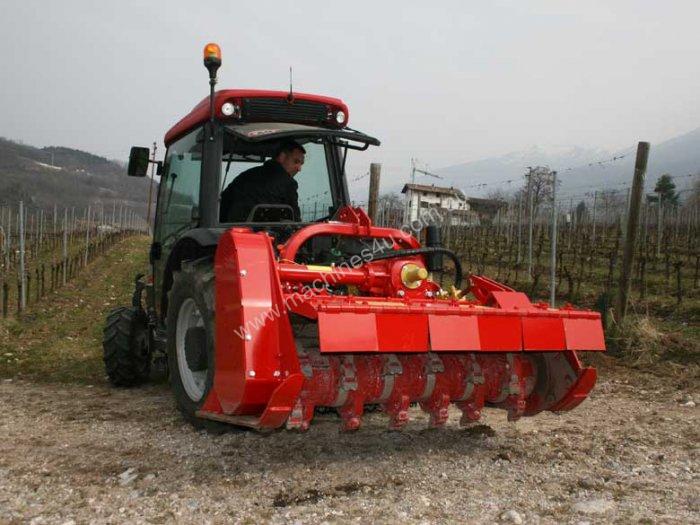

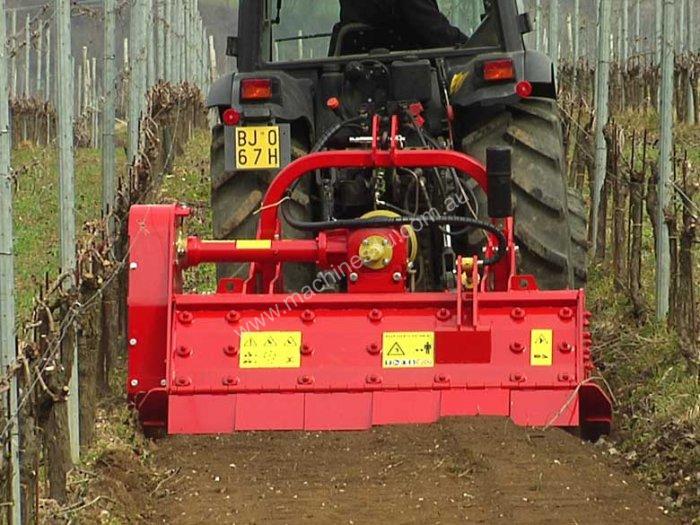

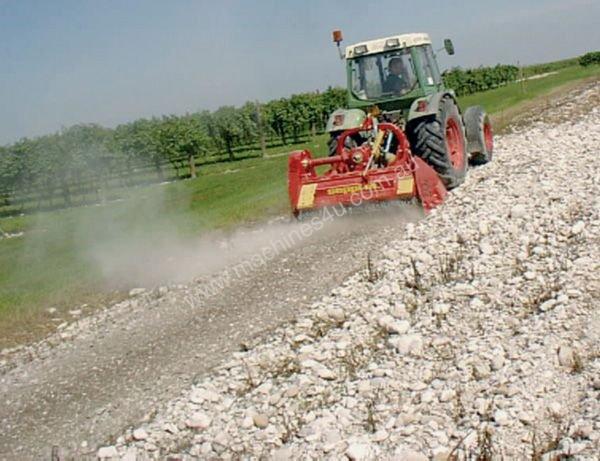

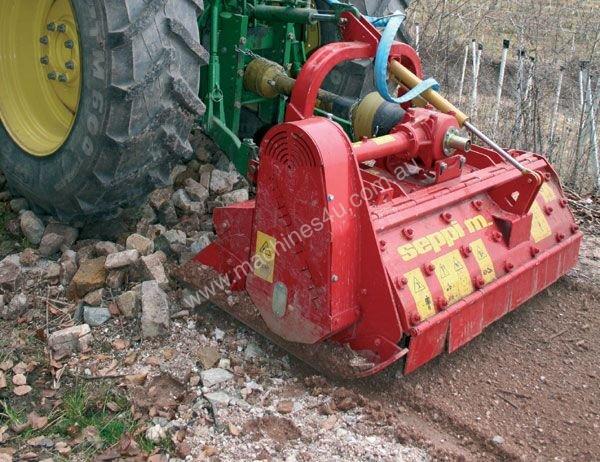

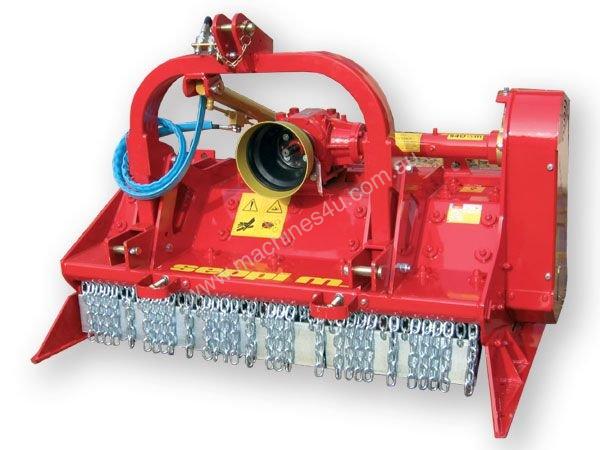

Seppi Midipierre rock crusher up to 20cm

Rock crusher 80-130 HP

Keep the field free from stones!

Crush and recycle stones up to 20 cm [8”] Ø.

The little stone crusher MIDIPIERRE clears land from stones, no matter whether for agricultural land, as a step of land reclamation, for the maintenance of ski slopes, or for land clearing and construction site preparation.
Very strong frame, for a very long life with reinforced frame made of wearresistant steel. Dimensions of the crushed stones adjustable by anvil bar. Chassis with internal replaceable plates. New generation patented rotor with efficient tool combination of the new type SUPER DUO PROTECT™ and SUPER DUO EXTREME™ with tungsten carbide tips and anti-wear hammer supports makes this mulcher very wear resistant.

Technical requirements for operating a stone crusher on a tractor are creep speeds and a hydraulic three-point tractor linkage.

Available working width: 125, 150 cm [49", 59"].

STANDARD VERSION

Crushes stones up to 20 cm [8”] Ø
Tills the soil as deep as 12 cm [4.7”] and deeper, depending on the working conditions
Rotor: combination of tungsten carbide tips hammers SUPER DUO PROTECT™ and SUPER DUO EXTREME™ with tungsten carbide tips, anti-wear knife support
Bolt-on-rotor shaft
Working speed 0–2 km/h
Required creeper gear: max. 0,5 km/h
ISO 3-point rear linkage cat. 2 central fixed
Gearbox 540 rpm with freewheel
Input shaft: 1 3/8” Z=6
Single drive
6 belts
Hydraulically operated hood
Chassis with internal replaceable plates made of wear-resistant steel
Skids, adjustable in height
Adjustable anvil bar to adjust the degree of crushing
Front and rear protection: double chains
Colour: red RAL 3020

OPTIONS

PTO drive shaft
1000 rpm gearbox
hydraulic top link
