Heavy duty flail mulcher 100 – 180 HP
The new S9 series opens the heavier range of SEPPI M. flail mowers. This NEW line is replaceing of OLS serie.
The result of 75 years of Innovation: more power, more lifetime, more productivity!

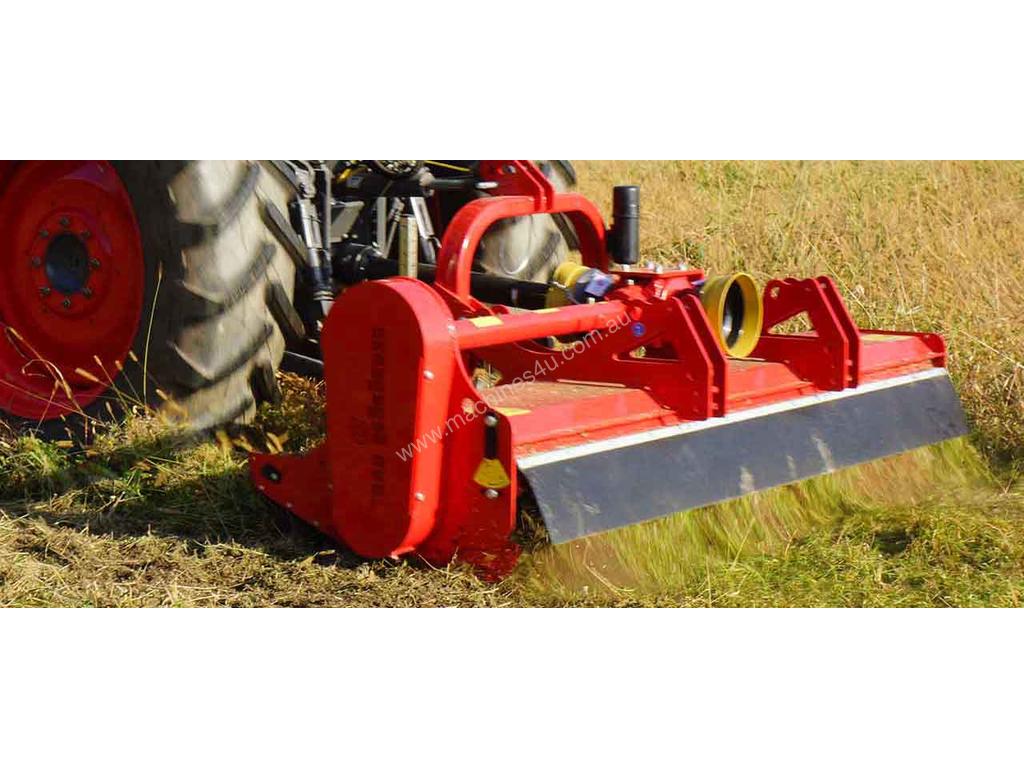

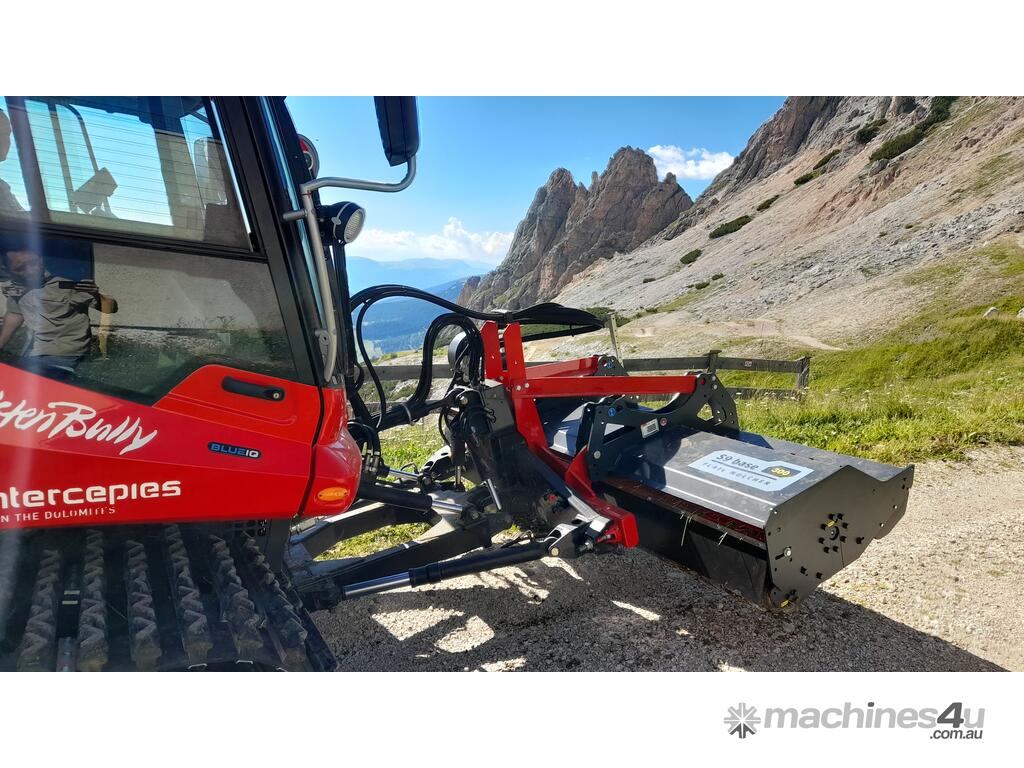

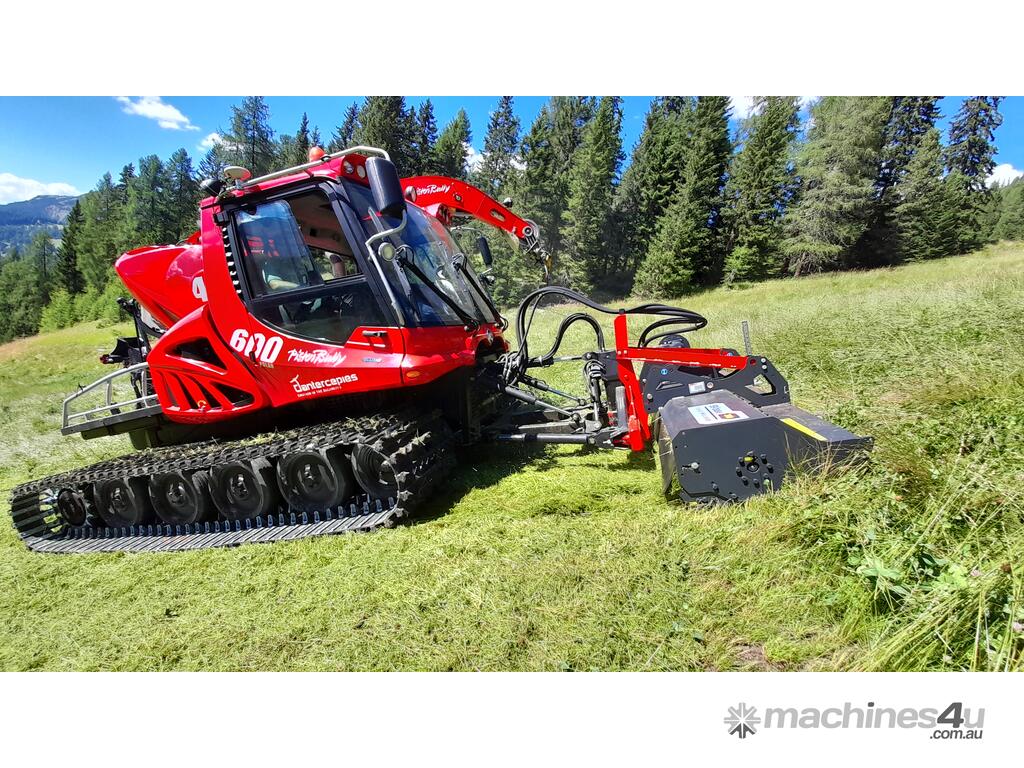

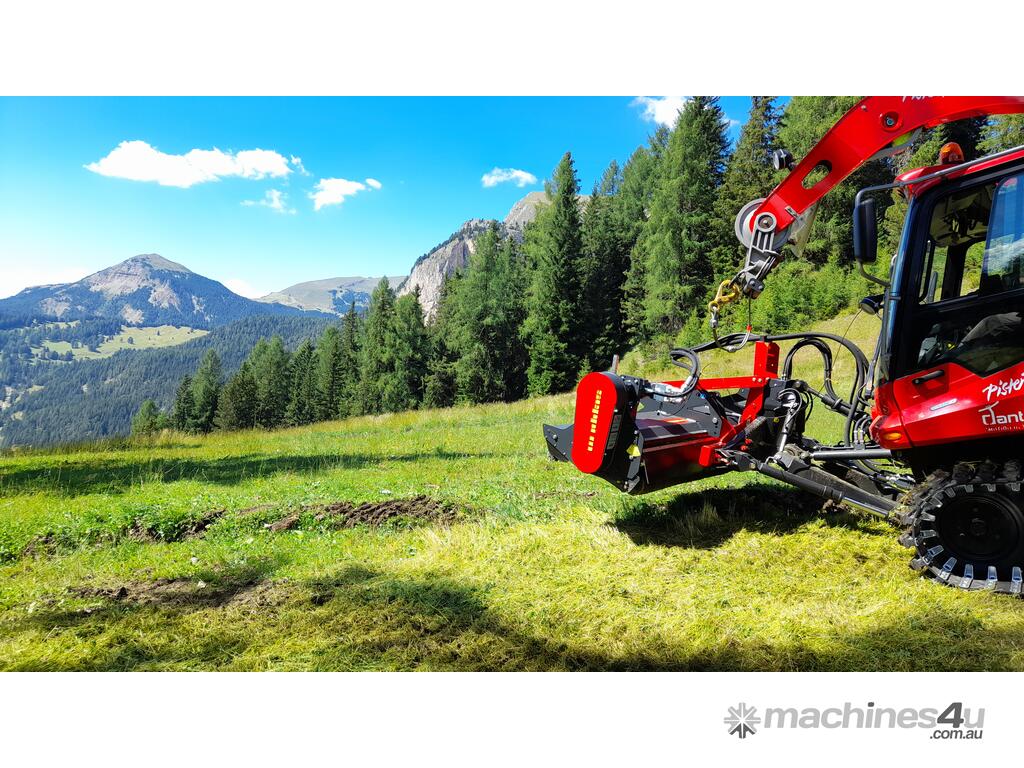

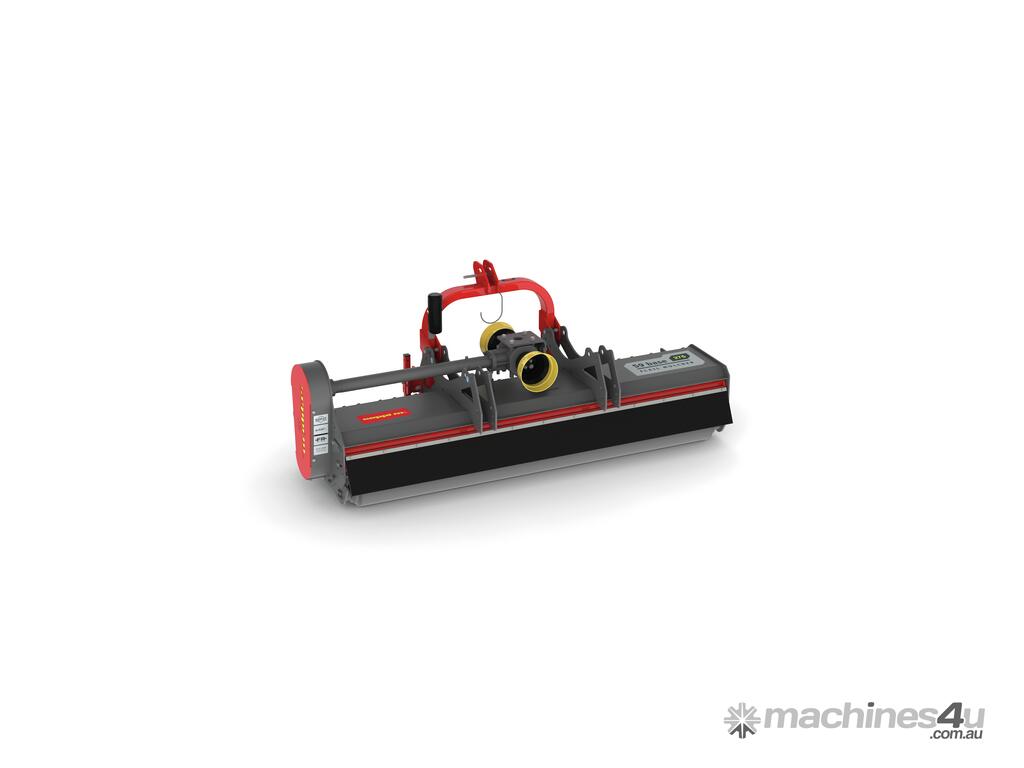

The “S9 base” is the basic model without side shift , with ISO 3-point linkage cat. 2 central fixed for reversible job. The hitch is easy changeable to change fast the working direction.

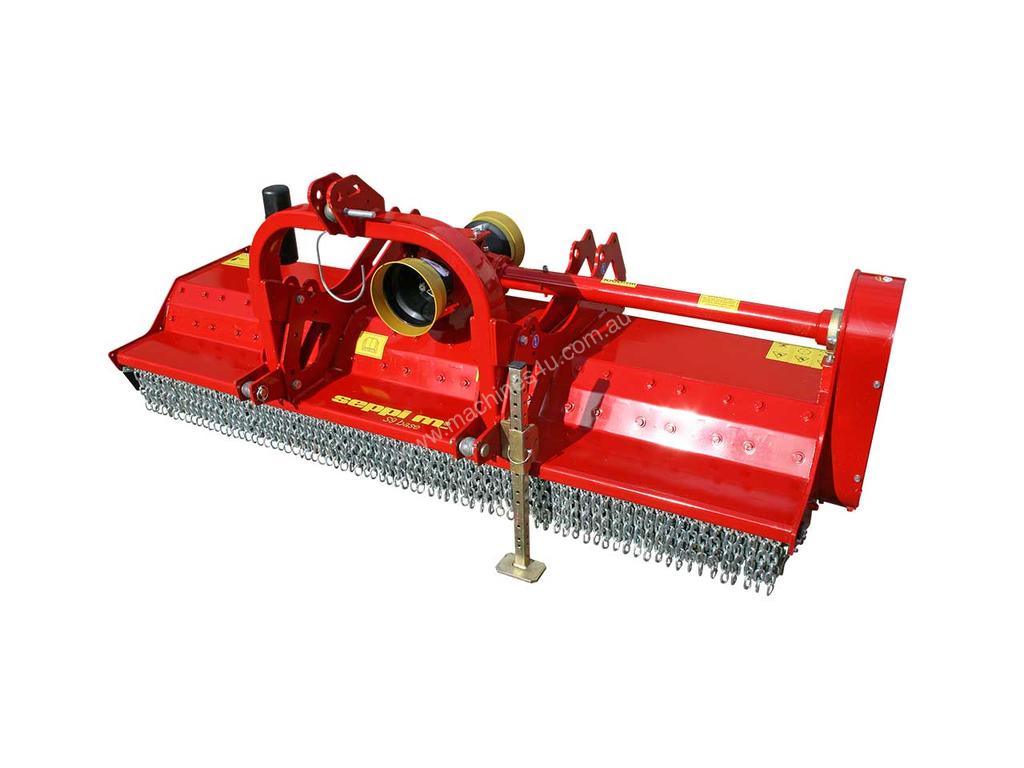

Casing made of high-tensile steel (S420), with internal replaceable wear plates, reinforced belt cover and strong, unique roller design using a double tapered roller bearing unit for a long life and the low maintenance costs. S9 machines mulch grass and vegetation up to 9 cm [3.5”] Ø. The rear hood allows adjustment of the degree of mulching.
Helical distributed and high resistent flails for universal use are for high cutting quality at uniformly distributed power. Double counterknives inside the casing will give a perfect result when mulching. Strong welded belt cover minimizes accidental damage. With the roller positioned close to the rotor, it is automatically cleaned by the rotating flails and the cut material is evenly distributed over the top of the roller. Adjustable large diameter roller positioned close to the rotor improves mulching on uneven ground and prevents scalping.

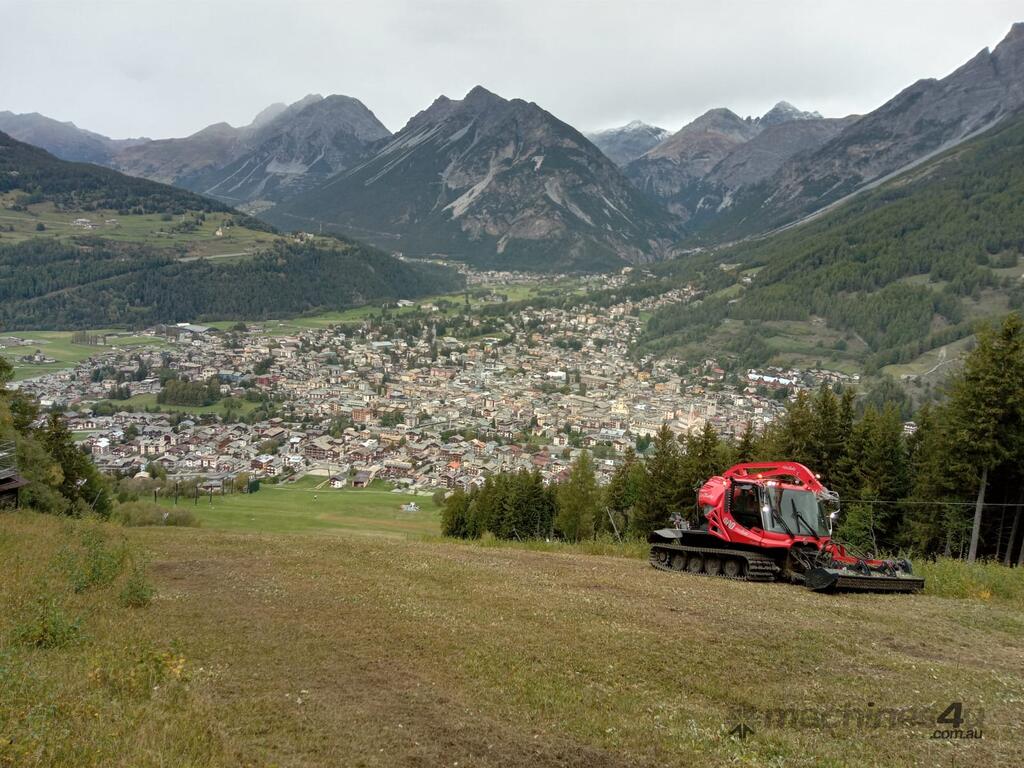

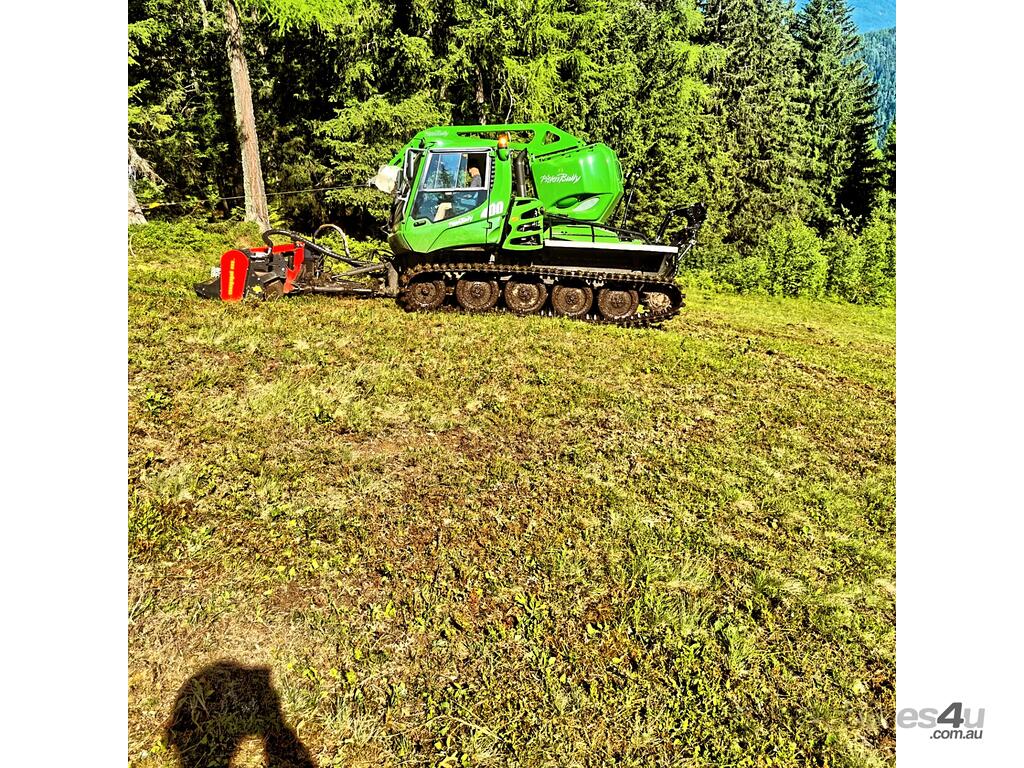

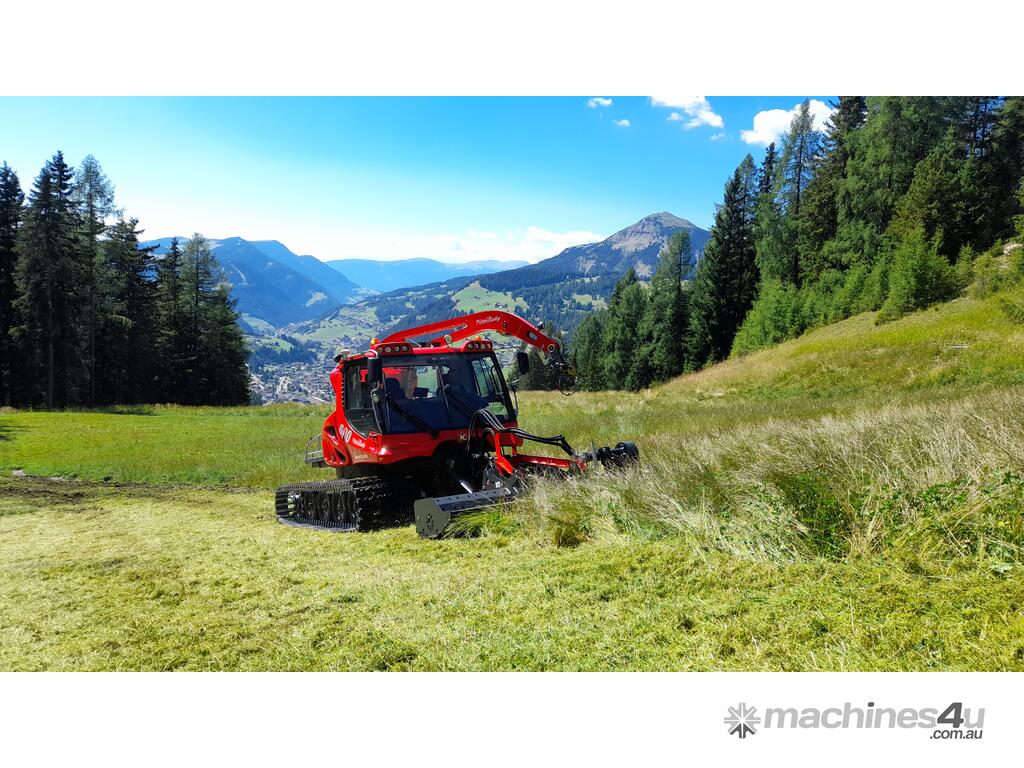

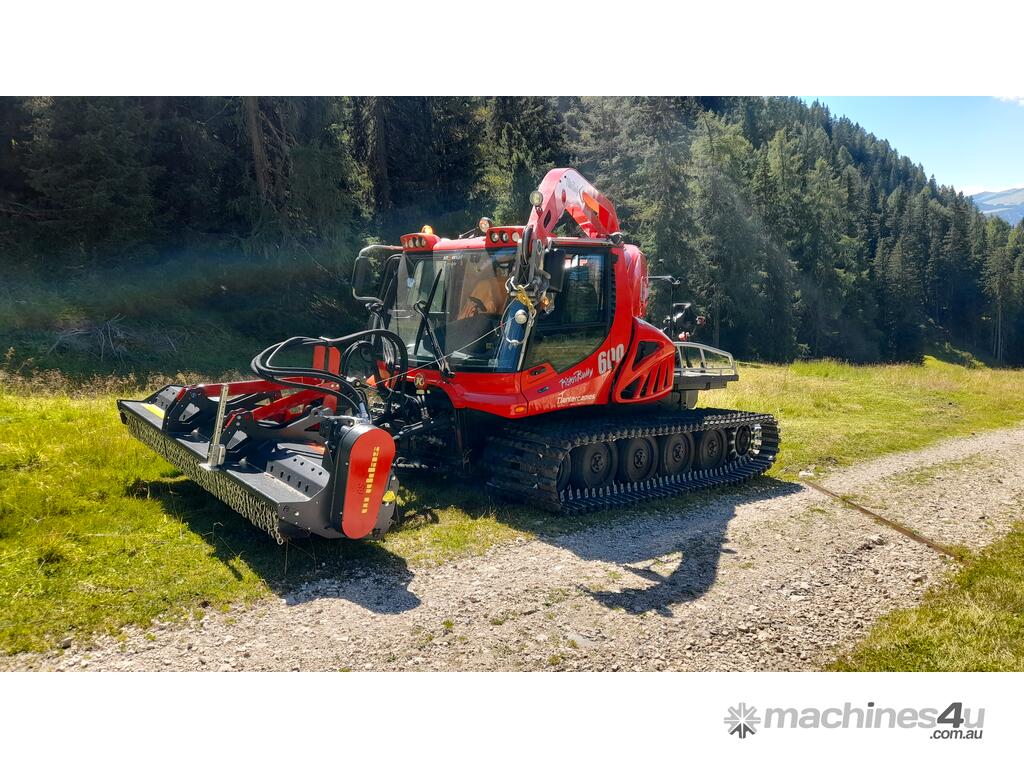

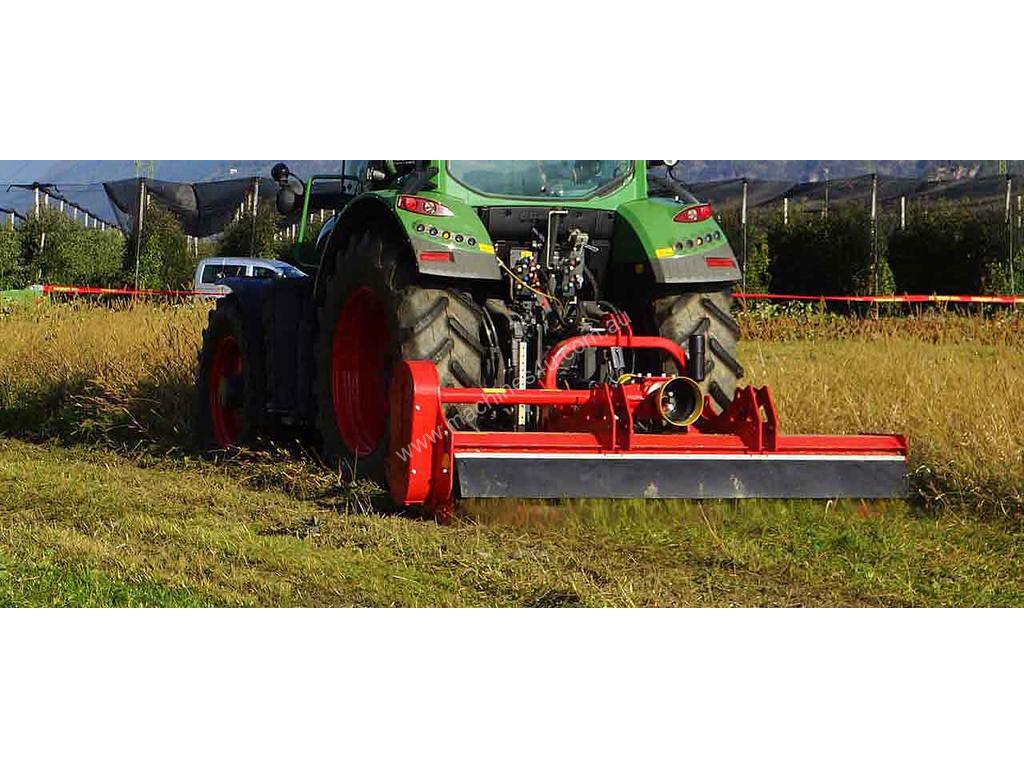

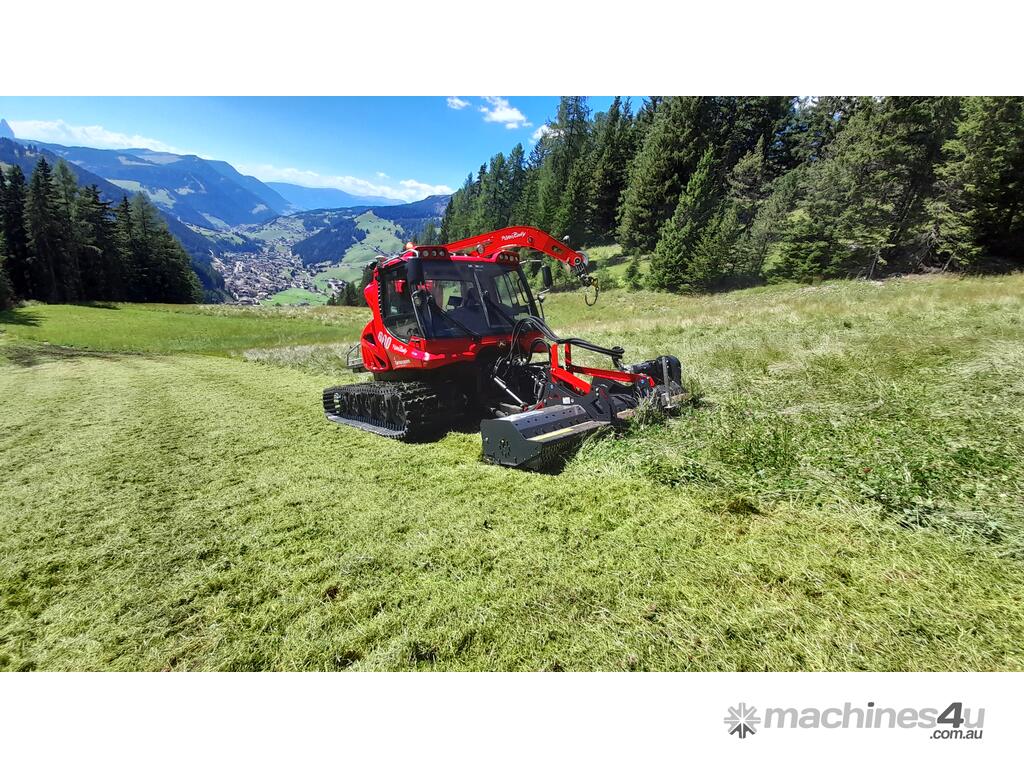

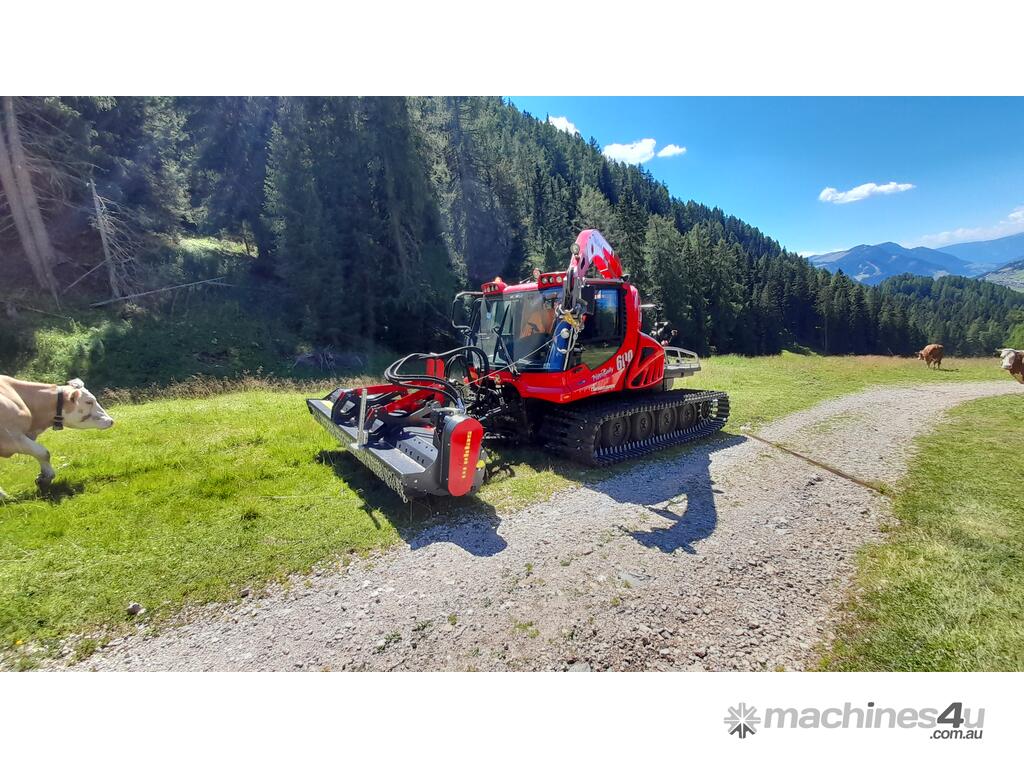

The S9 mulchers are suitable for the most varied uses: in agriculture for orchards, right-of-way management, creation of fire breaks, vegetation management, road side maintenance, land clearing and site prep…
Available working width: 200, 225, 250, 275, 300 cm [79'', 89'', 98'', 108'', 118''].
STANDARD VERSION
Mulches grass and prunings up to 9 cm [3.5”] Ø
Rotor with SMO flails
Rotor wall thickness: ? 250: 12,5 mm, ? 275: 16 mm
Working speed 3-10 km/h
ISO 3-point linkage cat. 2 central fixed reversible
Gearbox 1000 rpm with freewheel and through shaft
Input shaft 1 3/8” Z=6
Reinforced support roller, adjustable in height by 5 cm [2”]
Adjustable rear hood with rubber protection
Front protection with chains
Colour: red RAL 3020
OPTIONS
PTO drive shaft
Gearbox 540 rpm
Gearbox with manual inverter for reversible tractors
Additional 3-point linkage frame
Belt cover on the right for working on the left
Rubber gauge wheels
