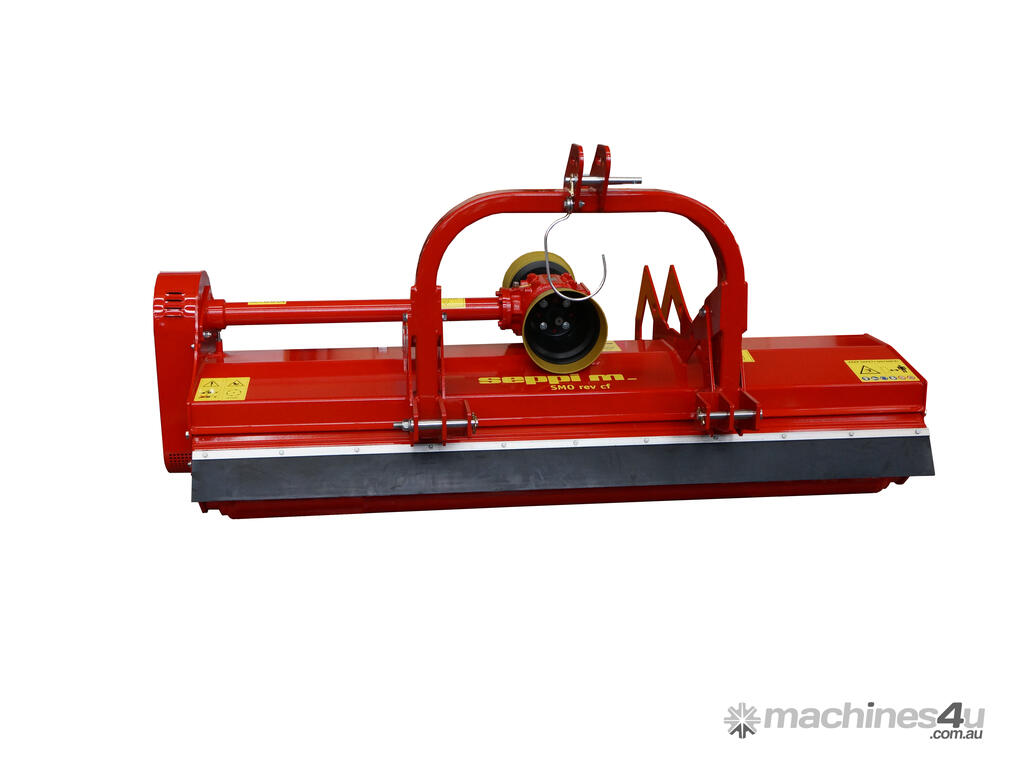

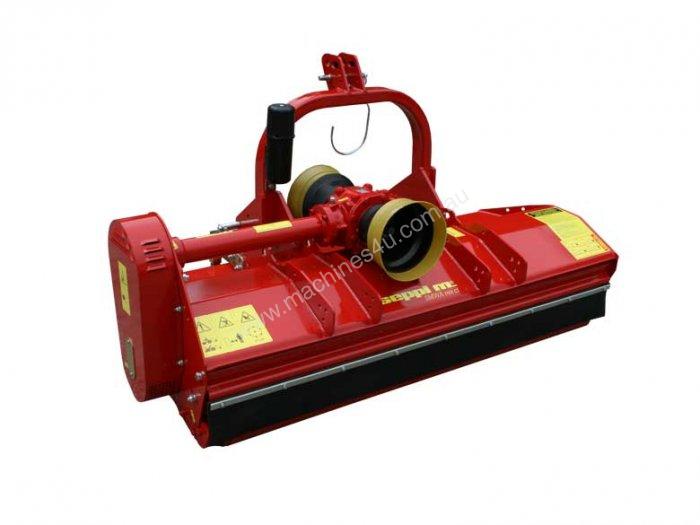

SMWA rev cf
medium duty flail mulcher for PTO/tractor 30-90 HP
The SMWA rev cf mulcher has in standard version manual side shift with two position bolt-on hitch: central and 17 cm [6.7?] to the right.
Agriculture or greenspace maintenance easy with the 30-90 HP tractor and the strong flail mower SMWA rev cf. This versatile mulcher is available in different working widths up 95 [37?] to 225 cm [89?]. Mulching grass, prunings and bushes up to 5 cm [2?] in diameter.

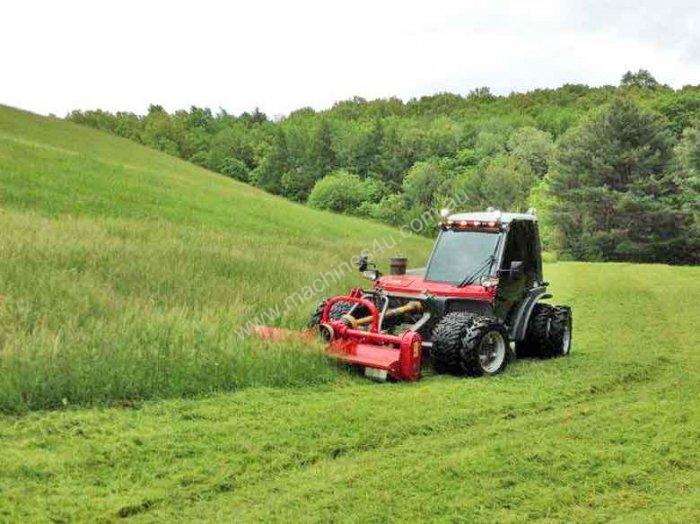

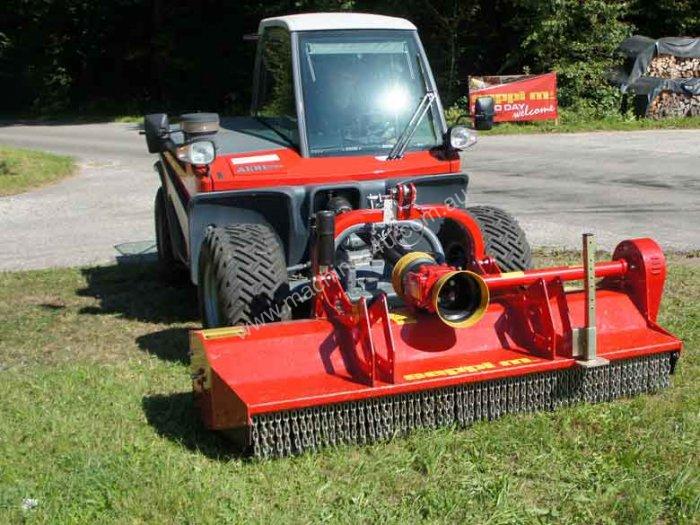

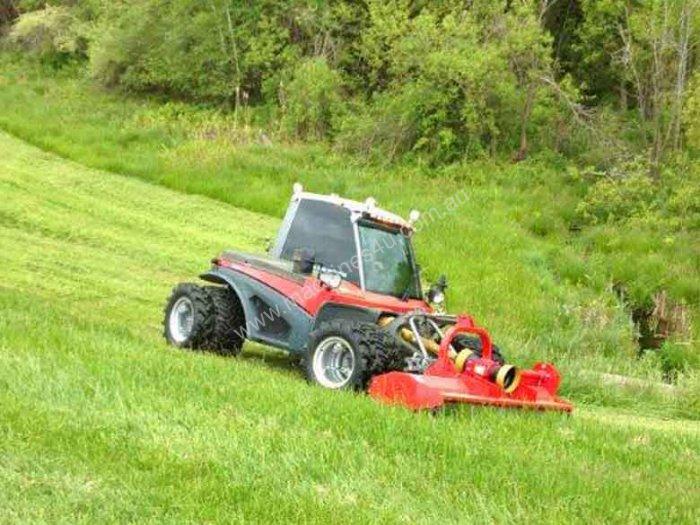

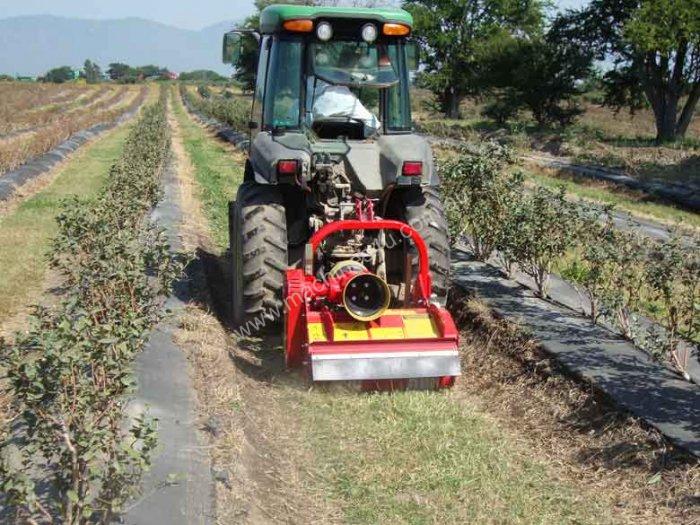

The reversibility of this mulcher makes possible to fit the machine on the front or back of tractor.
Helical distributed and high resistent SMW-flails for universal use are for high cutting quality at uniformly distributed power. SMWA rev cf casing is very resistent, made of high-tensile steel. Double counterknives inside the casing will give a perfect result when mulching. Adjustable roller with double tapered roller bearings unit for a long life and the low maintenance costs. The roller is positioned close to the rotor improves mulching on uneven ground and prevents scalping.
Certified safety: GS EN13524 (types 175/200 + OPT 006) rubber protection against impact of stones.
Available working width: 95, 105, 115, 125, 135, 145, 155, 175, 200 cm [37'', 41'', 45'', 49'', 53'', 57'', 61'', 69'', 79''].
STANDARD VERSION
Mulches grass and prunings up to 5 cm [2?] Ø
Standard rotor with SMW flails
Working speed 3–10 km/h
ISO 3-point linkage cat. 1&2 central fixed reversible
Manual side shift 17 cm [6.7?]
540 rpm gearbox with freewheel and through shaft
Input shaft 1 3/8? Z=6
Belts: ? 155: 3, ? 175: 4
Reinforced support roller, adjustable in height by 5 cm [2?]
Adjustable rear hood with rubber protection
Front protection: metal flaps
Colour: red RAL 3020
And other options of choice.
OPTIONS
PTO drive shaft
Rotor with Y knives
1000 rpm or 750 rpm gearbox
Gearbox with automatic inverter and double freewheel
Front attachment

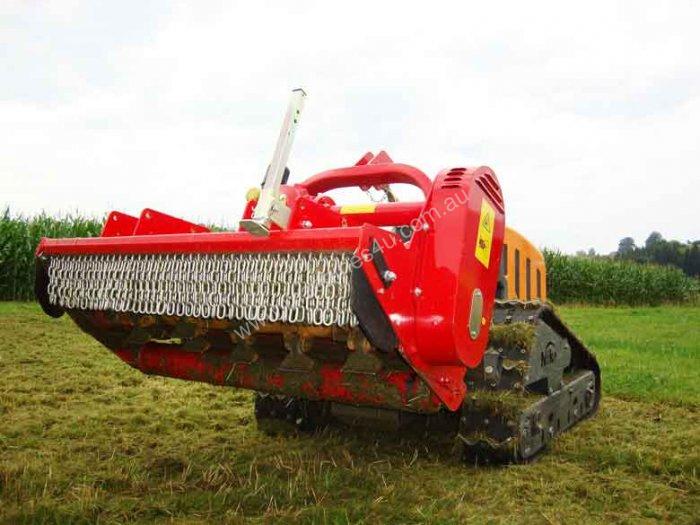

Front protection with chain
XID – herbicide spraying system
X-FAST™ single or double – coupling system for under-canopy equipment
And other options of choice.
Under canopy equipment:
XSC – outrigger, rotary mower
XSA – cultivator
XSP – shoot remover
XAN – sweeper
