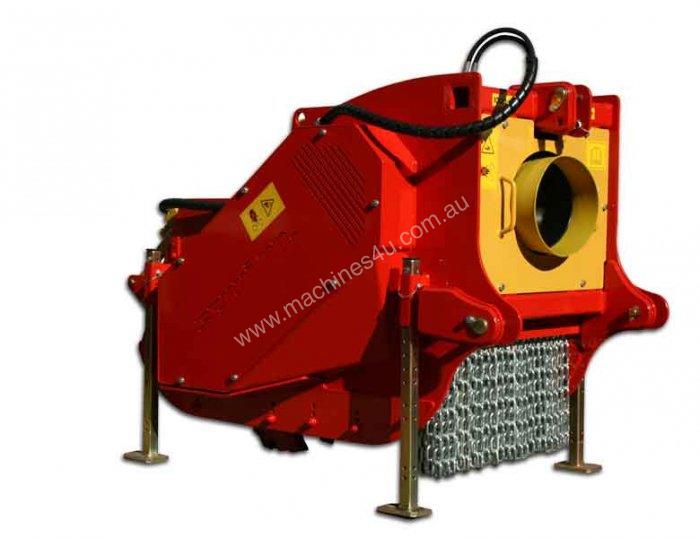

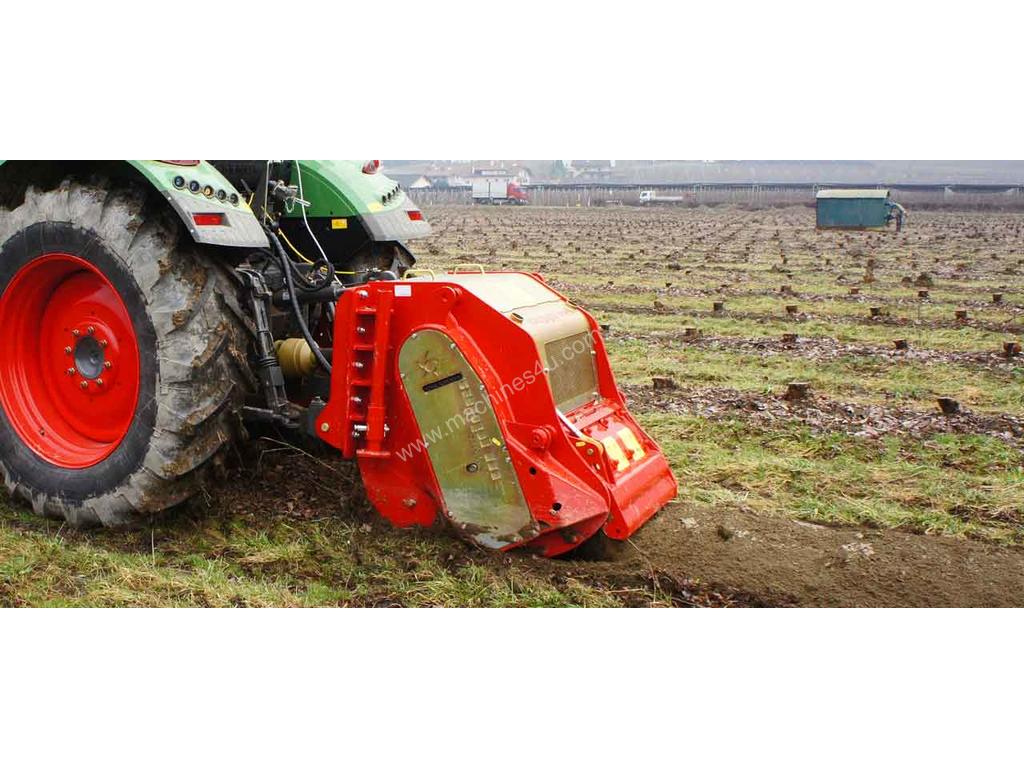

Seppi STAR-FC stump grinder

Seppi STAR-FC stump grinder 120-260 HP

Multi-purpose tiller – More than just a stump grinder!

Grinds & mulches wood up to 40 cm [16?] Ø
Crushes stones up to 15 cm [6?] Ø as deep as 30 cm [12?] below the surface
NEW! ISOBUS system
The SEPPI STAR-FC Multi-purpose tiller: grinds stumps and wood, crushes stones and tills the soil, in order to set up best conditions for replanting.

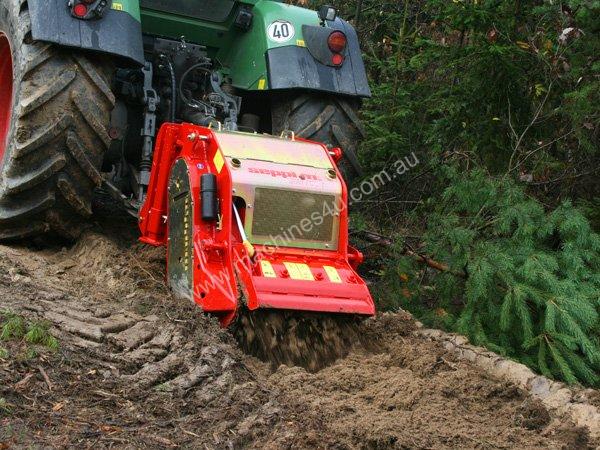

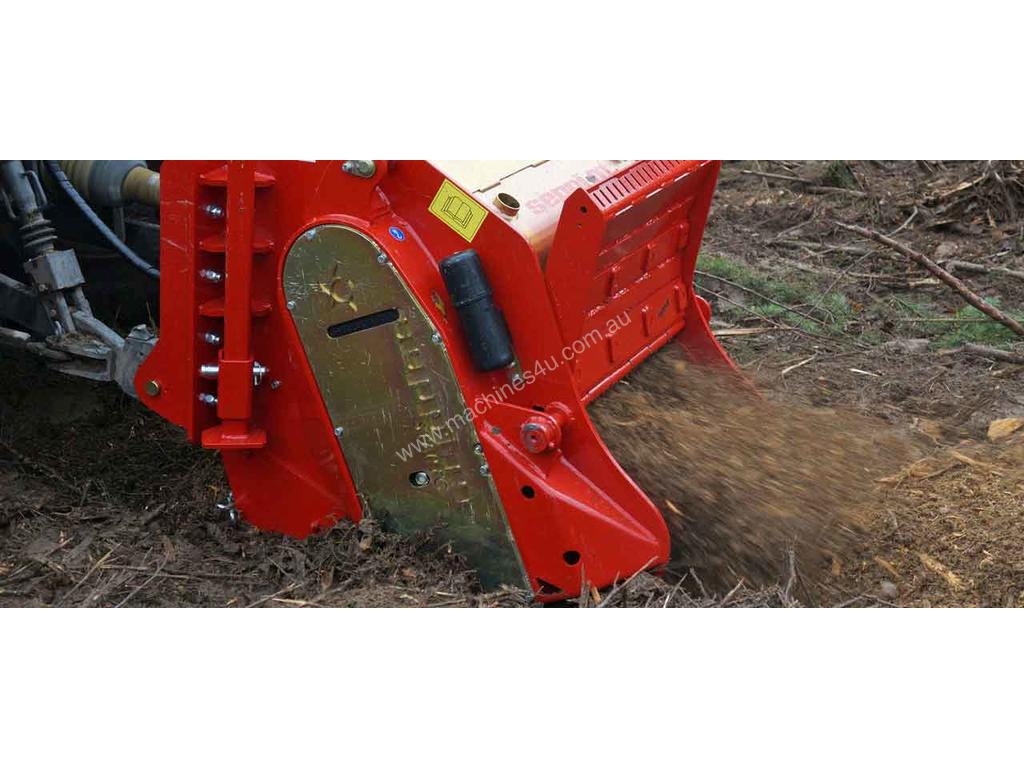

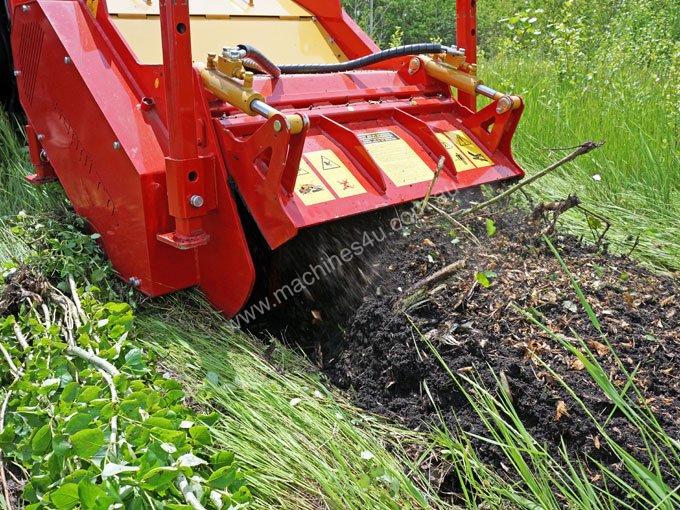

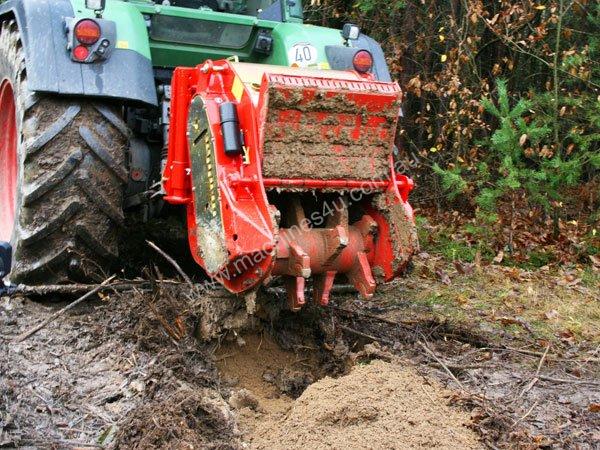

It eliminates tree stumps up to a depth of 30 cm [12?] by grinding them into small pieces and mixing them with the soil.

Very strong frame, for a very long life with reinforced frame made of wear resistant S420 steel. Chassis with internal replaceable WEAR PLATES. rows of tempered COUNTER CUTTERS inside the chassis gives a perfect result while mulching. New generation patented rotor V-LOCK, more exposed for tilling the soil, with efficient hammer combination of the new type, ULTRA MONO PROTECT + lateral EXTREME with tungsten carbide tips at points most subject to wear, makes the stump grinder STAR-FC very resistant. Anti-wear hammer supports protect the hammers and rotorshaft. The exchange of the tools is very simple. The security and long life of the transmission guaranteed by dual safety mechanism with friction clutches and automatic torque limiter.

NEW! SEPPI now applies an ISOBUS control system as standard on many of our machines! The ISOBUS socket of the mulcher is connected to the tractor allowing some functions to be monitored and controlled by the on-board computer in the tractor.

Available working width: 75, 100 cm [30?, 39?].

APPLICATIONS
Crushing stones on roads, farms and other areas
On the construction site
Stumps grinding

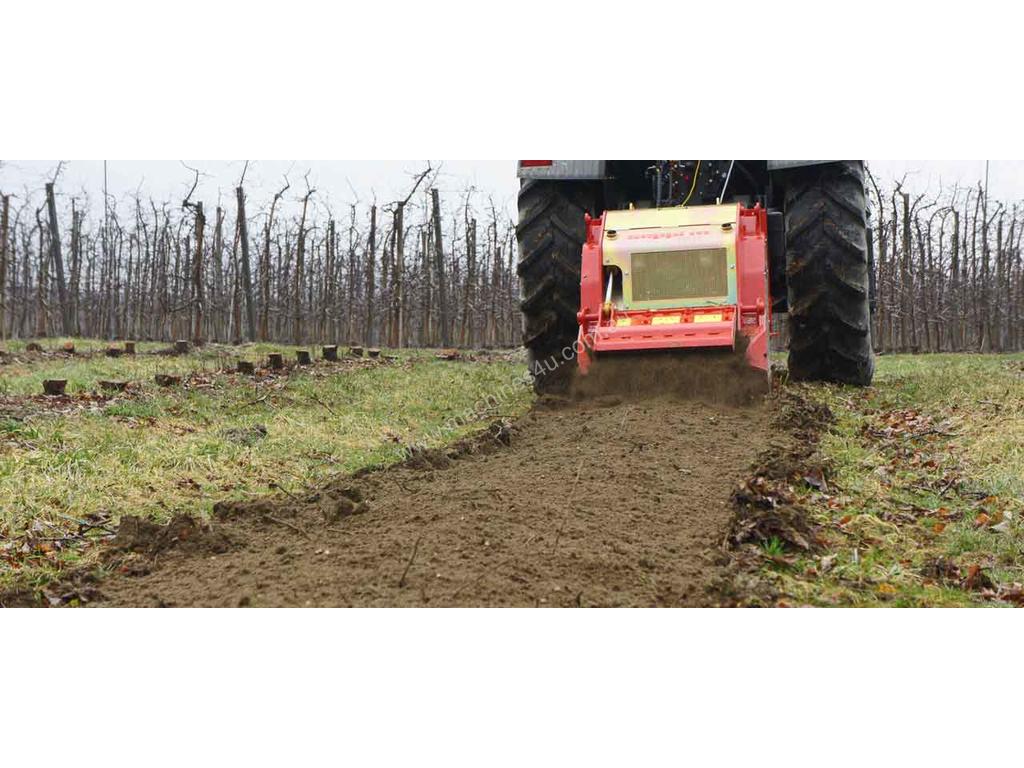

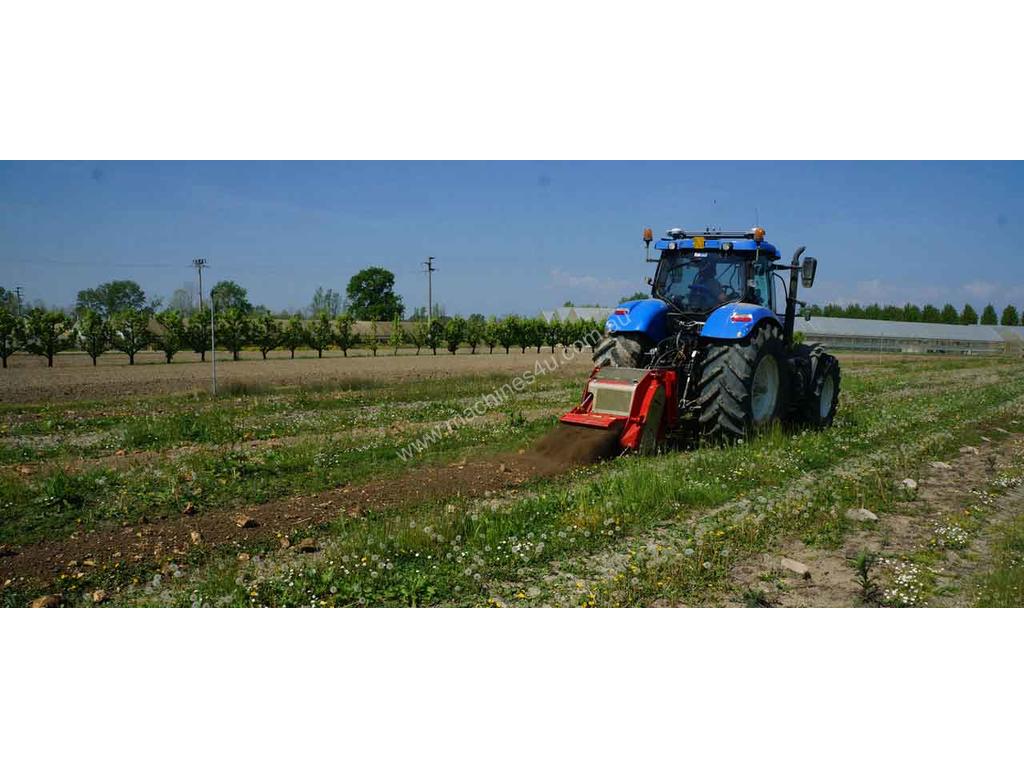

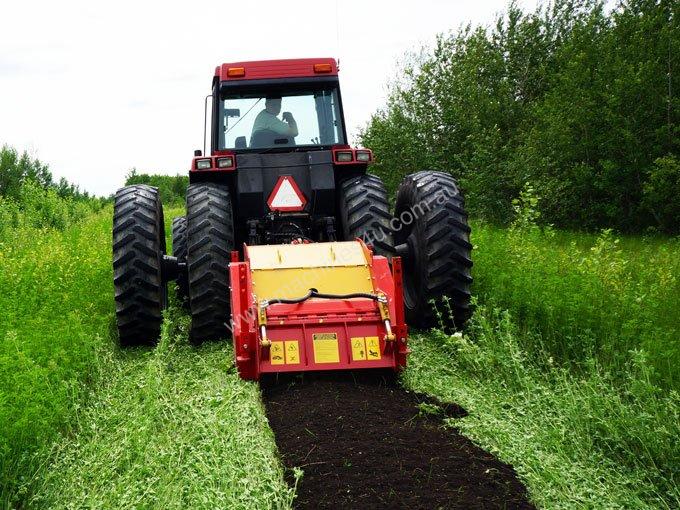

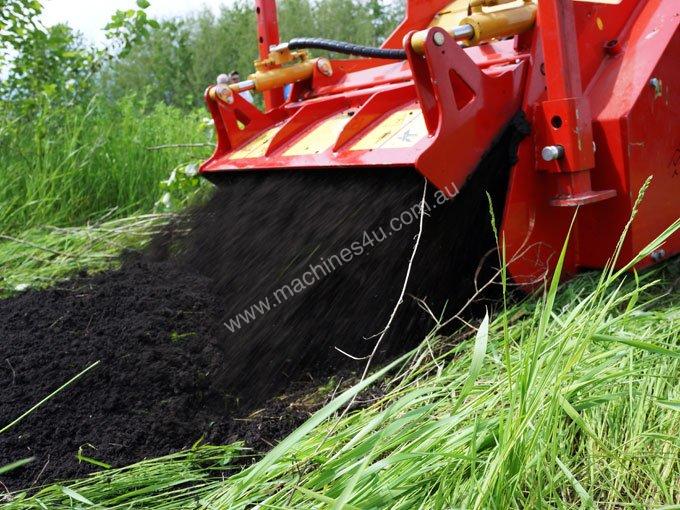

Prepare soil for (re)planting
Vegetation management

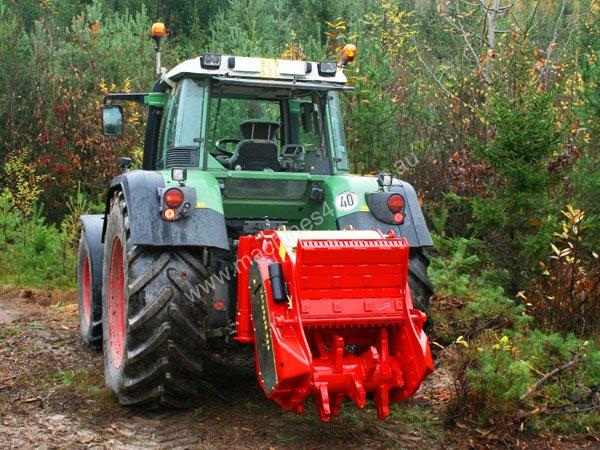

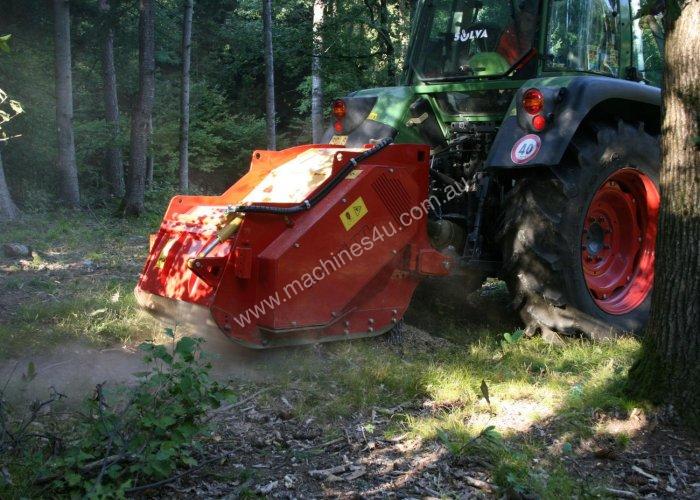

For forests, green space and steep slopes
STAR-FC – STANDARD VERSION:
Grinds and tills as deep as 30 cm [12”] below the surface
Grinds and mulches wood up to 40 cm [16”] Ø
Crushes stones up to 15 cm [6”] Ø
Rotor V-LOCK with tungsten CARBIDE inserts hammers ULTRA MONO PROTECT V-LOCK+ lateral EXTREME
Anti-wear hammer support
Bolt-on-rotor shaft
Working speed 0-2 km/h
ISO 3-point rear linkage cat. 2 central fixed
Double drive
1000 rpm gearbox with freewheel
Parallel gear transmission with integrated cooling circuit
ISOBUS system (temperature, cooling, hour counter) – requires a tractor with ISOBUS terminal (or see optional*)
Hydraulically operated hood
Protection: double chains
Narrow in-depth skids
Colors: red RAL3020 & charcoal RAL7021
OPTIONS
PTO drive shaft with torque limiter
*ISOBUS terminal for ISOBUS-ready tractors
*RETROFIT – ISOBUS compatible system for older tractors
And other options of choice.
